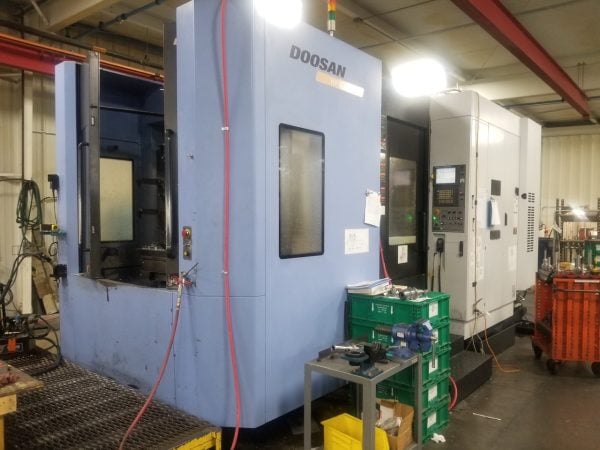

Doosan HP 6300 CNC HMC, 2008
$99,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Pallet Size: 630mm
Pallet Size 24.8″ x 24.8″
X-Axis Travel 39.37″
Y-Axis Travel 33.46″
Z-Axis Travel 29.1″

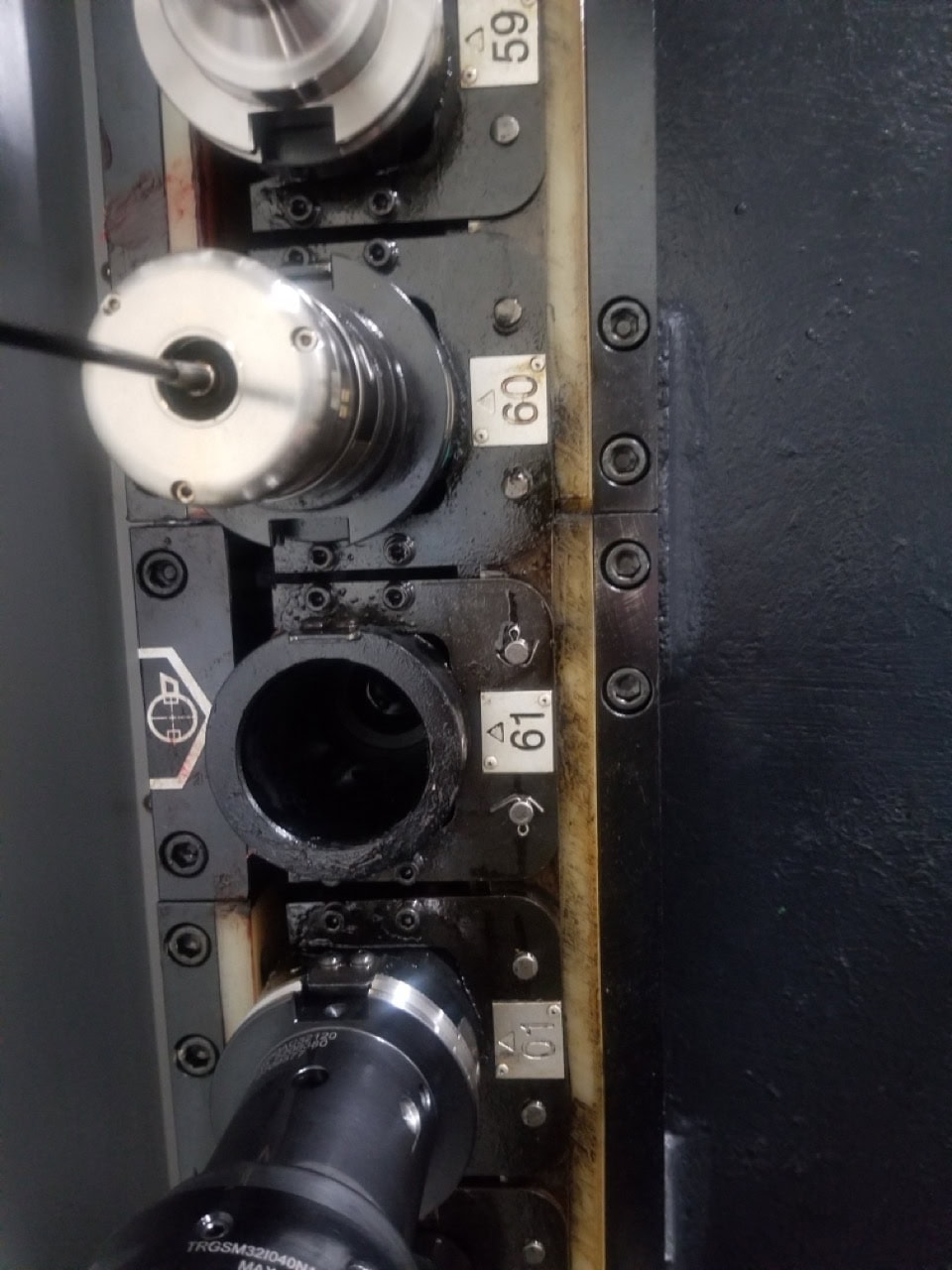

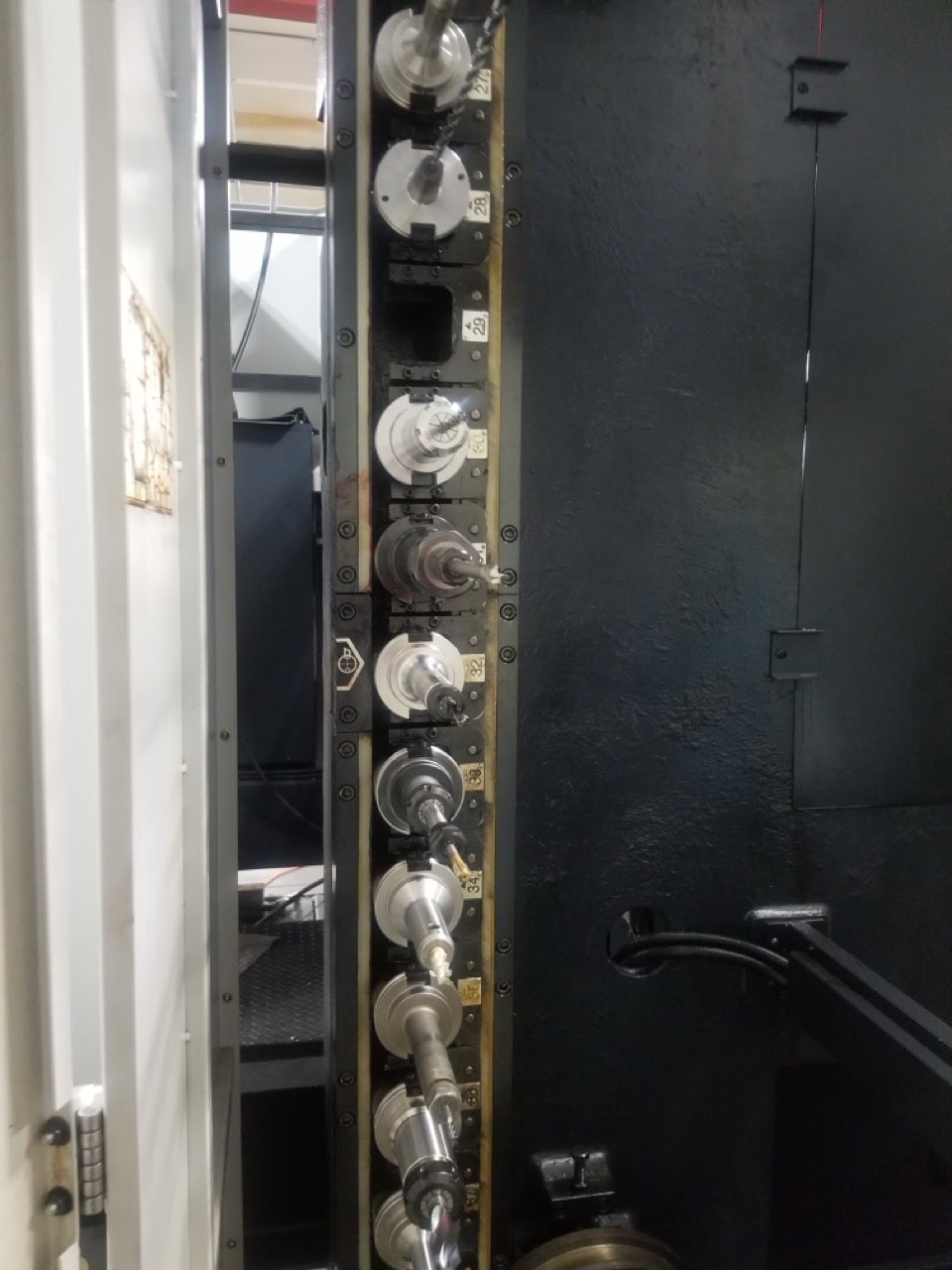

Tool Magazine Capacity 60 ATC
Spindle Speed 10,000 RPM
Spindle Taper CAT 50

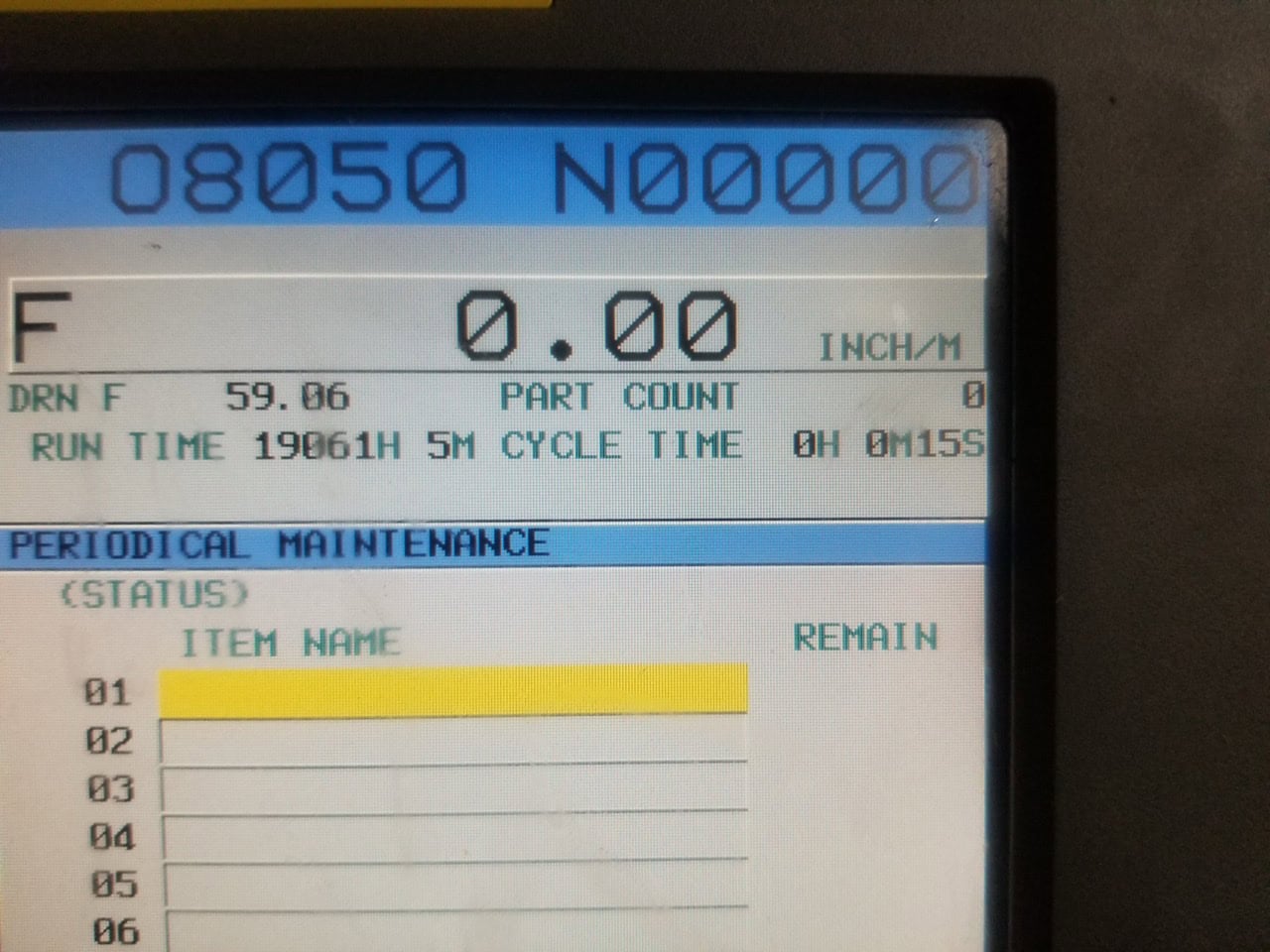

Control Fanuc 18i-MB
Pallet Indexing Full 4th Axis
Spindle Motor 30 HP
Spindle Nose to Pallet Center 11″
Spindle Center to Pallet Top 4.5″
Rapid Traverse Rate (X/Y/Z) 1,889 IPM
Max Cutting Feed Rate 944 IPM
Max Tool Diameter 4.9″
Max Tool Diameter without Adjacent Tools: 9.8″
Coolant Through-Spindle Coolant
Max Workpiece Weight 2,650 Lbs
Max Tool Weight: 44 Lbs
Approx. Dimensions 230″ x 140″ x 132″
Approx. Weight 46,300 Lbs
