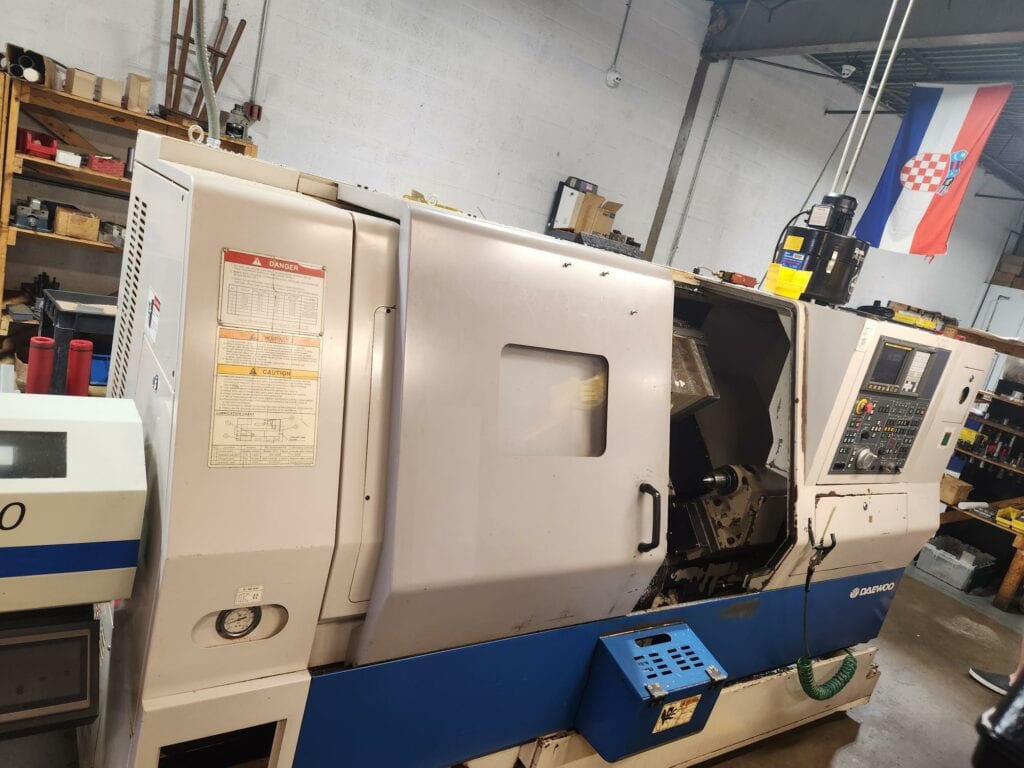

Doosan Puma 240B CNC Lathe, 2005 – Bar Feeder, Tailstock, Parts Catcher


Request a Quote to Instantly See Pricing

Call Now

Machine Type: CNC Lathes
Make: Doosan
Model: Puma 240B
Year: 2005
Machine Location: Illinois
Stock #: 560177

Max Swing Over Bed: 21.65″
Max Swing Over Carriage: 15.35″
X-Axis Travel: 19.53″
Z-Axis Travel: 22.83″
Max Machining Length 22.13″
Turning Diameter: 13.78″
Spindle Speed: 4,500 RPM
Spindle Bore / Bar Capacity: 2.99″ / 2.5″
Spindle Motor: 20 H.P.
Spindle Nose: A2-8
Turret Stations: 12
Tailstock Taper MT#4

Equipped With:
Fanuc 0i-TC CNC Control
Automatic Tool Setter
2-Speed Gear Box
SMW Spacesaver 2200 Bar Feeder
Parts Catcher
Mist Collector

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
