Econocorp Econoseal Spartan 11234 Manual End-Loaded Style Glue Cartoner, 2023

Used Econocorp Econoseal Spartan 11234 Manual Cartoner, 2023:

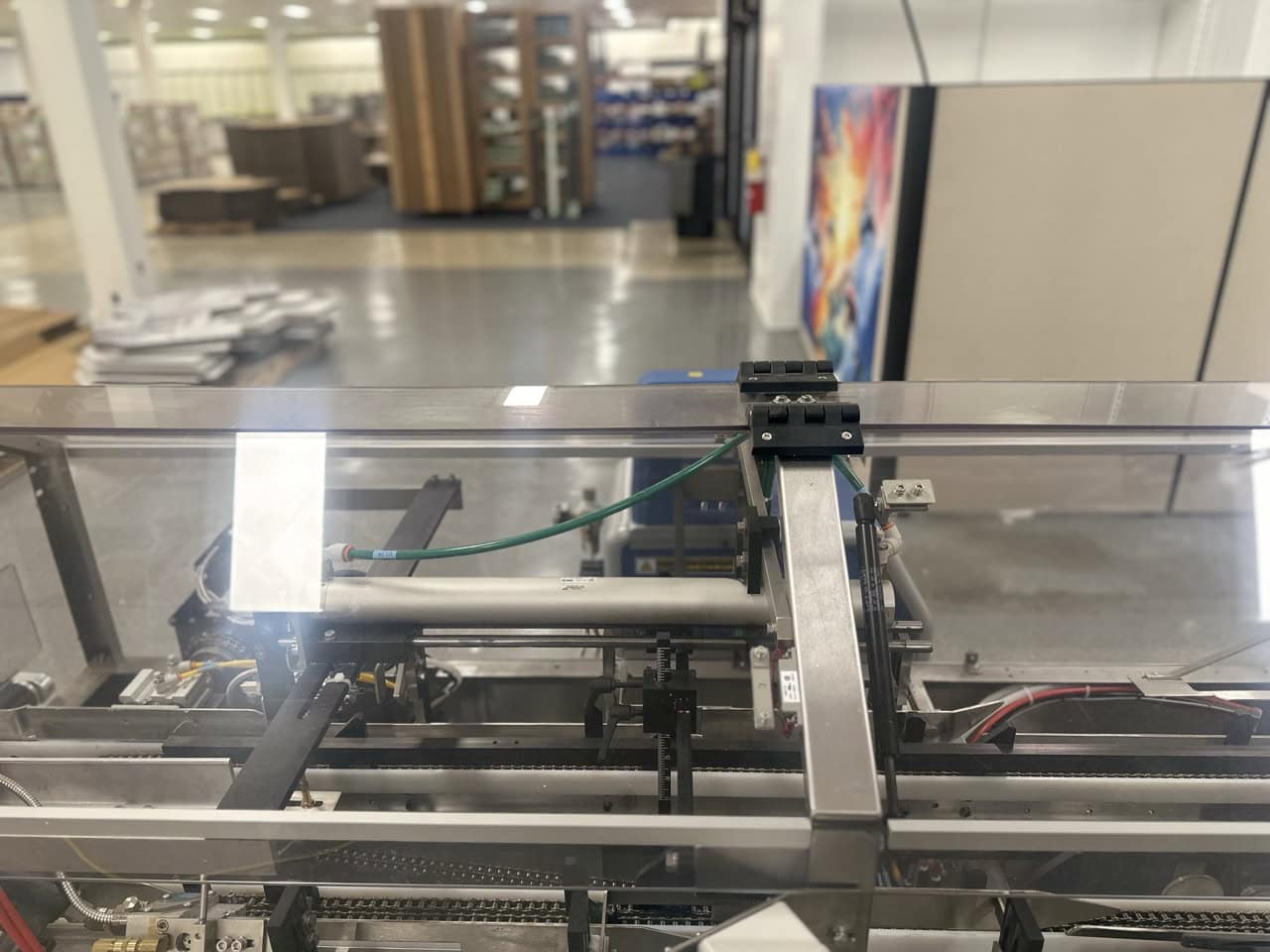

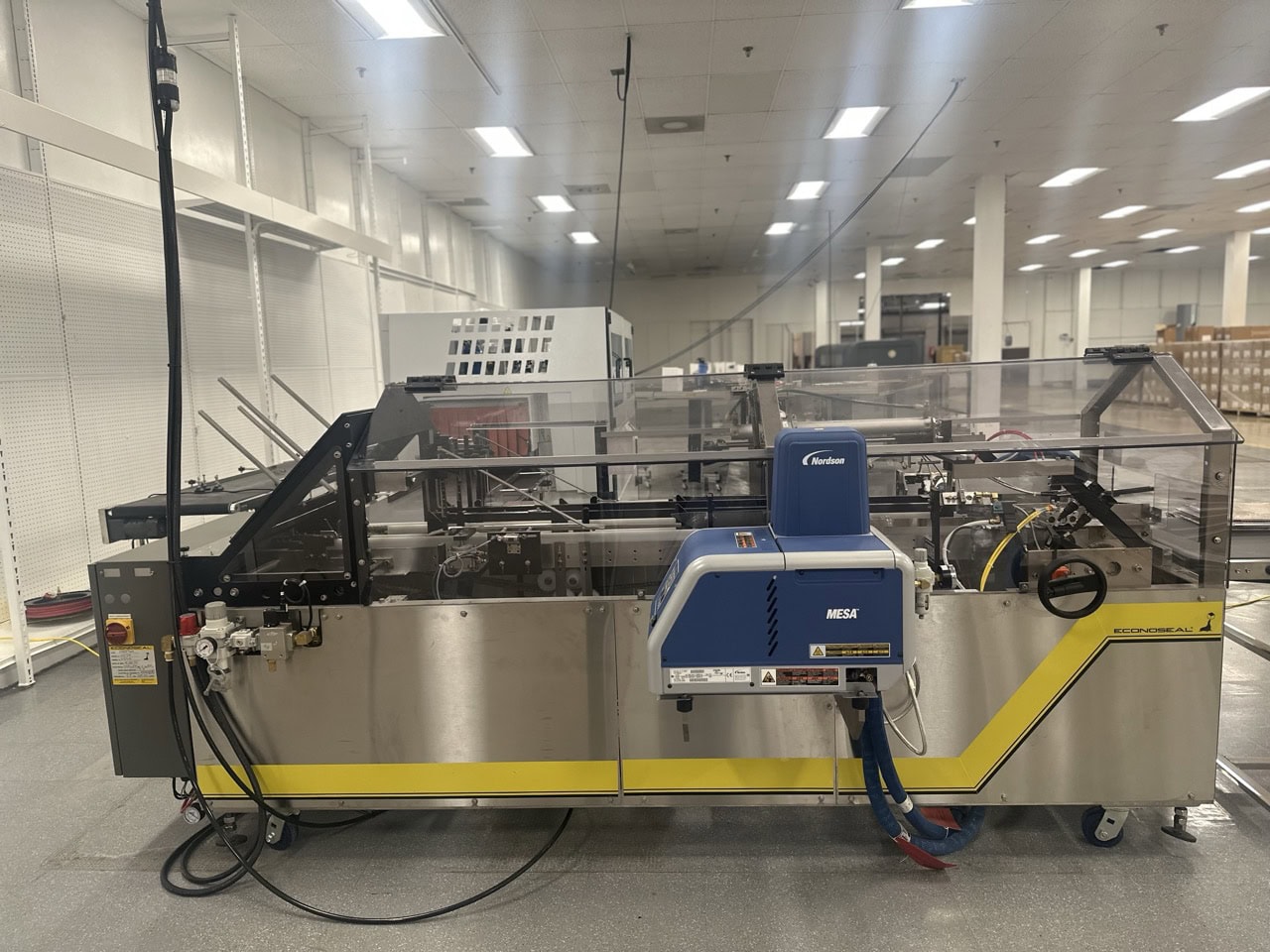

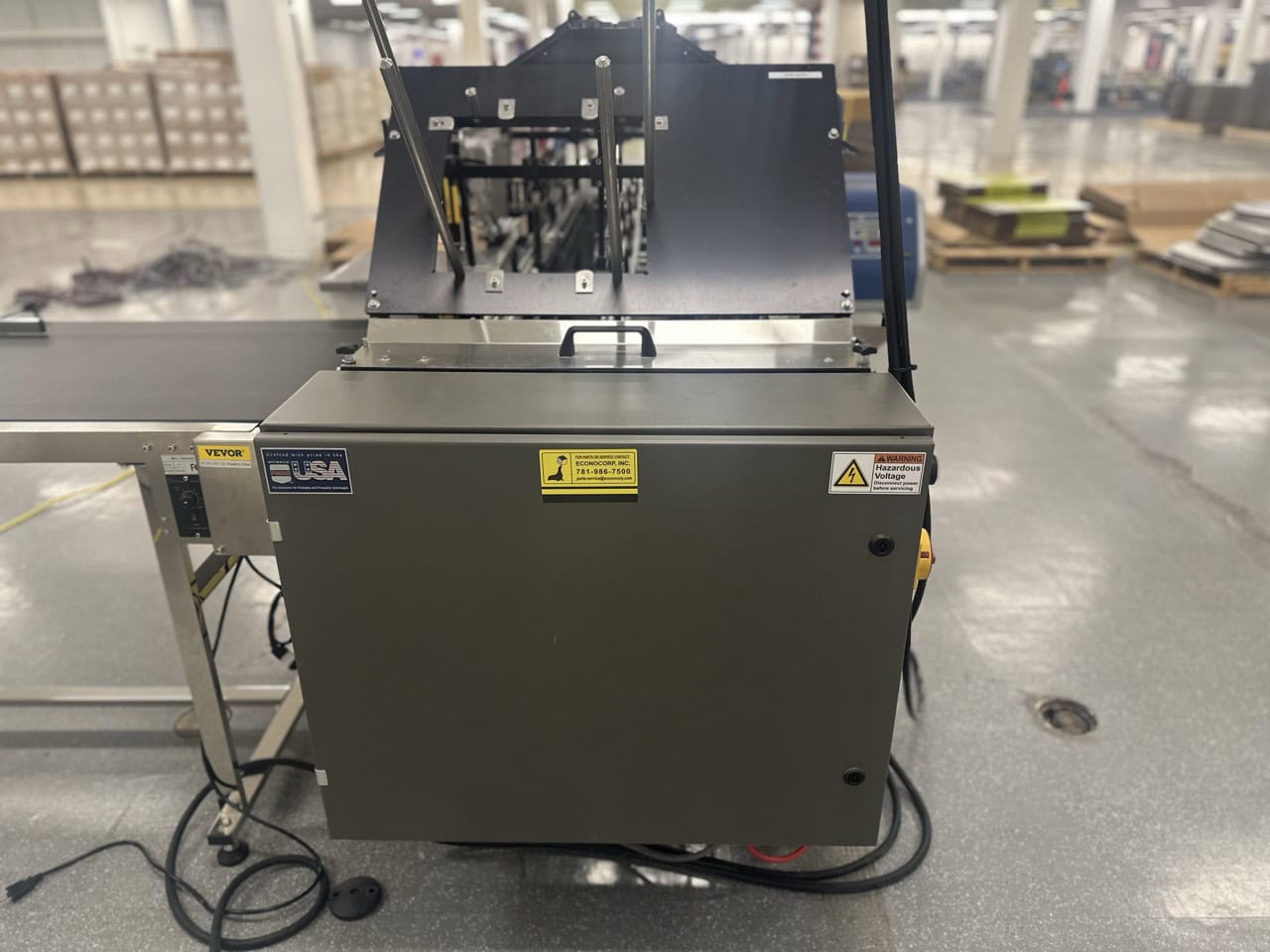

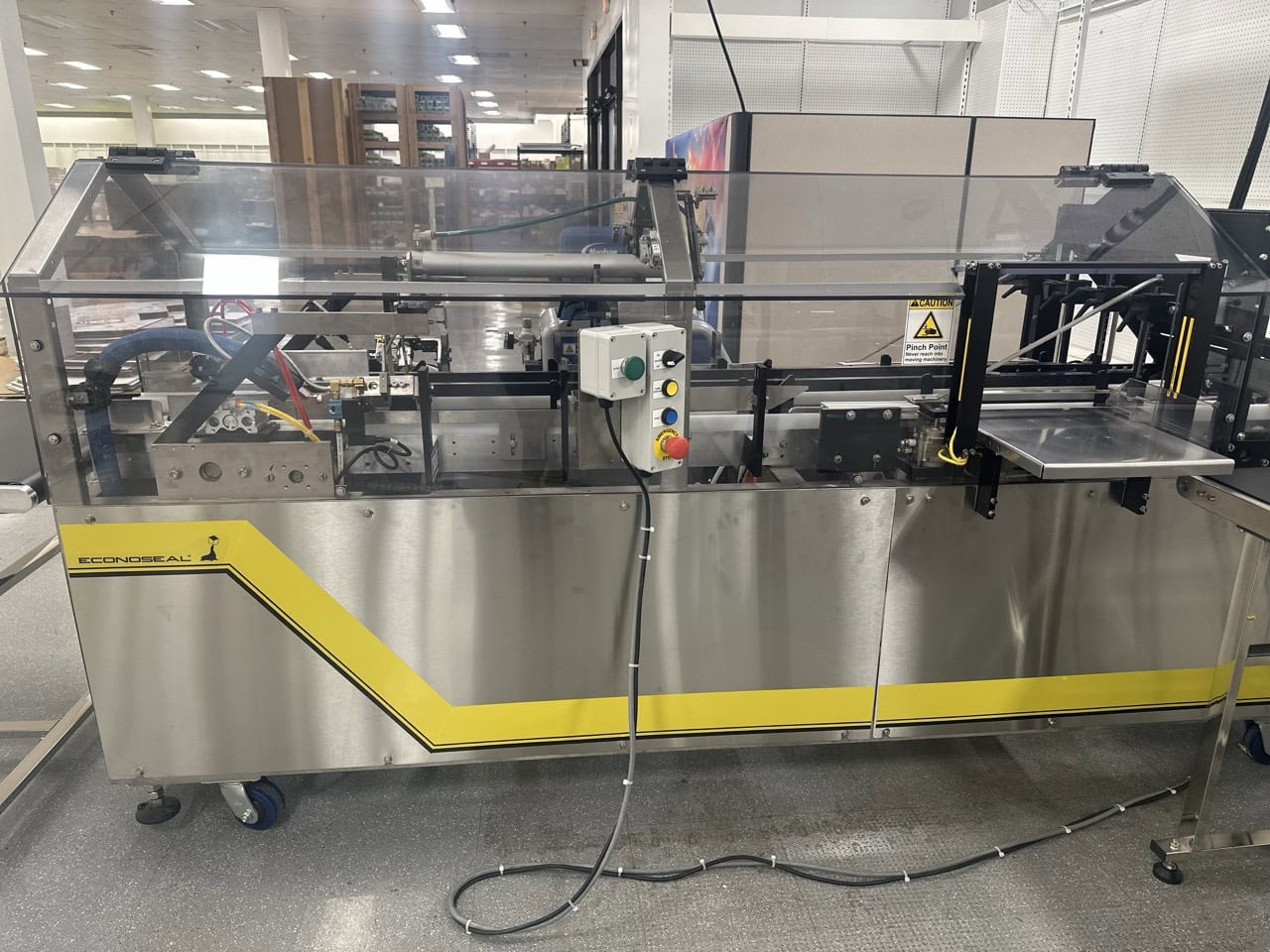

The ECONOSEAL SPARTAN Cartoner is a fully automatic, low-cost horizontal
cartoner for end-loaded style cartoning. The machine automatically feeds and opens
a sleeve style carton into a single product loading station, where the product is
automatically or manually loaded into the carton. The loaded carton is fed into the
closing section in which both ends are closed. The ECONOSEAL SPARTAN
Cartoner is an automatic, intermittent motion, horizontal machine designed for
reliable performance on a constantly demanding, moderate speed production line.

A 3/4 horsepower motor with a clutch/brake and gearbox arrangement provides
indexing accuracy and simplified electrical circuitry. The vacuum arm and minor dust
flap tucker operations are provided by a low maintenance, pneumatic system.

The ECONOSEAL SPARTAN Cartoner produces professionally sealed cartons for a
wide variety of products, and can easily be changed over to accommodate a range of
carton sizes.

– Speed: Up to 2400 cartons per hour
– Standard Carton Size Range: 2” x 1” x 5” (51 x 25 x 127mm) minimum to 10” x 4” x 12” (254 x 102 x 305mm) maximum
– Electrical: 220 Volt, 60 Hertz, 1 Phase
– Air: 80-PSI minimum
– Nordson MESA 4, 2 H/G

– Size: Approximately 106” long x 36” wide (2692.4mm x 910mm)
– Weight: 1900 lbs. (860kg)

Machine manual available upon request
Video available upon request
