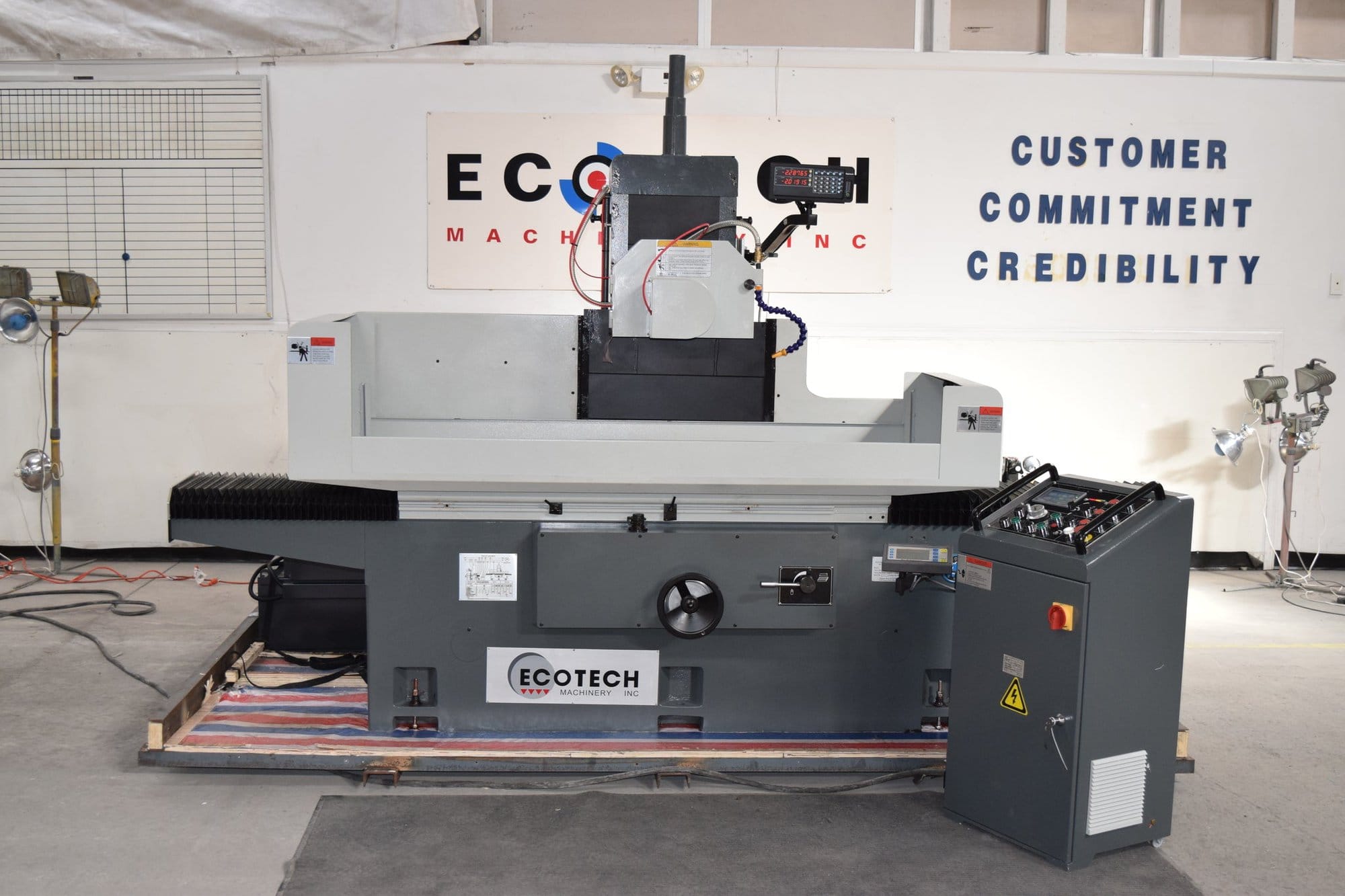

Ecotech SMTW SGD16-39 Horizontal Surface Grinder, 2018 – Sediment Flood Coolant System, Magnetic Chuck, Like New Demo Model
$52,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max grinding width: 400mm / 15.7 in.
Table length: 1000mm / 39.3
Max workpiece length: 1000mm / 39.3 in.
Max workpiece height: 400mm / 15.7 in.
Distance between wheel spindle and table max: 580mm / 22.8 in.
Max. workpiece weight (include magnetic chuck): 1322lbs / 600kg
Wheel Size ( D x W x B ): 15.7 x 1.57 x 5.00 in.
Motor Power: 5.5 kw / 7.5 hp
Max. Wheel RPM: 1740 rpm
Min. increment on downfeed handwheel: 0.0050mm / 0.0002 in.
Rapid travel speed: 230mm/min / 9.00 ipm
Motor power: 6Nm
Table auto cross feed: 0.1 โ 15 / 0.0039 โ 0.590 in.
Max. travel: 440mm / 17.32 in.
Motor power: 8Nm
Traversing table speed: 5 โ 28m/min / 196 โ 1102 ipm
Max. travel: 1100mm / 43.30 in.
Horse Power: 0.16 hp. / 0.12 Kw.
Flow: 13 gpm.
Pressure: 43 psi.
Reservoir Capacity: 40 gal.
220 volt 3 phase 60 hz
Total Kw: 10 Kw
Total Kva: 12.5 kva.
Current Amps: 32.8 amp.
Machine Weight: 8,163 lbs.
Machine Dimensions: 137.7 x 78.7 x 80. in.
Equipped with:
Flood Coolant System

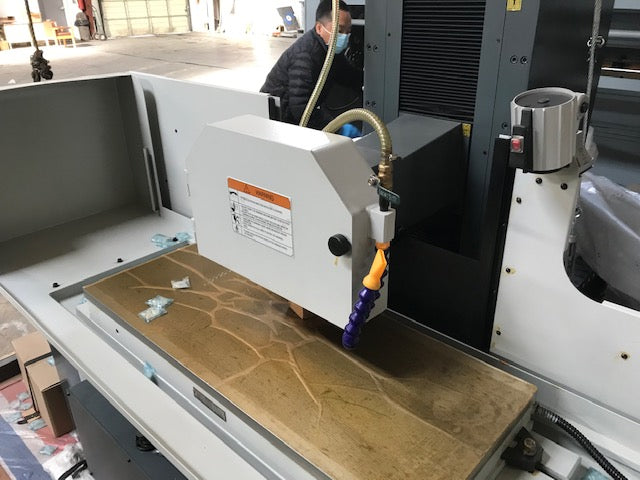

Magnetic chuck (1 set)
Wheel balancing stand & Arbor
Grinding wheel (1 sets)
Wrench set
Wheel dresser holder
Leveling wedges
Grinding wheel hubs (1 sets)

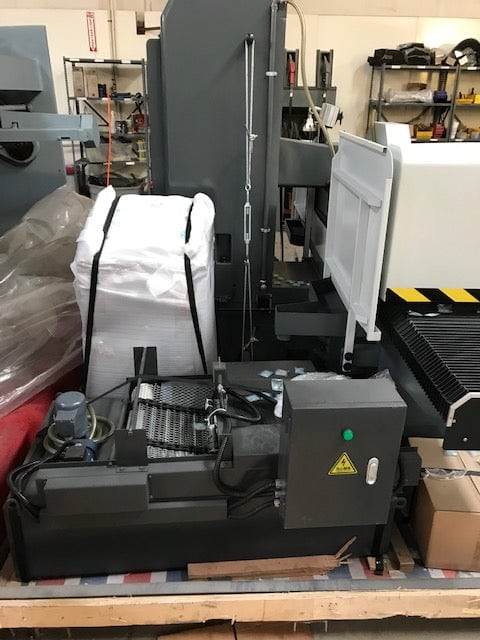

Model GL1-50 Paper Filtration Coolant
Machine manual
Complete U.S. standard electrics
