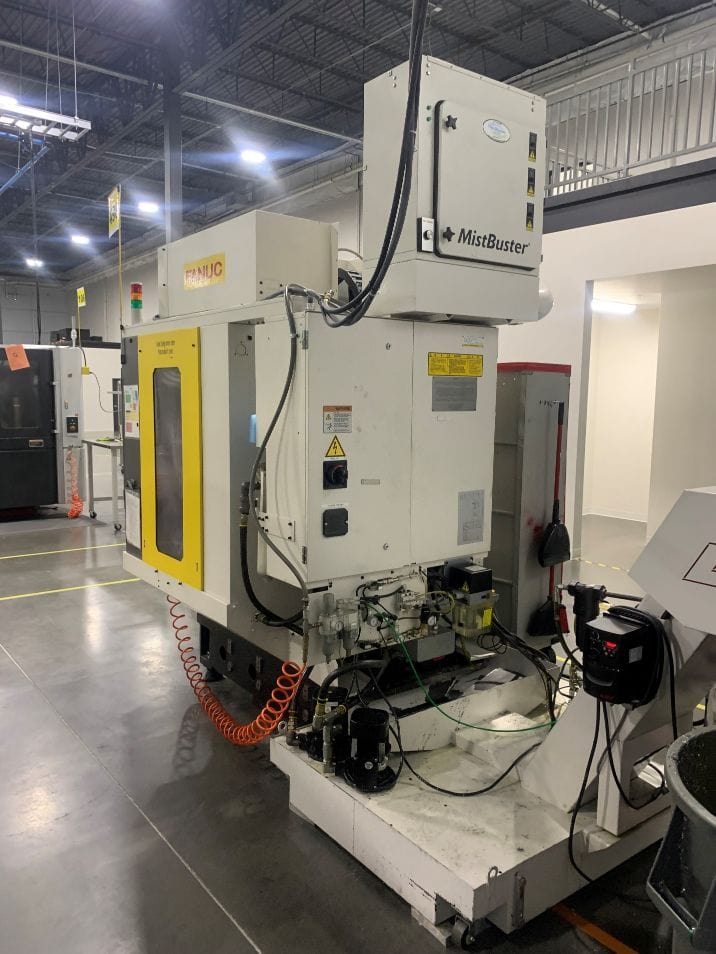

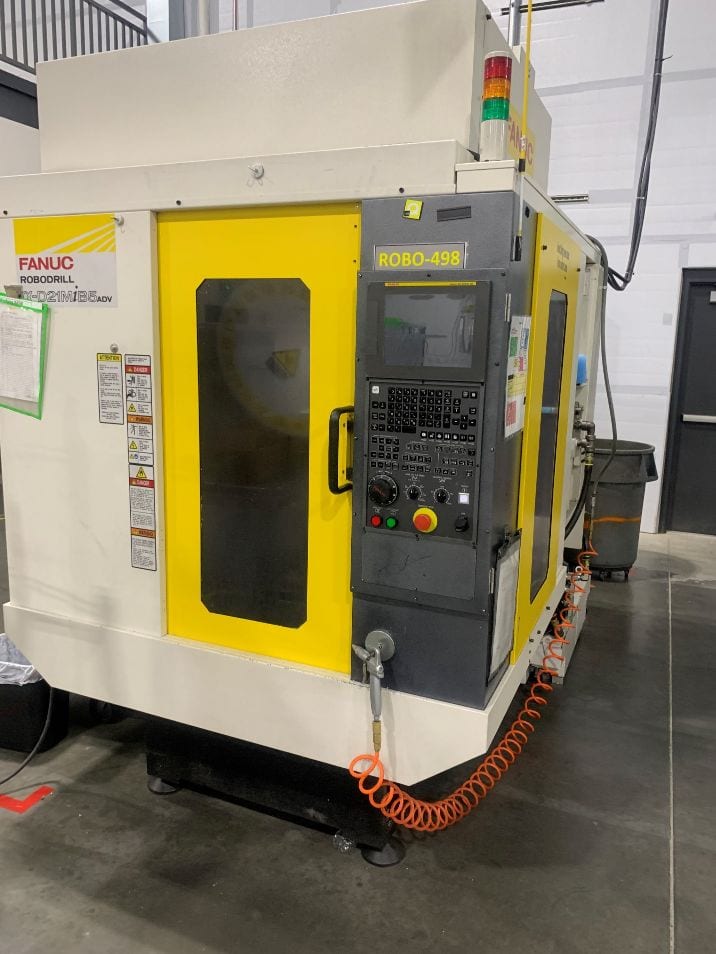

Fanuc Robodrill D21MiB5-ADV CNC Mill, 2018 – 5 Axis, Available Immediately, Chip Conveyor
$84,900.00
This product is no longer available. For additional information, please fill out the form below.
X-Axis Travel: 19.7″
Y-Axis Travel: 15.7″
Z-Axis Travel: 15.7″
Spindle to Table: 3.1-18.9
Table Size: 25.6 x 15.7
Table Capacity: 881 lbs.
Tool to Tool Change Time: 0.7 sec
Chip to Chip Change Time: 1.3 sec
Max Tool Length: 9.8″
Max Tool Diameter: 3.14″
Spindle Taper: BT-30
Spindle Speed: 10000 rpm
18.7* / 7.5** HP
X-Axis Rapid Traverse: 2125 ipm
Y-Axis Rapid Traverse: 2125 ipm
Z-Axis Rapid Traverse: 2125 ipm
Equipped With
Fanuc Series 31i-Model B
Koma 4th & 5th Axis
Chip Conveyor
Mistbuster
Table Flush
Table Sensor
Machine Weight: 4850 lbs.
Dimensions: 63” x 63” x 90”
