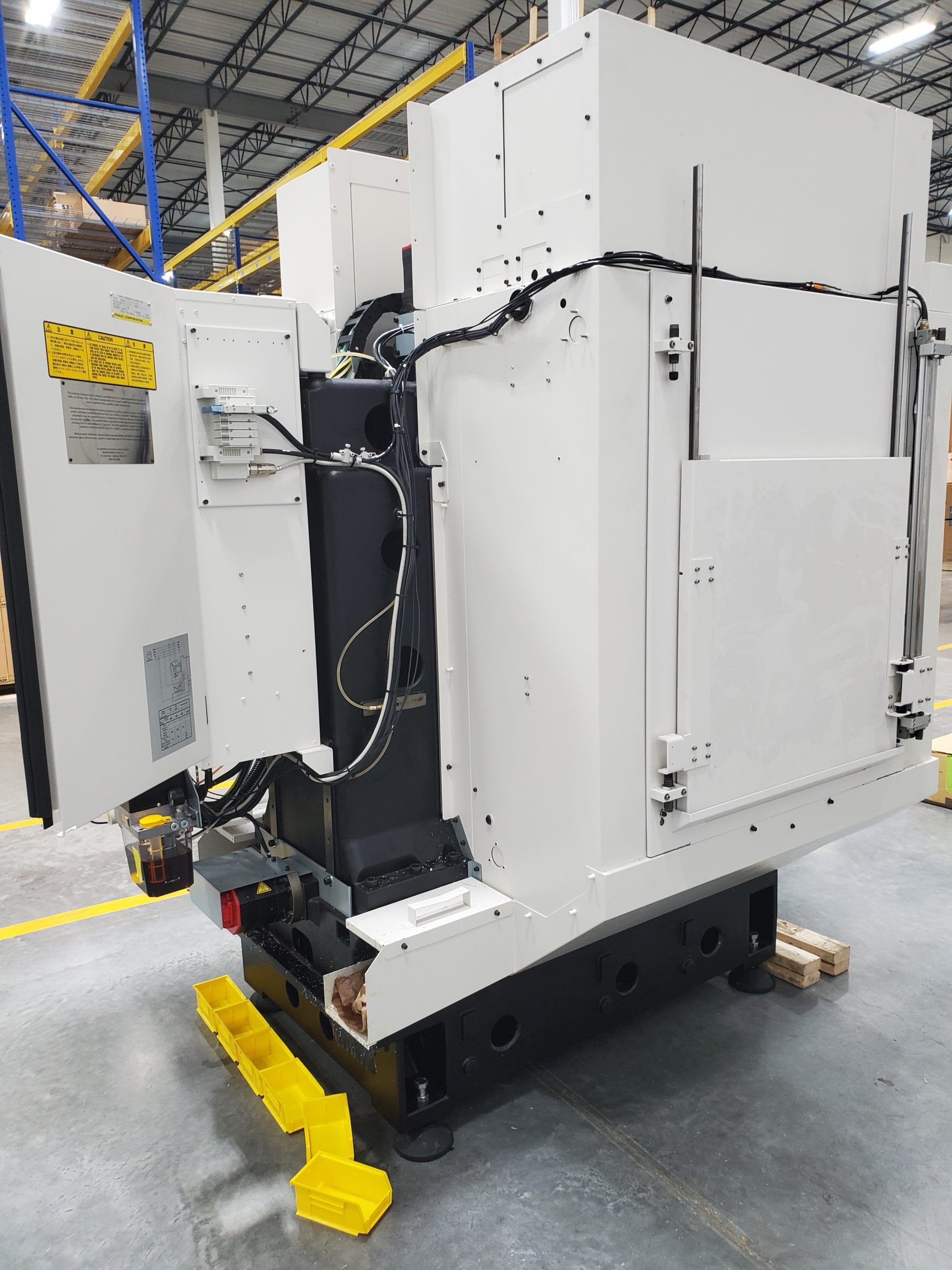

Fanuc Robodrill D21MiB5, VMC 2017 – Drill and Tap, 4th Axis Included, Demo Machine

$109,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Vertical Machining Centers
Model:
Robodrill
Make:
Fanuc
Year:
2017

Specifications:
X-Axis Travel: 19.7″
Y-Axis Travel: 15.7
Z-Axis Travel: 15.7
Spindle to Table: 3.1-18.9
Table Size: 25.6 x 15.7
Table Capacity: 881 lbs
Tool to Tool Change Time: 0.7 sec
Chip to Chip Change Time: 1.3 sec
Max Tool Length: 9.8″
Max Tool Diameter: 3.14″
Spindle Taper: BBT-30 Big Plus
Spindle Speed: 10000rpm
18.7* / 7.5** HP
X-Axis Rapid Traverse: 2125 ipm
Y-Axis Rapid Traverse: 2125 ipm
Z-Axis Rapid Traverse: 2125 ipm
ATC Turret Capacity: 21 tools
Machine Weight: 4850 lbs
Dims: 63x63x90

Equipped with:
Fanuc 31i-B5
Ai Contour Control II
NANO Smoothing
Jerk Control
1000 Block Look Ahead Expansion
8MB NC Memory
Rotary Table Dynamic Fixture Offset
Inverse Time Feed
Tool Center Point Control for 5 Axis
Titled Work Plane Command
3D Cutter Compensation
High Speed Skip
Multi Channel Skip Function
Hardware for 8 M-Code Functions
Automatic Pneumatic Side Door Left Side
Fanuc DDR 4th Axis Right Hand Rotary Table

Full options upon request

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
