Feisi FS-MM02 Automatic Paper Bowls Making Machine, 2022
$15,000.00
Request a Quote to Instantly See Pricing
Call NowMachine Type: Process Equipment
Make: Quanzhou Feisi Machinery Co.
Model: FS-MM02
Year: 2022
Machine Location: Canada
Stock #: 448455

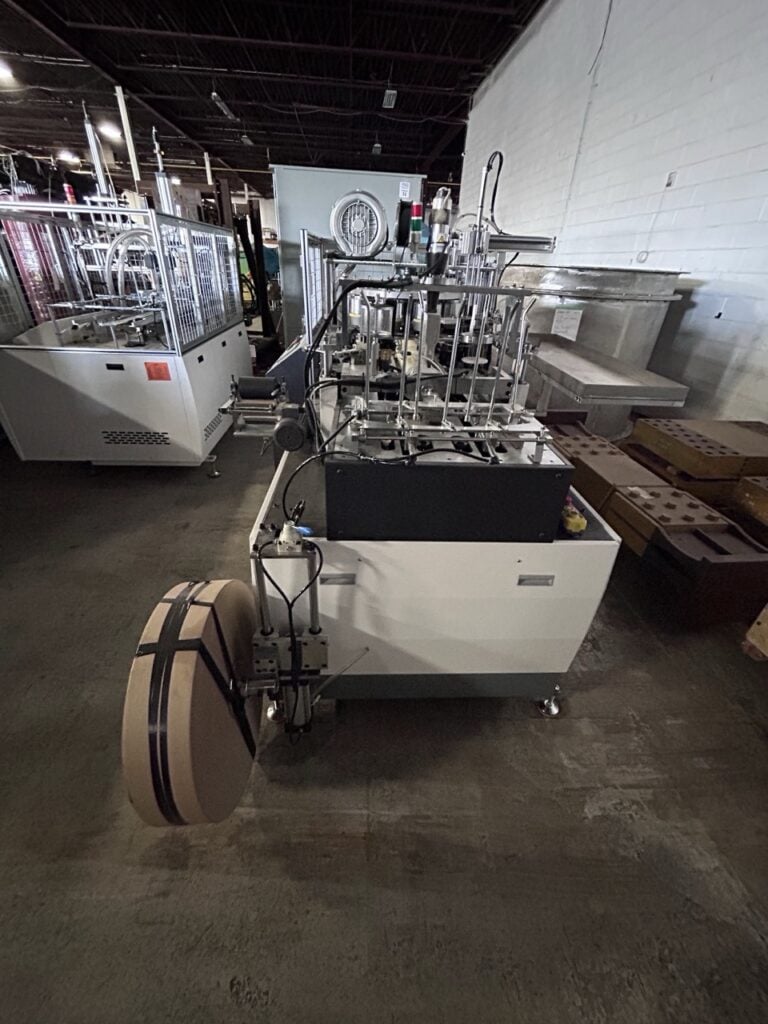

Feisi FS-MM02 Automatic Paper Bowls Making Machine, 2022:
– Automated inline stacking
– A-Upper diameter: 100-150mm, 1 mould
– B-Lower diameter: 80-125mm
– Tubes height: 45-125mm
– Product manufactured with diecut sheets for body, bottom by roll stock
– Grams per square meter of paper: 330-340 gsm
– Paper type: with PE or aluminum foil, or heated special paper
– Output: 50 – 70 pieces per minute depending on diameter and height of bowls
– Machine motor power: 11-15 kw, motor is 380V
– PLC touch screen
– Air pressure: 0.4-0.6Mpa
– Voltage: 380V, 50 Hz, 3 Ph
– 75W of power, output 110A
– Machine weight: approximately 3,000 kgs
– Machine size: about 2,800 x 1,500 x 2,000 mm
Includes molds for: 149 mm diameter bowls at 39 mm, 51 mm, and 78mm inside heights
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
