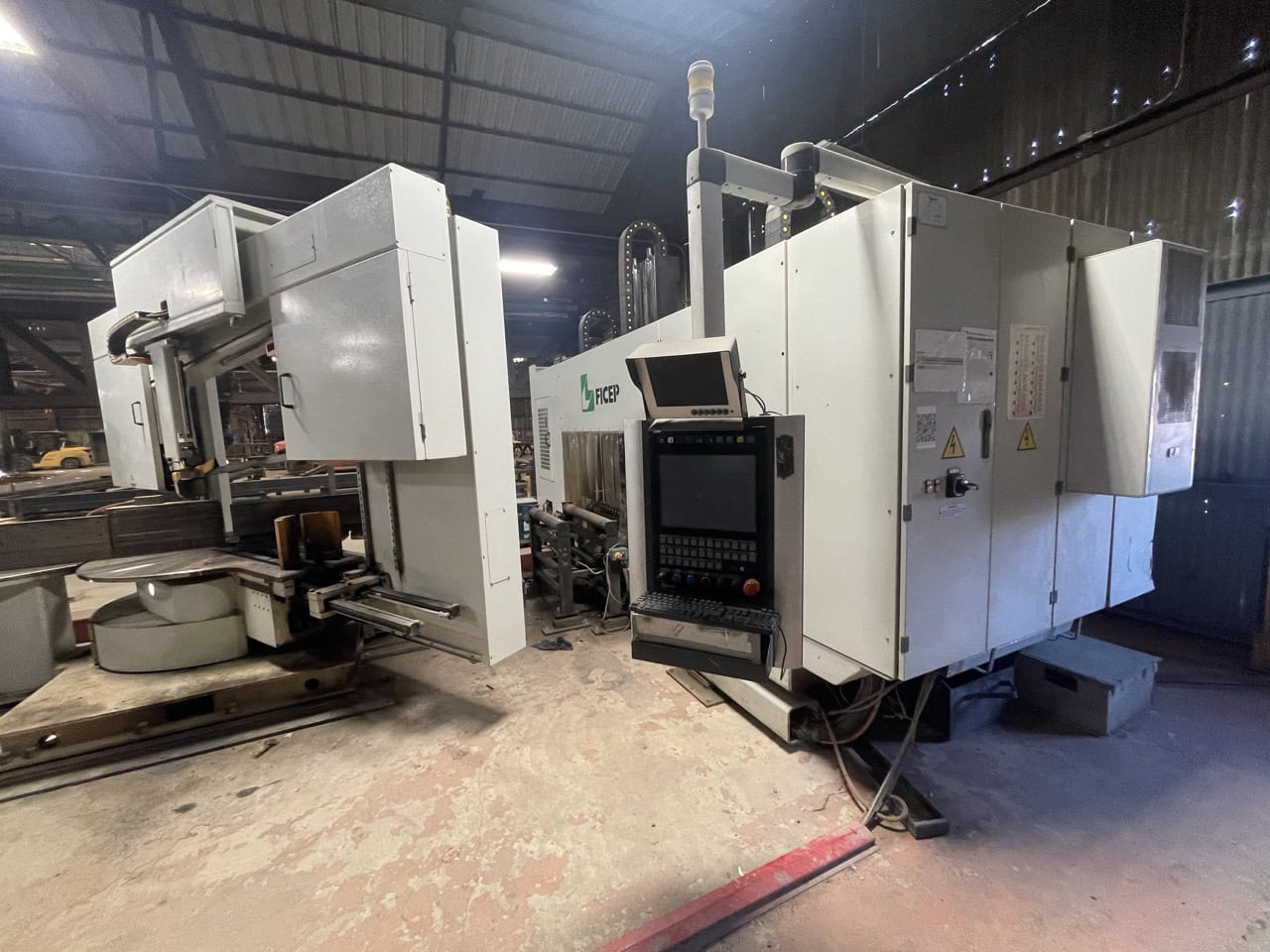

Ficep Beam Line, 2016 – Coper, Drill, Saw
$374,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
2016 FICEP 1103 DDVB 3-Spindle Drill
2016 FICEP Katana K115 Automatic CNC Horizontal Band Saw

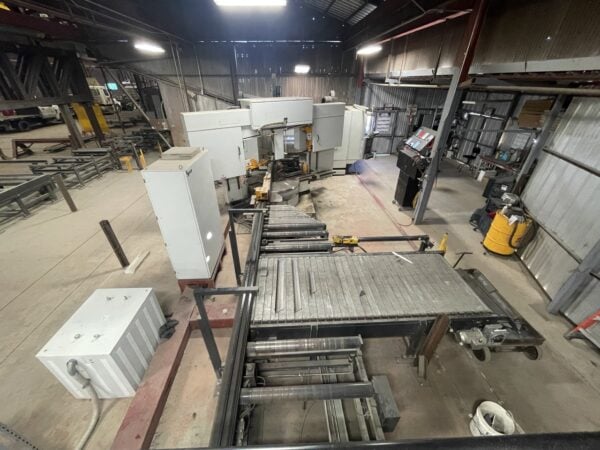

2016 EMS Automated Material Handling

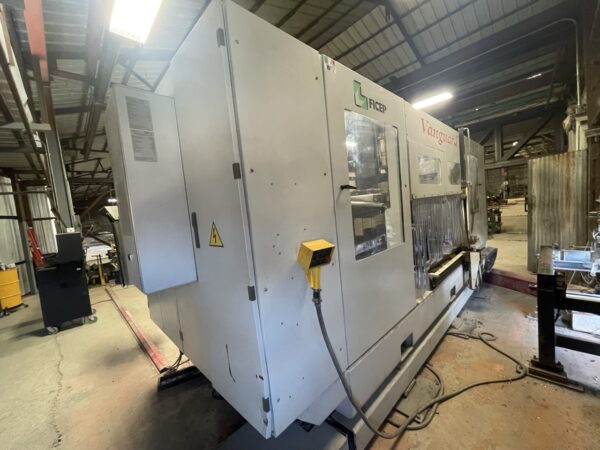

2016 FICEP 1201 FRC CNC Robotic Thermal Coping System
Beam Depth (min-max): 3.125″ – 44″
Flange Height (min-max): 0.375″ – 19.75″
Minimum Length to be Transferred: 98″
Maximum Length to be Transferred: 65′
I-Beams (without camber)
Beam Depth (min-max): 3.125″ – 44″
Flange Height (min-max): 1.625″-19.75″
Channels (w/ flanges oriented downward)
Channel Depth (min-max): 3.125″ – 44″
Flange Height (min-max): 1.75″-11.75″
Angles: Leg Height (unequal legs as well)
Minimum: 3.125″ x 3.125″ x 0.375″
Maximum: 10″ x 10″ x 1.5625″
Flats Width (min-max): 4″ – 43.25″
Square Tubes Size (min-max): 3.125″ x 3.125″ – 19.75″ x 19.75″
Rectangular Tubes Size (min-max): 3.125″ x 1.5625″ – 43.25″ x 19.75″
Drilling Capacities
Vertical Drill Heads: 1
Horizontal Drill Heads: 2
Spindles Per Drill Head: 1
Maximum Hole Diameter: 1.5625″
Maximum Drilling Thickness: 4″
Spindle Rotation Motor Per Head (S6-40%): 22 hp
Tool Holder: ISO 40
Spindle Rotation Speed: 180 – 5000 rpm

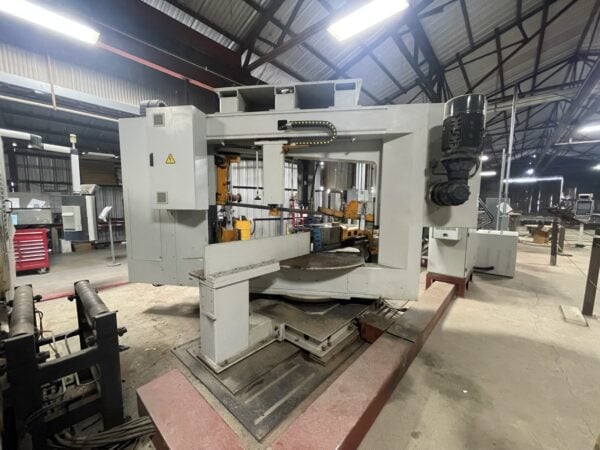

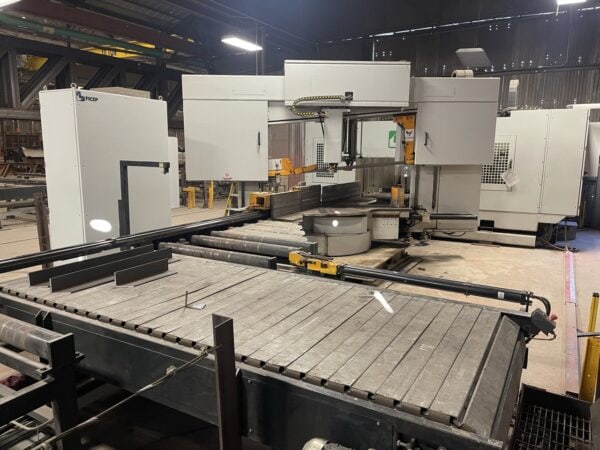

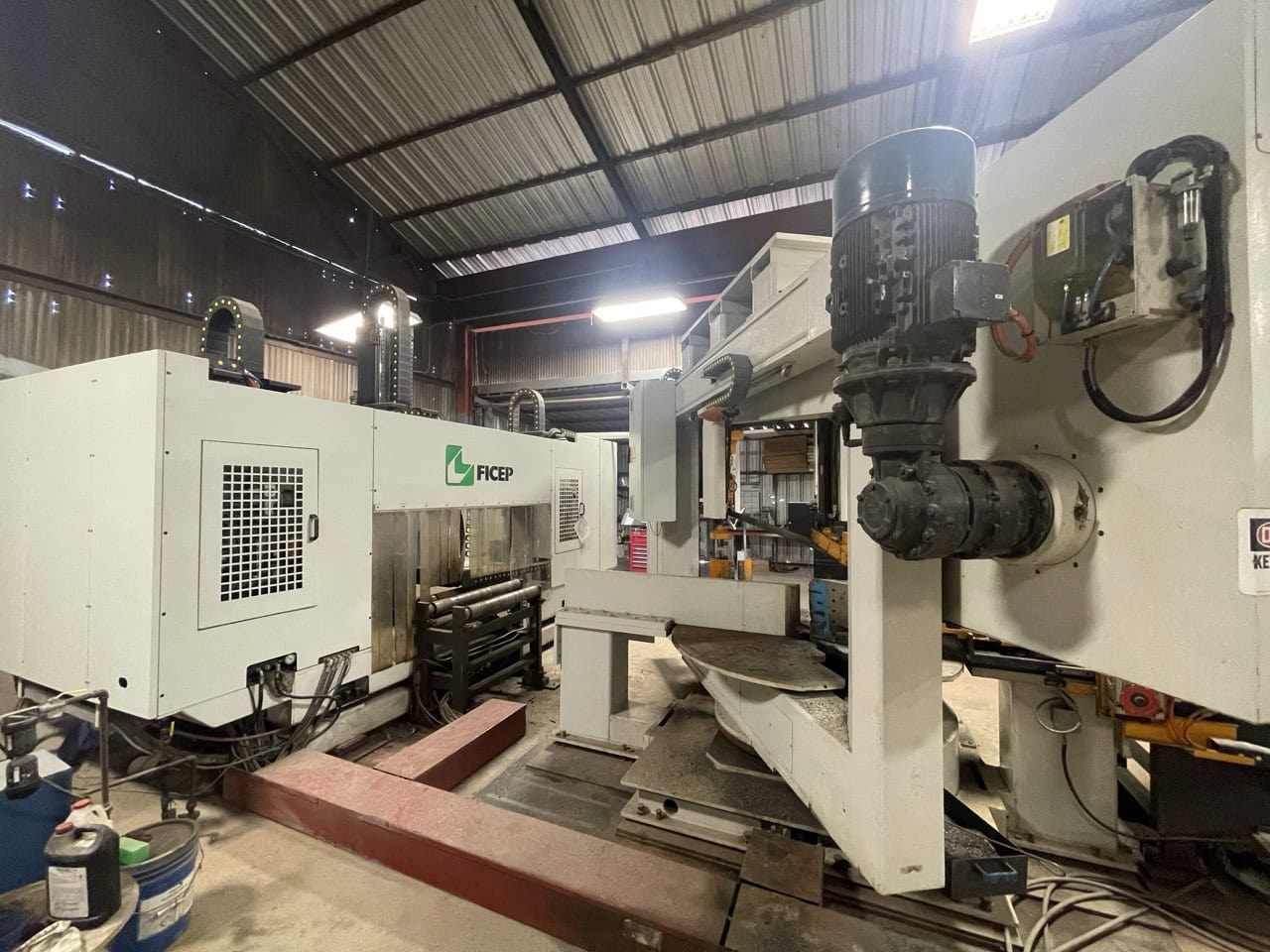

Band Sawing Unit Model K 115
Sawing Capacity at 90ยฐ (min-max): 3.125″ x 0.375″ – 43.25″ x 20″
Sawing Capacity at 45ยฐ: 27.5″ x 20″
Sawing Capacity at 60ยฐ: 19.75″ x 19.75″
Band Motor Power: 20 hp
Toothed Band’s Size: 2.12″ x 0.063″ x 390.55″
Toothed Band’s Speed: 196 – 557 fpm
Maximum Section Weight: 18,000 lbs
Maximum Weight Per Foot As Standard: 300 lbs/ft
Maximum Carriage Speed: 164 fpm
Passline: 33.5″
