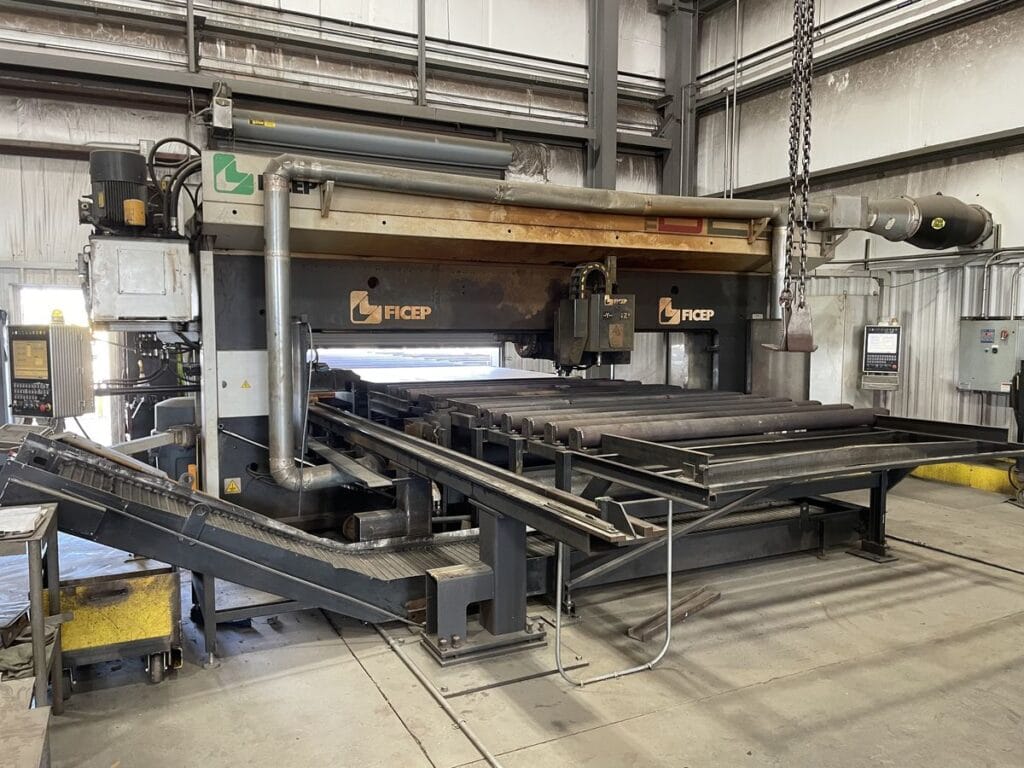

Ficep TIPO B254 Plate Processor, 2014
$89,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Plate Length: 20′
Min. Plate Length: 8.2′
Max. Plate Width: 8.33′
Min. Plate Width: 20″
Max. Punching Force: 1000 kN
Max. Stripping Force: 100kN
Max. Hole Diameter Punch: 3.93″
Max. Diameter on 20mm thick plate: 1.5″
Min. Plate Thickness: .19″
Max. Plate Thickness for punch: .98″
Max. Thickness for plasma: 1.5″ or 2.5″ for edge start
Max. Positioning weight: 11,000 LBS.
Max. Longitudinal Transfer Speed: 98FPM
Cross Positioning Speed: 131 FPM
Working Height: 43″
HPR 260 power supply
