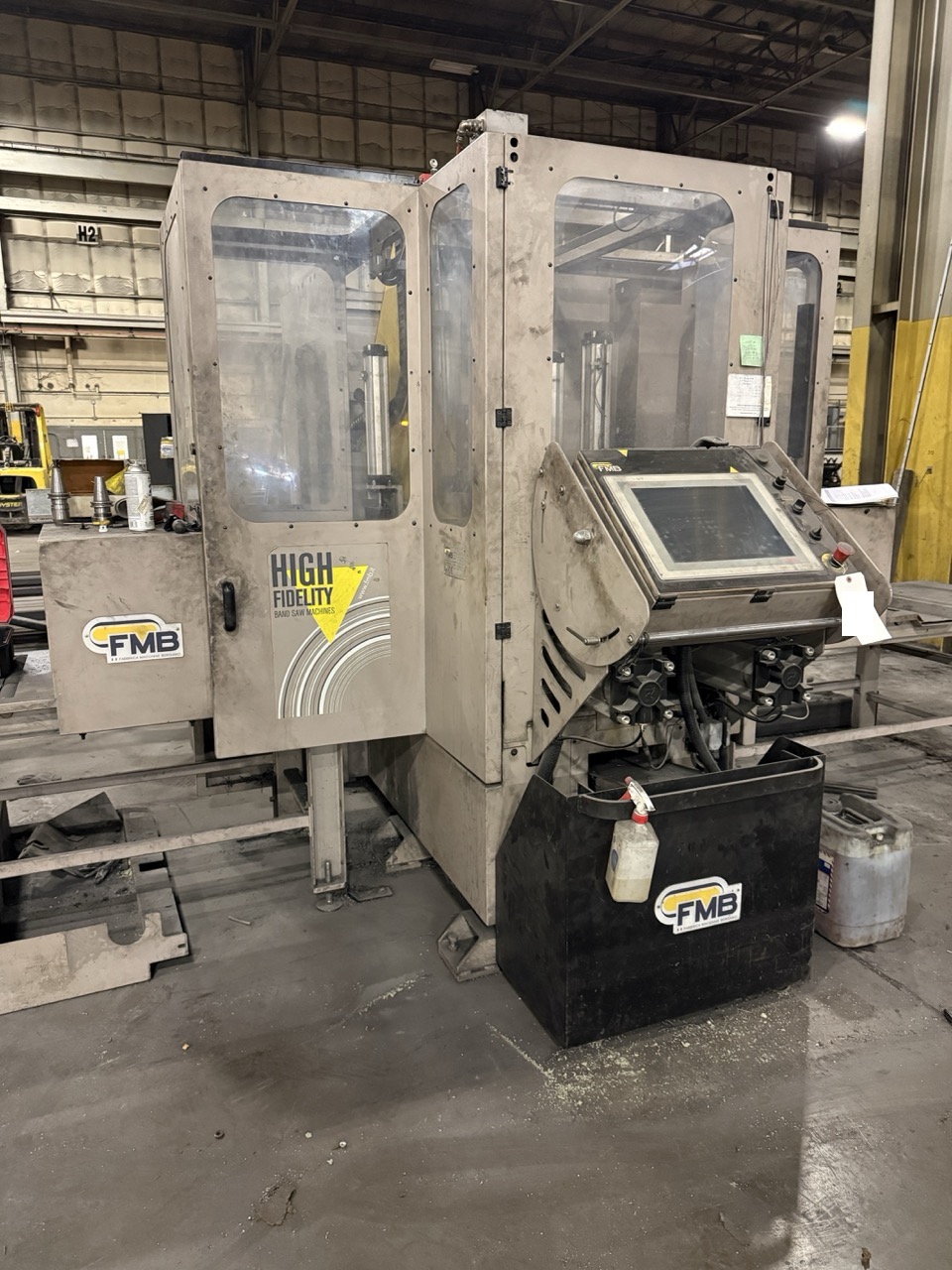

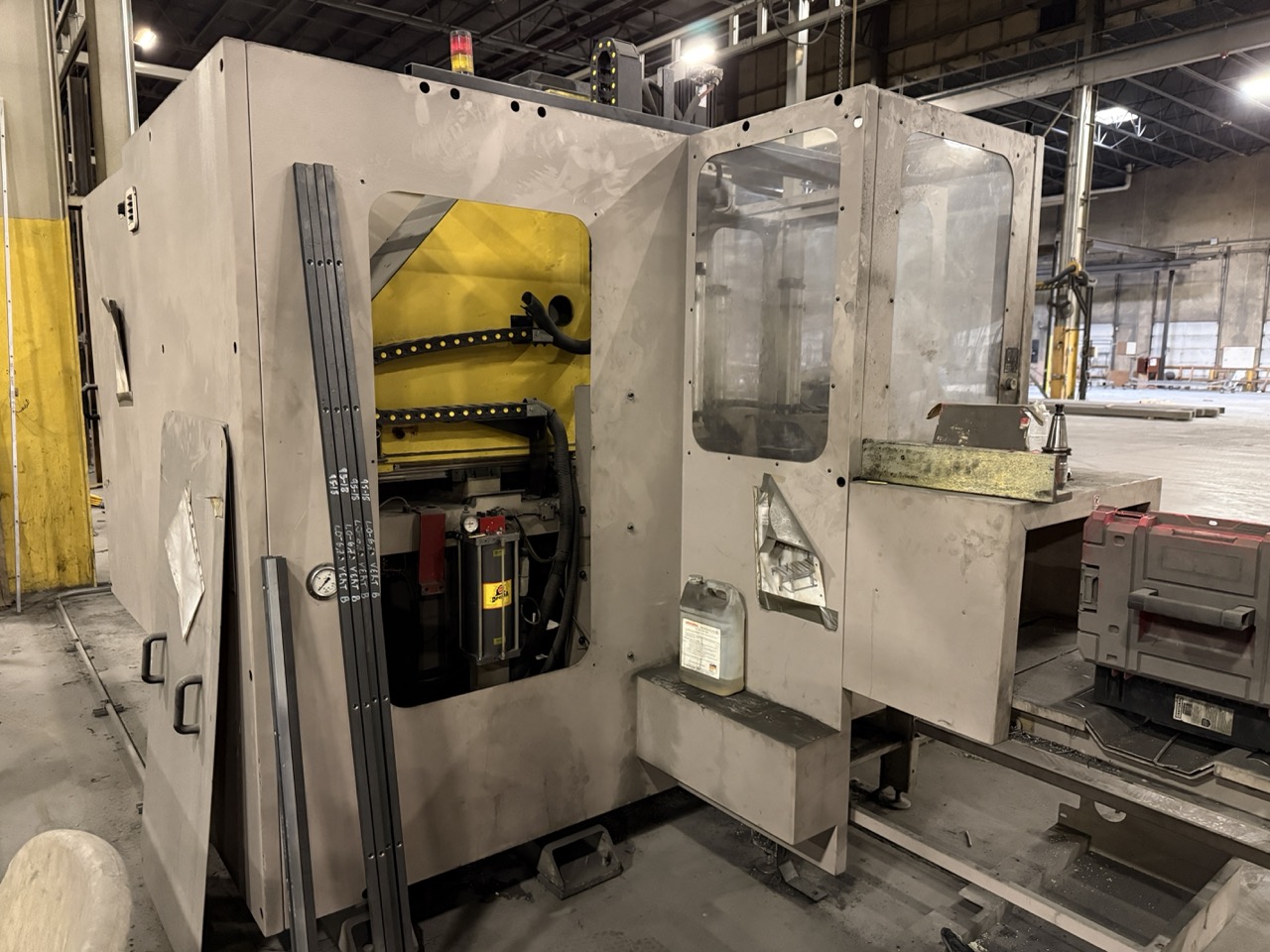

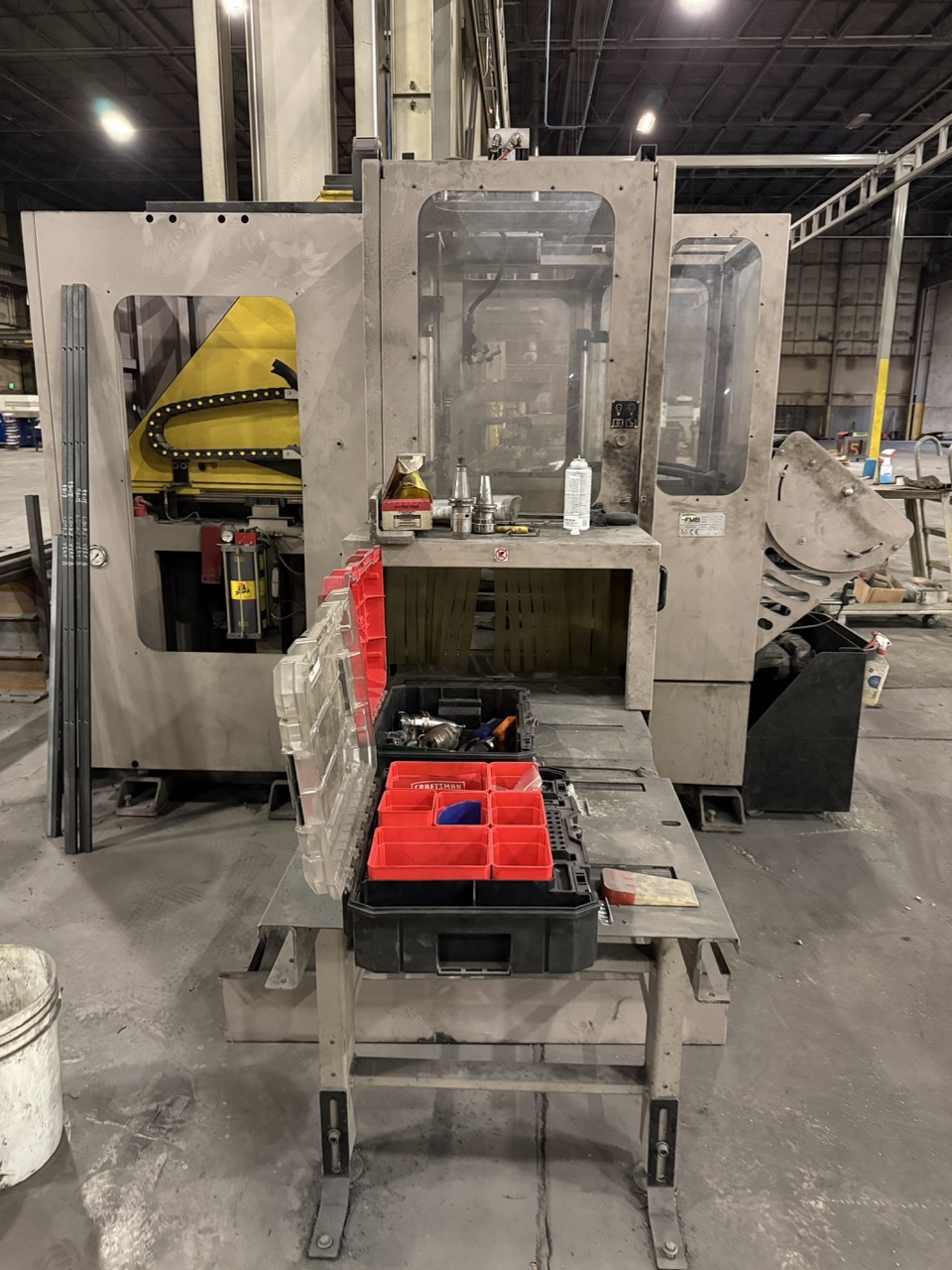

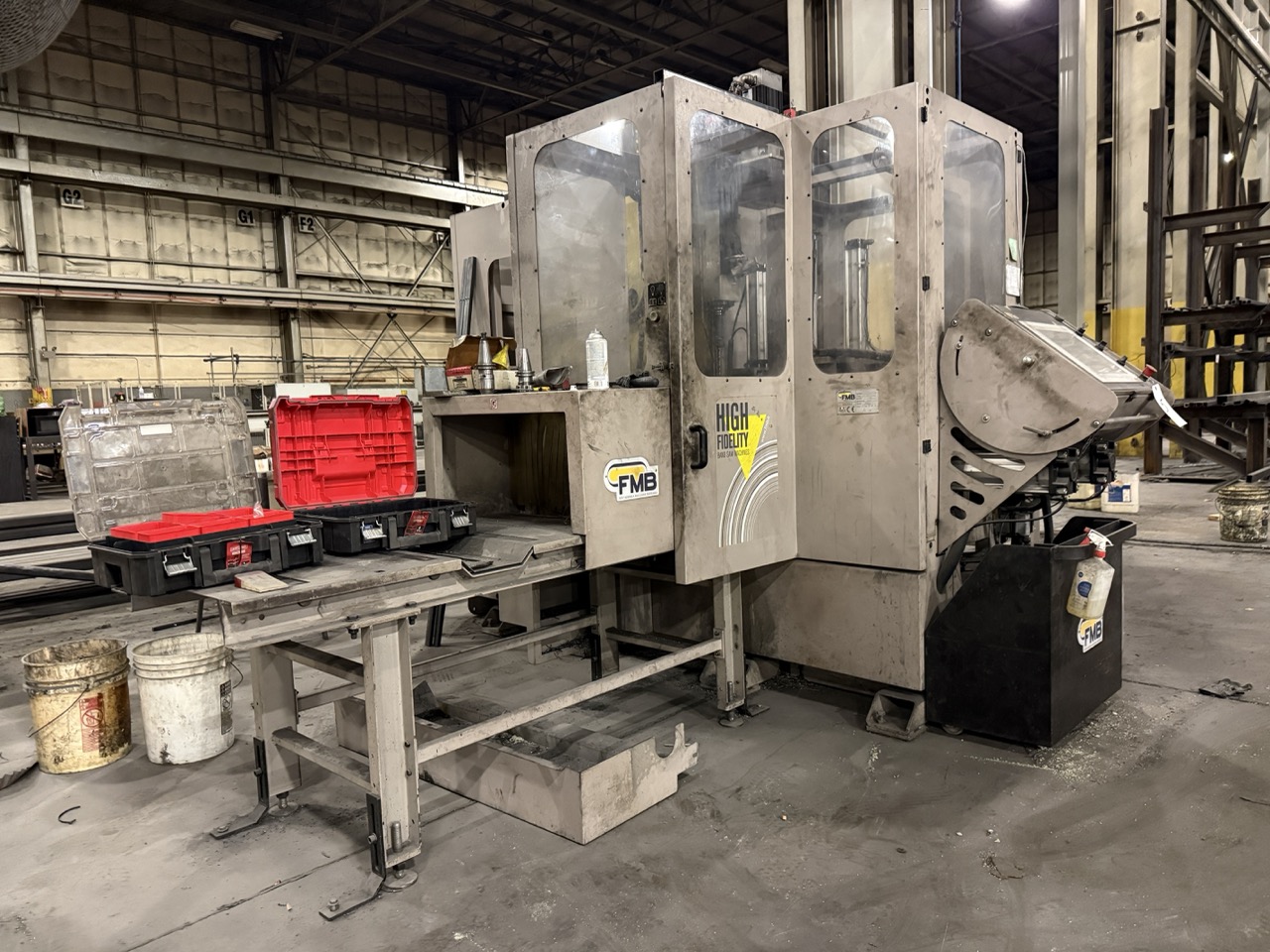

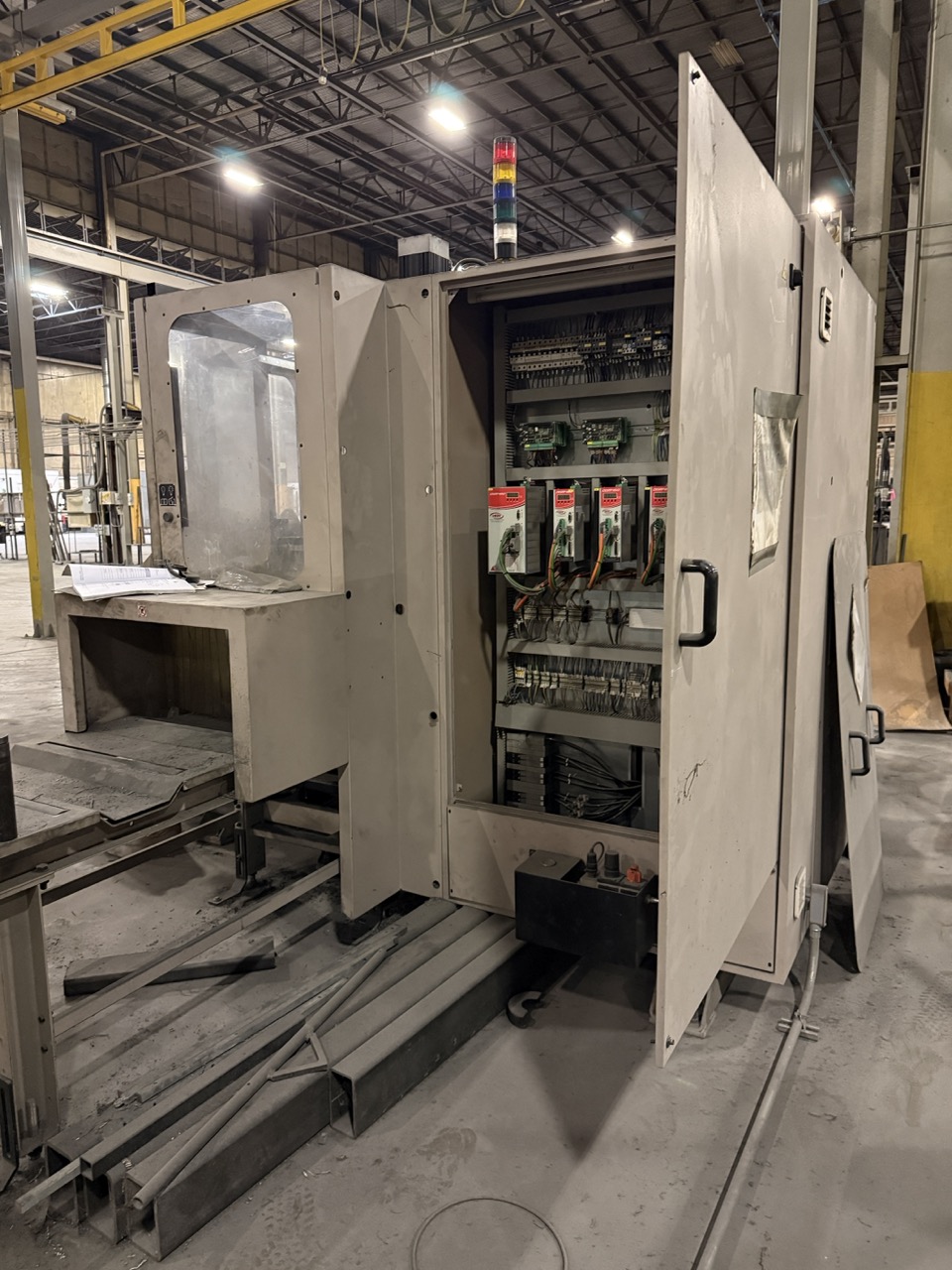

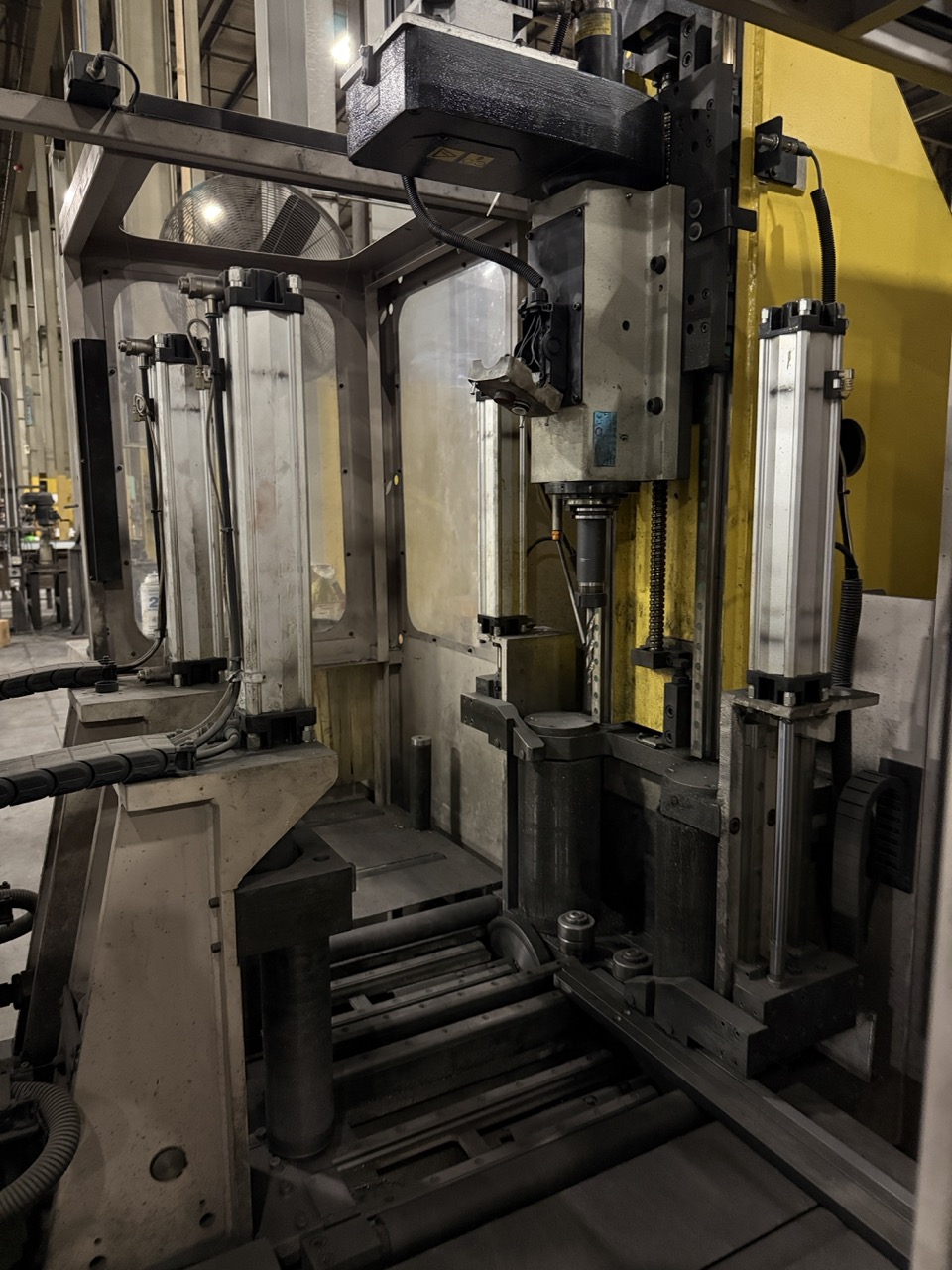

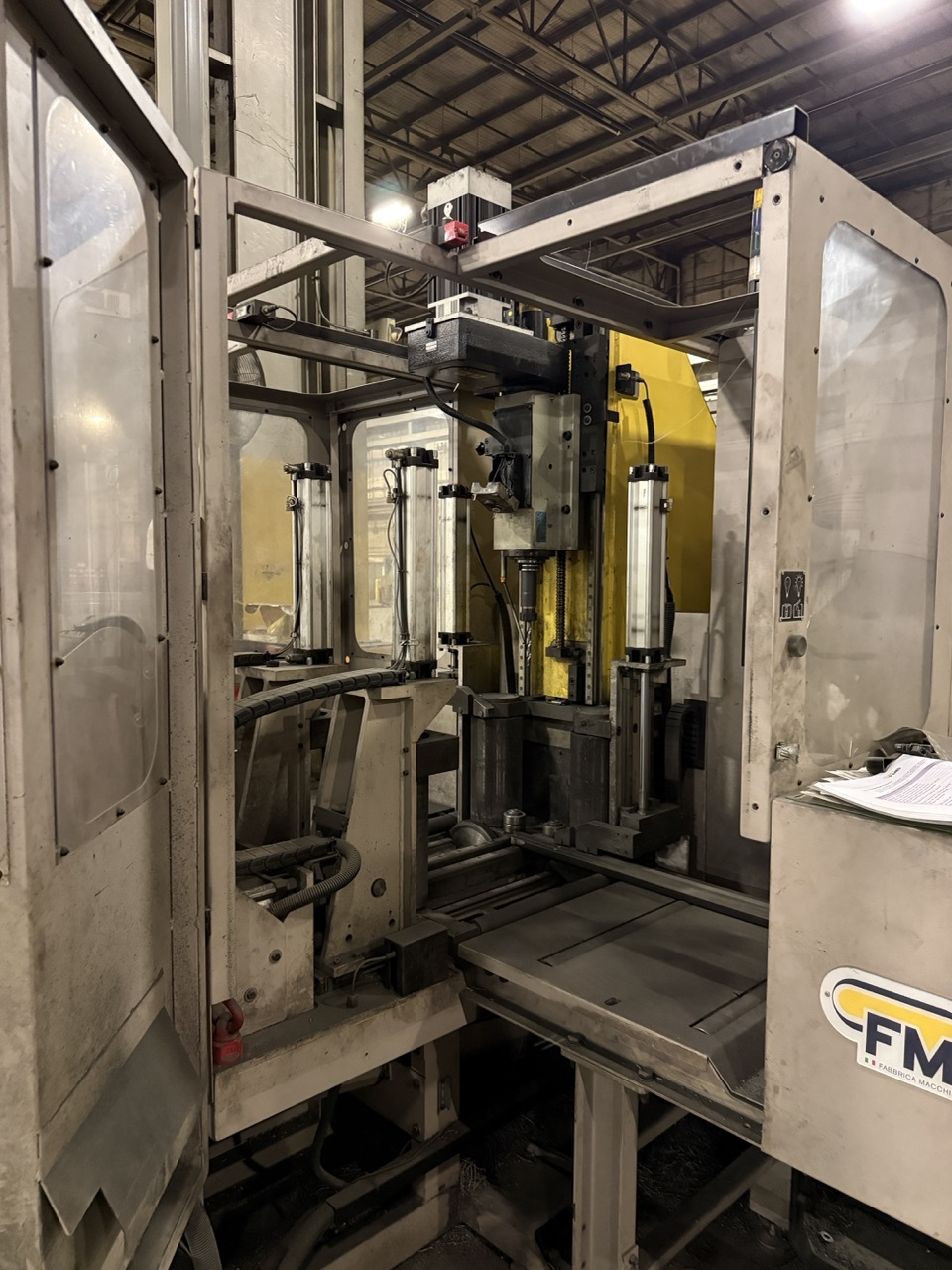

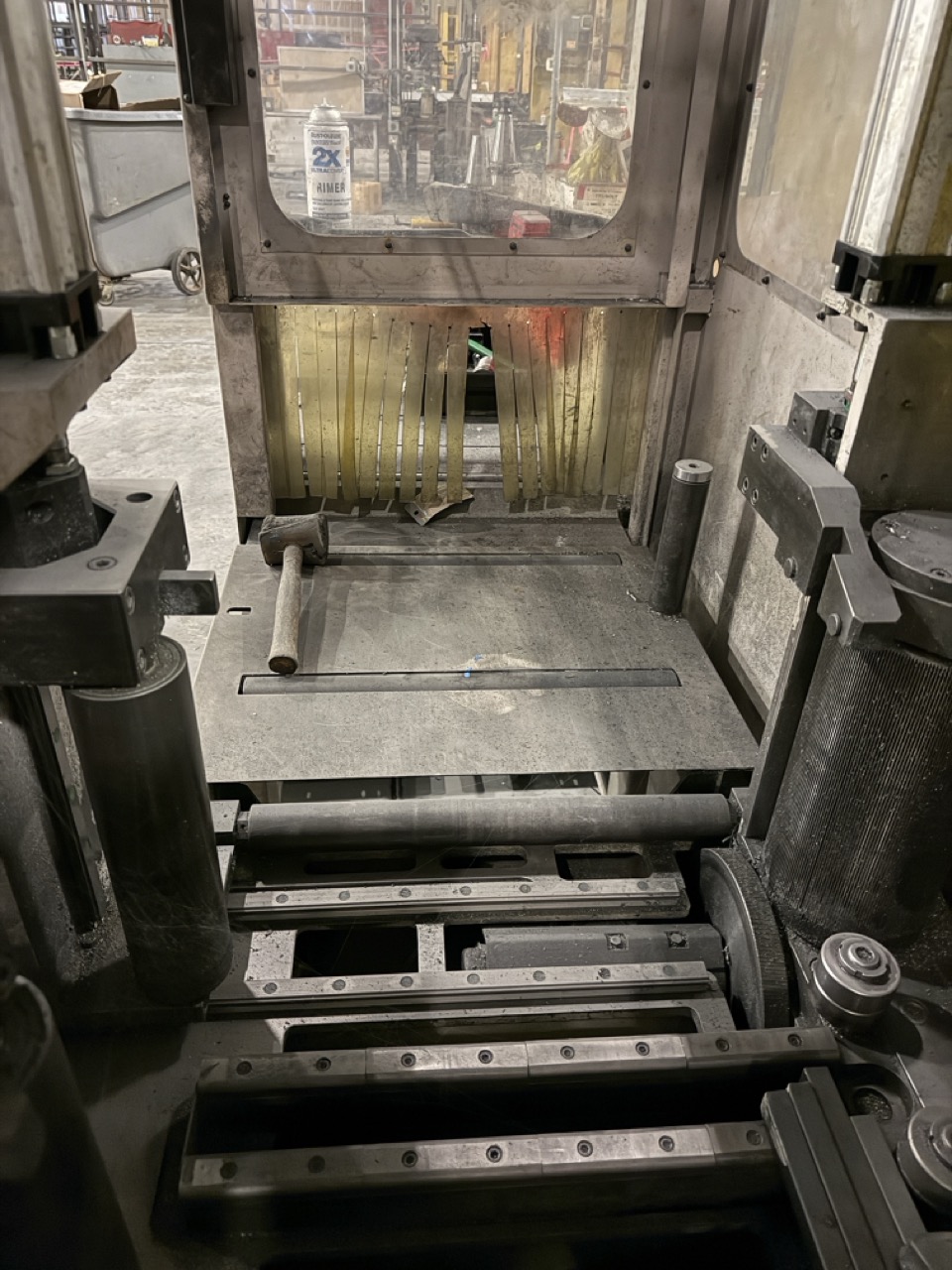

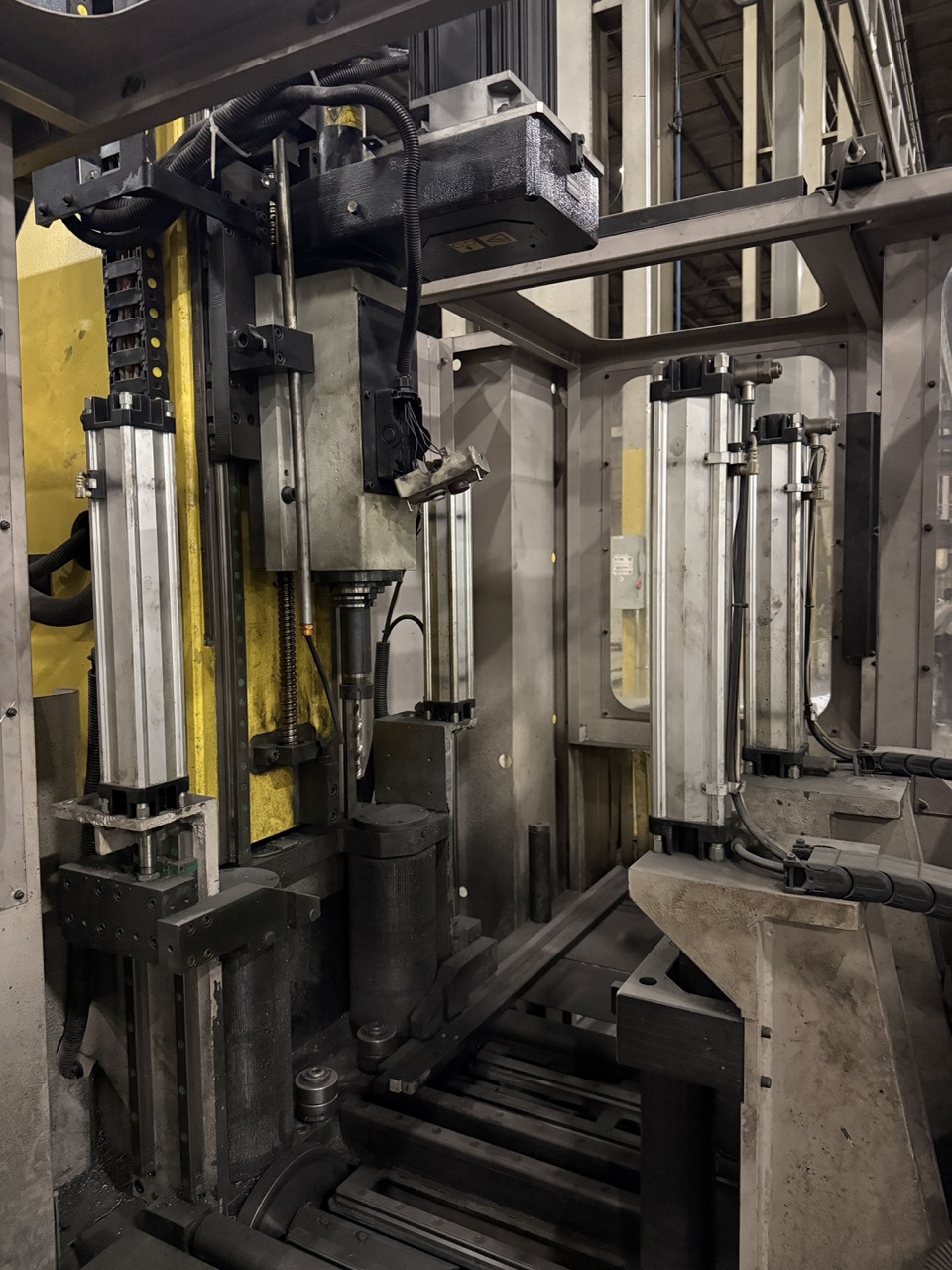

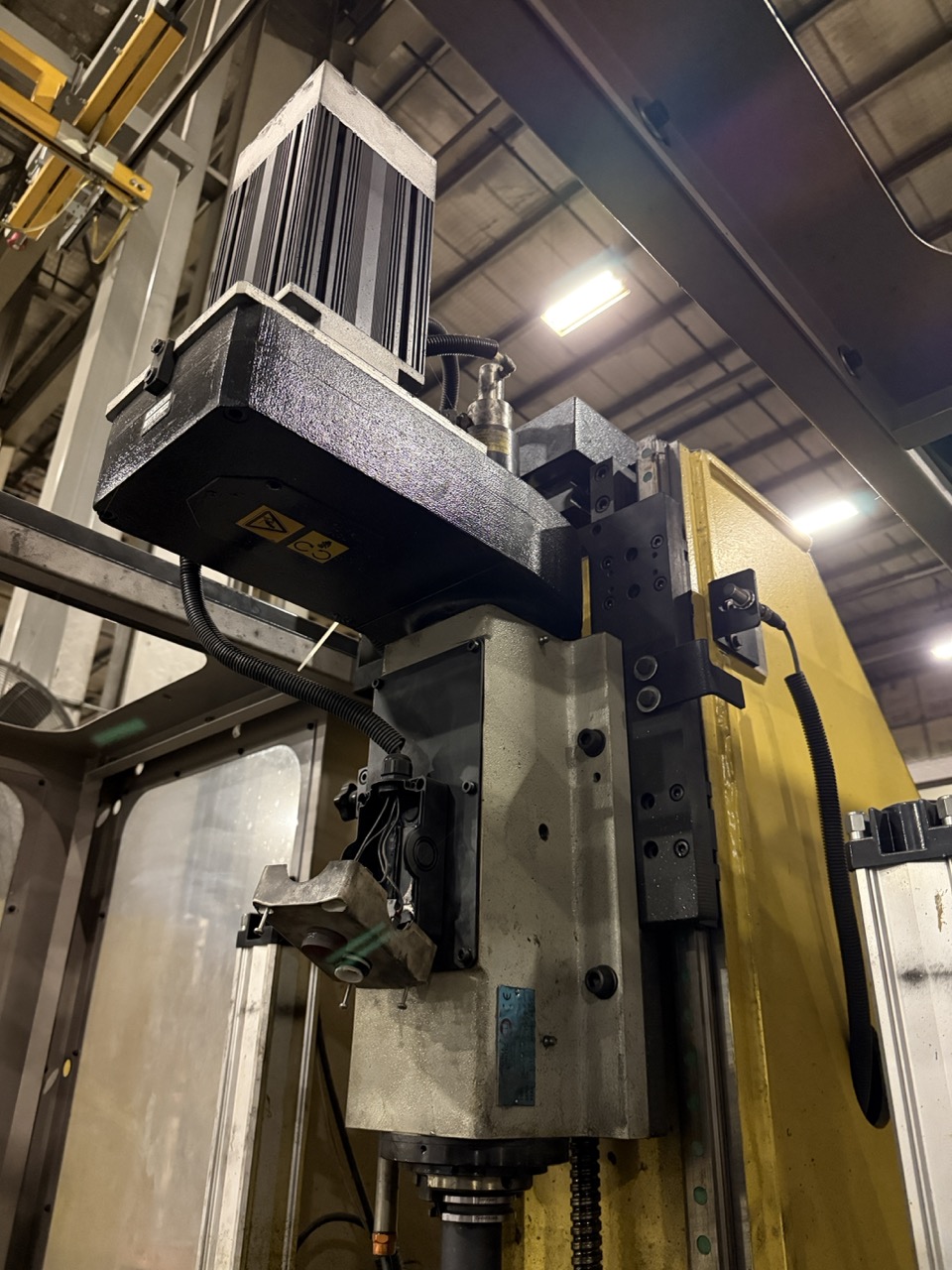

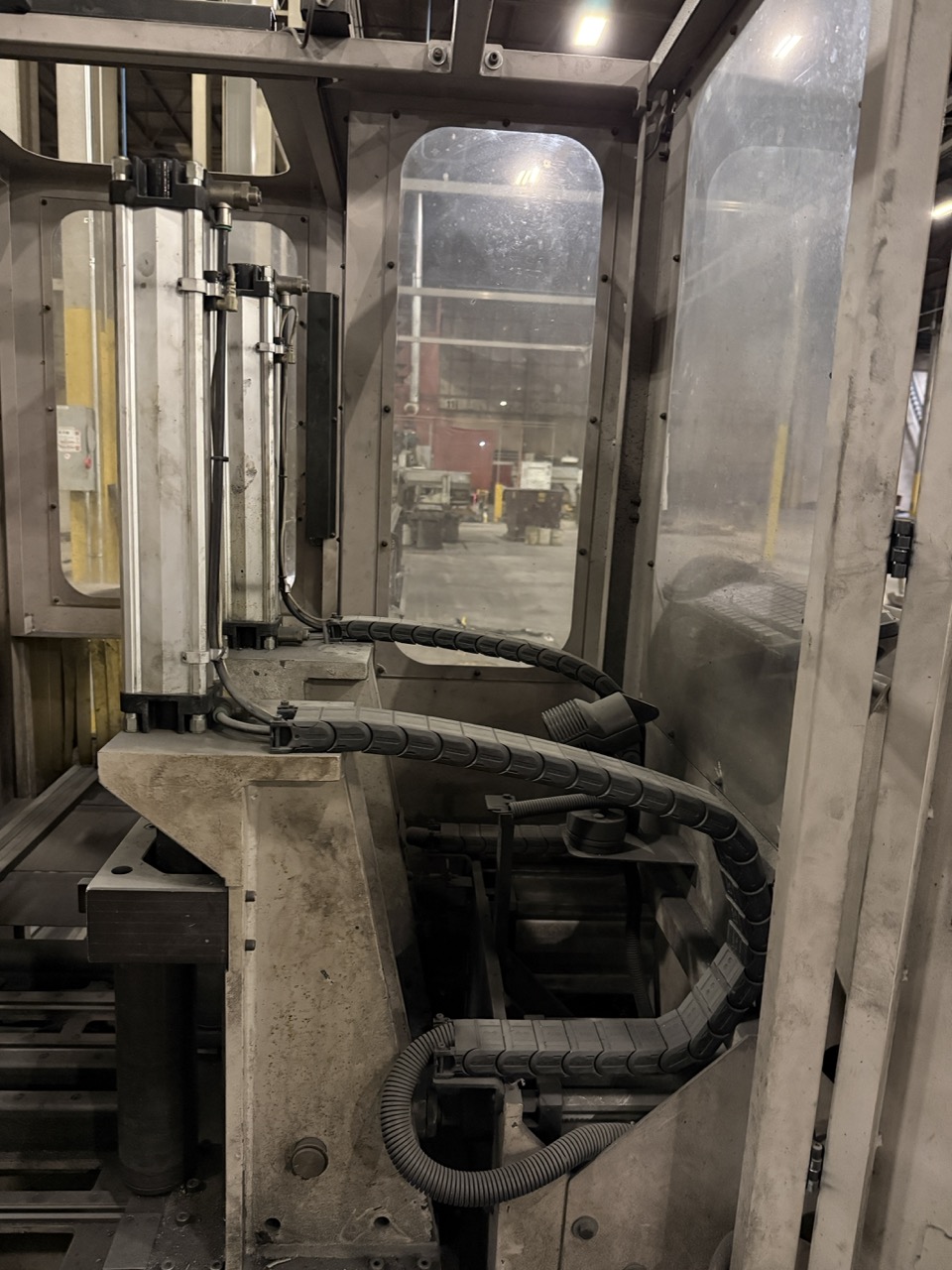

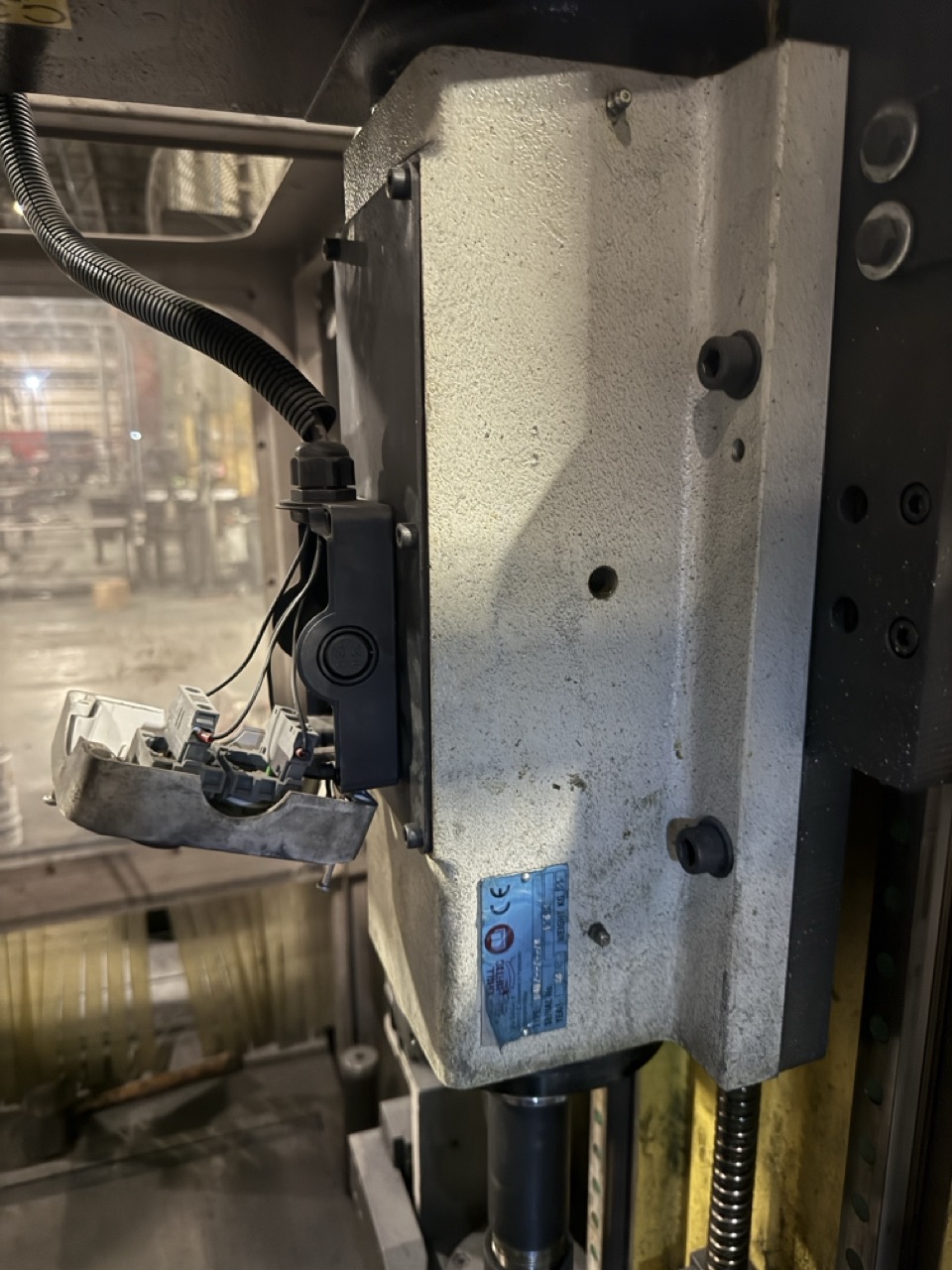

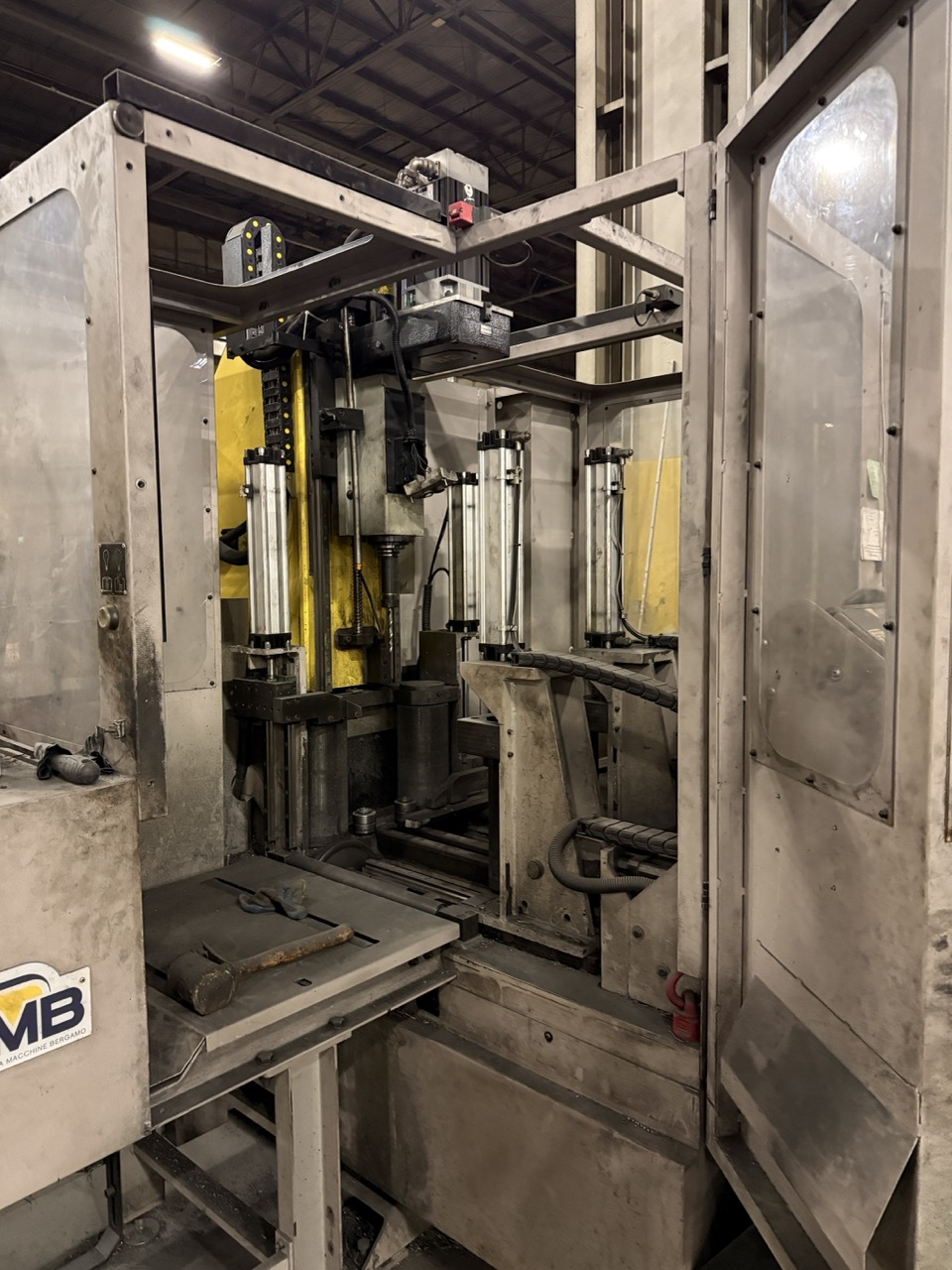

FMB Explorer 1 – 2015 Vertical Single Spindle 6 axis CNC Drilling Machine, Beam Drill
$10,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

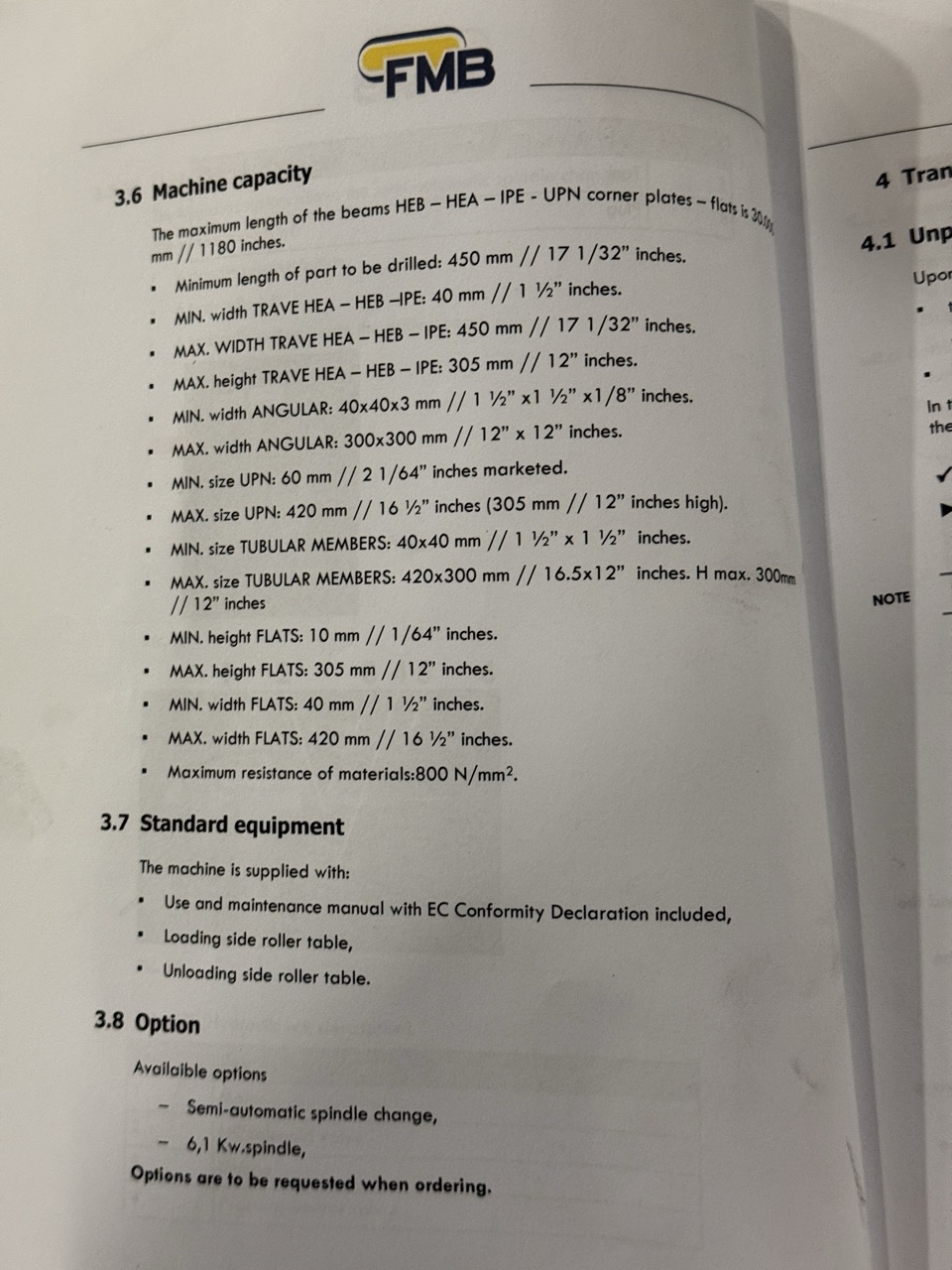

Specifications:
Max. Working Length: 960″ (80′)
Min. Length – Exchange: 17″
Min. Width of Work Piece: 1.575″
Max. Width of Work Piece: 16.535″
Min. Size of Angle Iron: 1.575″ x 1.575″ x 0.118″
Min. Height: 0.393″
Max. Height: 11.811″
Min. Drill Diameter: 0.236″
Max. Drill Diameter: 1.575″
Max. Rotational Speed: 1,300 – 3,000 RPM
Accuracy of Hole Spacing: +/- 0.020″ Over 384″
Machine Positioning Speed: 32 FPM
Material Feed Speed: 32.8 FPM

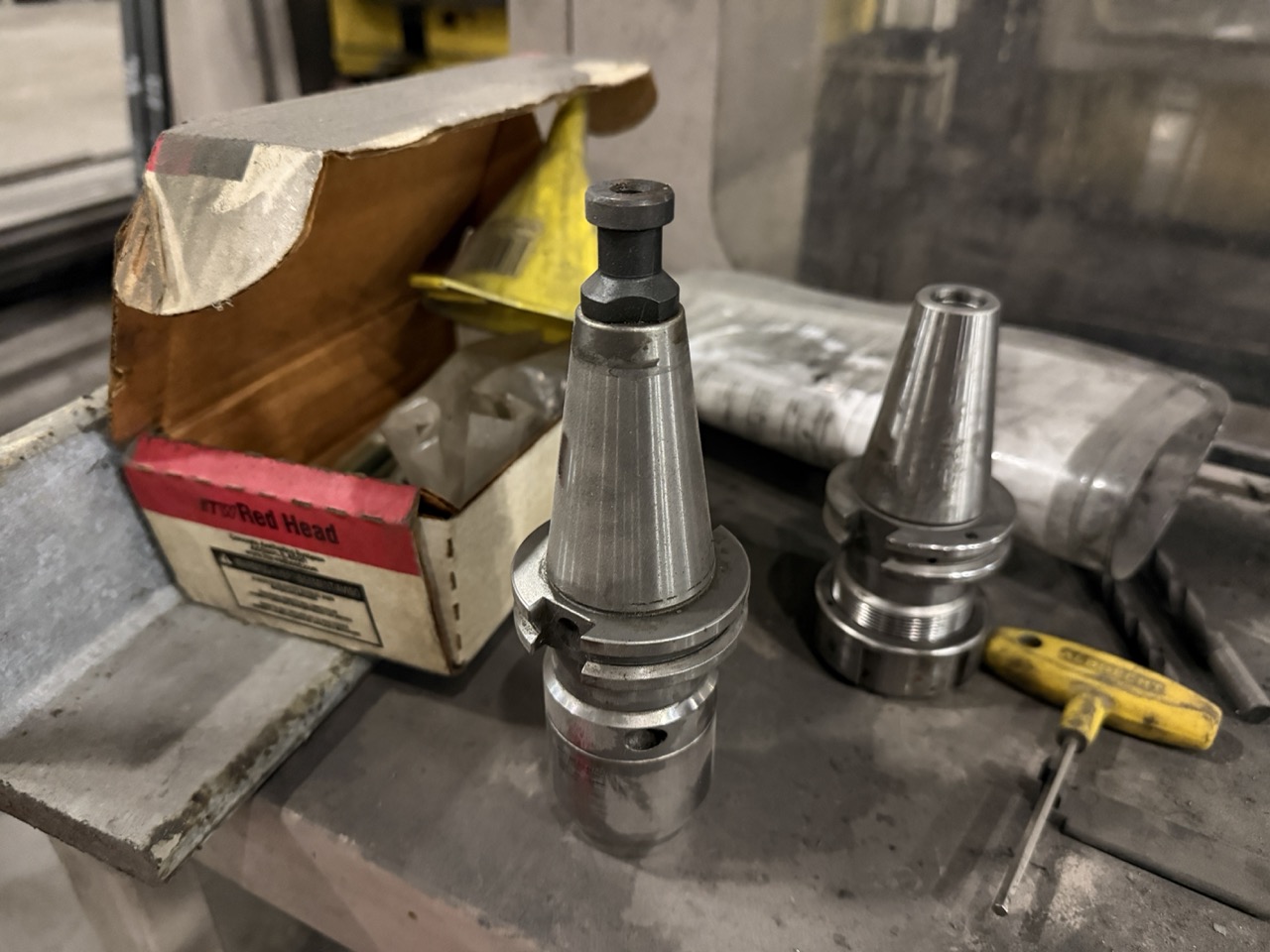

Spindle Coupling Size: 70Nm

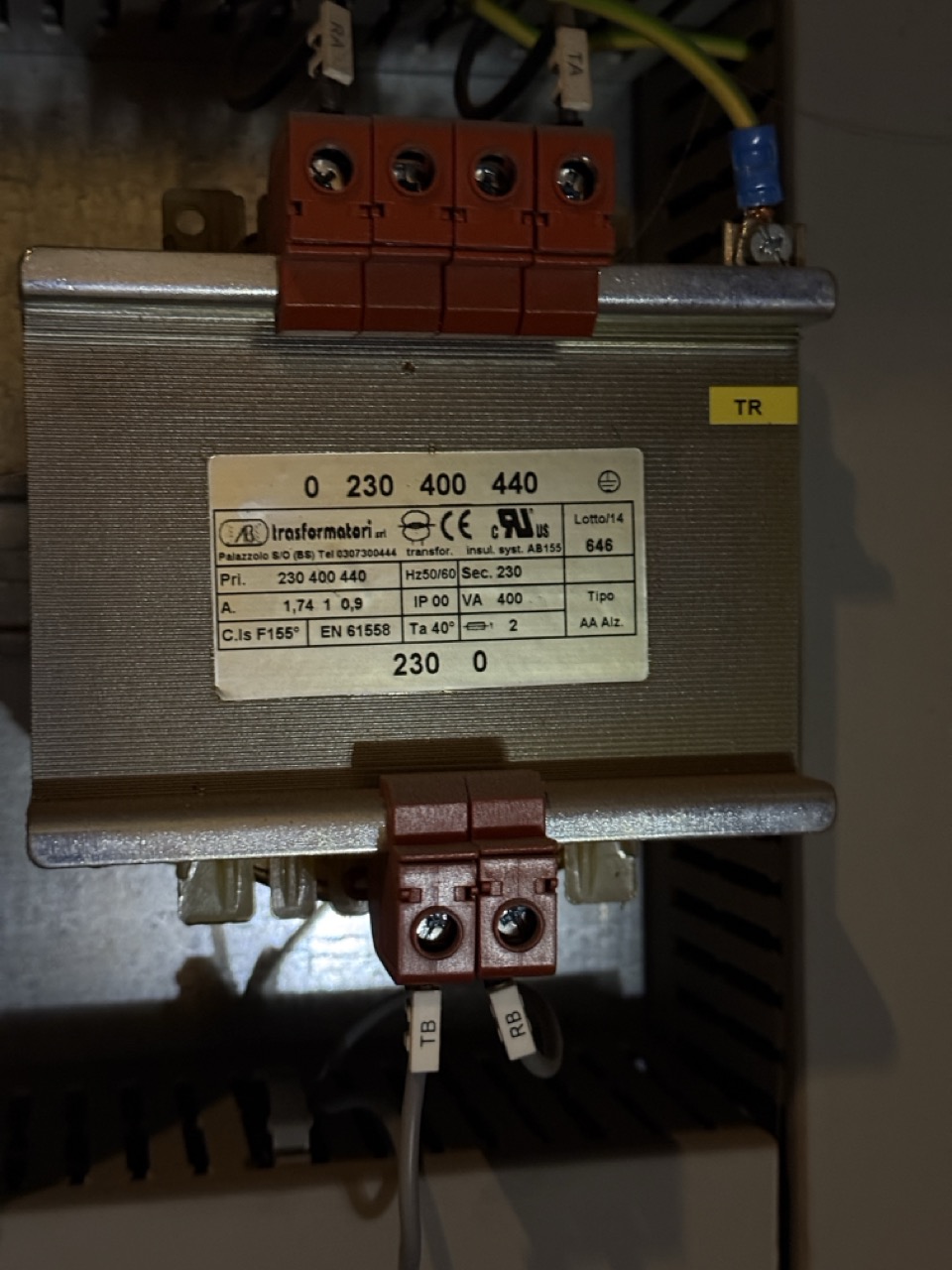

Motor: 8.25 HP / 220v, 440v / 3ph
