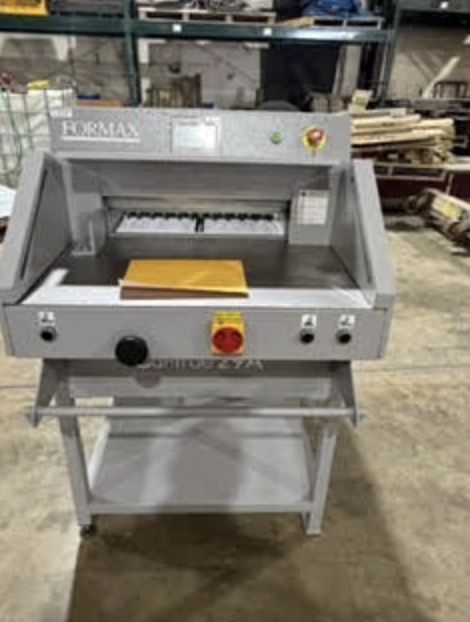

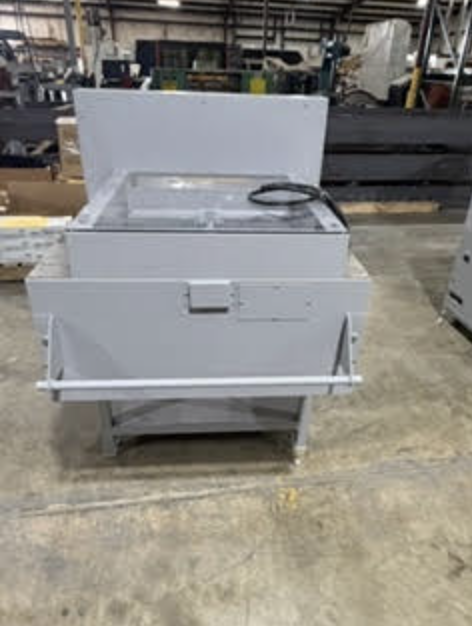

Formax Cut True 29A Paper Cutter, 2023

The 2023 Formax Cut-True 29A Paper Cutter is a heavy-duty, programmable electric guillotine cutter designed to provide high-precision trimming for commercial print shops and in-plant operations. It features an intuitive 7-inch color touchscreen control panel capable of managing up to 100 multi-step jobs alongside a fully automated, micro-adjustable back gauge. Engineered with prioritized operator safety, the machine utilizes electronically controlled two-hand operation and an integrated infrared light beam safety curtain to immediately halt all cycles if the cutting boundary is breached.

Maximum Cutting Width: 20.5” (520 mm)
Maximum Paper Stack Height: 3.15” (80 mm)
Cutting Accuracy: 0.1 mm
Length Behind Blade: 20.5” (520 mm)
Length in Front of Blade: 18.25” (464 mm)
Minimum Cut (with False Clamp): 1.6” (40 mm)
Minimum Cut (without False Clamp): 0.98” (25 mm)
Control Panel Type: 7″ Full-Color Touchscreen
Job Program Memory: Up to 100 programs (with up to 100 steps each)
Cutting Mechanism/Drive: Dual-button electric, hardened steel blade
Clamping System: Push-button automatic, electronically adjustable pressure
Table Surface Type: Anti-friction low-resistance deck
Standard Table Dimensions: 30.75” W x 15.75” D (781 x 400 mm)
Safety Features: Infrared light beam curtain, safety key lock, dual-button activation, and automatic blade return
Alignment Aid: Bright red LED laser cut line
Power Supply Requirements: 220V, 60Hz, 20A dedicated line (NEMA 6-20P plug configuration)
Approx. Weight: 683 lbs (310 kg)
