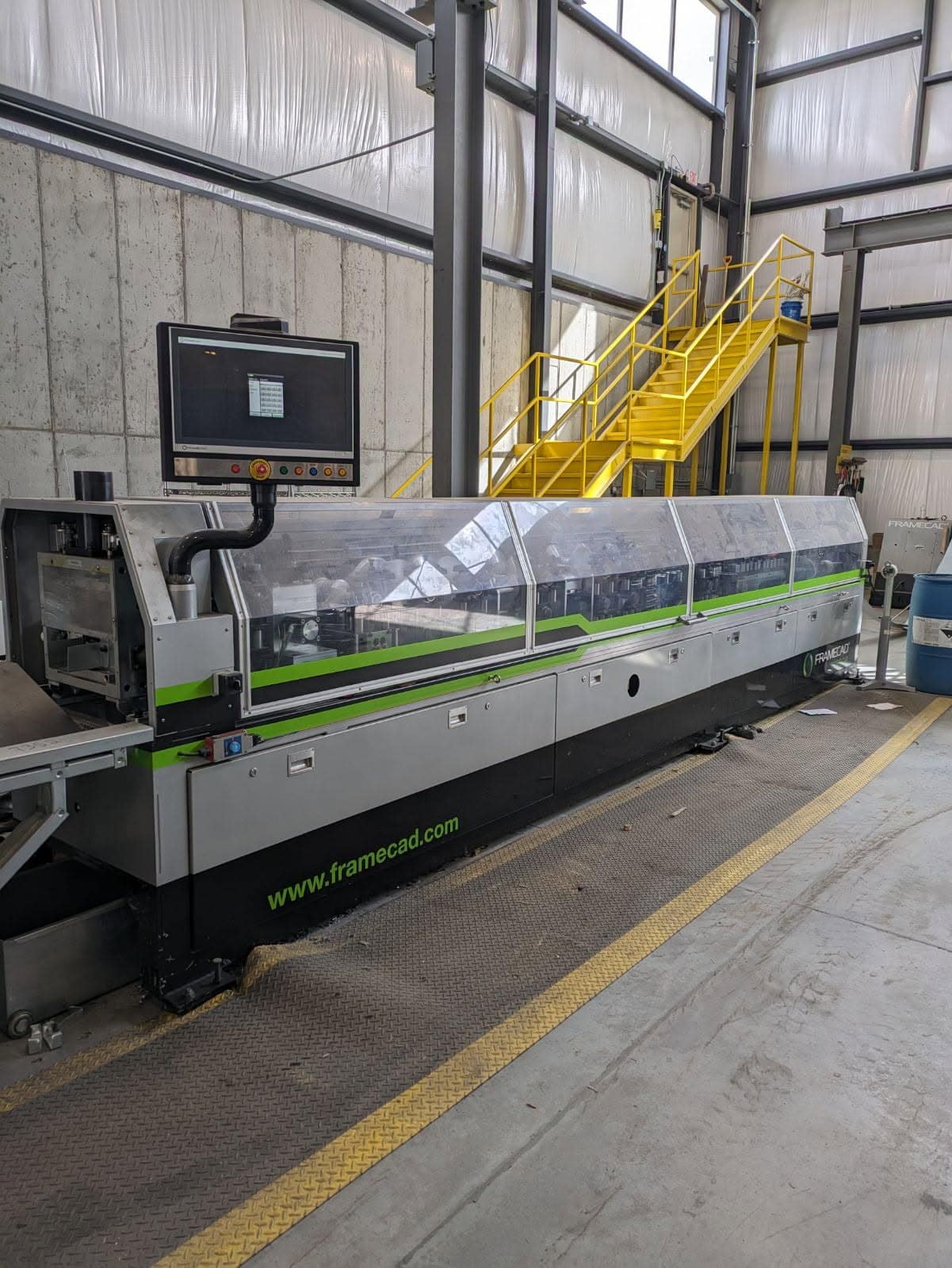

Framecad TF550H Frame, Truss & Joist Rollformer System, 2019 – LOW HOURS

Product Profiles: 1 x C, 1 X U
Material Thickness (BMT): 43 – 77 mil
Roll Forming Stations: 14
Max Line Speed (Plain C or U Section): 4430 ft/hr
Typical Production Output (design dependent): Joist: 985 ft/hr, Wall: 1970 ft/hr
Main Drive Power: 15 hp
Hydraulic Power: 10 hp
Hydraulic Reservoir: 32 US gal gal
Power Requirements: 380V-480V, 50-60HZ, 3PH, 40A
Ambient Temperature Range: 32-104°F
Humidity Range: 85%
Altitude Range: 4400ft
Approx. Dimensions: 19′ x 3’7″ x 4’7″
Approx. Weight: 6,500 lbs

Web Width (dedicated): 600 1/100in
Flange Heights (options): 162/162 & 250/250 1/100in
Lip Width (actual dependent on coil width): 045 1/100in
Dimple Pan Diameter: 043 1/100in
Dimple Screw Hole Diameter: 015 1/100in
Flange Screw Hole Diameter: 0.0 1/100in
Second Flange Screw Hole Diameter: N/A 1/100in
Service Hole Size (Must be <50% of Web Width): 325/150 1/100in
Web/Bolt Hole(s) Diameter: 015/053/015 1/100in
Web Screw Hole Diameter: 015 1/100in

Calculated Strip Width*. Dependent on Gauge, Lip Width, Thickness & Steel Grade: 9.57″
Most Common Steel Gauge to be Used: 54 mil
