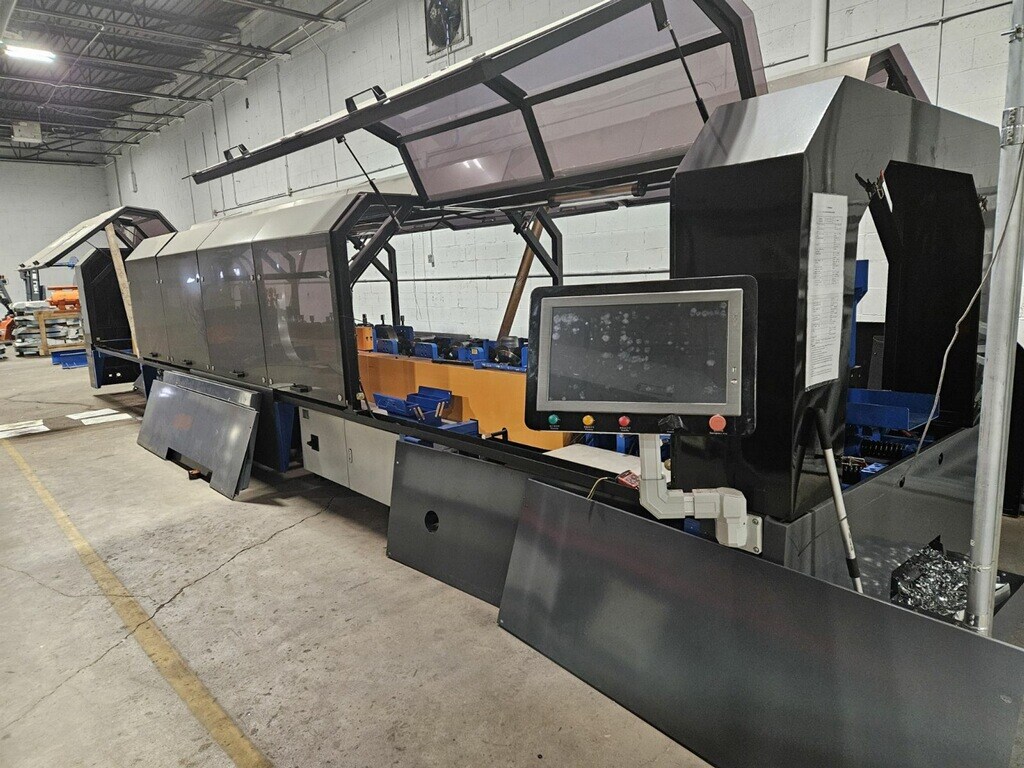

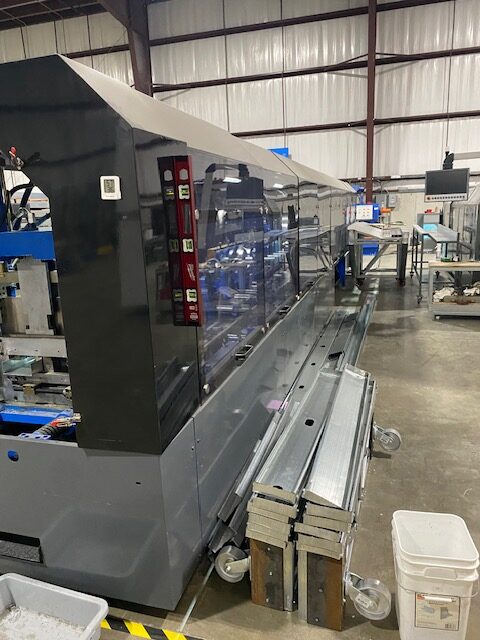

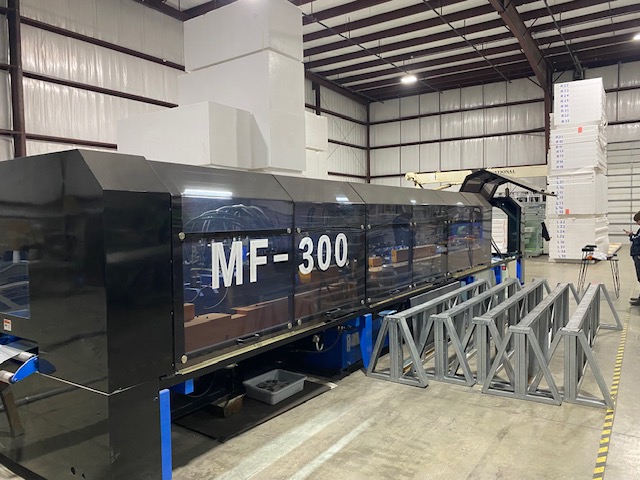

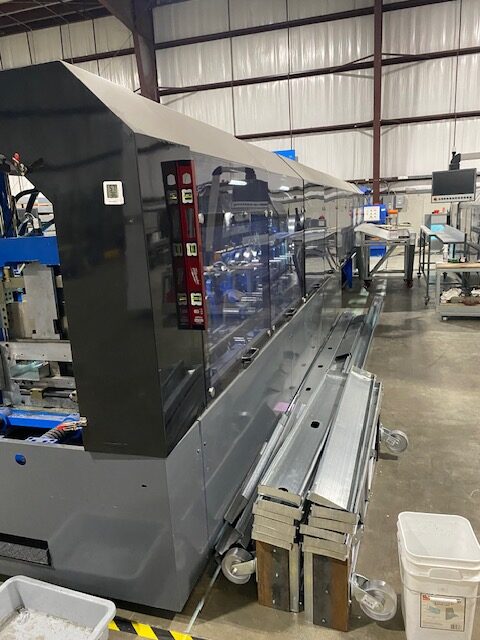

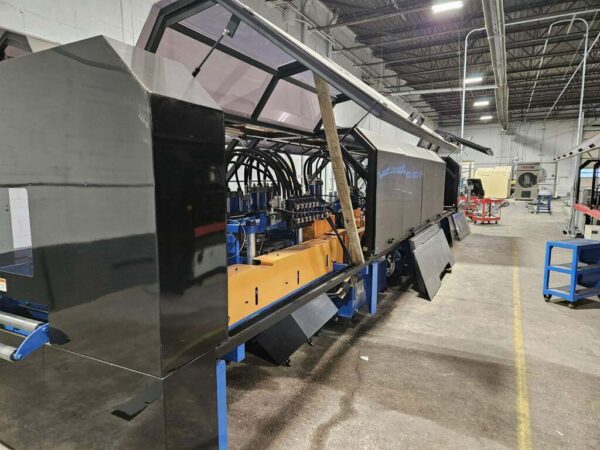

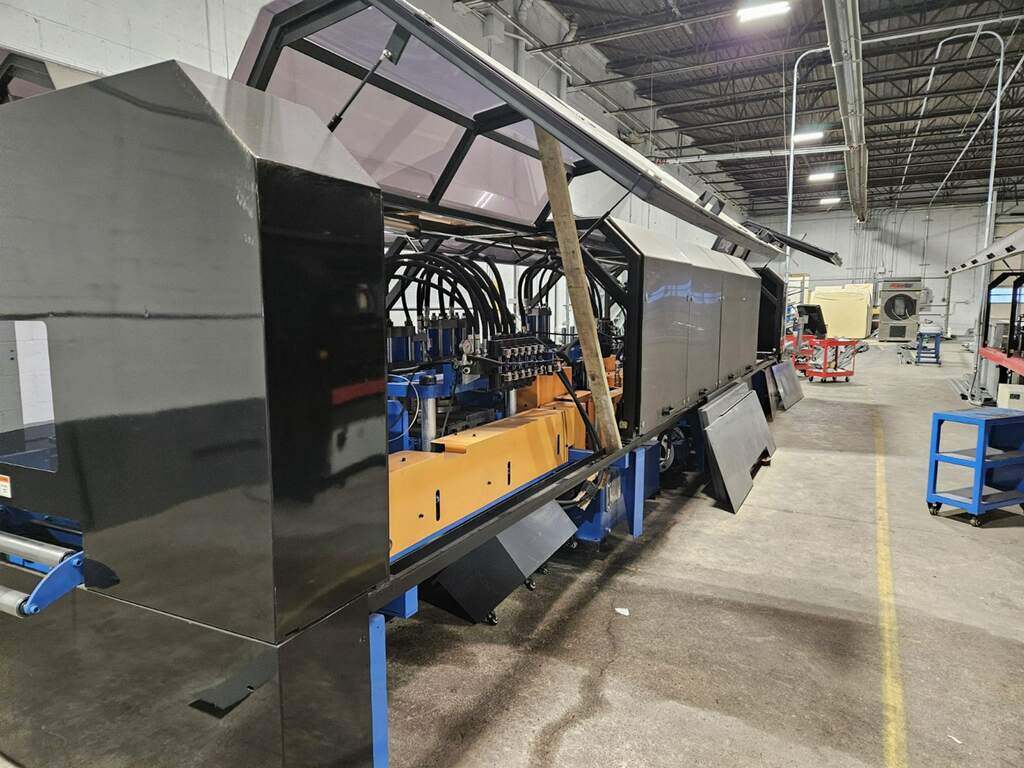

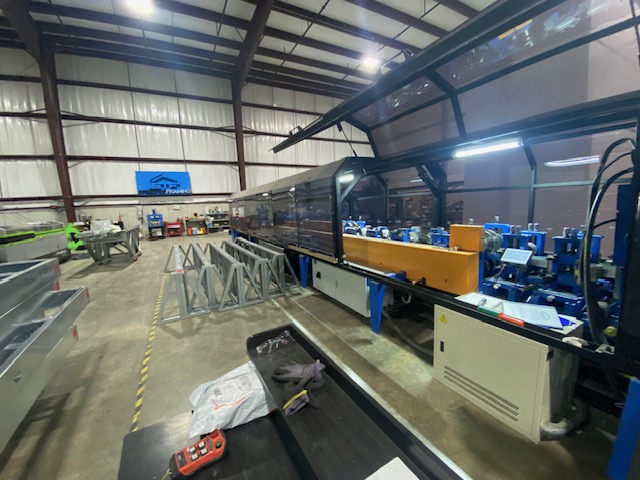

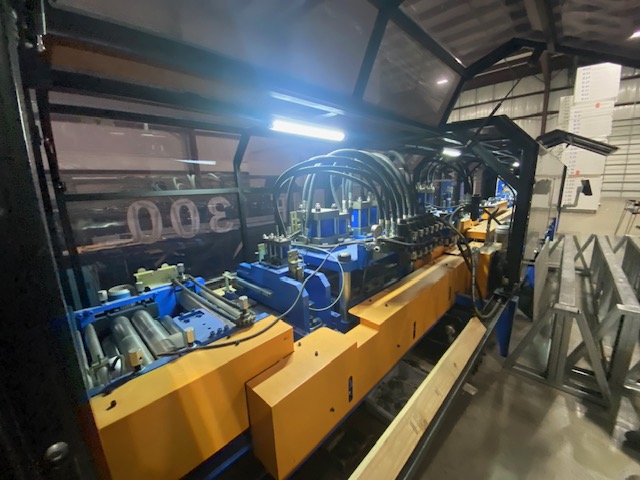

Frametec MF-300 Metal Stud Rollformer, 2022
$178,350.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Machine:
Weight: 45981.81 lbs.
Dimensions: 404.05โ x 166.02โ x 77.16โ
Width in any size within: 2.5″ to 12โ
Flange: 1.25″ – 2.5″
Lip: 0.78โ
Thick: 0.1โ (adjustable)
Production Speed: High Speed 1.37โ/min.
Material: Q235, G550 Hot rolled strip pr ot rolled galvanized strip
Voltage: 380 V
Frequency: 50 Hz
Electrical Phase: 3 P
Power Supply: 22 KVA
Power: 19.03 hp

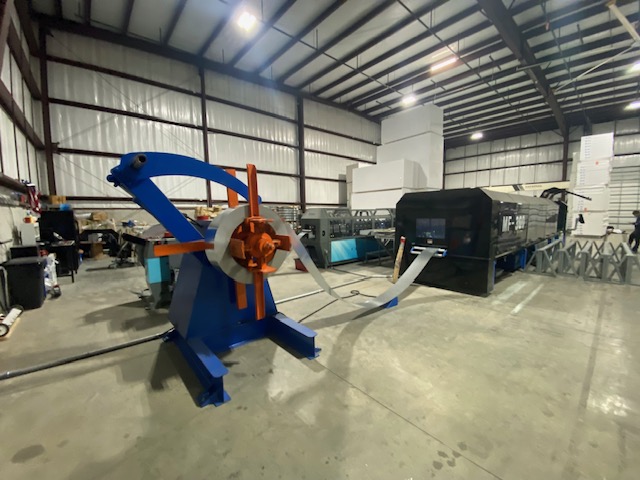

Decoiler:
FDY71 Fully Automatic
Load: 6 Tons
Tension mode: Hydraulic tension
Spindle double holding brake
Self-driven feeding
Weight: 2226.66 lbs.
Dimension: 90.43โ x 110.23โ x 74.01โ
Support Table:
Support length: 6 Meters
Support Method: Fixed storage table
Weight: 209.43 lbs.
Dimension: 236.22โ x 20.07โ x 33.30โ
Hydraulic System:
Hydraulic power: 15 hp
Flow: 28 ml
Tank Volume: 200 L
Dimension: 1.85 โ x1 2.59โ x 61.41โ
Oil circuit of hydraulic station: 10
Equipped With:
Hydraulic Decoiler
Feeding and Leveling Device

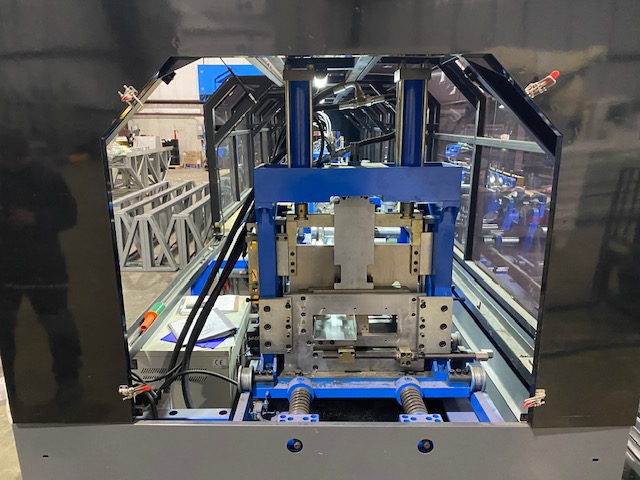

Hydraulic Punching

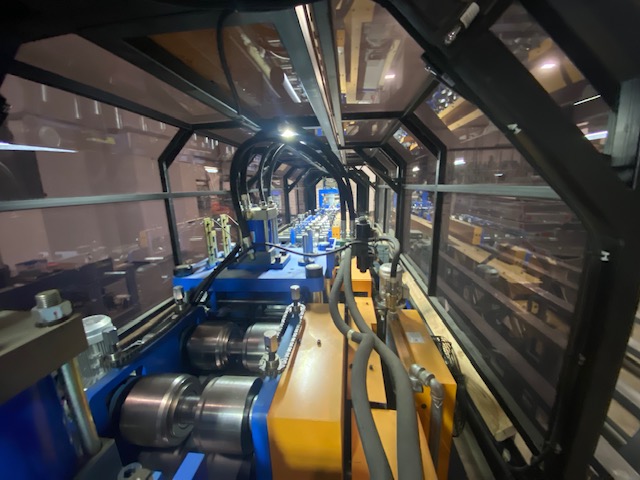

Rolling Forming System
Hydraulic Cutting
Safety Coves Guard
Industry computer control panel
Product Support frame
PLC Control System
*Note: Machine Profile Lists available upon request
