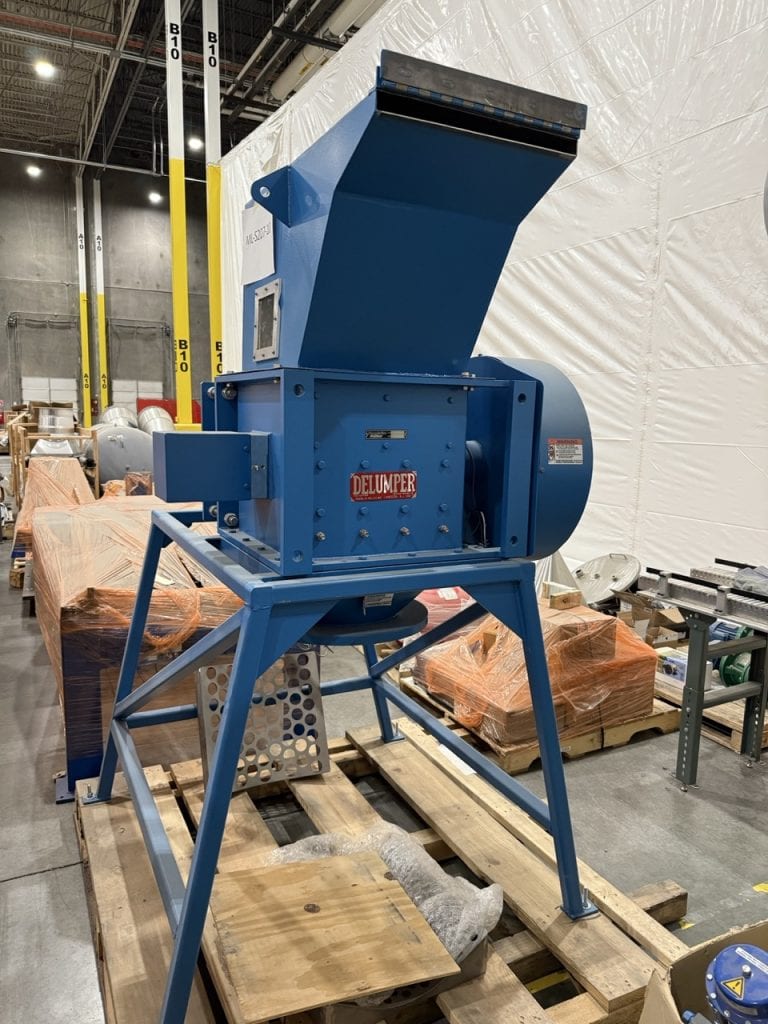

Franklin Miller DC2020LP Delumper Crusher, 2022 – 20 HP

Inlet/Outlet Opening: 20″ x 20″

Body: Heavy structural carbon steel, one-piece housing

Cutting Teeth: High profile; chrome-boride hard-faced alloy steel

Seals: Shaft seals

Grid: Bar grid

Bearings: Heavy-duty outboard bearings

Style: HM style with HM screen (same as rental test unit)

1. Motor & Drive

Motor: 20 HP WEG Explosion-Proof

Classification: Class I, Div. 1

Voltage: 460V, 3-phase, 60 Hz

Enclosure: TEFC

Drive: Belt drive

Motor Plate: Adjustable, carbon steel

Safety Guard: Carbon steel

2. Infeed Hopper (Front-Loaded)

Carbon steel construction

All welds ground

Forward-angled design

Narrow 1″ opening for sheet feed

Side sight glass

Closed top

Modified bottom to feed into process section

3. Rigid Stand

Four-leg design

Approx. 36″ height

Structural carbon steel

Painted FMI blue (2-coat system)

4. Discharge Drum Adapter

For 30-gallon steel drum

Drum flange with gasket (dust control)

Drum positioning plate

Level switch included

Compatible with pallet jack (by others)

Controls & Electrical
Automatic Reversing Controller – Model S260

NEMA 12 cabinet

Variable Frequency Drive (VFD) – provides variable speed + reverse/forward

PLC logic control (Modbus/TCP capable)

IEC starters

LED indicators

Current-sensing auto-reversing program

Local Control Station – NEMA 7

C1D1/C1D2 Groups C & D

C2D1/C2D2 Groups E, F, G

Mushroom emergency stop

Local/Remote/Manual selector

Forward/Reverse selector

Level Sensor

Pepperl & Fuchs ultrasonic level sensor

Auto-stop when drum is full

90% warning light (blink), 100% solid indicator

Factory-set but field-adjustable

Motor Data (WEG 20 HP)

Model: 02018XT3E256T

Horsepower: 20 HP

Speed: 1770 RPM

Voltage: 230/460V

Current: 50A / 25A

Service Factor: 1.15

Frame: 256T

Weight: ~393 lbs

Torque: 59.3 ft-lb

Enclosure: TEFC (IP55)

Duty: Continuous

Paint Specs

Polyamide epoxy coating

Color: Franklin Miller Blue

1 coat primer / 1 coat topcoat

SSPC-10 near-white blast prep

460 V / 3 Phase / 60 Hz
