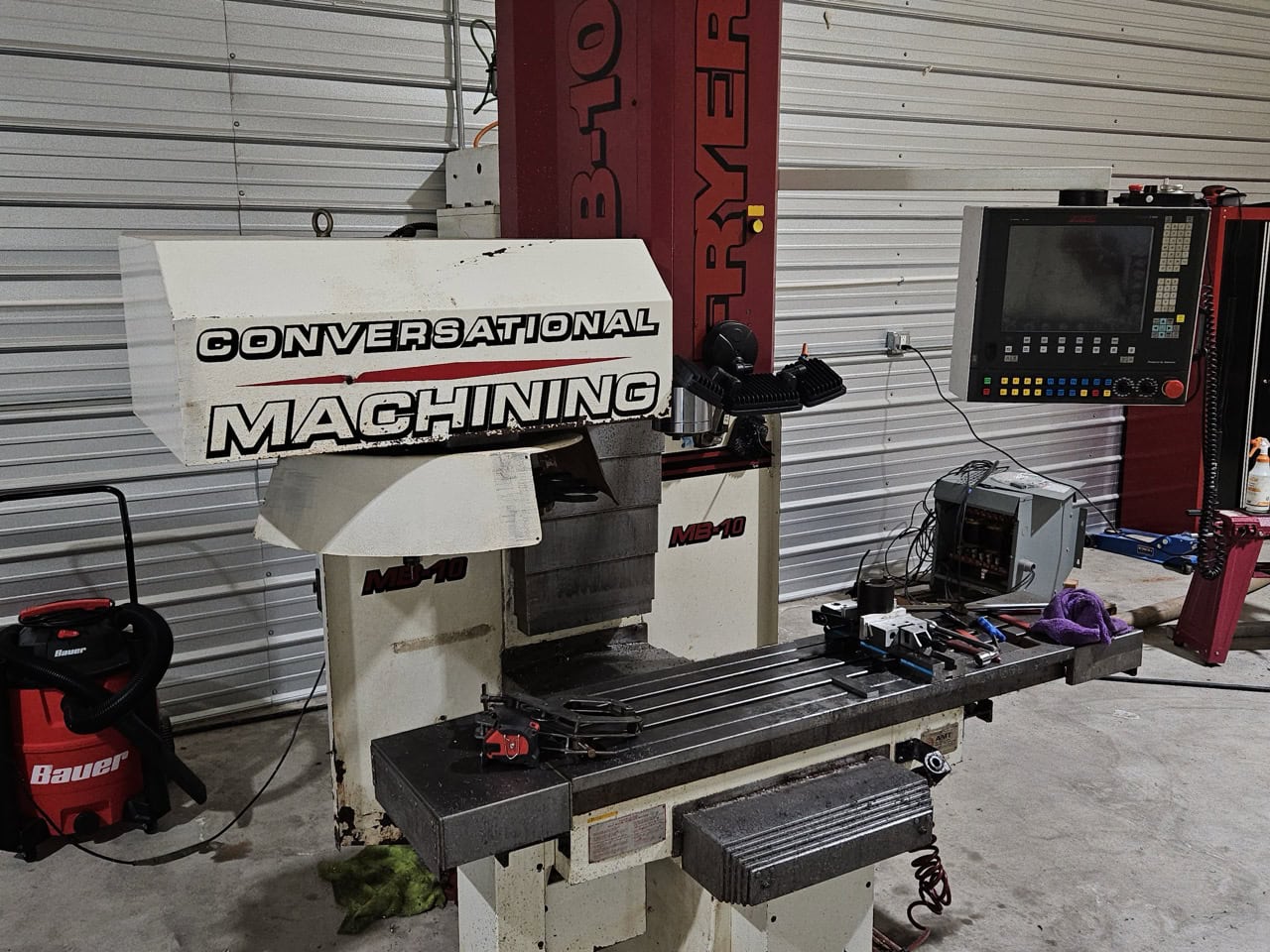

Fryer MB-10R Conversational Tool Room Mill, 2011
Fryer MB-10R Conversational Tool Room Mill, 2011 - Image 2
SB
35579639317

Fryer MB-10R Conversational Tool Room Mill, 2011

$14,900.00

Fryer MB-10R Conversational Tool Room Mill, 2011
Fryer MB-10R Conversational Tool Room Mill, 2011 - Image 2

Request a Quote to Instantly See Pricing

Call Now

Machine Type: CNC/Manual Knee Mills
Make: Fryer
Model: MB-10R
Year: 2011
Machine Location: Texas
Stock #: 639317

Table Dimensions (Overall), W x L: 14″ x 50″
Table Load Capacity: 2000 LBS
Table Longitudinal Travel (X-Axis): 32″
Saddle Cross Travel (Y-Axis): 17″
Head Vertical Travel (Z-Axis): 19″
Spindle Center to Column: 17.5″
Spindle Nose to Table, Maximum: 25.5″
Spindle Nose to Table, Minimum: 6.5″
Spindle Taper: CAT 40
Tool Weight, Maximum: 15.4 LBS
Tool Length, Maximum: 11.8″
Spindle Speeds, Range: 60 to 6000 RPM
Motor Horsepower (Peak): 12 HP
Cutting Feedrate, Range: .001 to 300 IPM
Rapid Traverse Rate: 400 IPM
Operating Dimensions: 103″ x 80″ x 94″
Weight, Approximately: 5000 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
