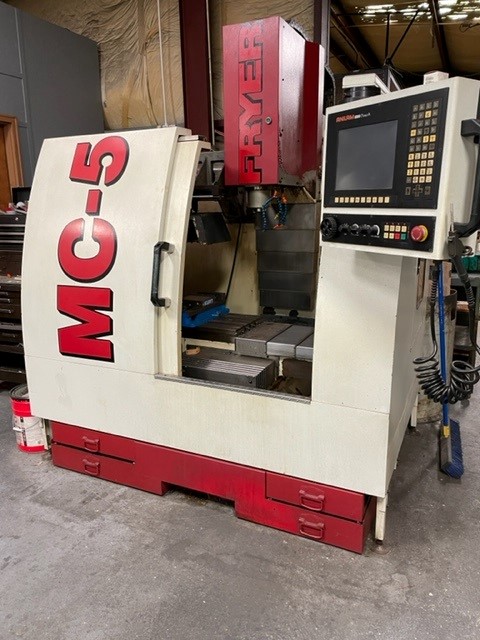

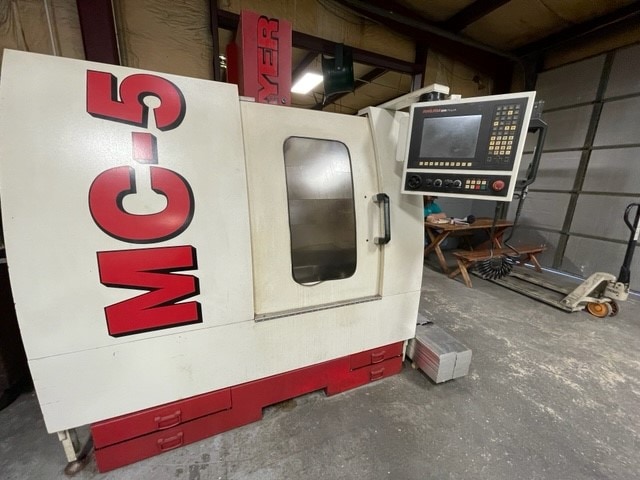

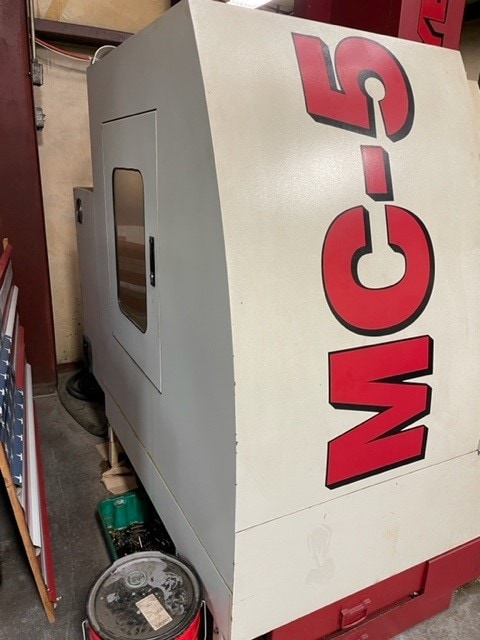

Fryer MC-5 VMC, 2006 – Chip Auger
$8,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Travels: 50″
Y Travels: 30″
Z Travels: 28″
Table Load: 4,500 lbs
Table Size: 24″ X 60″
T-Slots (No./Width): 5/.625″
Table Top to Floor: 32″
Spindle Motor: 20HP
Spindle Speed: 60 – 8,500RPM
Spindle Torque: 75ft/lbs. @ 400RPM
Tool Type/Taper: CAT 40
Spindle Nose to Table: 32″ – 4″
Spindle Center to Column: 30″
Tool Storage Capacity: 24 Station Arm Type
Tool Change Time: 2.0 Seconds
Tool Selection: Random Bi-Directional
Max. Adjacent Tool Diameter: 3.20″
Max. Tool Weight: 13.5lbs
Max. Tool Length: 13″

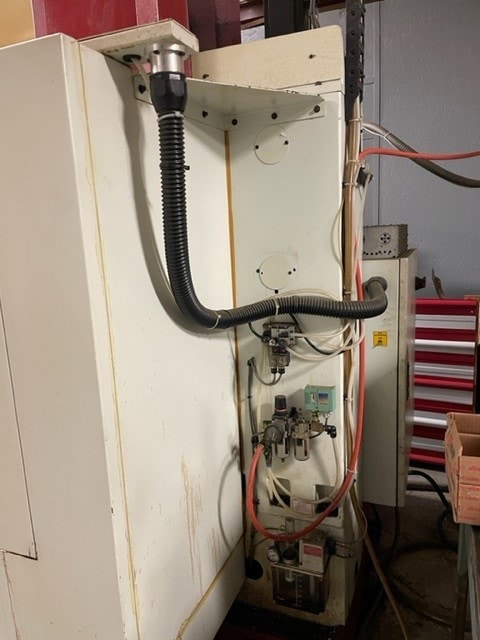

Air Pressure Requirement: 90PSI – 5CFM
Coolant Capacity: 90 Gallons
Coolant Flow: 9GPM
Power Requirements: 240V / 3Phase
Machine Dimensions: 7’L x 8’W x 8’H
Machine Weight: 5,000lbs
