Giddings & Lewis 615QF Boring Mill, 1969 – Retroffited, Tooling Available

$29,900.00

Register or Login to see pricing

A password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Machine Type:
Boring Mills
Model:
615QF
Make:
Giddings & Lewis
Year:
1969

Retrofits:
Complete mechanical 1998
Complete Controls 2015
Controller: Fagor 8055FL
(3 Axis, with Quill controllable but not CNC )

Servo Motors: Gettys Elwood DC Servo (on 3 axis)
Spindle HP/Max/Min RPM: 50hp/1800/8.5
Spindle Dia/Travel: 6”Dia/36”
Z Quill Dia/Travel: 16” Dia/24”
X Travel: 187”
Y Travel: 96”

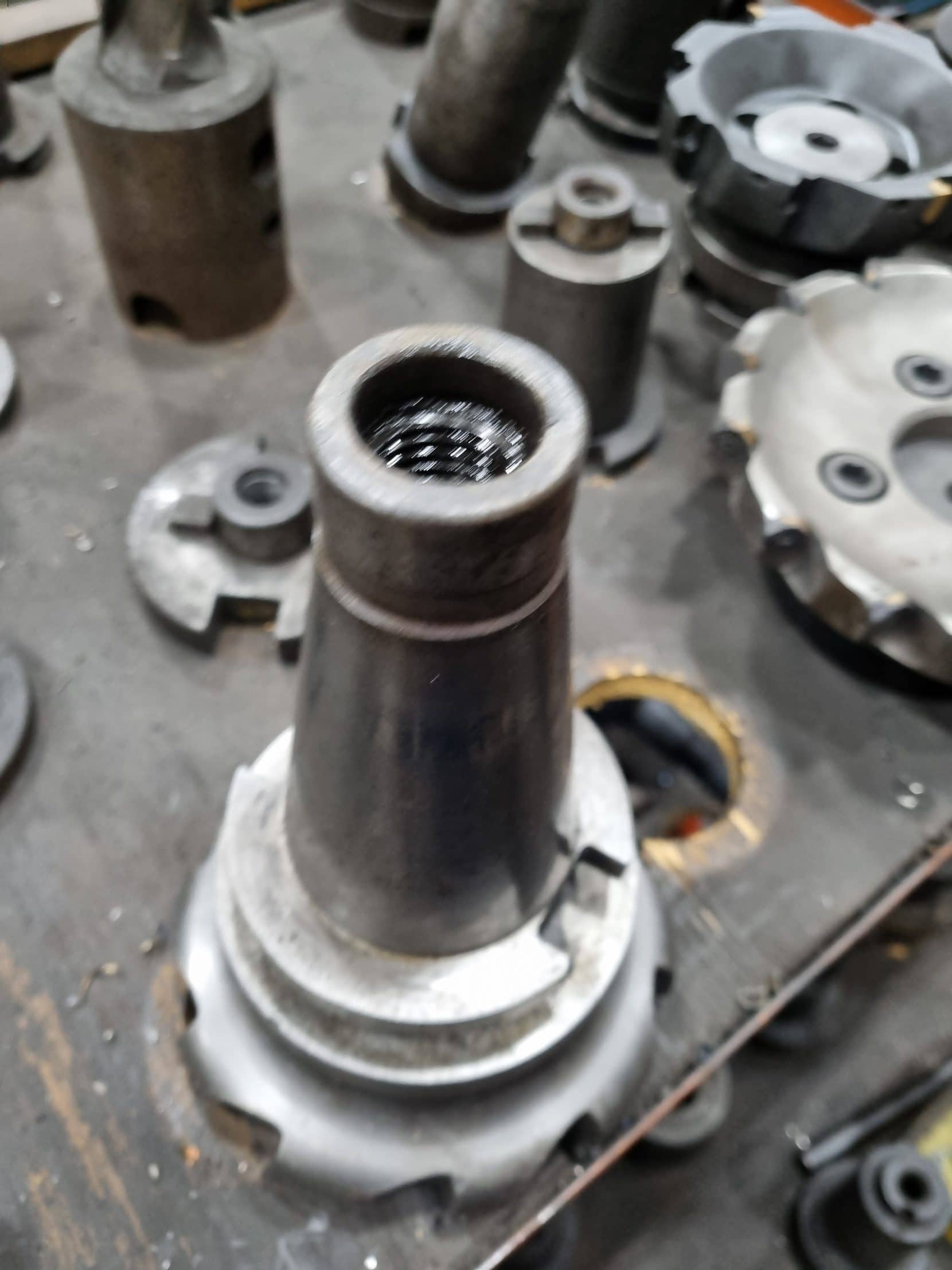

Spindle Taper : CAT/NMTB 50
Footprint (rectangular pit):

Roughly 14’ x 38’ (exclusive of table footprint in front of column)
Main Tooling Plate: 12” x 96” x 216” ( 8’ x 18’)
Secondary Tooling Plate available: 12” x 72” x 246” (6’ x 20.5’)
Heavy duty Rotary Table – Powered but not CNC: 78” x 78” x 36” Tall

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
