Global Finishing Solutions CP-DCM-4831001 20′ x 9′ x 8′ Dust Collection & Clean Air Recirculating System, 2023
$34,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

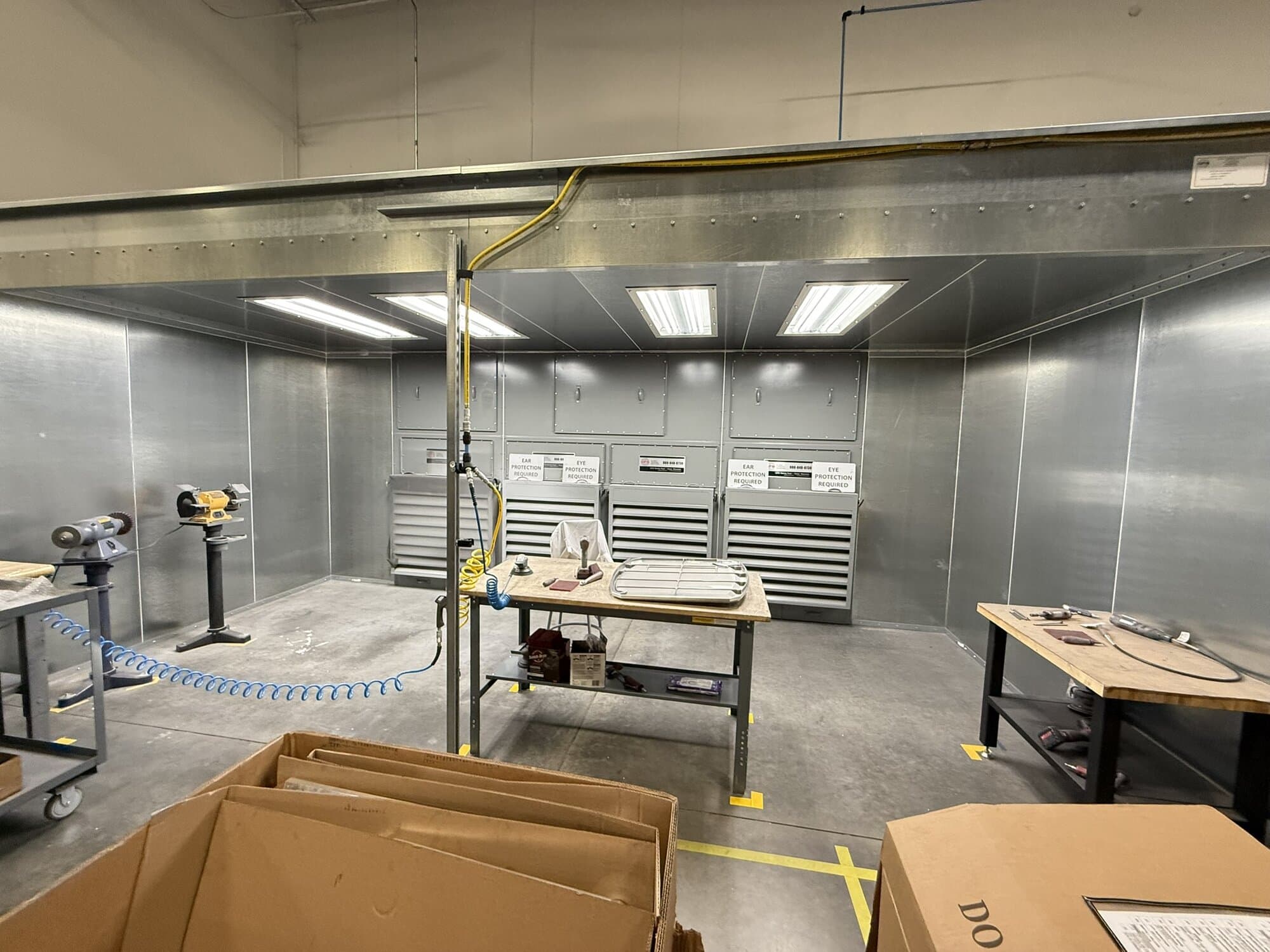

Booth Dimensions
Working Width: 20โ-0โ
Clear Width: 20โ-4โ
Working Height: 8โ-0โ
Overall Booth Height: 8โ-10โ
Clear Interior Height: 10โ-2โ
Working Depth: 9โ-0โ
Clear Depth: 13โ-3โ
Exhaust Chamber Depth: 4โ-3โ
Min. Overhead Clearance for Filter Change: 12โ

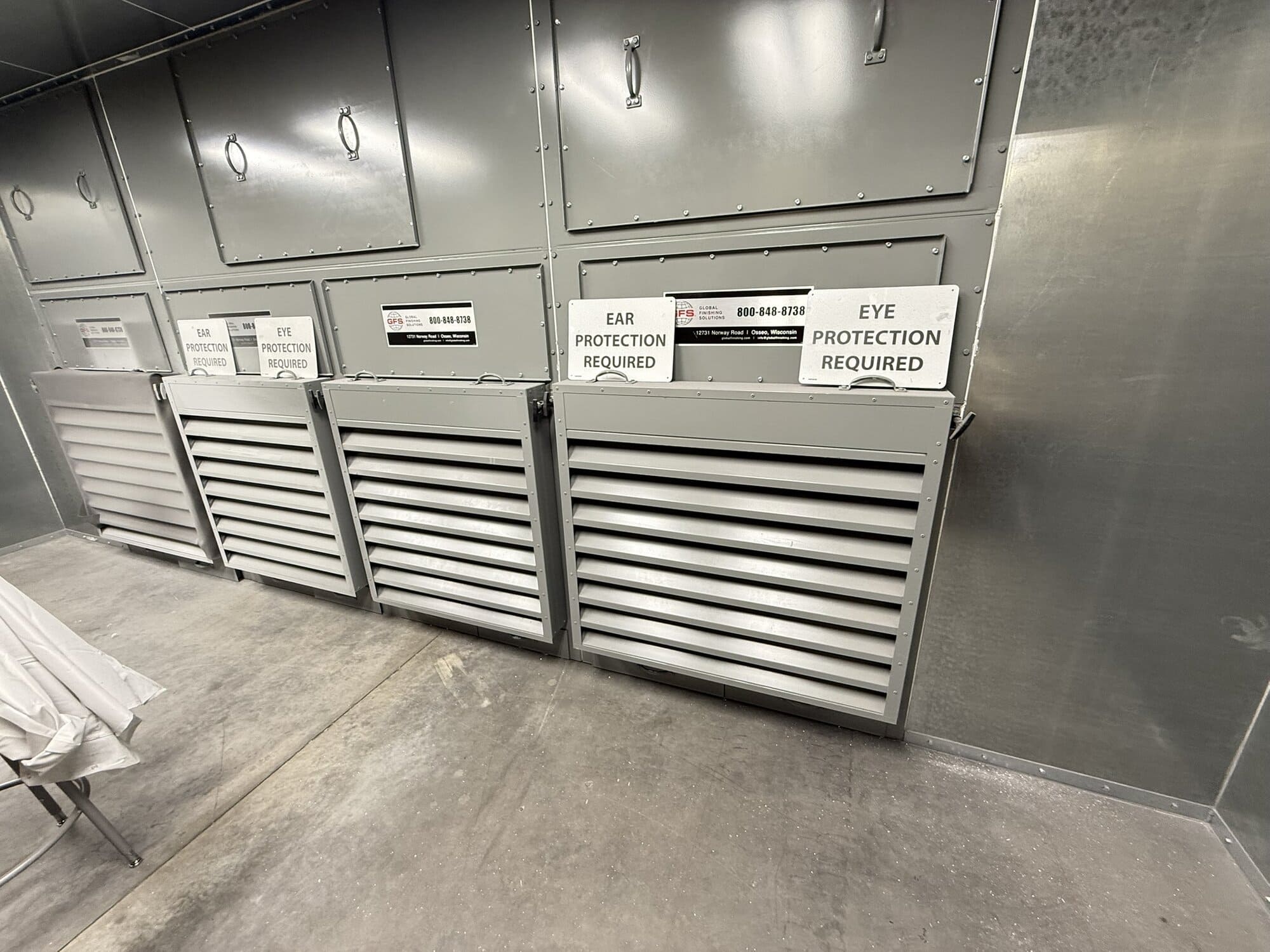

Dust Drawers: 8 total
Access Doors: (4) 14 7/8″ ร 39 5/8″, (3) Fan access doors

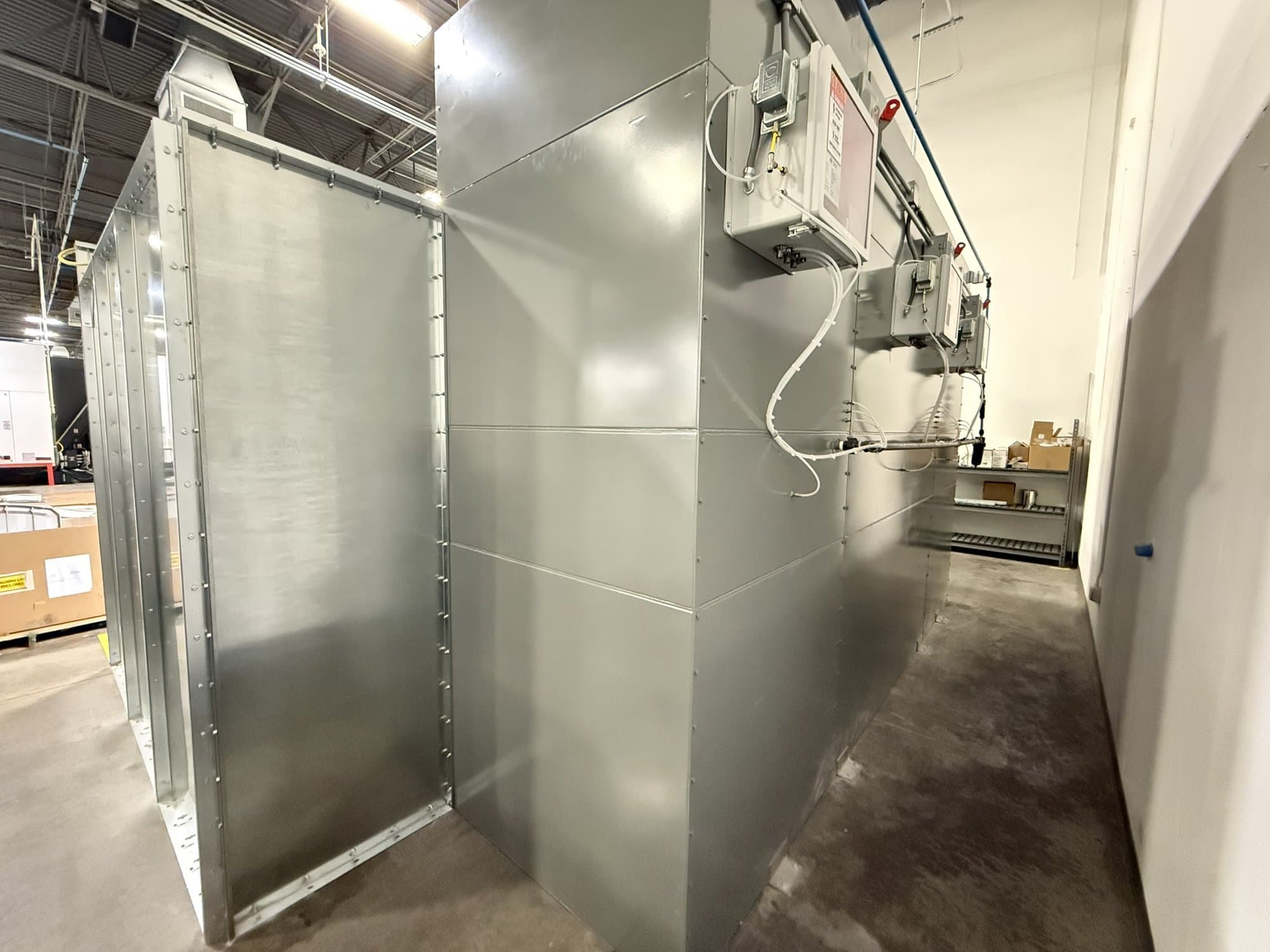

CONSTRUCTION
18-ga galvanized booth panels
12-ga galvanized structure
12-ga hot-rolled painted chambers
Airflow & Performance
-Total CFM: 19,200
-Static Pressure: 3โ
-Pulse System: 13.1 SCF per pulse (10 sec intervals)
-Compressed Air: 2.6 CFM @ 100 PSIG
Fans
Set #1 (Two Fans)
-Diameter: 19.938โ
-RPM: 1,800
-CFM: 5,120 each
-HP: 7.5
-Voltage: 208/230/460V (3PH)
-Enclosure: TEFC
Set #2 (One Fan)
-Diameter: 24.5โ
-RPM: 1,800
-CFM: 8,960
-HP: 10
-Voltage: 208/230/460V (3PH)
-Enclosure: TEFC

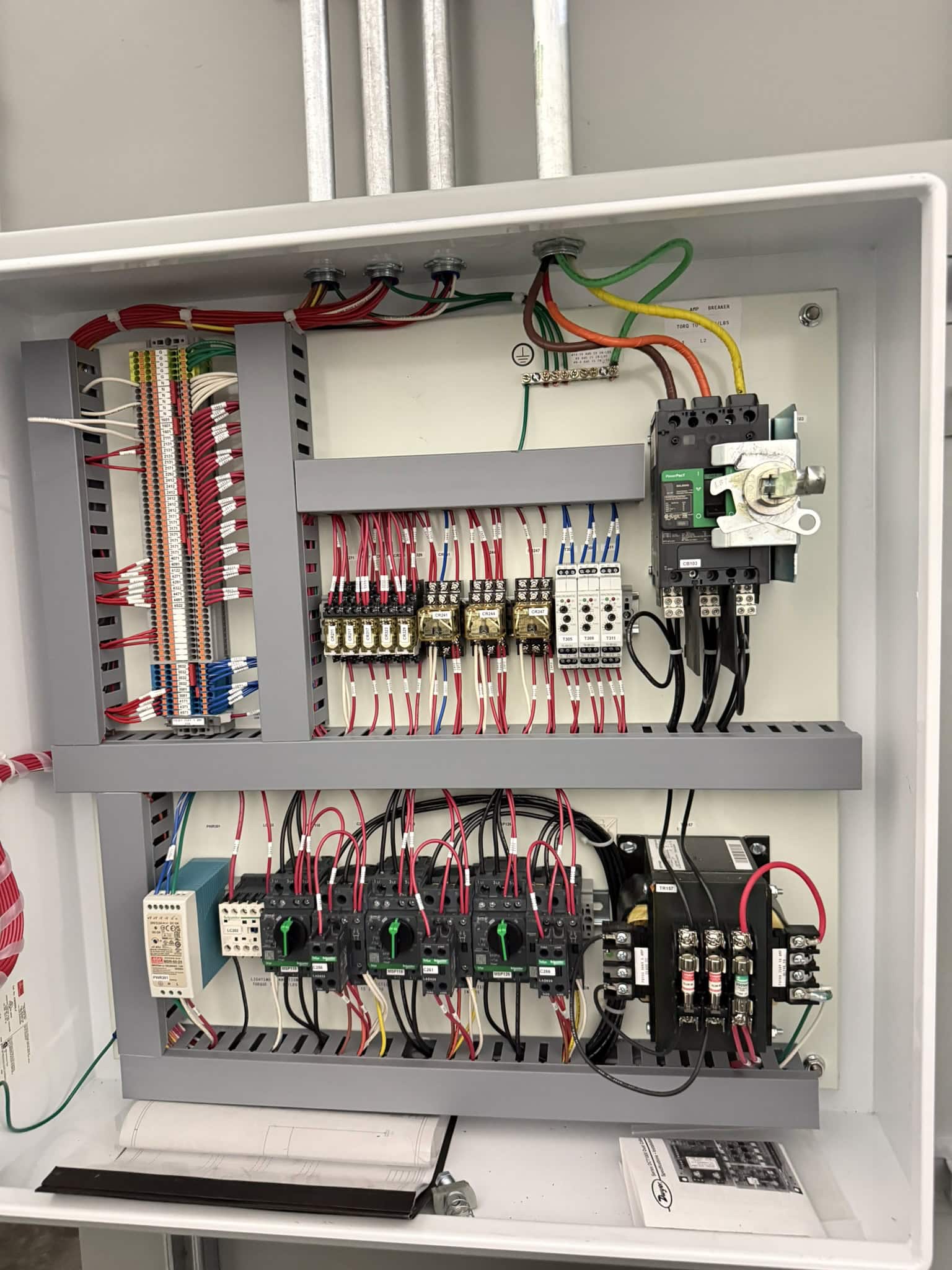

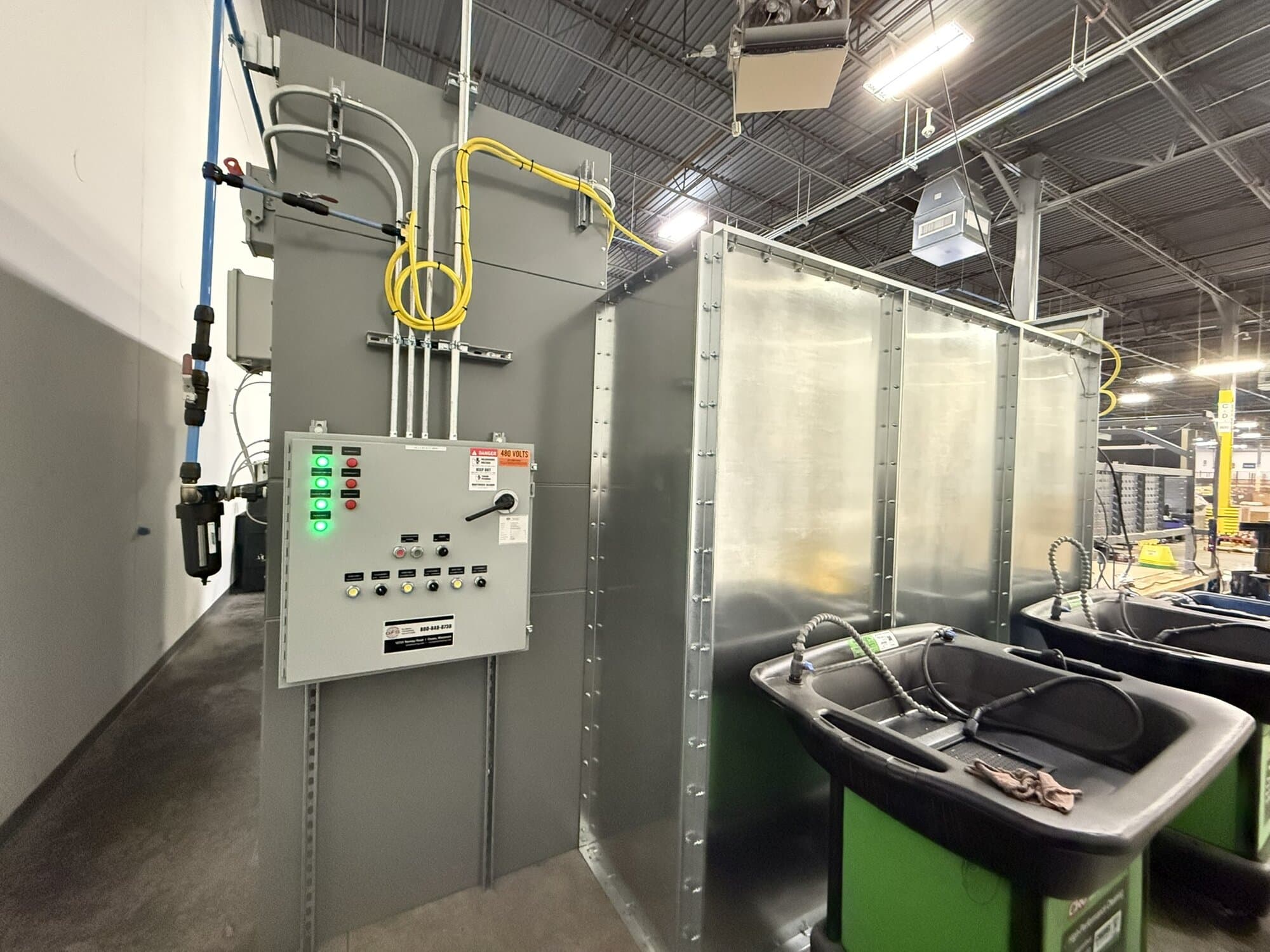

Electrical
-Operating Voltage: 480V 3PH 3W 60Hz
-Minimum Service: 48A
-Largest Motor: 10 HP
-Total HP: 25 HP
-Lighting Voltage: 120V
-Full Load Amps: 39 FLA
