Haas CL-1 Compact CNC Chucker Lathe, 2019 – With Video

$24,900.00

Request a Quote to Instantly See Pricing

Machine Type: CNC Lathes
Make: Haas
Model: CL-1
Year: 2019
Machine Location: California
Stock #: 985135

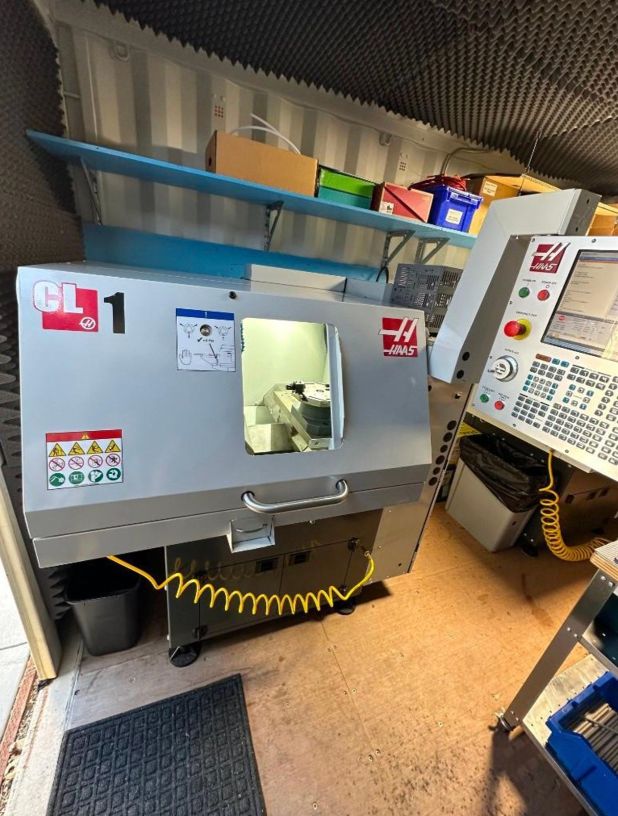

2019 HAAS CL-1 COMPACT CN CHUCKER LATHE SN:3117563

SWING DIAMETER
Over Cross Slide 11.0”
Over Table 4.95”

CAPACITIES
Chuck Size (max) 4.0”
Max Cutting Diameter 5.0”
Bar Capacity 1.00”

TRAVELS
X Axis 12.0”
Z Axis 8.0”

FEEDRATES
Max Cutting 500 IPM
Rapids on X 757 IPM
Rapids on Z 757 IPM

SPINDLE
Spindle Nose 5C (collet) Type Nose
Nose Thread 2 3/16” – 10
Drive System Direct Speed, Belt Drive
Max Rating 5.0 HP
Max Speed 6000 RPM
Spindle Bore ø 1.25”

TOOLING

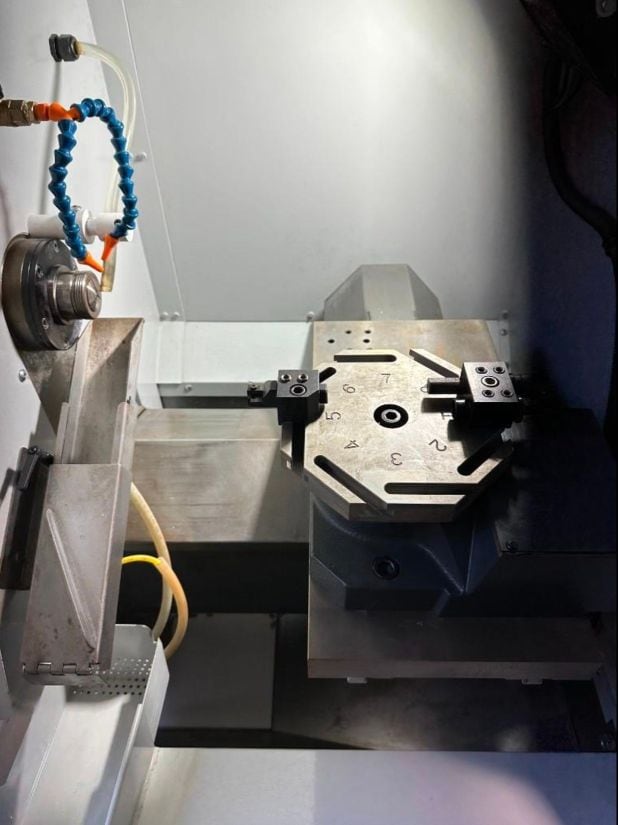

Tooling Gang Style-Any Combination

DIMENSIONS – SHIPPING
Domestic Pallet 78” x 62” x 80”
Weight 1940 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
