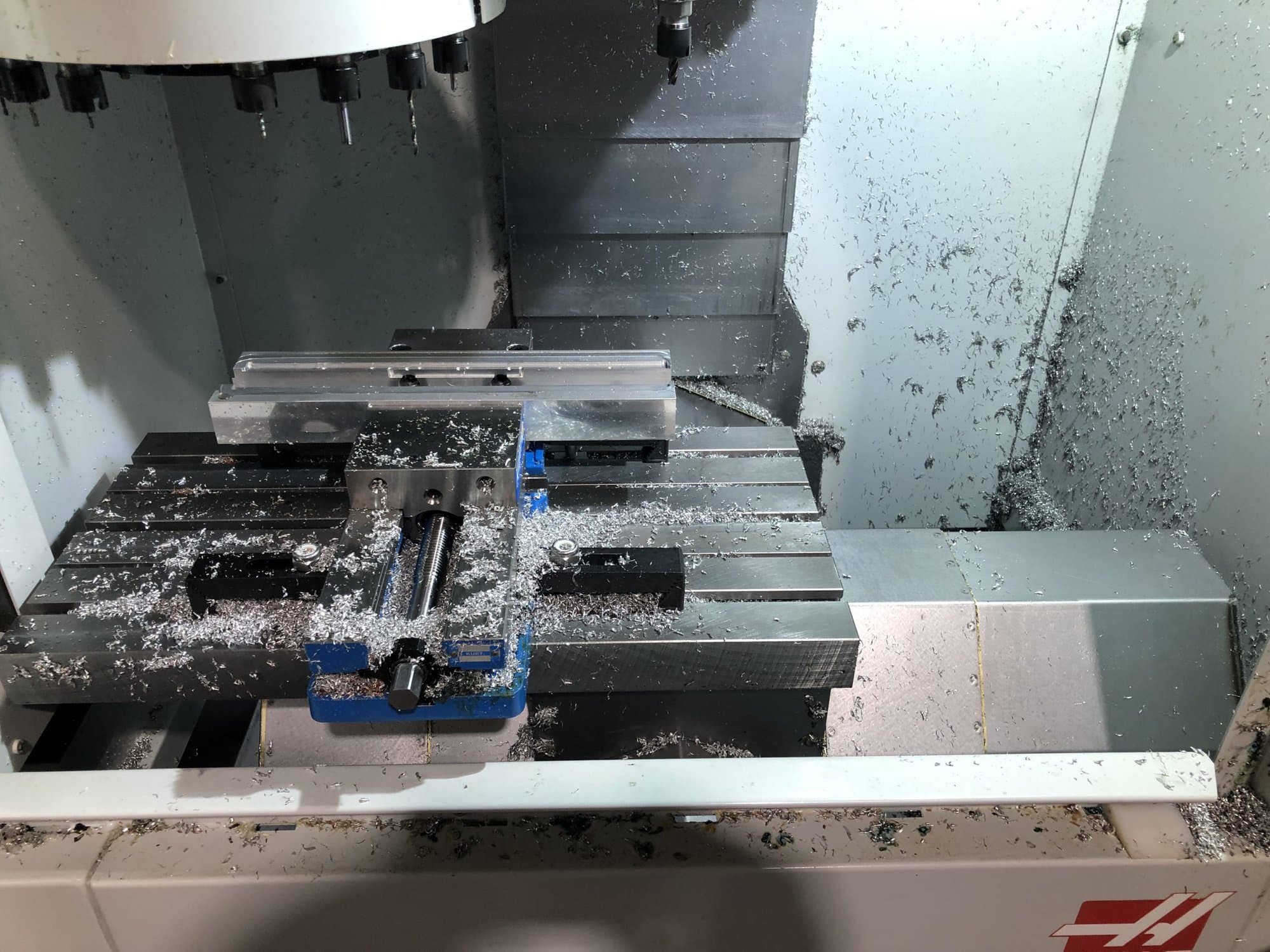

Haas CM-1 VMC, 2019 – 30,000 RPM, High Speed Machining, 4th Axis Prep, 5th Axis prep


Request a Quote to Instantly See Pricing

Machine Type:
Vertical Machining Centers

X Axis Travel: 12″
Y Axis Travel: 10″
Z Axis Travel: 12″
Table Size: 20″ x 10″
Max Table Load: 150 LBS
Spindle Motor: 5 HP
Spindle Speed: 30,000 RPM
Spindle Taper: ISO20 CT
Tool Changer: 20 ATC
Max Torque 8 ft-lbf
Max Weight on Table 150lbs
Max Cutting 500 ipm
Rapids on X 757 ipm
Rapids on Y 757 ipm
Rapids on Z 757 ipm
Max Thrust X 1149 lbf
Max Thrust Y 1149 lbf
Max Thrust Z 1149 lbf
Max Tool Diameter 2.3″
Max Tool Weight 5 lb
Tool-to-Tool (avg) 3.2 s
Dimensions: 78″ x 58″ x 87″
Weight: 2,100 LBS

Equipped With:
4th Axis Prep
5th Axis Prep
High Speed Machining

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
