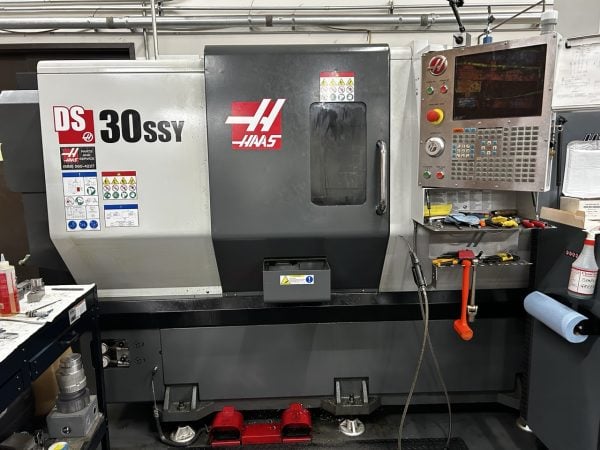

Haas DS-30SSY Multi-Axis CNC Lathe, 2016 – High Pressure Coolant, Parts Catcher

Max Turning Length: 23″
Max Turning Diameter: 16″
Swing Over Bed: 31.75″
X Axis Travel: 12.5″
Z Axis Travel: 23″

Bar Capacity: 2″
Chuck Size: 8″
Spindle Speed: 4,800 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6

Sub Spindle:
Bar Capacity: 2.0″
Spindle Speed: 4,800 RPM
Spindle Nose: A2-5
Spindle Motor: 20 HP

Turret: 24 Stations

Equipped With:

Haas CNC Control
Sub Spindle
Y Axis
Enclosure Exhaust System
Expanded Memory
High Pressure Coolant System
Parts Catcher
Spindle Liner Kit
Rigid Tapping
