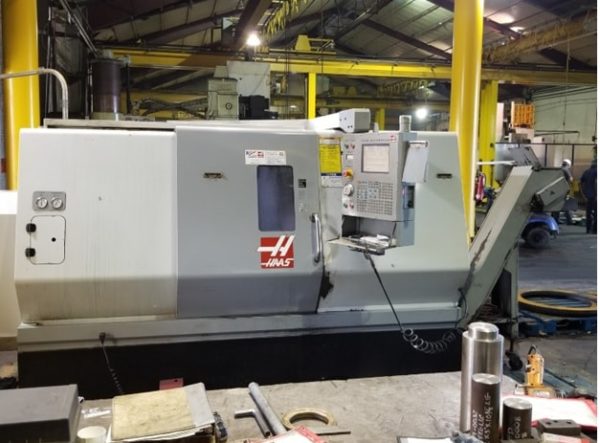

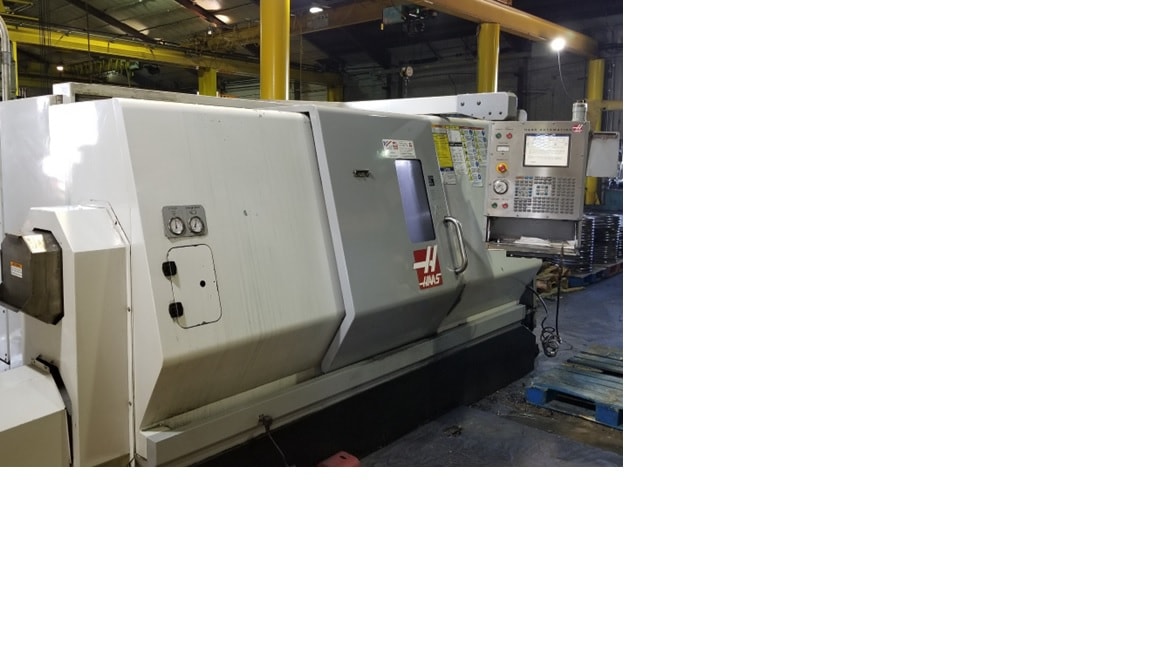

Haas SL-30TB CNC Lathe, 2006 – Big Bore, Chip Conveyor, 15″ Chuck
$27,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Turning Diameter: 14.5โณ
Max Turning Length: 34.0โณ
Max Bar Capacity: 4.0โณ
Swing Over Bed: 30.0โณ
Distance Between Centers: 39.0โณ
Travels:
X Axis Travel: 11.3โณ
Z Axis Travel: 34.0 โ
Spindle:
Spindle Nose: A2-6
Spindle Bore: 4.02โณ
Spindle Speed: 24 โ 3400 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Taper: MT-4
Tailstock BodyTravel: 44.0โณ
General:
Power: 45 kva, 220v / 3-Phase
Overall Dimensions: 150โณ X 90โณ X 90 โ High
Overall Dimensions: 190โณ X 90โณ X 90โณ High with Chip Conveyor
Weight: 16,000 lbs
Equipped with:
Haas CNC Control
15โณ 3 Jaw Hydraulic Chuck
A2-6 Spindle with 4โณ Bore
Programmable Tailstock
Coolant System
Foot Switch
12 Station Automatic Turret
Chip Conveyor
