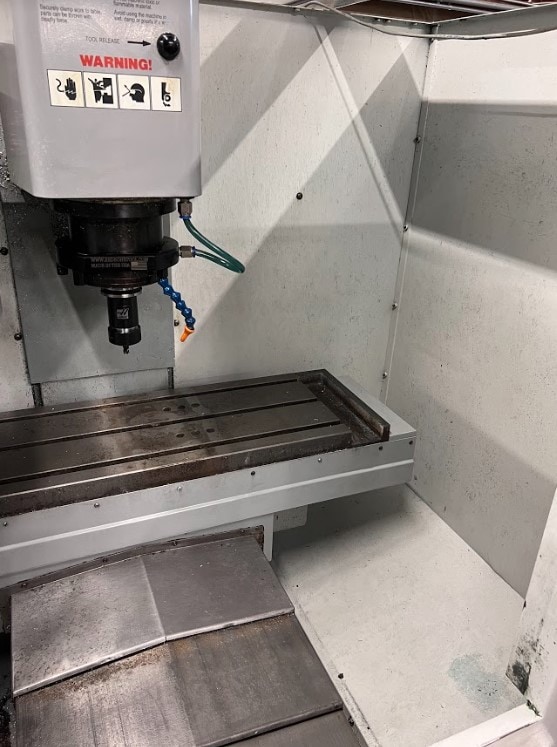

Haas Super Mini Mill CNC VMC, 2007 – Pre-Removal Sale!
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels
X Axis: 16″ , 406 mm
Y Axis: 12″ , 305 mm
Z Axis: 10″ , 254 mm
Spindle Nose to Table (Max): 14″ , 356 mm
Spindle Nose to Table (Min): 4″ , 102 mm
Spindle
Max Rating: 7.5 hp , 5.6 kW
Max Speed: 10,000 rpm
Max Torque: 33.0 ft-lbf @ 1200 rpm
Taper: CT 40
Table
Table Size: 28.75″ x 12″
T-Slot Width: 0.626: to 0.630″ , 15.90 mm to 16.00 mm
Number of Std T-Slots: 3
Max Table Load: 500 Lbs.
Feedrates
Max Cutting: 500 ipm, 12.7 m/min
Rapids on X, Y, Z : 600 ipm , 15.2 m/min
Automatic Tool Changer: 10 ATC
Max Tool Diamerter: 3.5″
Max Tool Weight: 12 Lbs.
Tool-toTool (avg): 4 s
Dimensions: 90 in x 64 in x 100 in
Weight: 4000 Lbs.
