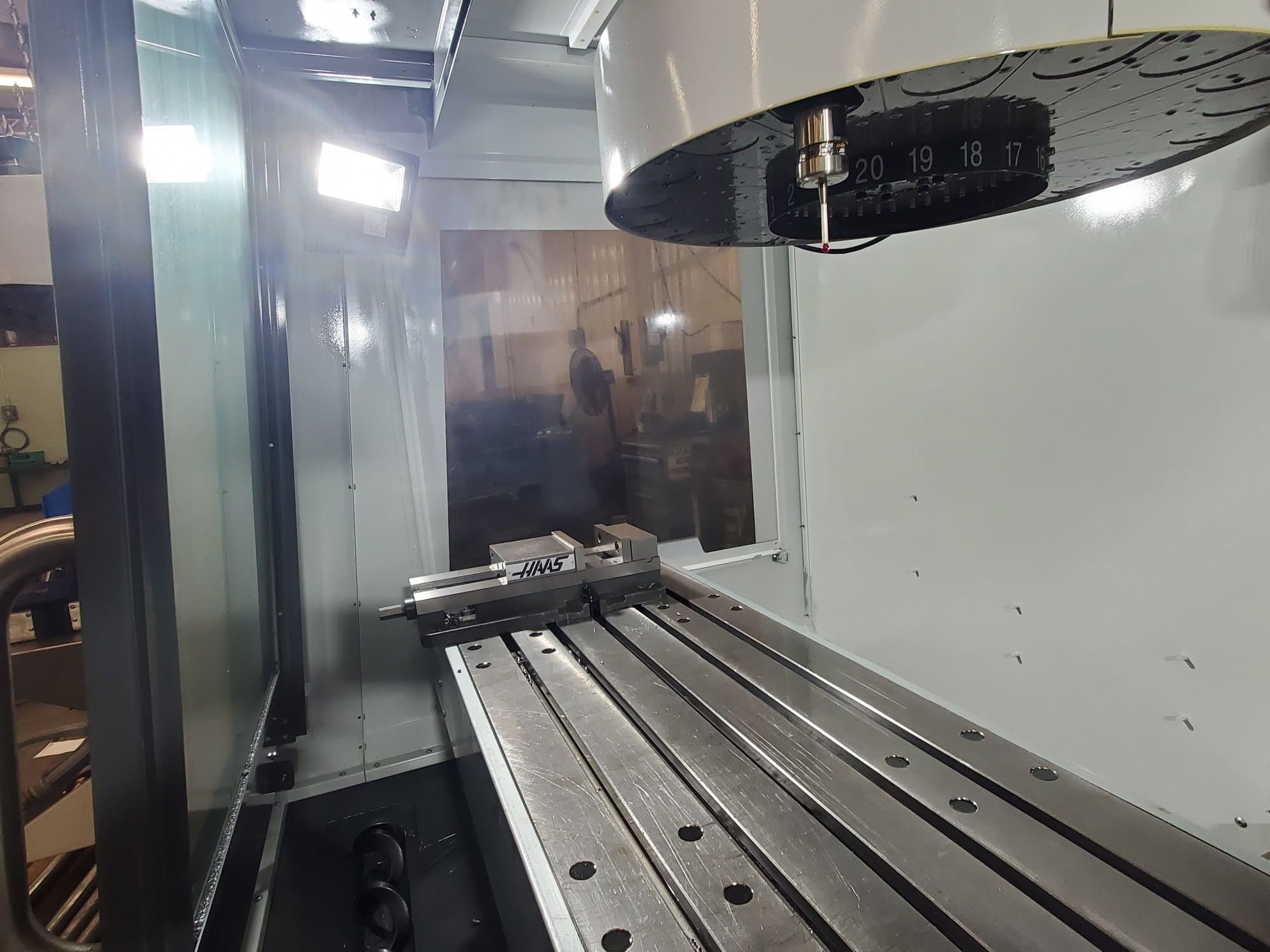

Haas VF-4 VMC, 2022 – Probing System, TSC, Available Immediately

$75,000.00

This product is no longer available. For additional information, please fill out the form below.

X Axis Travel: 50″
Y Axis Travel: 20″
Z Axis Travel: 25″
Spindle Nose to Table: 4.2″ – 29.2″
Table Size: 52″ x 19.5″
Max Weight on Table: 3500 LBS
Spindle Taper: CT 40
Spindle Speed: 8100 RPM
Spindle Motor: 20 HP
Rapids (X,Y,Z): 1000 IPM
Tool Changer Capacity: 20

Equipped With:

Haas CNC Control
8100-rpm Spindle GB
Through Spindle Coolant
Wireless Intuitive Probing System
Chip Auger
Auxiliary Coolant Filter
Chip Tray Filter Kit
Standard Program Memory, 1 GB
55-Gallon Coolant Tank Included
Early Power-Failure Detection Module
Ethernet Interface Included
HaasConnect: Remote Monitoring
HaasDrop Included
Lifting Provision Included
Media Display M-Code; M130 Included
Rigid Tapping Included
Safe Run
Control Touch Screen Included
WiFi Connection for the Haas Control Included
Window Air Blast Included
Visual Part Programming System Included
User-Definable Macros Included
Spindle Orientation Included
Coordinate Rotation and Scaling
