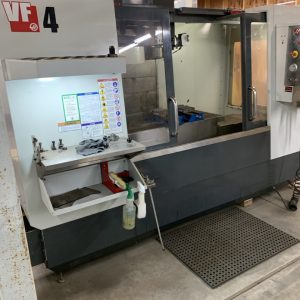

Haas VF-4SS 5-Axis VMC, 2020- TR200Y Trunnion Rotary Table, TSC, Probing, HSM, TCPC & DWO

$124,900.00

Request a Quote to Instantly See Pricing

Machine Type: Vertical Machining Centers
Make: Haas
Model: VF-4SS
Year: 2020
Machine Location: Upon Request
Stock #: 500744

X-Axis Travel: 50″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Table Size: 52″ x 18″
A-Axis Tilt: +/- 120 degrees
B-Axis Indexing: 360 degrees
Rotary Platter Size: 7.87″ (200mm)

Spindle Speed: 12,000 RPM
Spindle Power: 30 HP
Auto Tool Changer: 30 + 1 Positions
Spindle Taper: CAT 40
Max Table Load: 1750 pounds

Electrical Requirements: 220 V; 3 Ph; 50/60 Hz
Approx Dimensions: 152″ x 99″ x 106″
Approx Weight: 11,720 lbs

Trunnion Rotary Table- Haas TR-200Y
Platter Size: 7.87″ (200mm)
Max Weight: 80 lbs
Max Part Swing: 8.1″
Max Table Tilt (A-Axis): +/- 120 degrees
Max Tilt Speed: 100 degrees/second
Rotary Indexing (B-Axis): 360 degrees
Max Index Speed: 130 degrees/second
A/B-Axis Rotation Resolution: 0.001 degrees

EQUIPPED WITH:
Haas CNC Control
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Haas TR-200Y Trunnion Rotary 5th Axis Table
Through Spindle Coolant
WIPS- Wireless Intuitive Probing System
TCPC & DWO- Tool Center Point Control & Dynamic Work Offsets
High Speed Machining
12,000 RPM Spindle
30 + 1 Automatic Side Mount Tool Changer
Chip Auger
Remote Jog Handle
Coolant Tank

Electrical Transformer Additionally Available
Feed Cutting Time: Approx 2,605 Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
