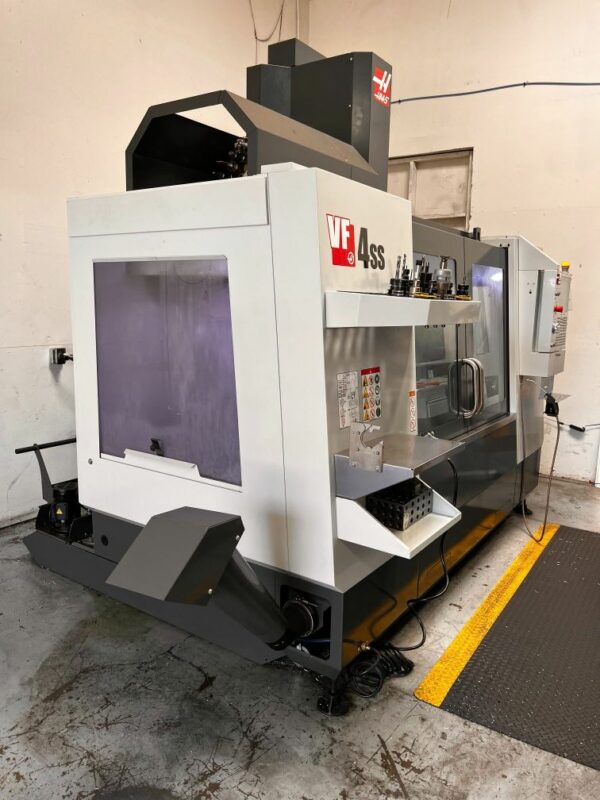

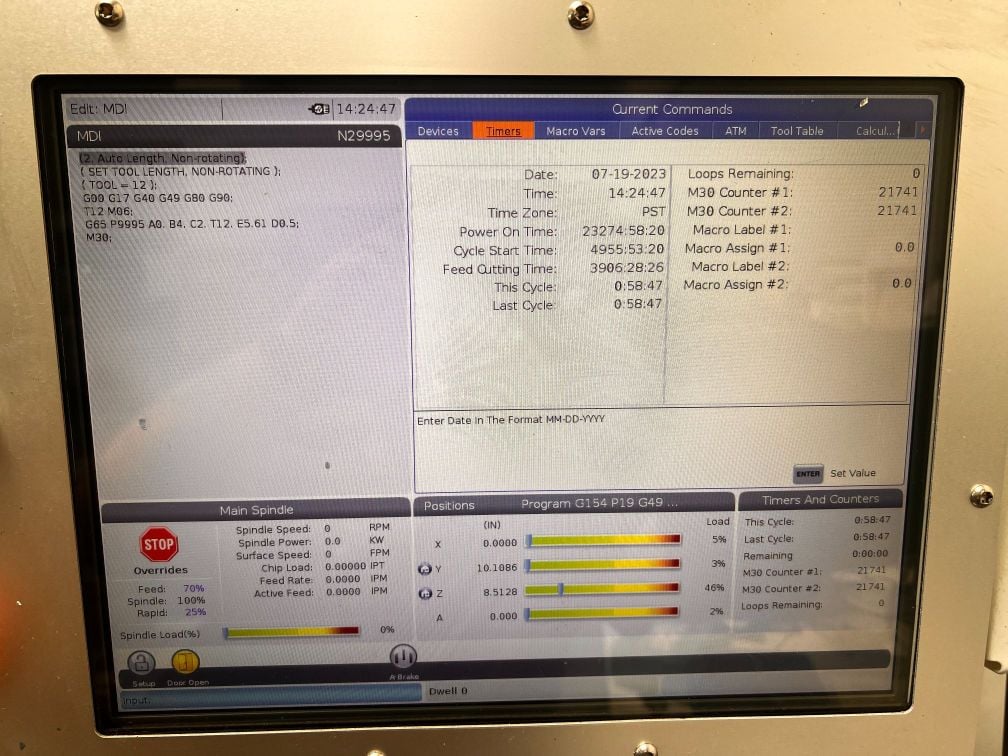

Haas VF-4SS VMC, 2019 – HRT-210 Trunnion, Probe, Coolant Thru Spindle
$94,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis: 50.0″
Y Axis: 20″
Z Axis: 25″
Spindle Nose to Table: 29.2″
Spindle Nose to Table: 4.2″
SPINDLE
Max Rating: 30.0 HP
Max Speed: 12,000 RPM
Max Torque: 90.0 ft-lbf @ 2,000 RPM
Drive System: Inline Direct-Drive
Taper: CT 40
Bearing Lubrication: Air / Oil Injection
Cooling: Liquid Cooled
TABLE
Length: 52.0″ (1321 mm)
Width: 18.0″ (457 mm)
Max Weight on Table: 1,750 lb
FEEDRATES
Max Cutting: 833 ipm 21.2 m/min
Rapids on X/Y/Z: 1400 ipm
AXIS MOTORS
Max Thrust X/Y: 3085 lbf
Max Thrust Z: 3925 lbf
AUTO TOOL CHANGER
Type: SMTC
Capacity: 40 + 1
Max Tool Diameter: 2.5″
Max Tool Diameter (adjacent empty): 5.0″
Max Tool Length (from gage line): 13″
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 1.8 s
Chip-to-Chip (avg): 2.4 s

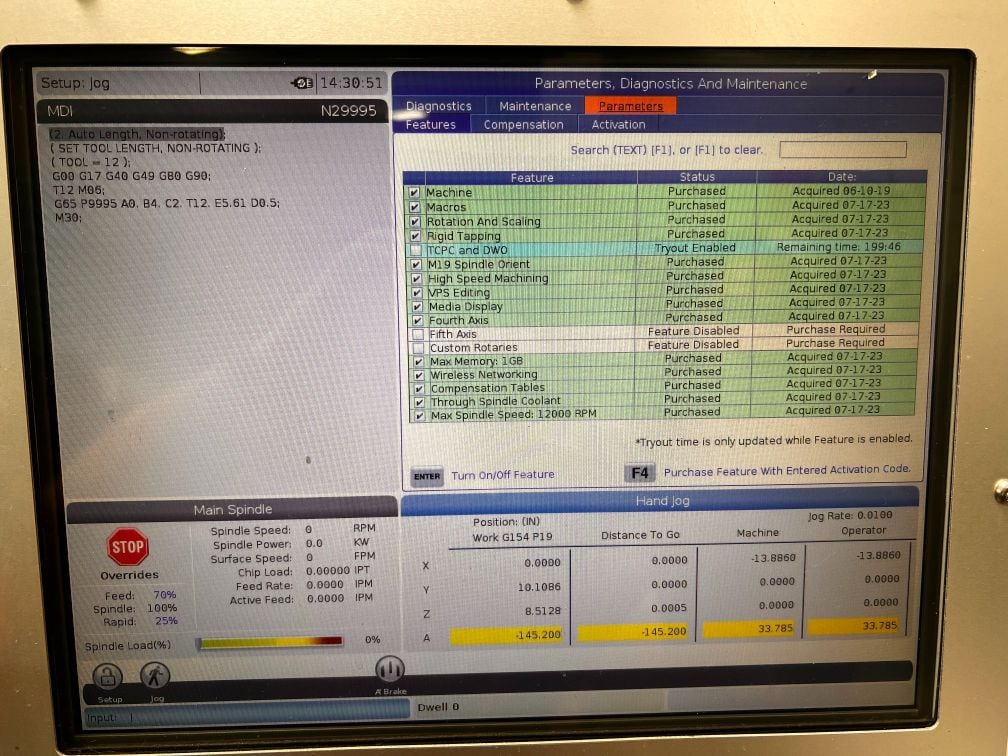

Equipped with:
WIPS
4th axis drive
Thru Spindle Coolant
HRT-210 rotary with below
Trunnion details:
Custom Stallion 9/35/DBS – trunnion built for customer’s rotary table. Mounting surface of 9 x 35 will be flat within .001, tir of .001 and square to faceplate within .001. Double-sided for mounting parts, fixtures or any other tooling on both sides of trunnion. Fixture will come with row of M12 tapped holes on each face for RL96A-56 and RL96A-3613S2.
Hydraulic clamping outboard support to supplement rotary table brake holding. Comes complete with air over hydraulic pump, hydraulic lines and fittings. With extra air over hydraulic pump.
3.5″ riser for HRT210 rotary and outboard support.
