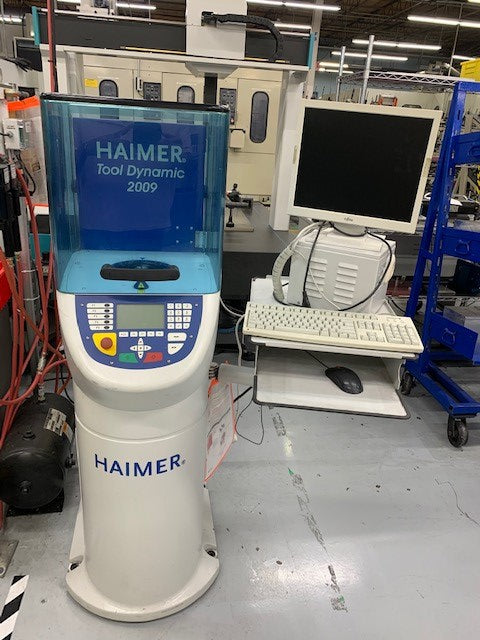

HAIMER Tool Dynamic TD 2009 Tool Balancer, 2010
$29,500.00
Request a Quote to Instantly See Pricing
Machine Type:
CNC
Model:
Tool Dynamic TD 2009
Make:
HAIMER
Year:
2010
Dimensions [mm]-1100 x 1500 x 820
Weight [kg]-534
Spindle Speed [rpm]-300 – 1100
Measuring Accuracy [gmm]-< 0,5
Power Requirements [v/hz]-230 / 50 - 60
Power Usage [k W]-0.4
Compressed Air [bar]-6
Max. Tool Length [mm]-400
Max. Tool Length (optional) [mm]-700
Max. Tool Diameter [mm]-380
Max. Tool Diameter (optional) [mm]-425
Max. Tool Weight [kg]-30
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
