Haitian MA II S 1200/400 Injection Molding Machine, 2020 – 135 Ton Servo Hydraulic Press – Energy Efficient Plastic Molder
$20,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

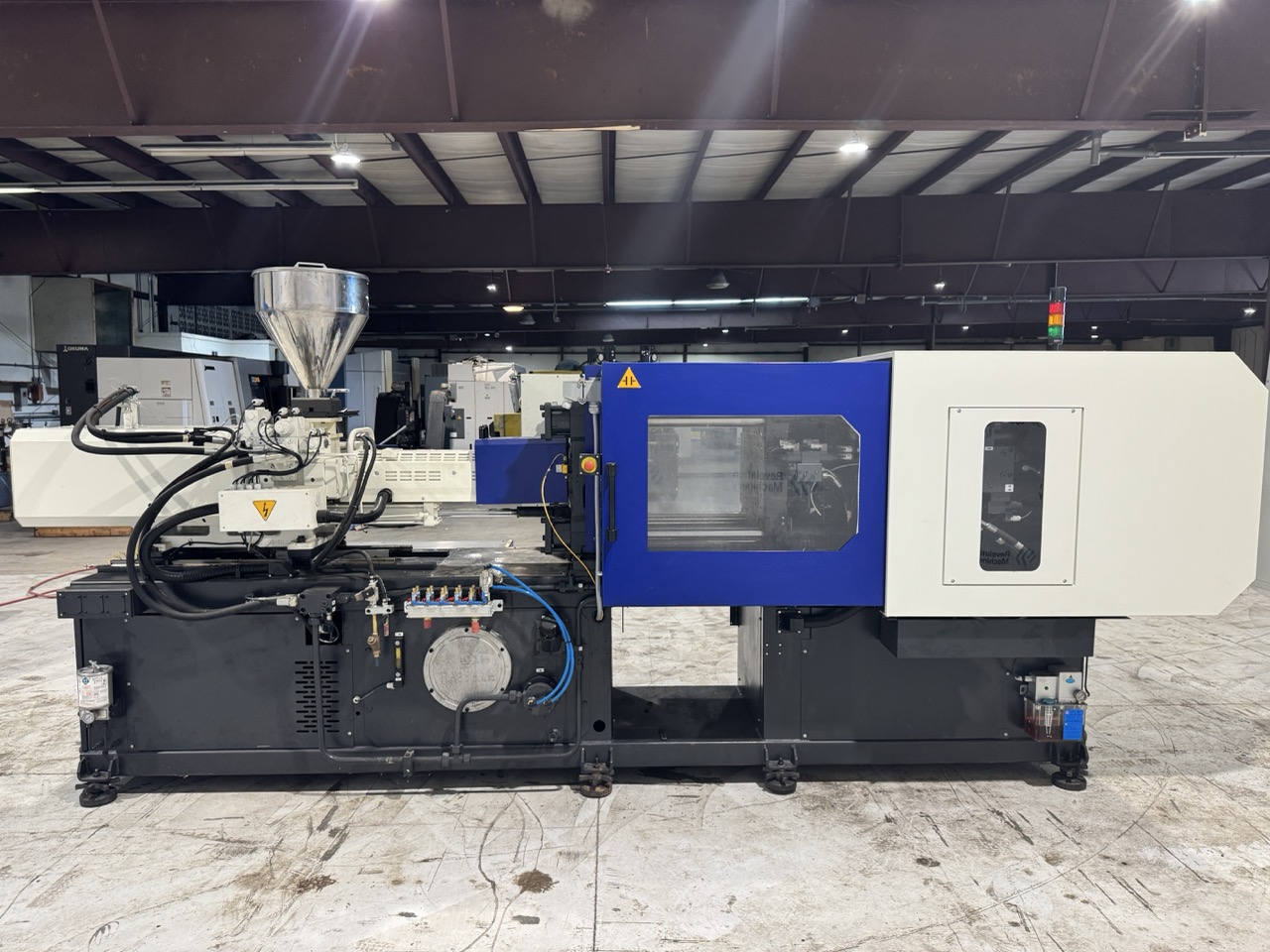

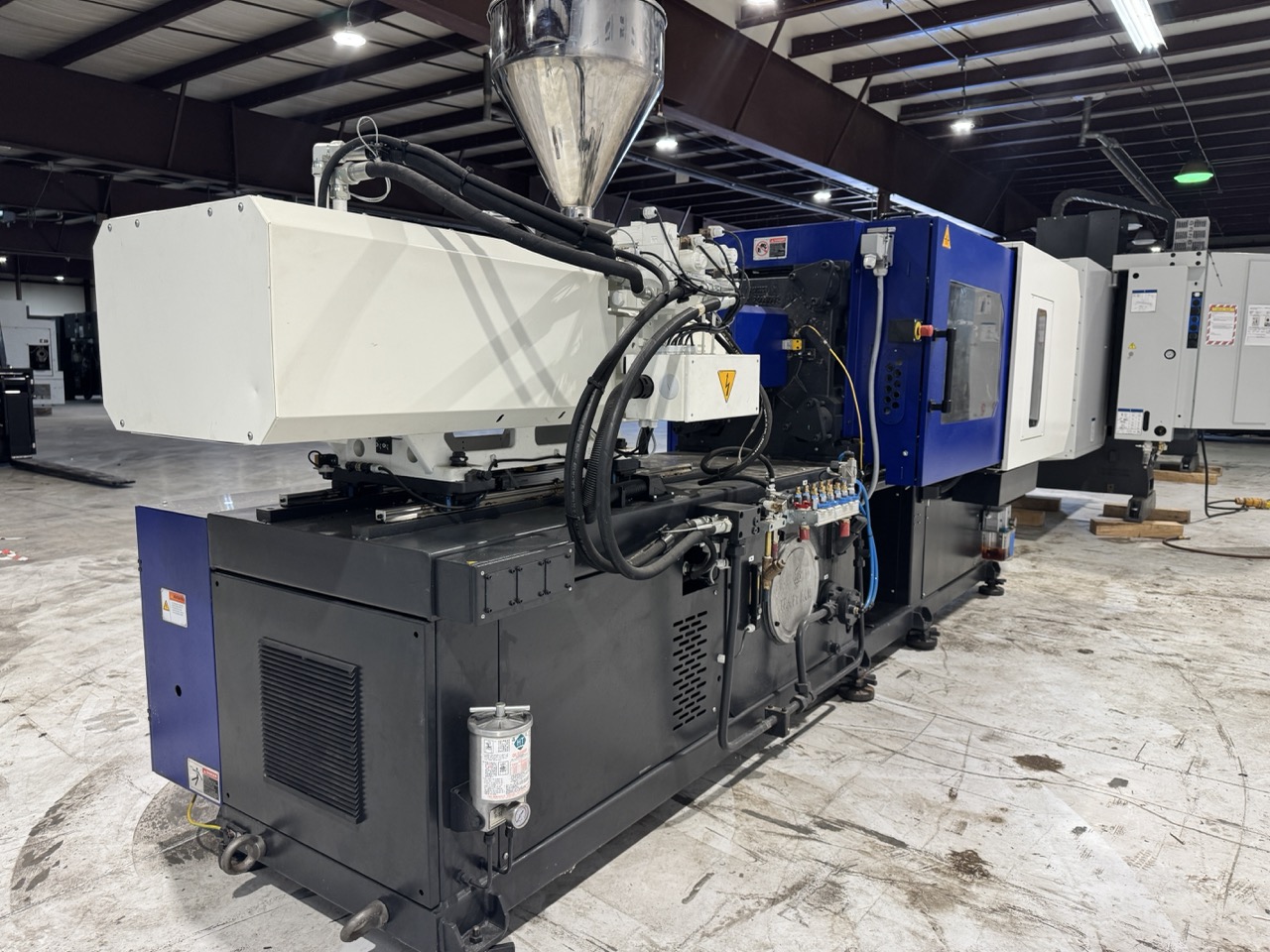

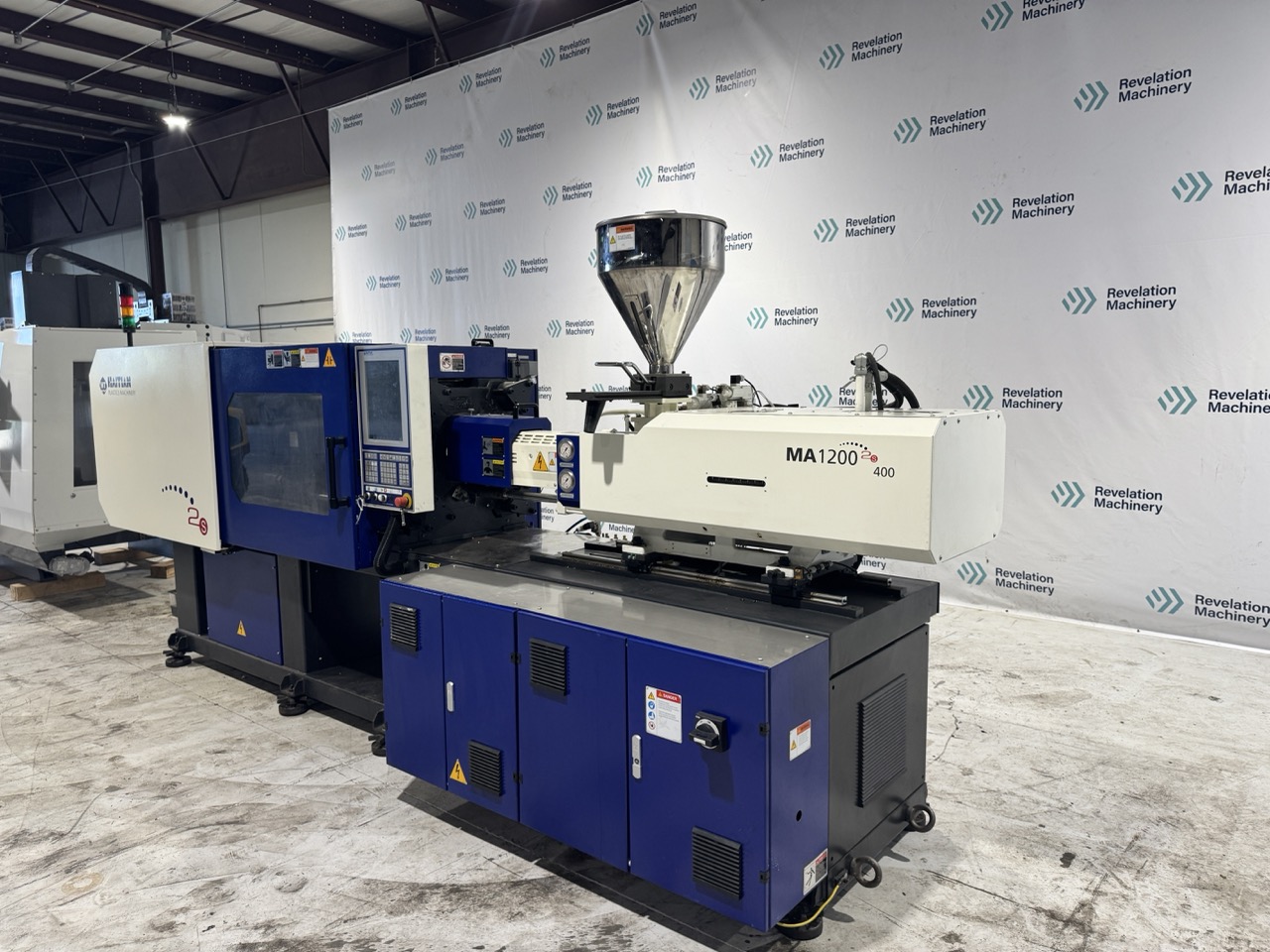

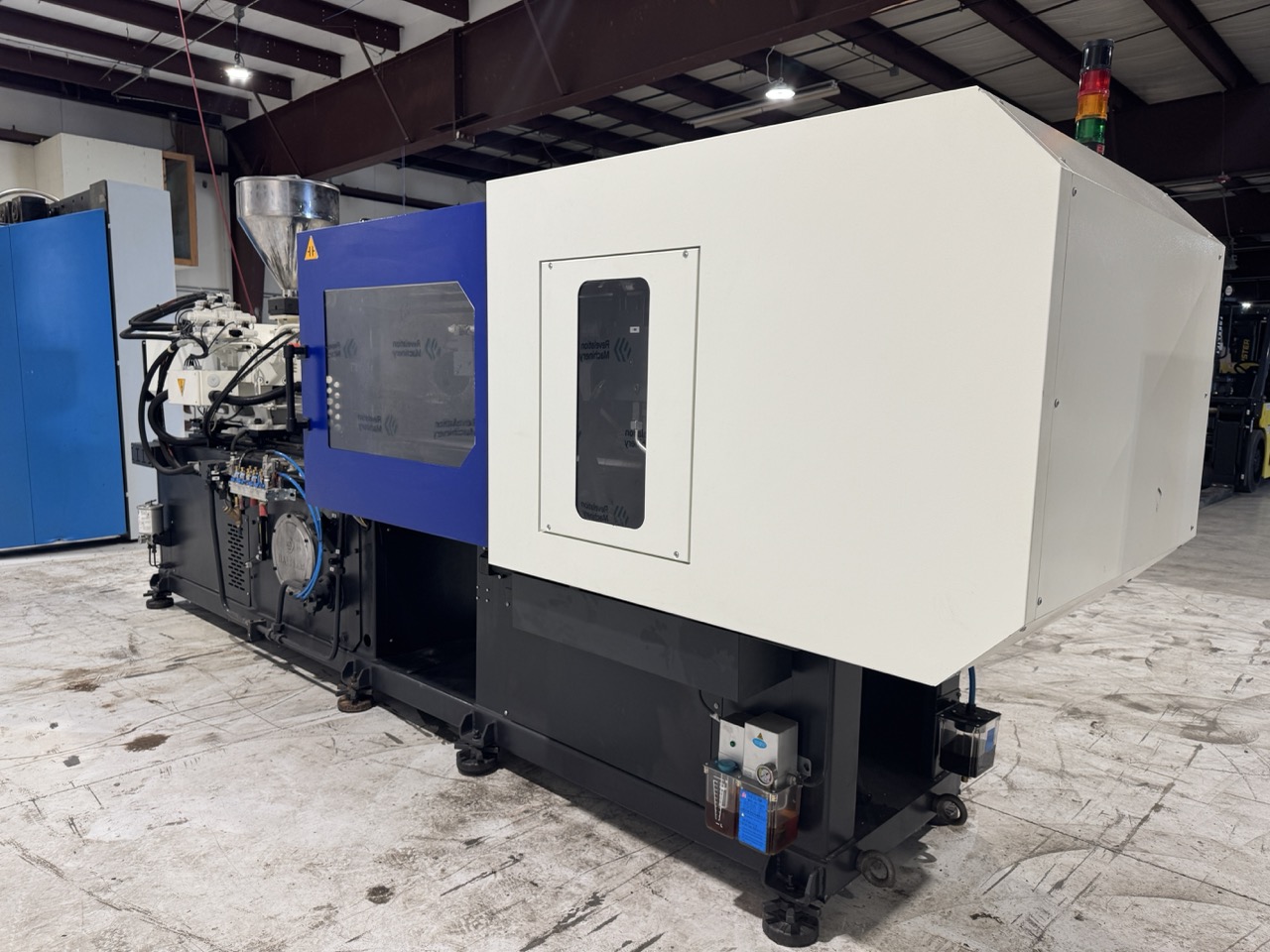

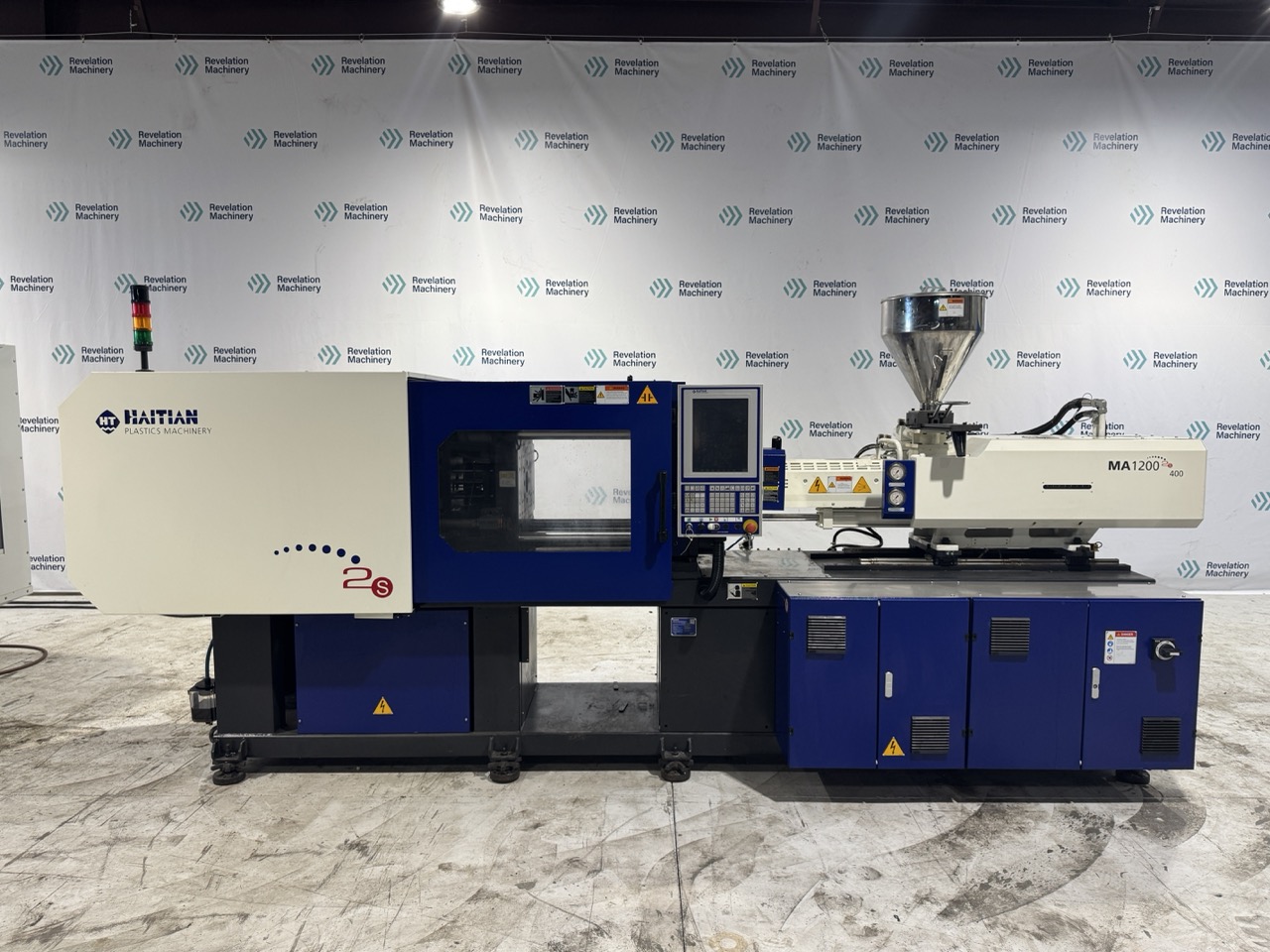

Clean late-model 2020 Haitian MA II S 1200/400 injection molding machine with servo-hydraulic efficiency, 135-ton clamping force, and production-ready performance for general plastic molding applications.
Year: 2020
Make: Haitian

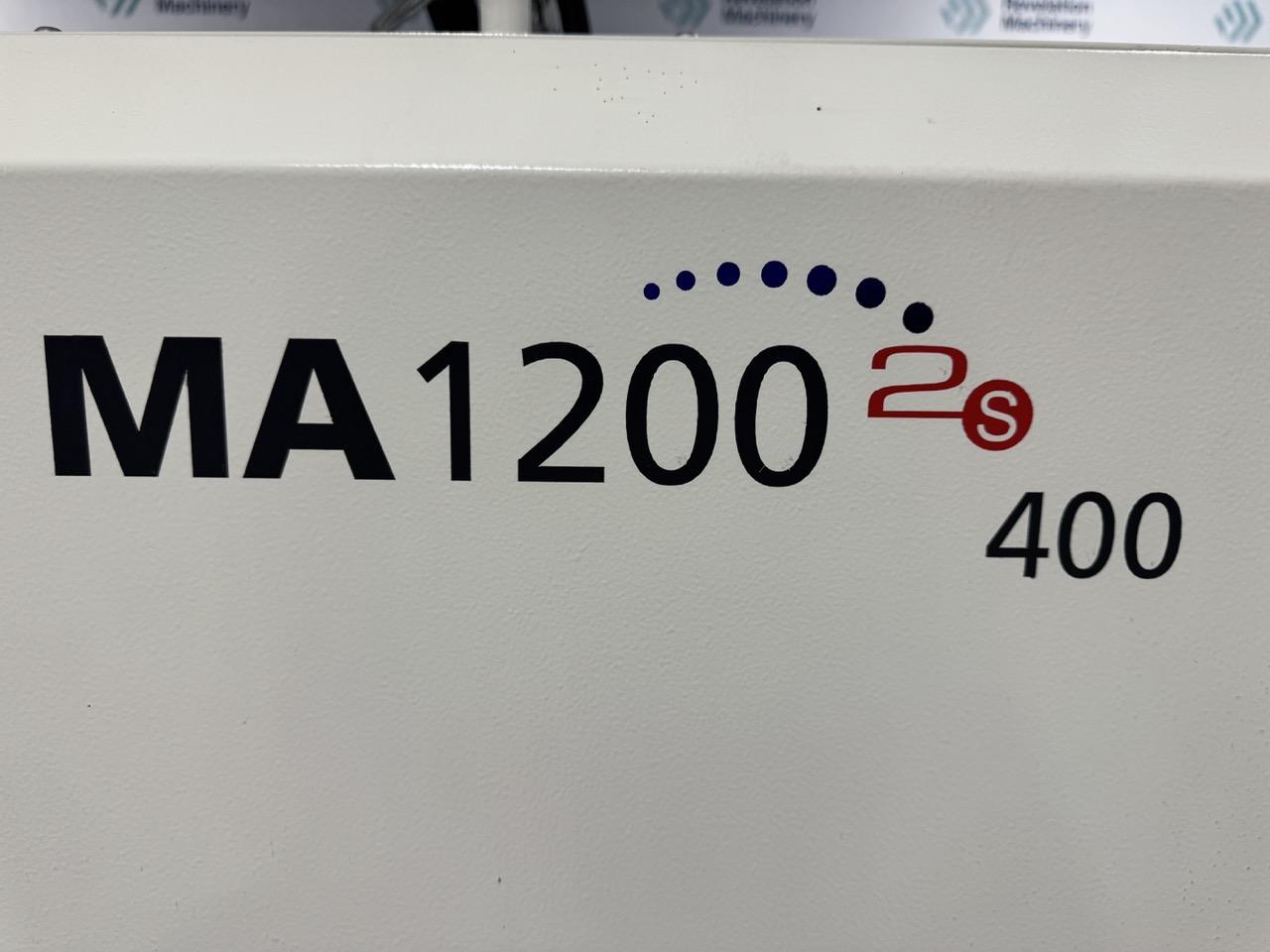

Model: MA II S 1200/400
Machine Type: Horizontal servo-hydraulic injection molding machine.
Clamping Force: 1200 kN / about 135 tons.
Injection Unit: 400 series; an earlier Mars II spec sheet shows the closely related MA1200 II /410 platform.
Screw Diameter: 36 / 40 / 45 mm depending on installed screw package.
Shot Size (theoretical): 173 / 214 / 270 cm³ depending on screw diameter.
Injection Weight (PS): 157 / 195 / 246 g depending on screw diameter.
Injection Rate: 112 / 139 / 176 g/s depending on screw diameter.
Injection Pressure: 236 / 192 / 151 MPa depending on screw diameter.
Toggle Stroke: 360 mm.

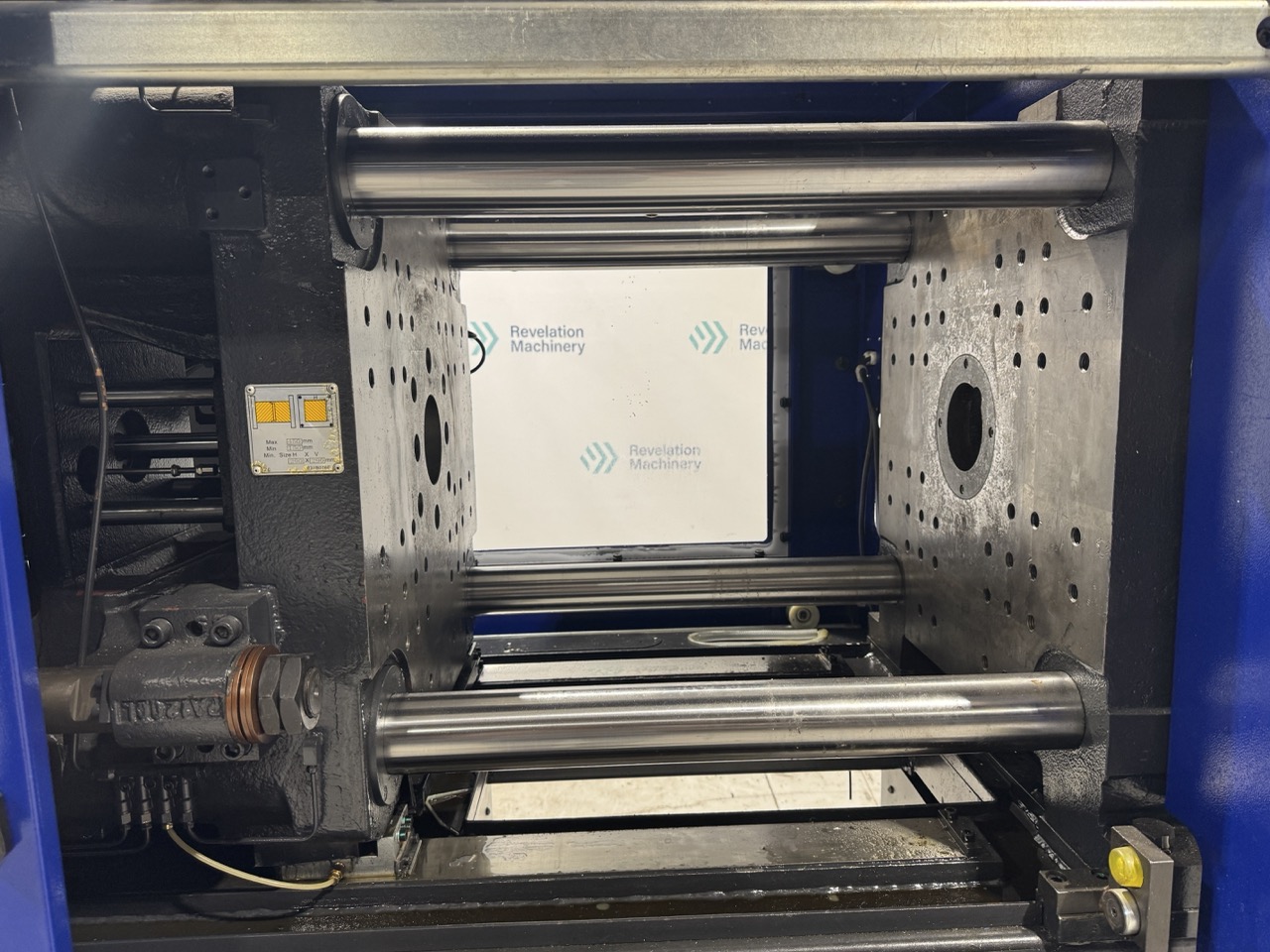

Space Between Tie Bars: 410 x 410 mm.
Max. Mold Height: 450 mm.
Min. Mold Height: 150 mm.
Ejector Stroke: 120 mm.

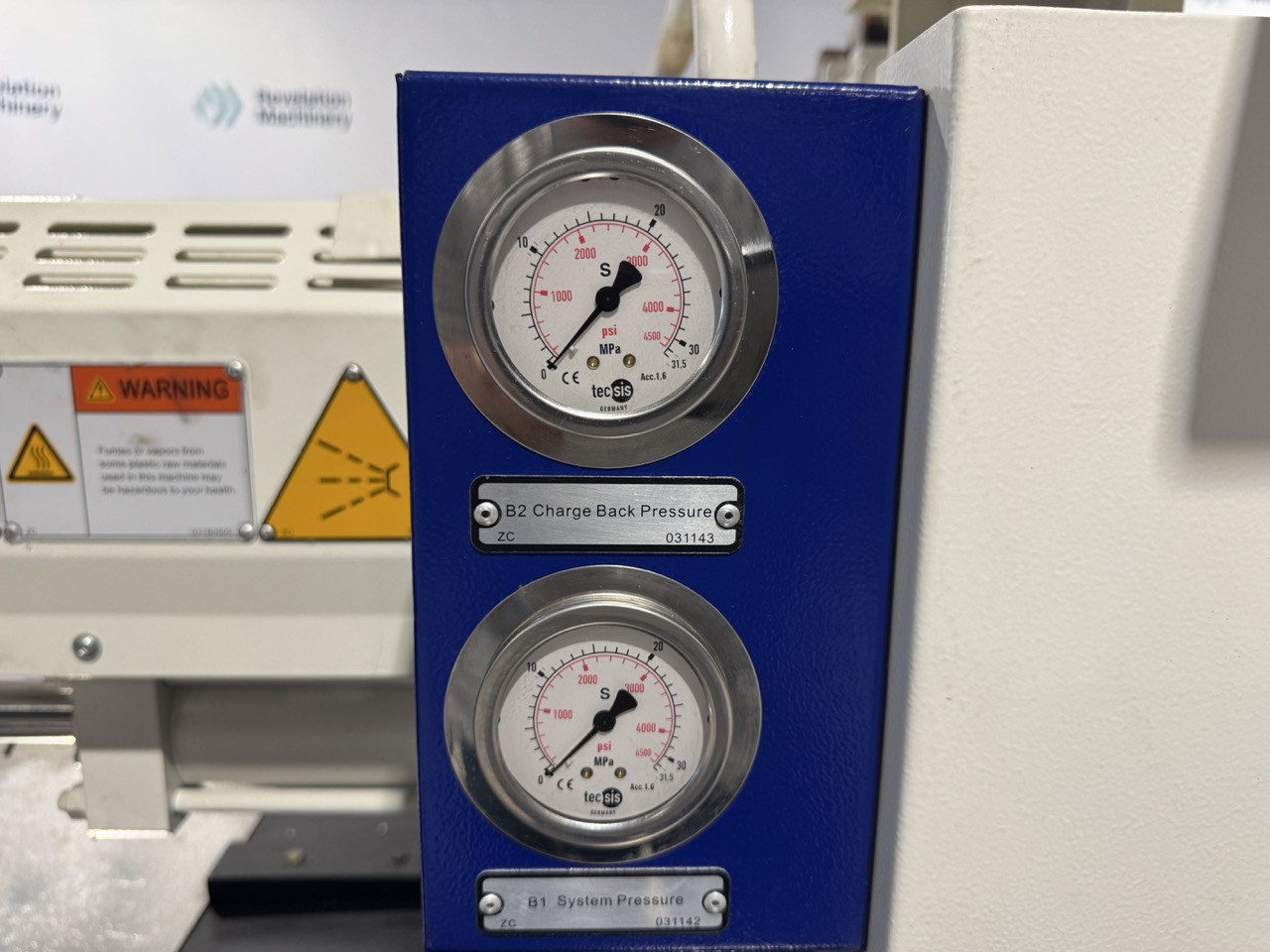

Max Pump Pressure: 33 MPa.
Pump Motor Power: 15 kW.
Heater Power: 9.95 kW.
Machine Dimensions: 4.88 x 1.20 x 2.03 m.
Machine Weight: 9,600-10,100 lbs.
