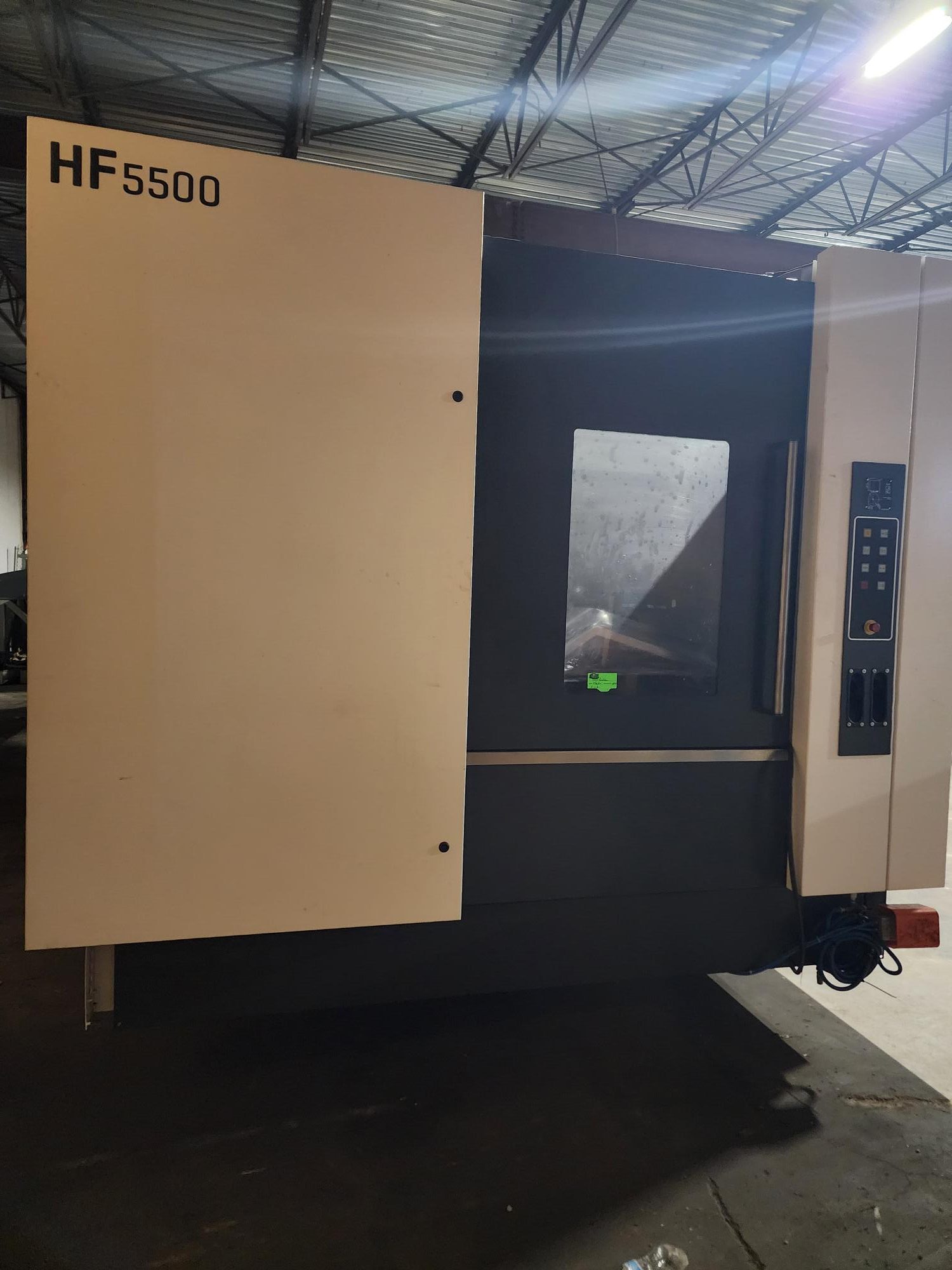

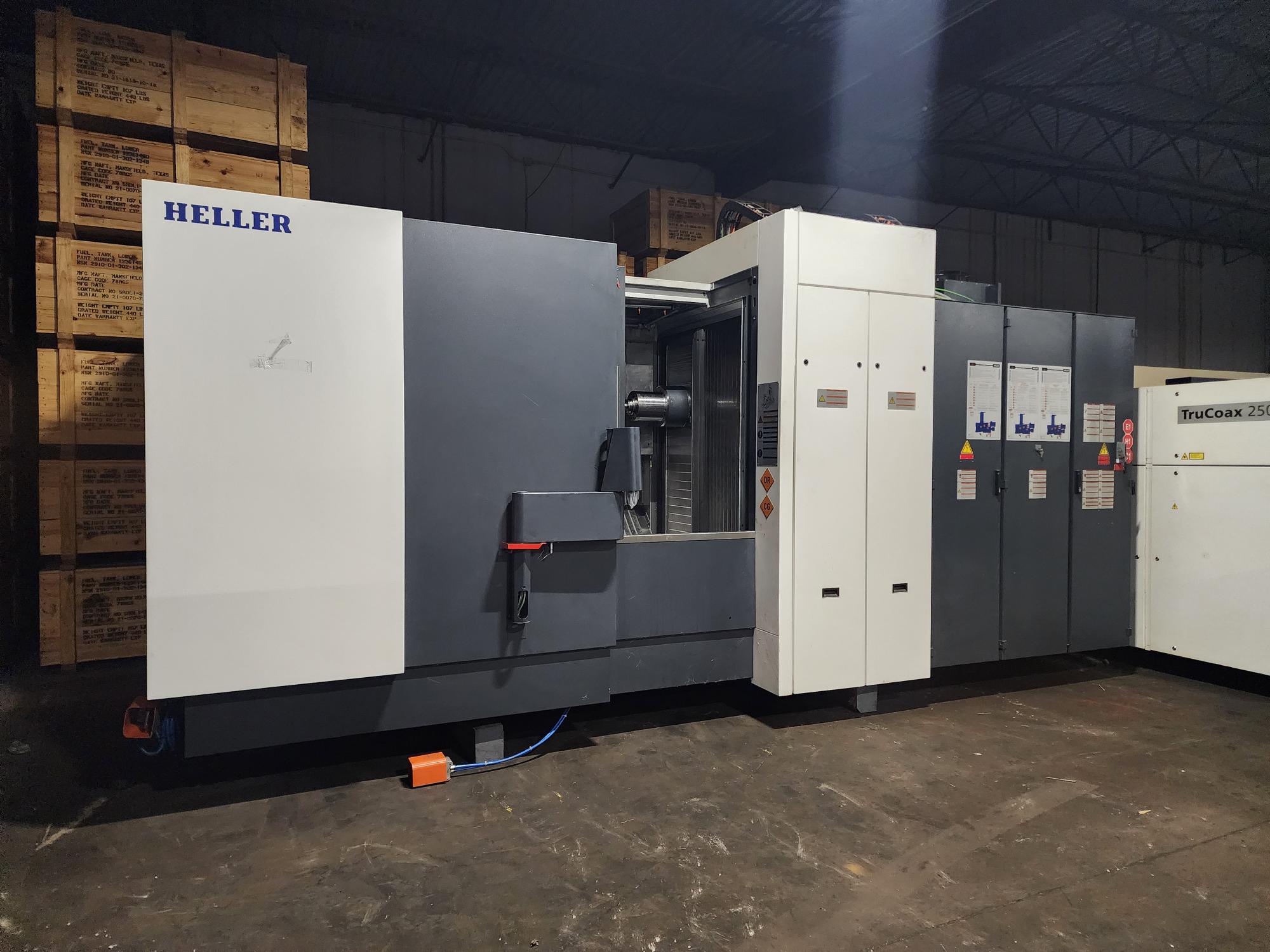

Heller HF5500 5 Axis HMC w/ APC, 2022 – High-Speed, High-Precision, Full 5-Axis Capability

Work Envelope / Travels
X-Axis Travel: ~900 mm (≈ 35.4″)
Y-Axis Travel: ~950 mm (≈ 37.4″)
Z-Axis Travel: ~930 mm (≈ 35.4″)

Table / Pallet
Table Size: ~810 × 900 mm (varies with configuration)
Pallet Size: Typical ~500 × 630 mm (19.7″ × 24.8″)
Maximum Table Load: ~750 kg–850 kg

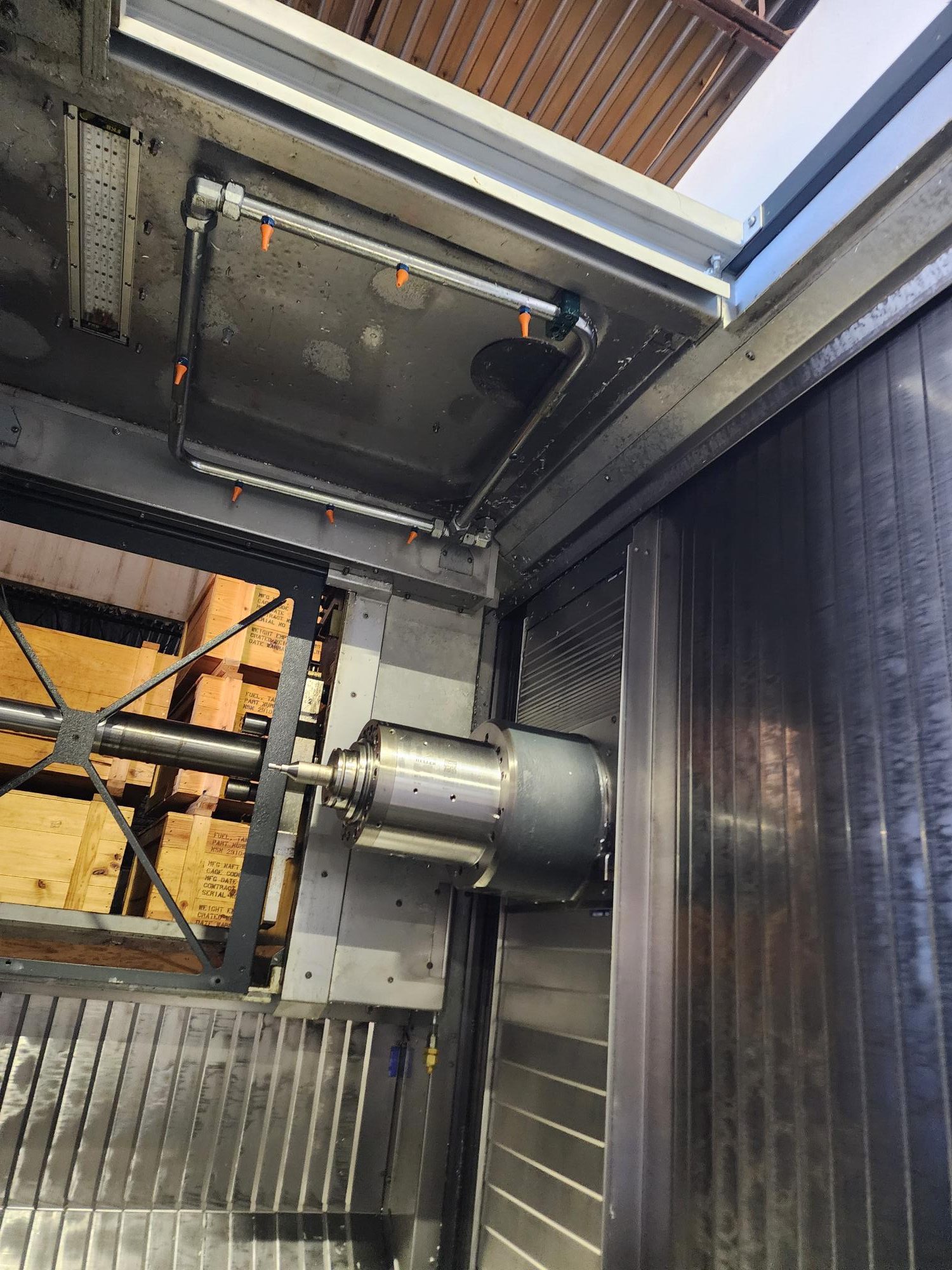

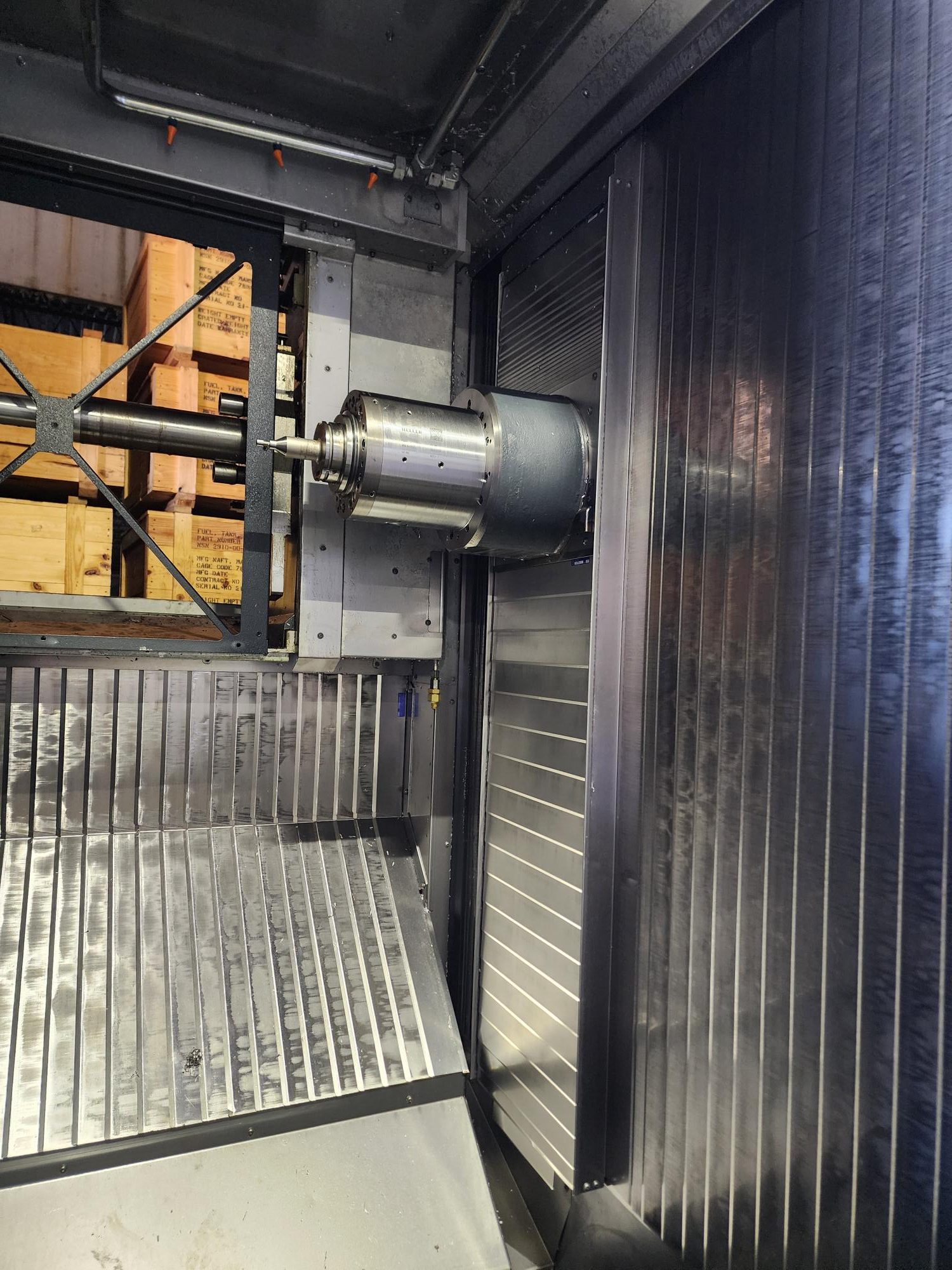

Spindle & Tooling
Spindle Options: Power Cut PC100
Gebr. Heller Maschinenfabrik GmbH
Spindle Speed: 10,000 RPM
Tool Magazine Capacity: ~100-station ATC
Through-Spindle Coolant: ~1,000 PSI
