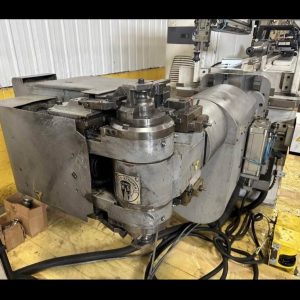

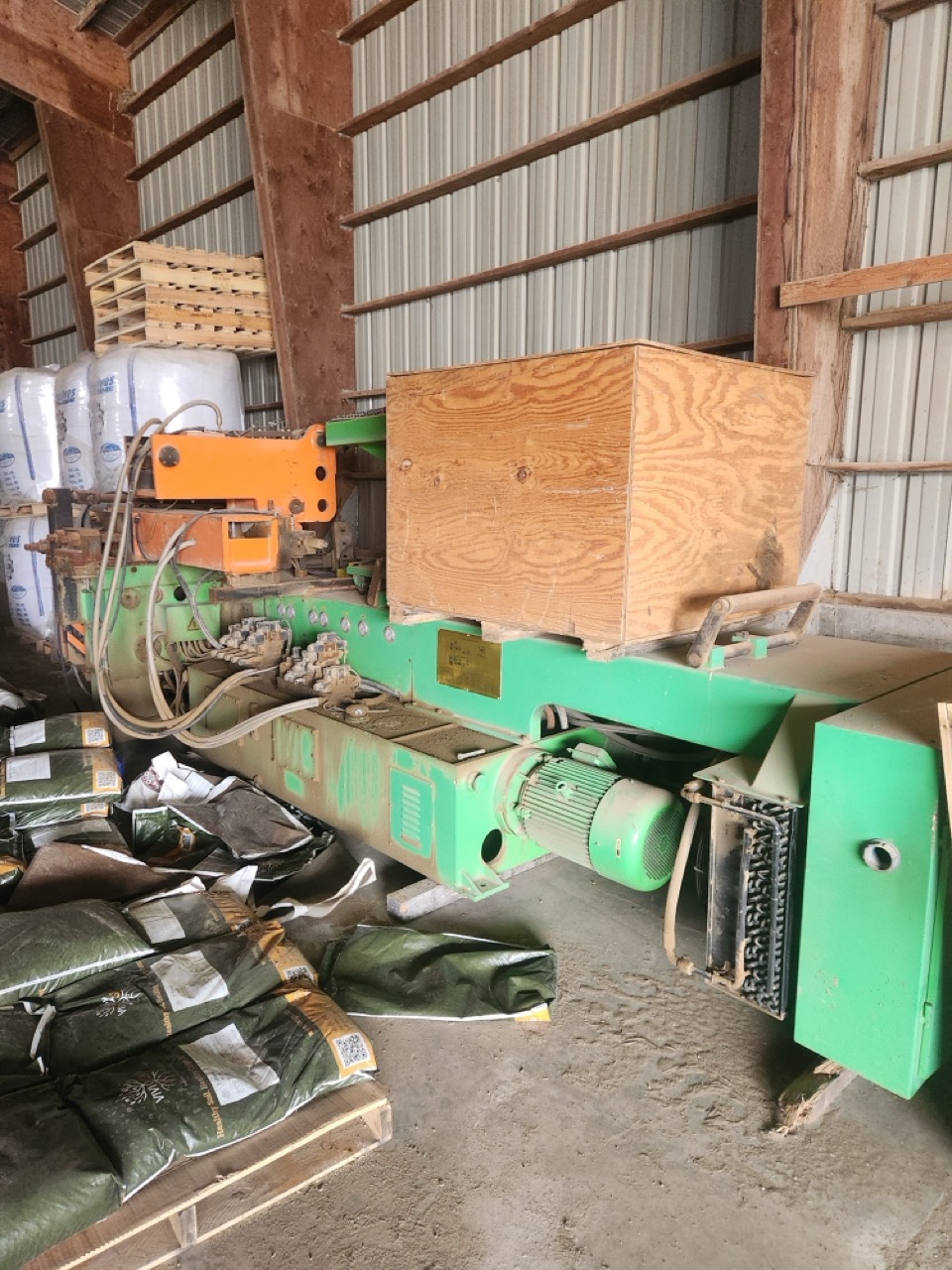

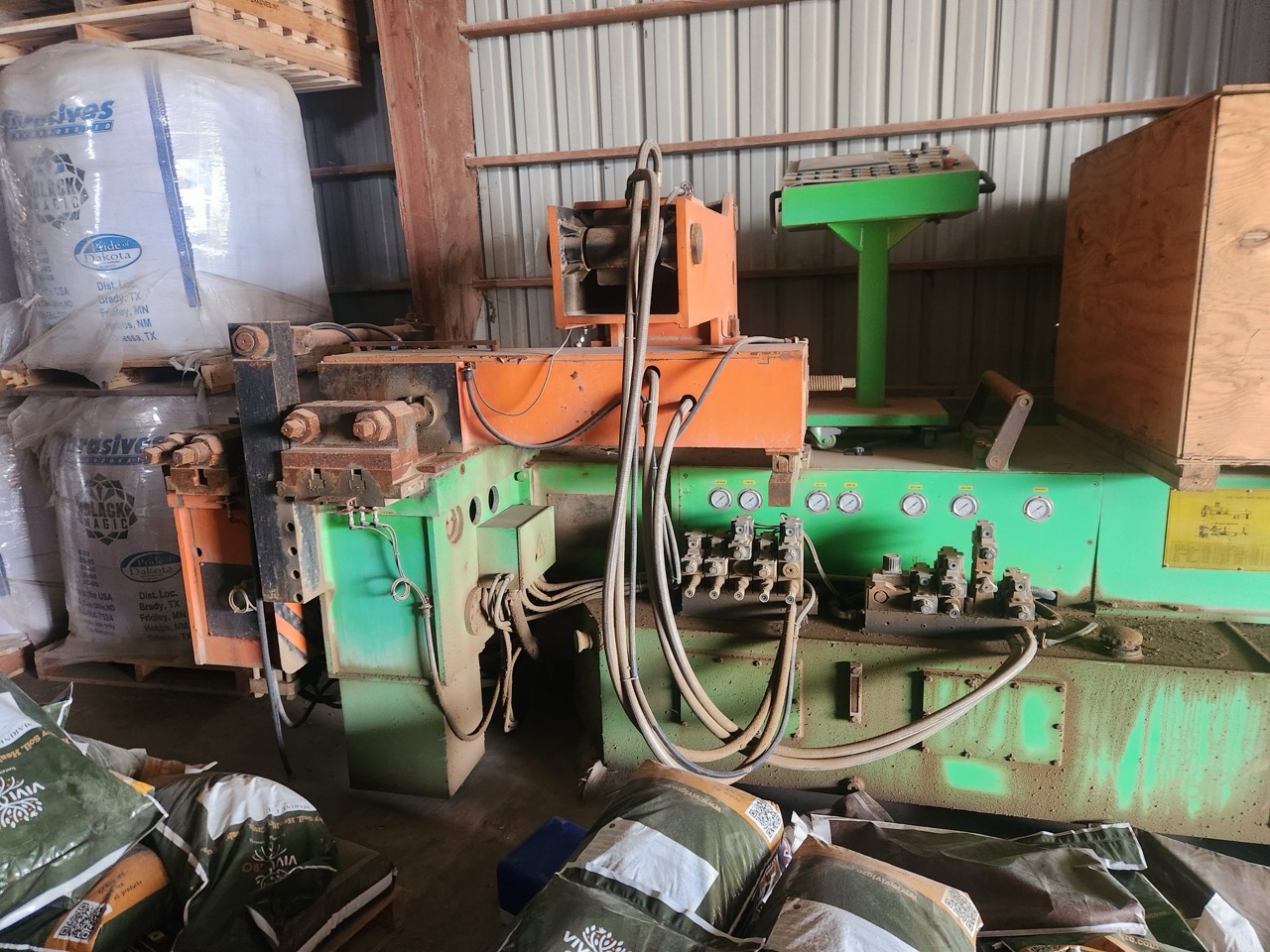

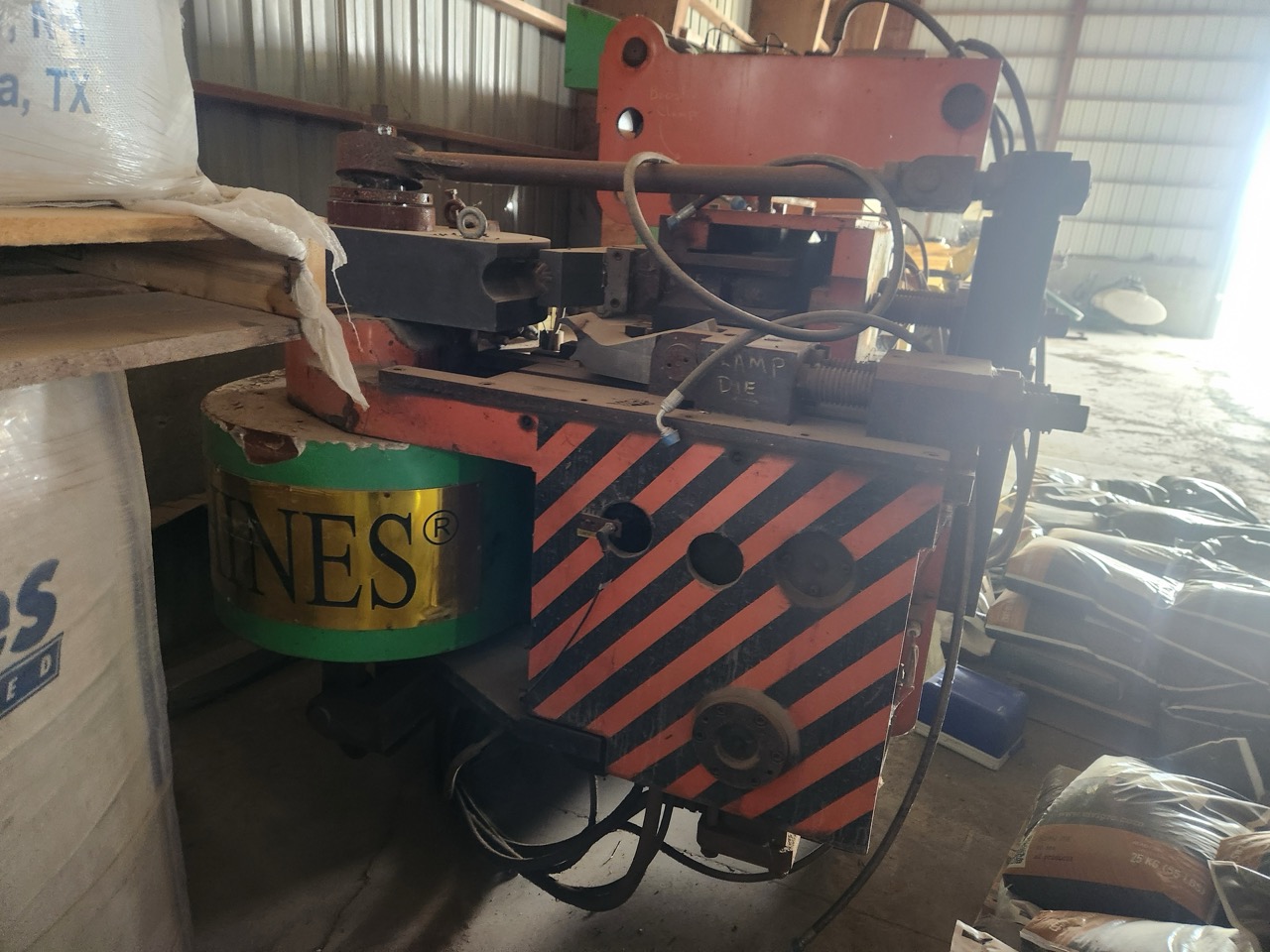

Hines 300NC-HB-P Hydraulic NC Tube and Pipe Bender, 2012

This 2012 Hines 300NC-HB-P is a heavy-duty hydraulic NC tube and pipe bender purpose-built for demanding applications in the power generation, petrochemical, and process piping industries. Capable of bending 3-1/2″ O.D. x .500″ wall pipe with a maximum bend angle of 190 degrees and accuracy of +/- 0.1 degree, the 300NC-HB-P delivers the precision and repeatability required for boiler tube fabrication, heat exchanger bending, offshore piping, and pressure vessel work. Controlled by a Mitsubishi FX3U PLC with Proface America touch screen interface, this machine is ready for high-volume production environments where consistent quality and minimal downtime are critical.
Specifications:

Manufacturer: Hines Bending Systems

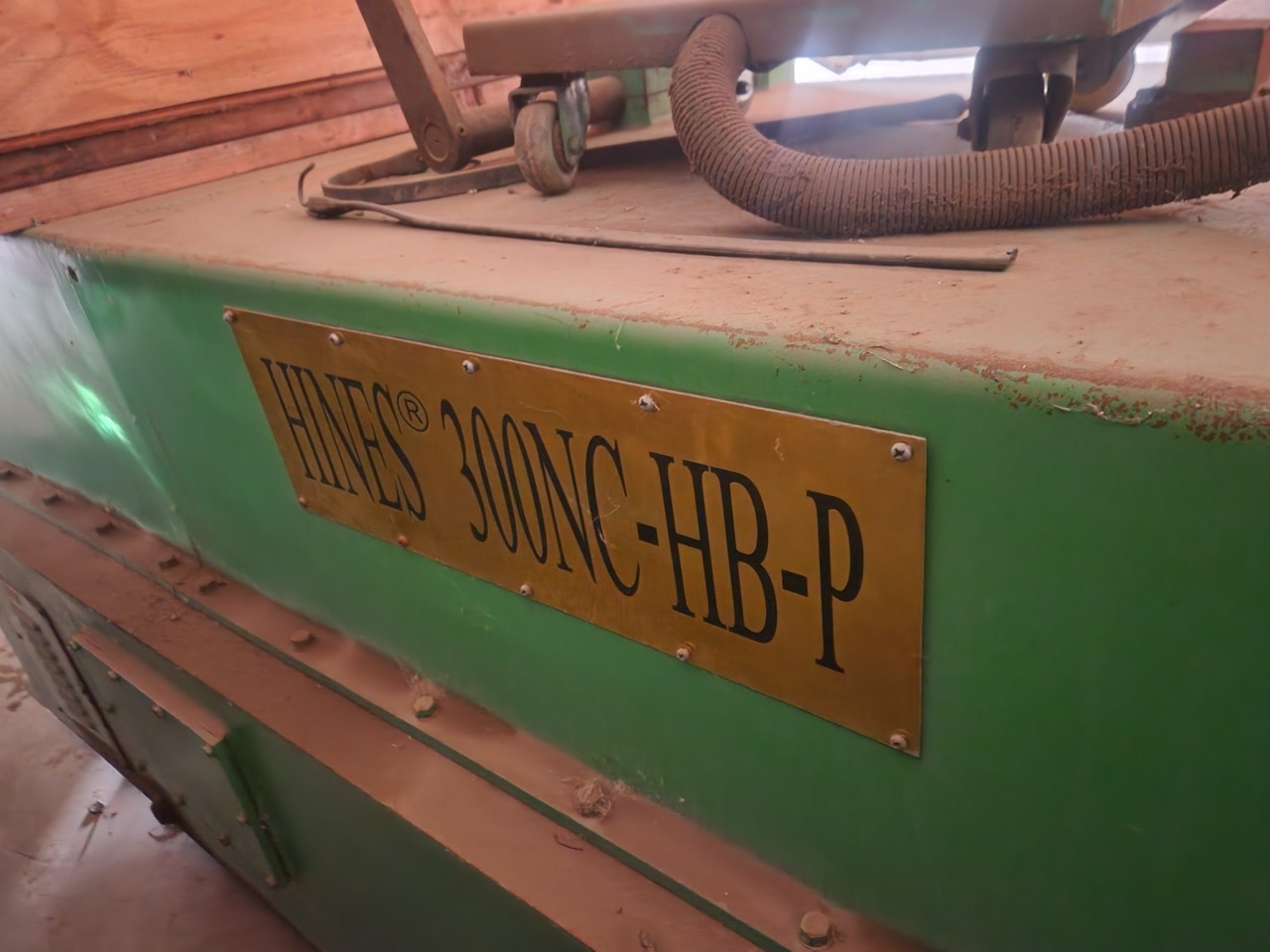

Model: 300NC-HB-P
Year: 2012
Capacity (Pipe): 3-1/2″ O.D. x .500″ Wall
Standard Maximum Radius: 12″
Maximum Bend Angle: 190 Degrees
Bend Angle Accuracy: +/- 0.1 Degree
Bend Arm Speed: 1.5 RPM
Motor: 40 HP
Operating Pressure: 2,000 PSI
Reservoir Capacity: 240 US Gallons
Voltage: 440/480V / 3-Phase / 60Hz
Approximate Weight: 17,000 lbs.
Approximate Dimensions: 16′ L x 7′ W x 6′ H

Features:

Mitsubishi FX3U PLC Controller – Stores 200 Jobs / 6 Bends Per Job

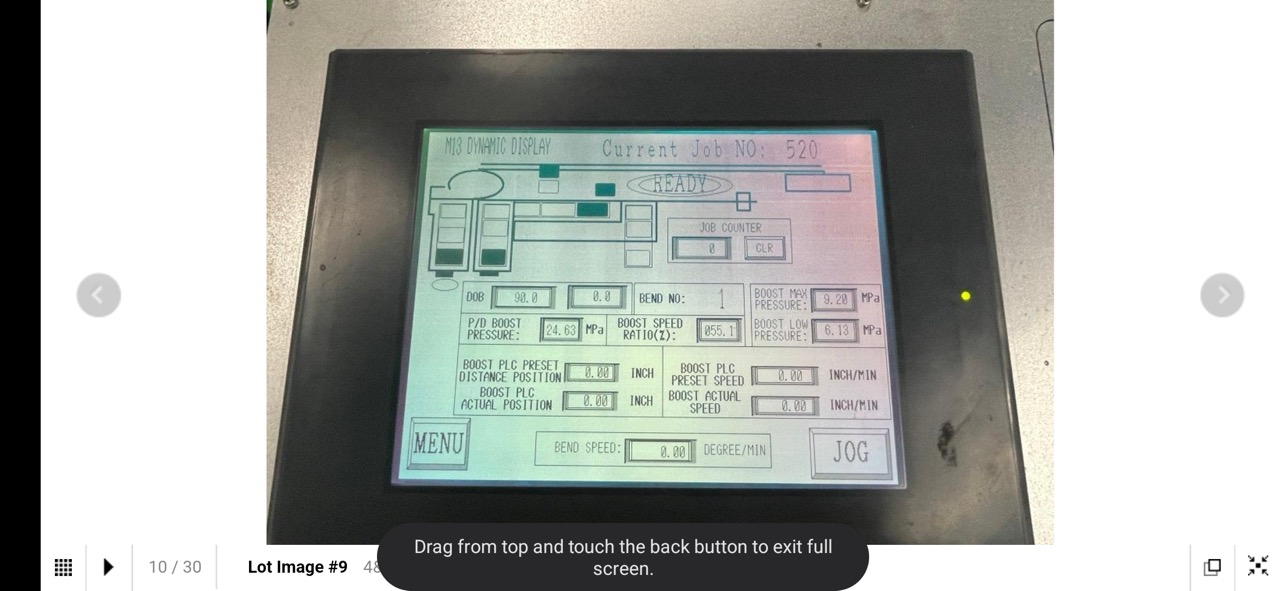

Proface America Touch Screen Interface
Dual Stage Pump Hydraulic System
Overhead Tie Bar (Eliminates Die Deflection)
Pressure Die Assist with Rear Support Roller
Mandrel Early Out Programmable
Mandrel Rod SAE Thread (1 Supplied)
Mandrel Lubricator & Extractor
Pressure Die Holder & Wiper Die Holder
Hydraulic Manifolds Interchangeable (Parker, Vickers, etc.)
Solid Machined Steel Bend Arms
Manifold Style Hydraulic and High-Pressure Filter
Operator Safety Features
Tube Piece Counter
Clockwise Rotation
Rear Boost

All specifications are assumed to be correct but must be verified by the purchasing entity. All machinery is sold as-is, where-is, with no warranties expressed or implied. Buyers are encouraged to inspect prior to purchase.
