HMC Pouchmaster Packager IM 7-12 HFFS for Liquid Packaging in 1-up or 2-up Configuration, 2020
$199,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

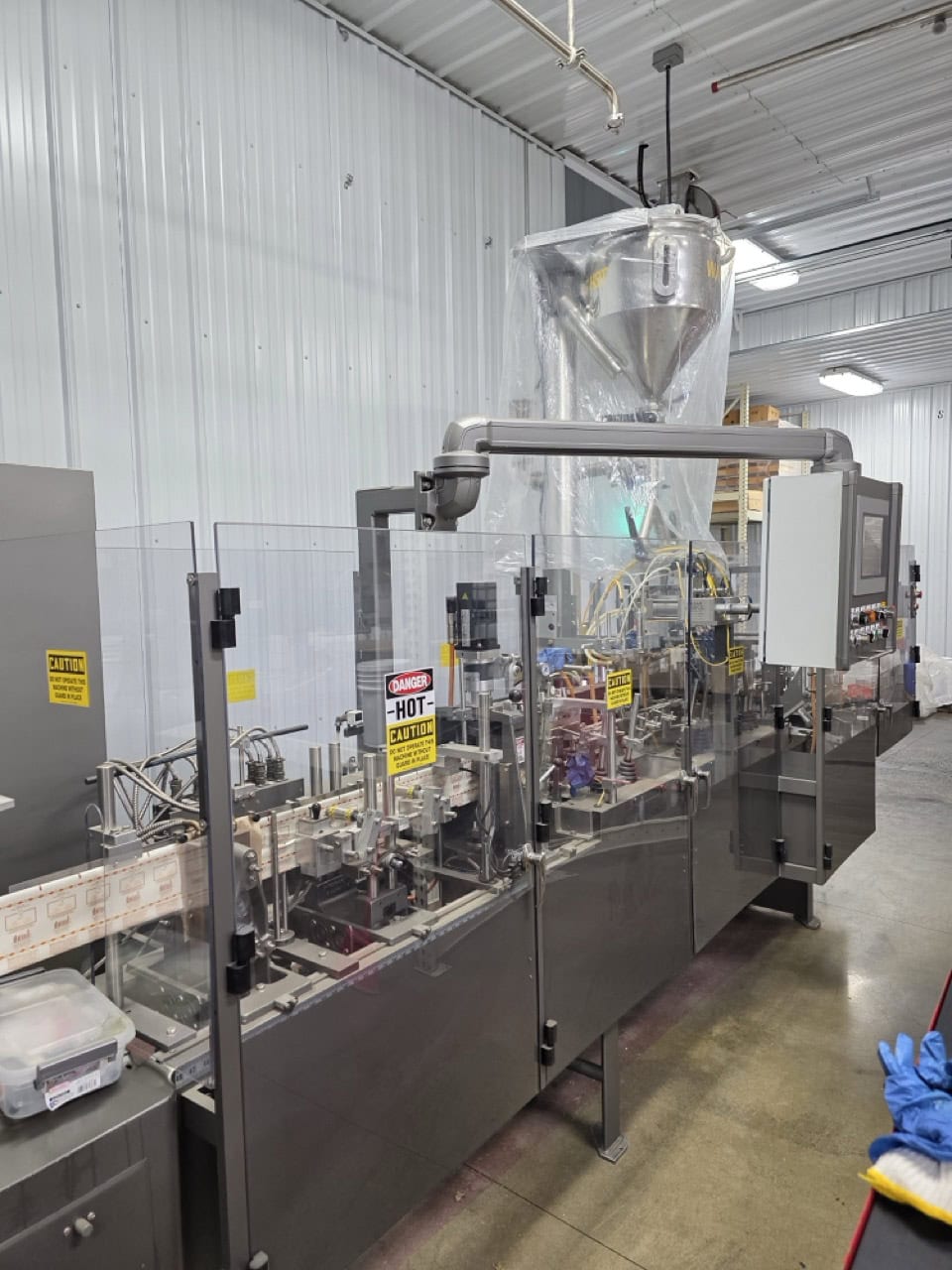

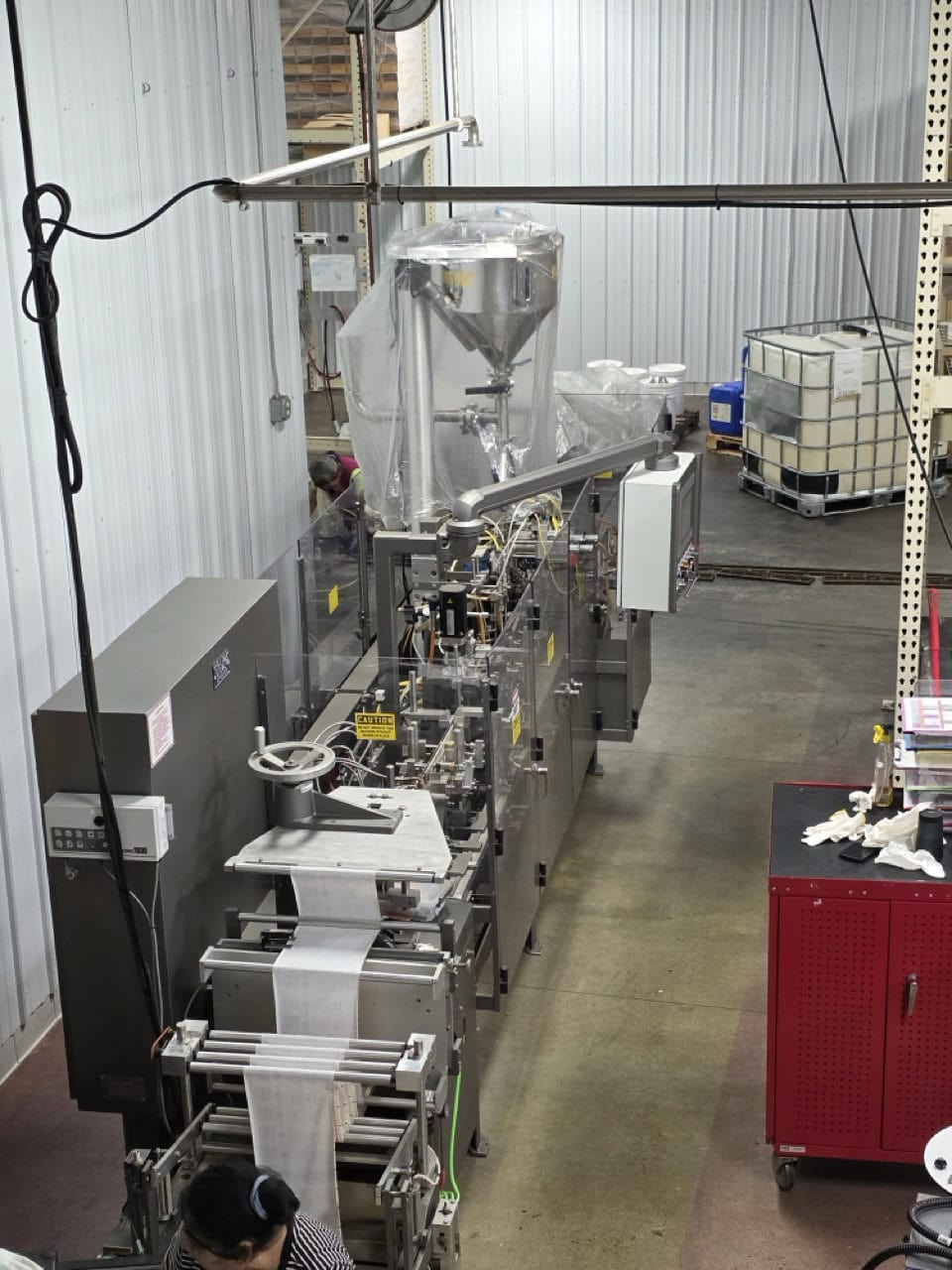

Used HMC Pouchmaster Packager IM 7-12 HFFS for Liquid Packaging in 1-up or 2-up Configuration for sale:
This horizontal form fill and seal machine was previously used to package a viscous condiment into sachets
– Minimum pouch size: 2″ x 2″
– Maximum pouch size: 5 3/4″ x 9 1/2″
– Maximum gusset size: 2″
– Electrical requirements: 480V, 60Hz, 50 Amp
– Air requirements: 35 CFM, 80 PSI (Minimum), 3/4″ line minimum feed
– Designed to form, fill and seal a variety of products into a pouch made of laminated materials, it can also handle most thermo-sealing web materials

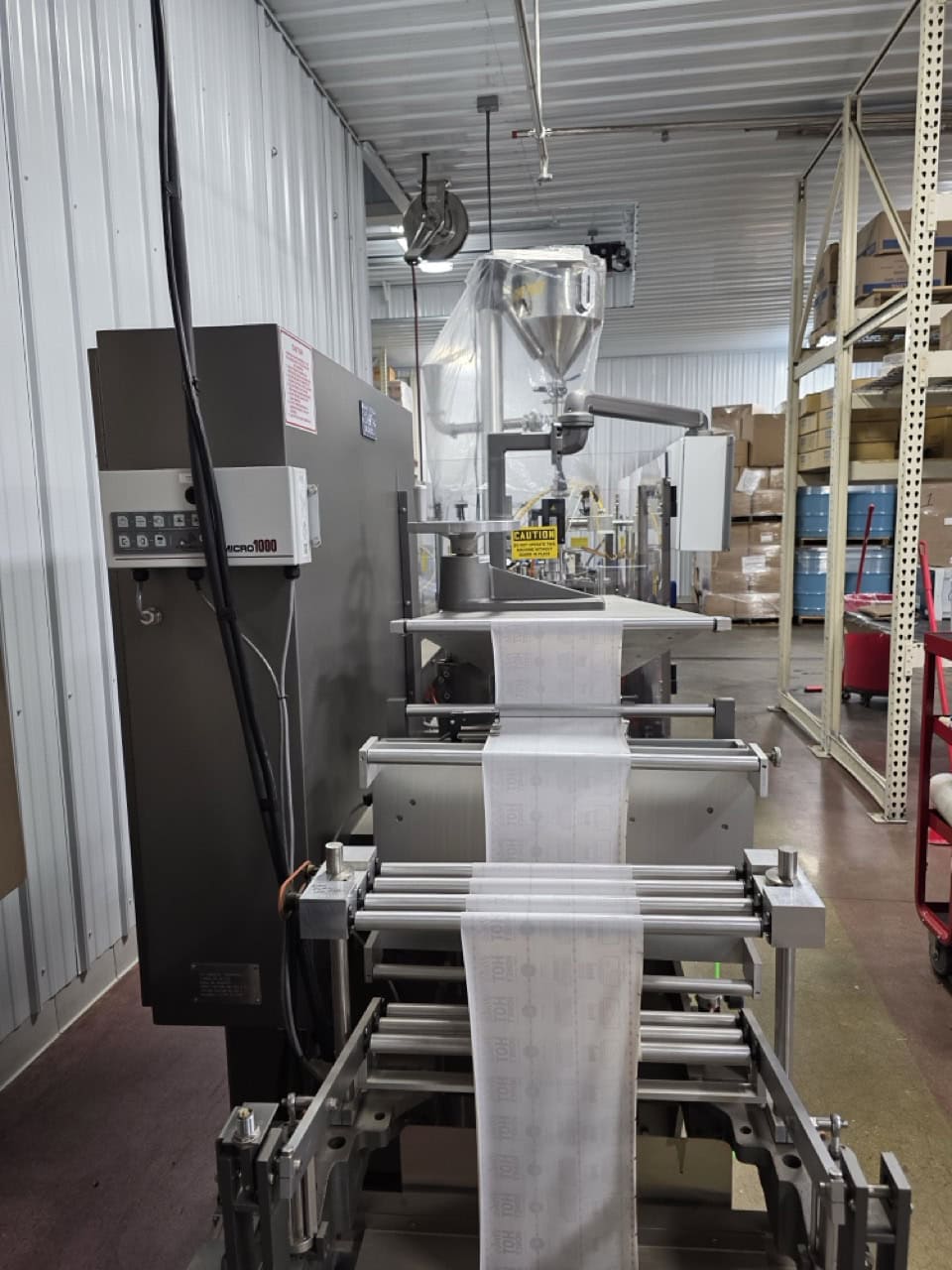

– Maximum web roll diameter: 18″
– Specifically configured to package liquid in a 1-up or 2-up configuration
– Runs up to 60 indexes / 120 pouches per minute 2-up (speeds dependent on filling variables)
– Variable speed AC servo drive
– Stainless steel ways

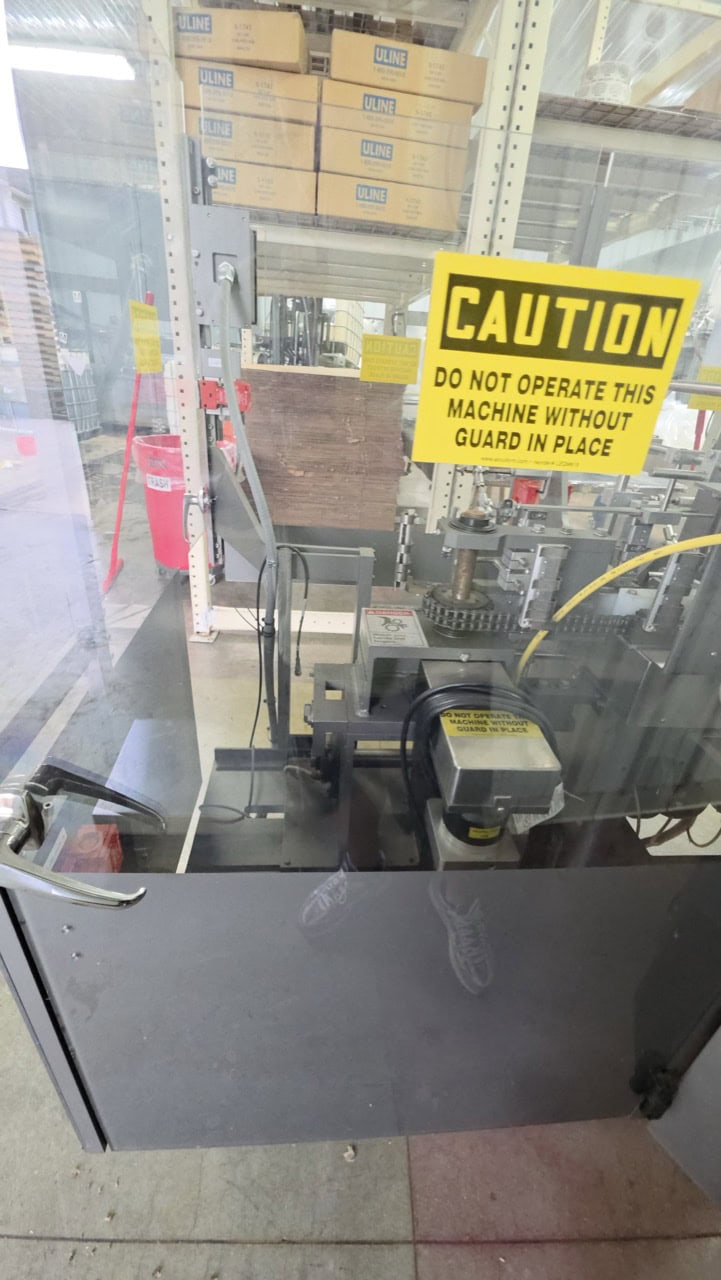

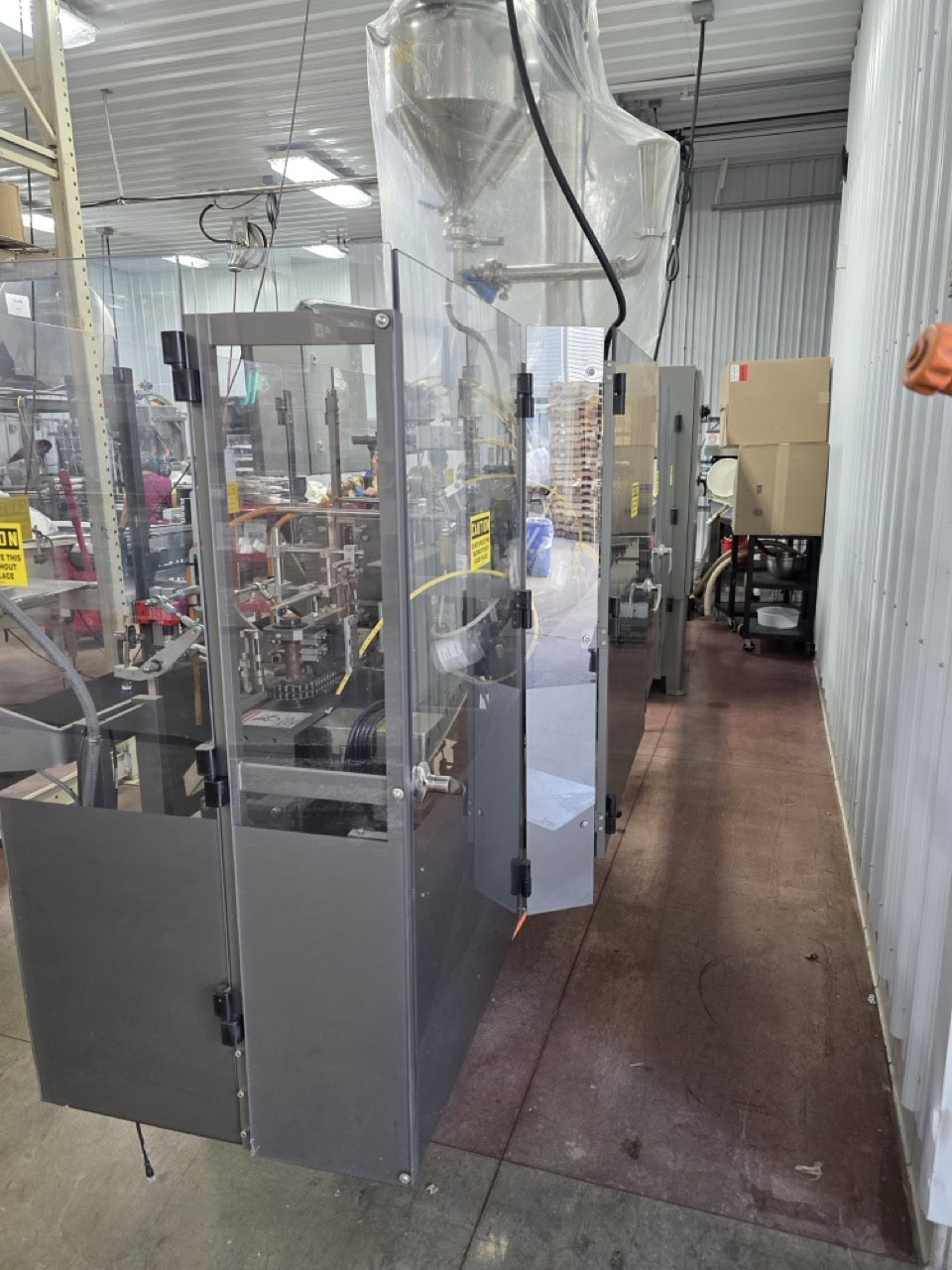

– Operator safety guards with machine electrical interlock, front rear, and discharge end
– Single point plow adjustment
– Servo driven feed rolls
– Registration

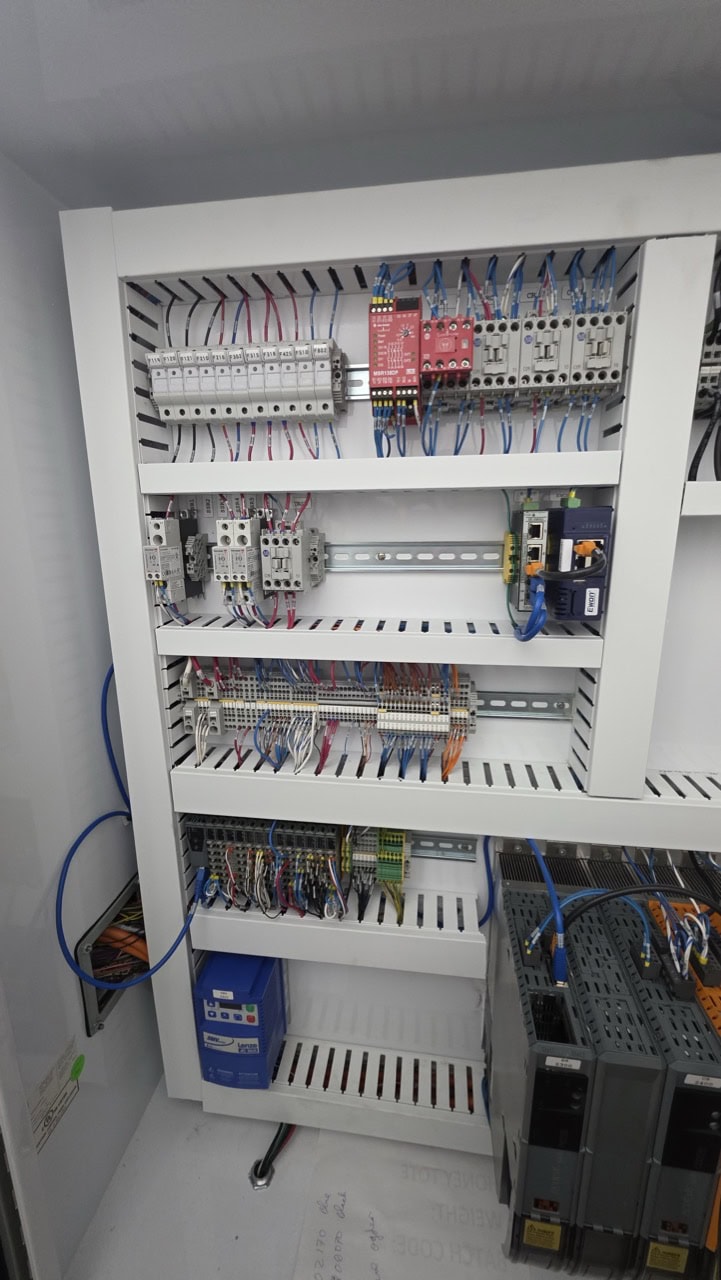

– B&R controls

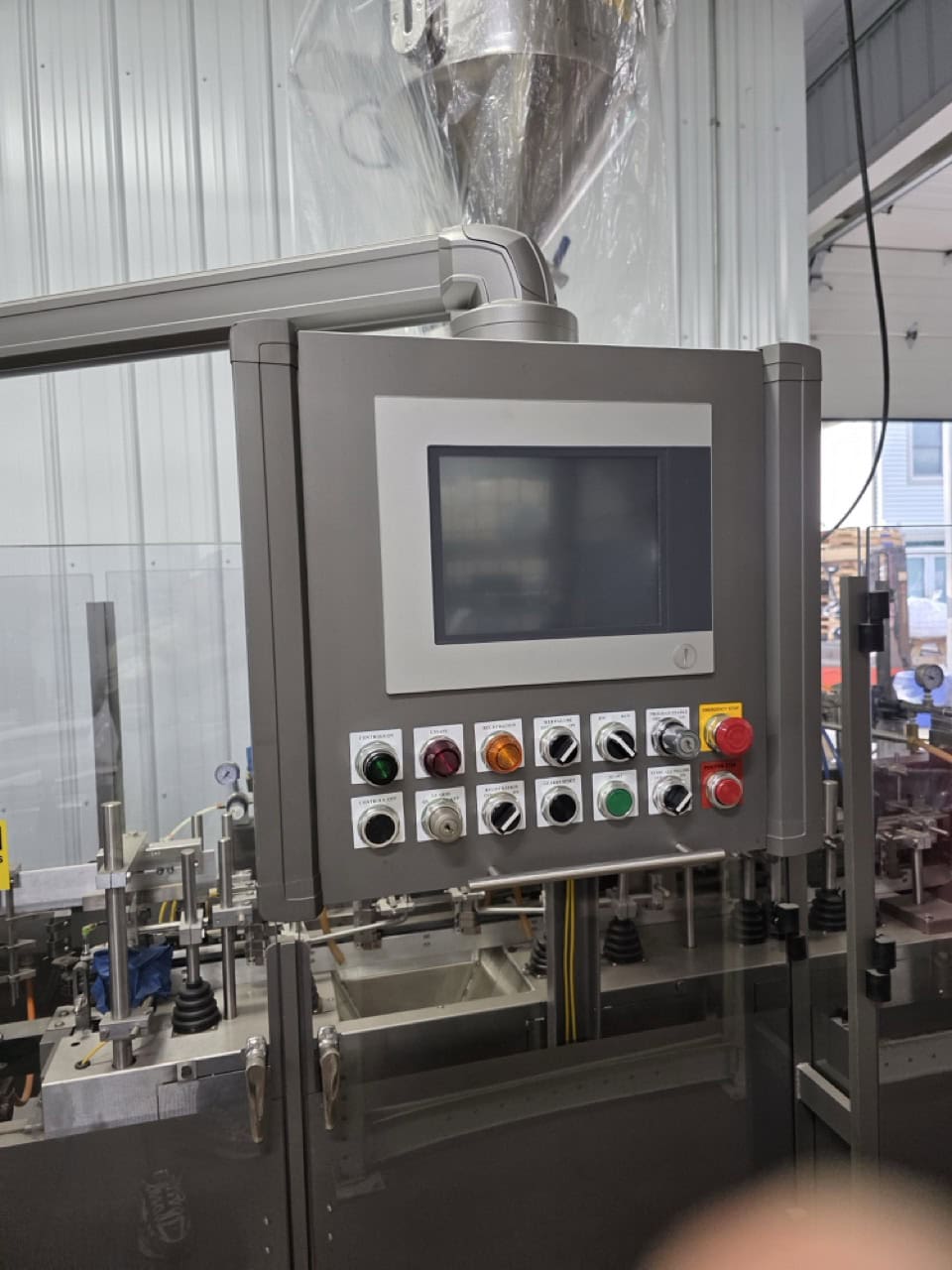

– Two (2) normal and two (2) emergency stop switches
– Machine “JOG” capability
– Web fail and web jam shutdown

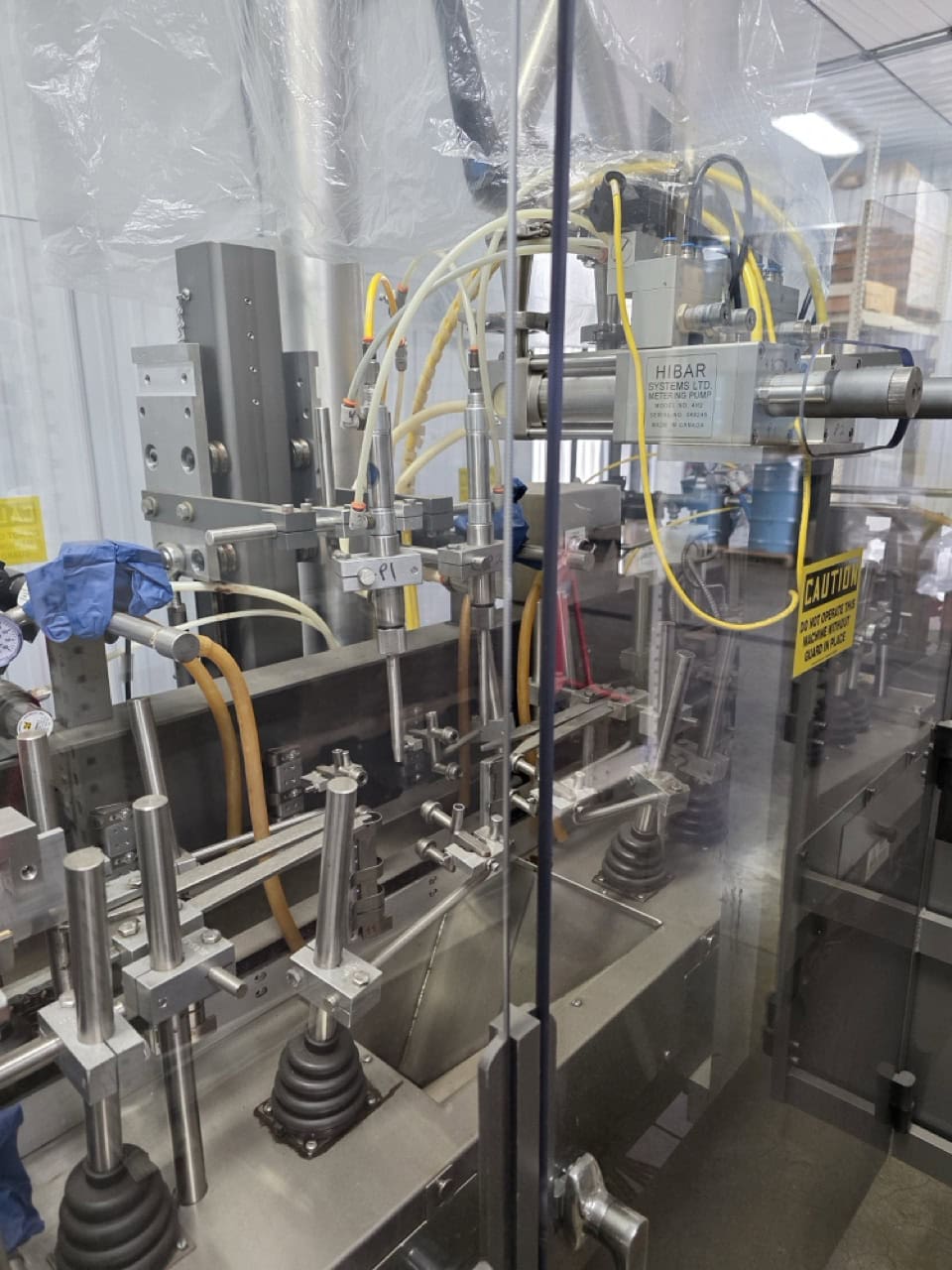

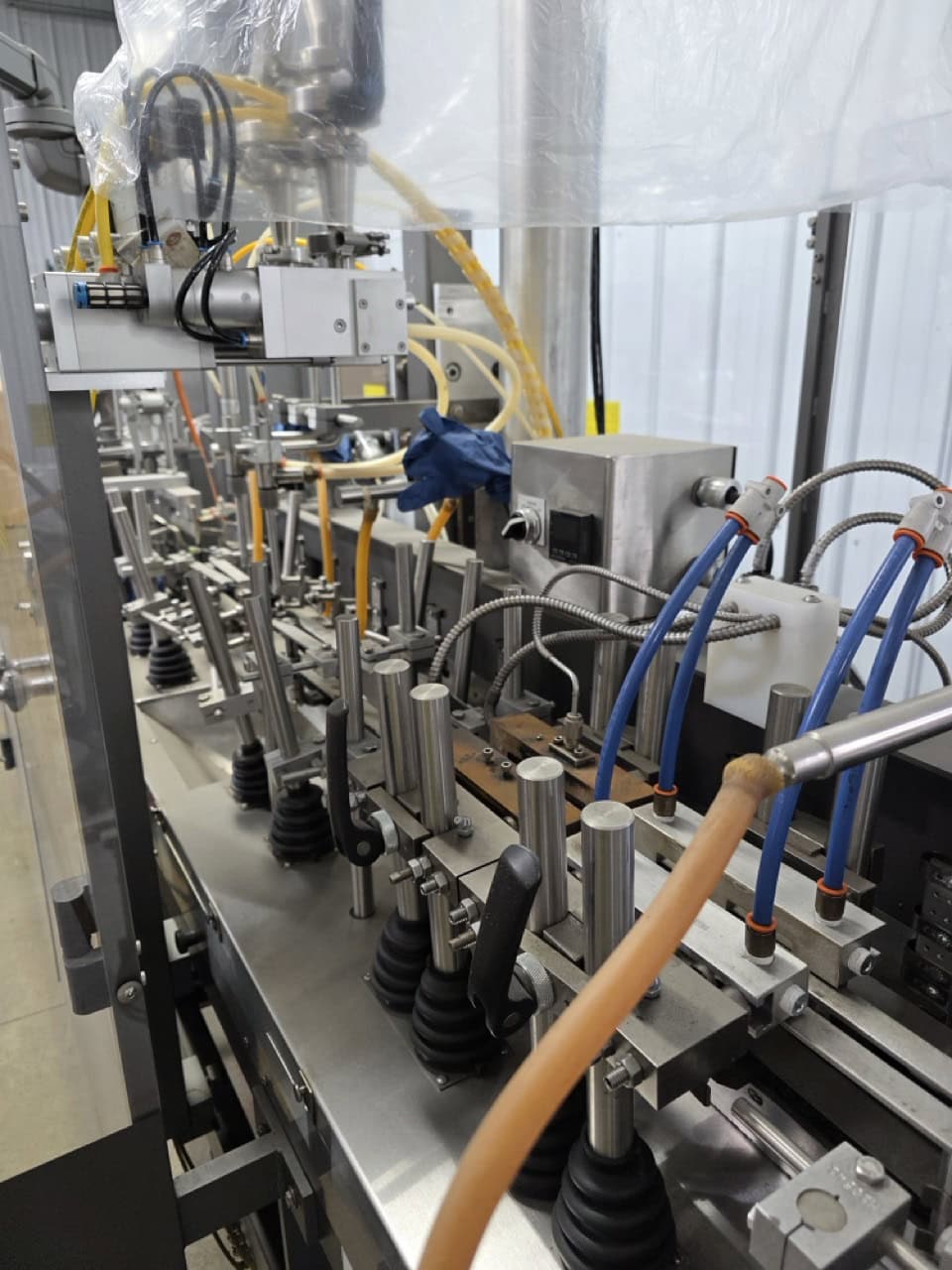

– Vacuum opening at fill stations, with vacuum detect
– Blow back at all vacuum stations
– Servo torque limiter on the conveyor drive
– Online slitter, 2-up
– Bag reject for no vacuum/no fill
– Offline indexing pouch counting conveyor
– Low air pressure shutdown
