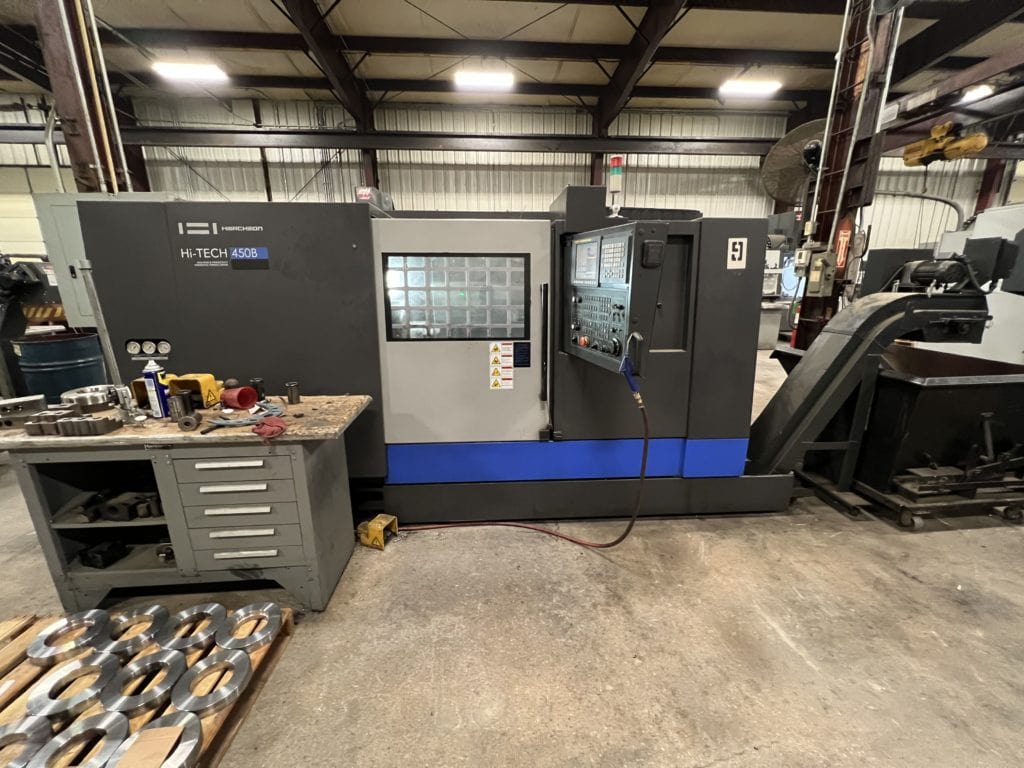

Hwacheon Hi Tech 450B CNC Lathe, 2013- Fanuc Control, Chip Conveyor

Name: Hwacheon Hi Tech 450B CNC Lathe, 2013- Fanuc Control, Chip Conveyor
SKU: 10176877191
Availability: InStock

$74,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: CNC Lathes
Make: Hwacheon
Model: Hi Tech 450B
Year: 2013
Machine Location: Upon Request
Stock #: 877191

Chuck size: 12”
Bar Capacity: 3.5″
Hydraulic Swing Over Bed: 27.5”
Max Cutting Diameter: 16.5”
Max. Cutting Length: 29.0″
Max Stroke: X: 11”, Y:
4.7″, Z: 31.1”
Max Spindle Speed: 2,500 rpm (Low 0- 800, High 0- 2500)
Thru Spindle Hole diam: 4.13”
Spindle Motor H.P.: 30 / 25 HP
# of Turret Stations: 12
Control: Fanuc Oi-TD

Equipped With:
Fanuc Control
Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
