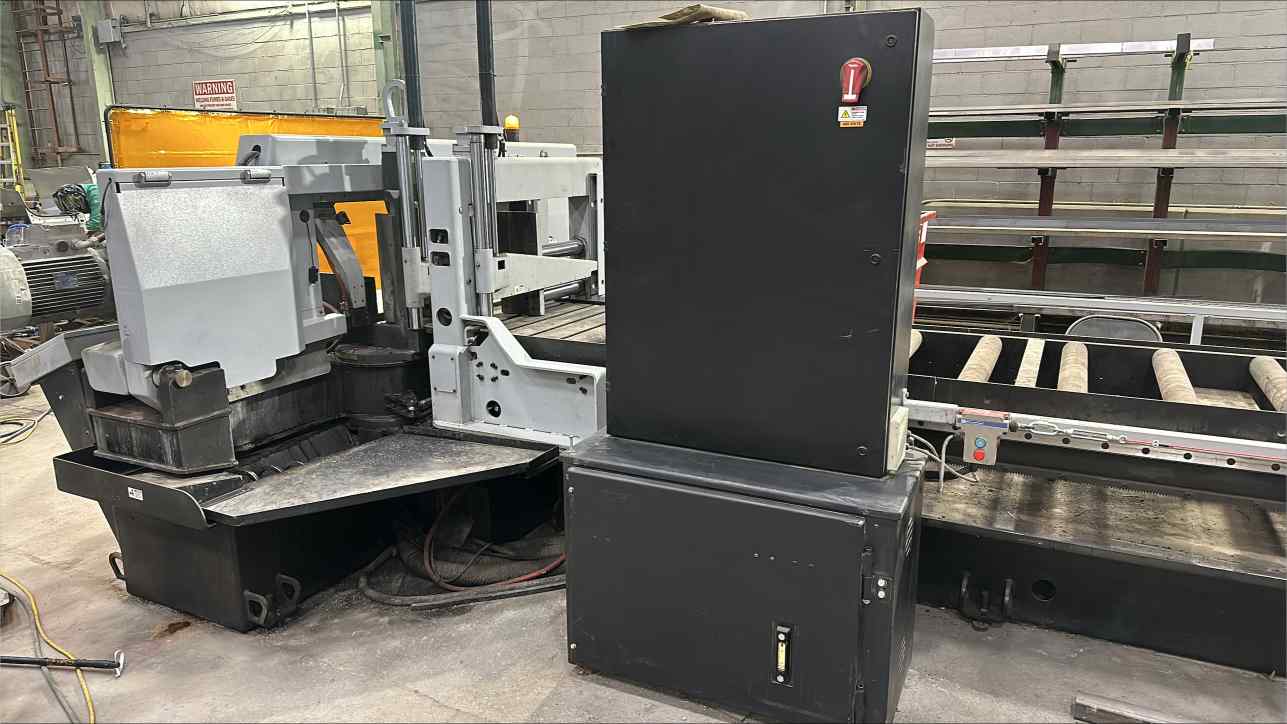

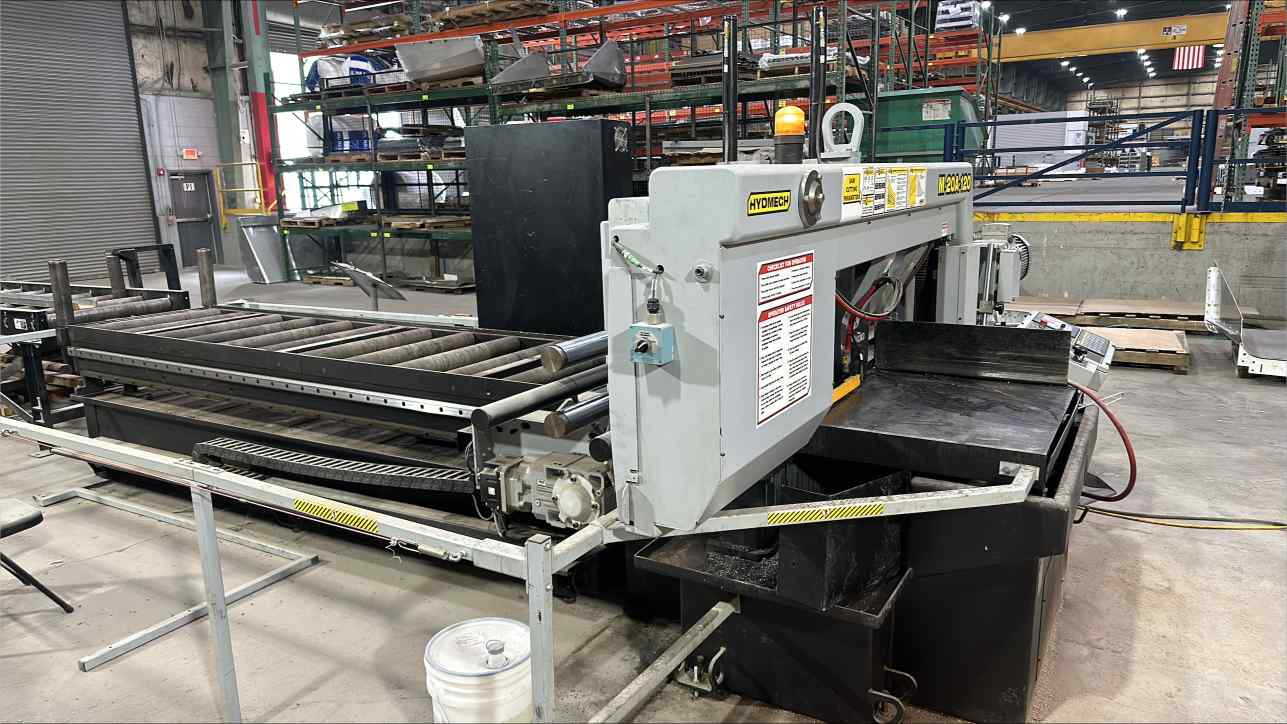

Hydmech M20A-120 Automatic Horizontal Pivot Band Saw, 2022 – 10′ Bar Feed


This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Cutting Height: 20″
Cutting Width: 30″
Round Capacity : 90°
Blade Dimensions: 1 1/2” x 20′
Blade Drive: 10 HP VFD
Blade Speed: 50-350 sfm
Coolant Tank Capacity: 9 gal
Machine Workload: 8,000 lbs
Machine Weight: 12,700 lbs
Machine Dimensions: 129” x 210” x 110″

Equipped With

Automatic programmable mitering with “go to” angle from 90° to 30°
Full capacity hydraulic overhead bundling
10′ bar feed
Automatic multi-indexing up to 120” in a single stroke
New replacement cost $130,000
