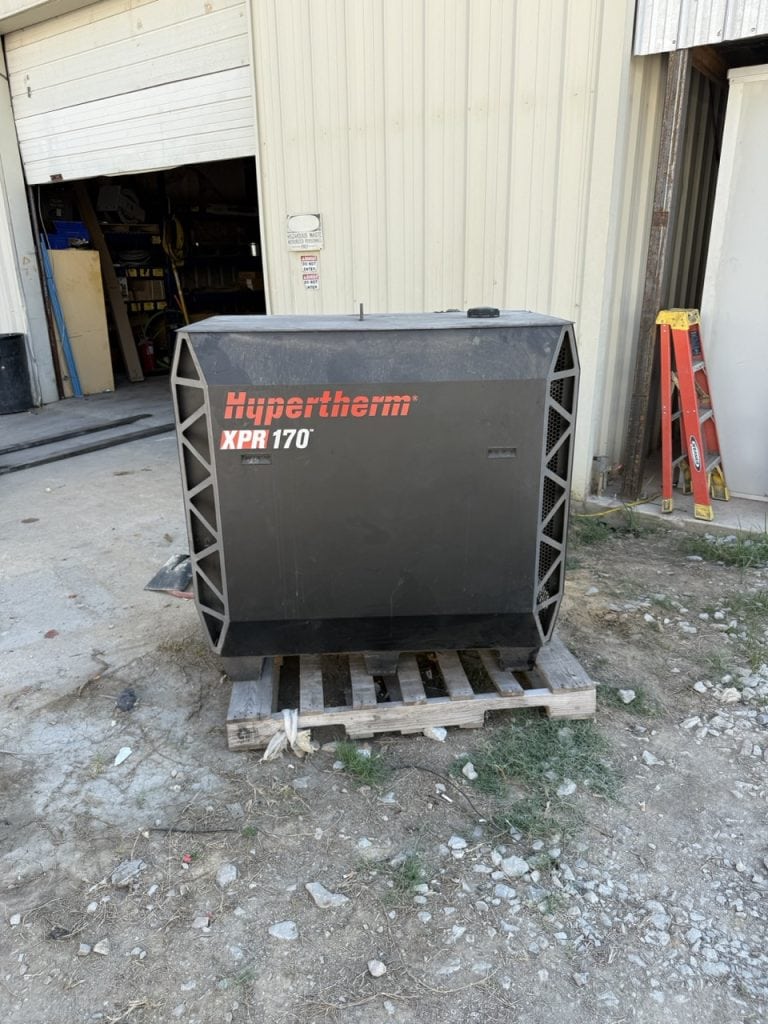

Hypertherm XPR 170 Plasma Cutting System, 2022

Output

Max output current: 170 A
Output voltage: 50–210 VDC
Max open-circuit voltage: 360 VDC
Duty cycle: 100% @ 35.7 kW
Max gas inlet pressure: 1.48 MPa (215 psi)

Cut capacity

Mild steel: pierce 1-3/8″ (air shield) / 1-9/16″ (argon-assist, requires CorePlus, VWI or OptiMix console); severance 2-3/8″
Stainless: pierce 7/8″, severance 1-1/2″
Aluminum: pierce 1″, severance 1-1/2″

Physical

842 x 1,248 x 1,238 mm (33.1″ x 49.1″ x 48.8″)
1,002 lbs
Top lift eye rated 1,500 lbs, fork slots in base

Electrical

480 VAC, 3-phase, 60 Hz
Rated input current: 49 A (HYP) / 34.3 A (IEC)
40.6 kVA, power factor 0.98
Class F forced-air cooling, Class H insulation, IP21S
