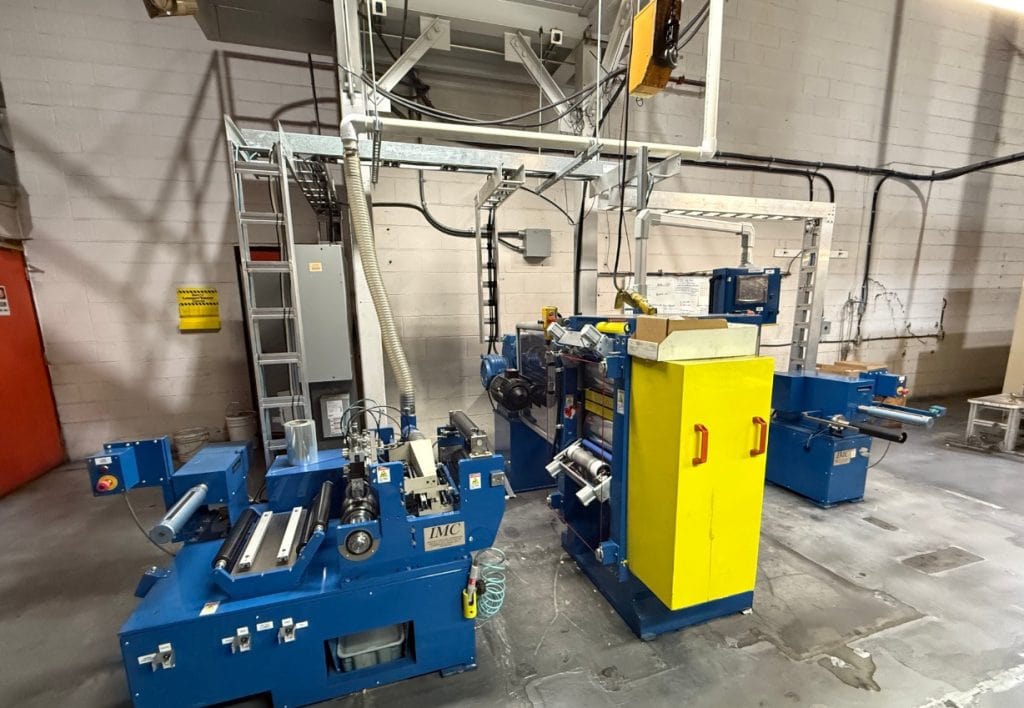

IMC Calender Machine, 2020 – 2700 Operating Hours

2020 IMC Calendering Machine is a precision roller pressing system designed for research and pilot-scale electrode manufacturing, offering controlled compression processing for battery materials up to 300mm web width.

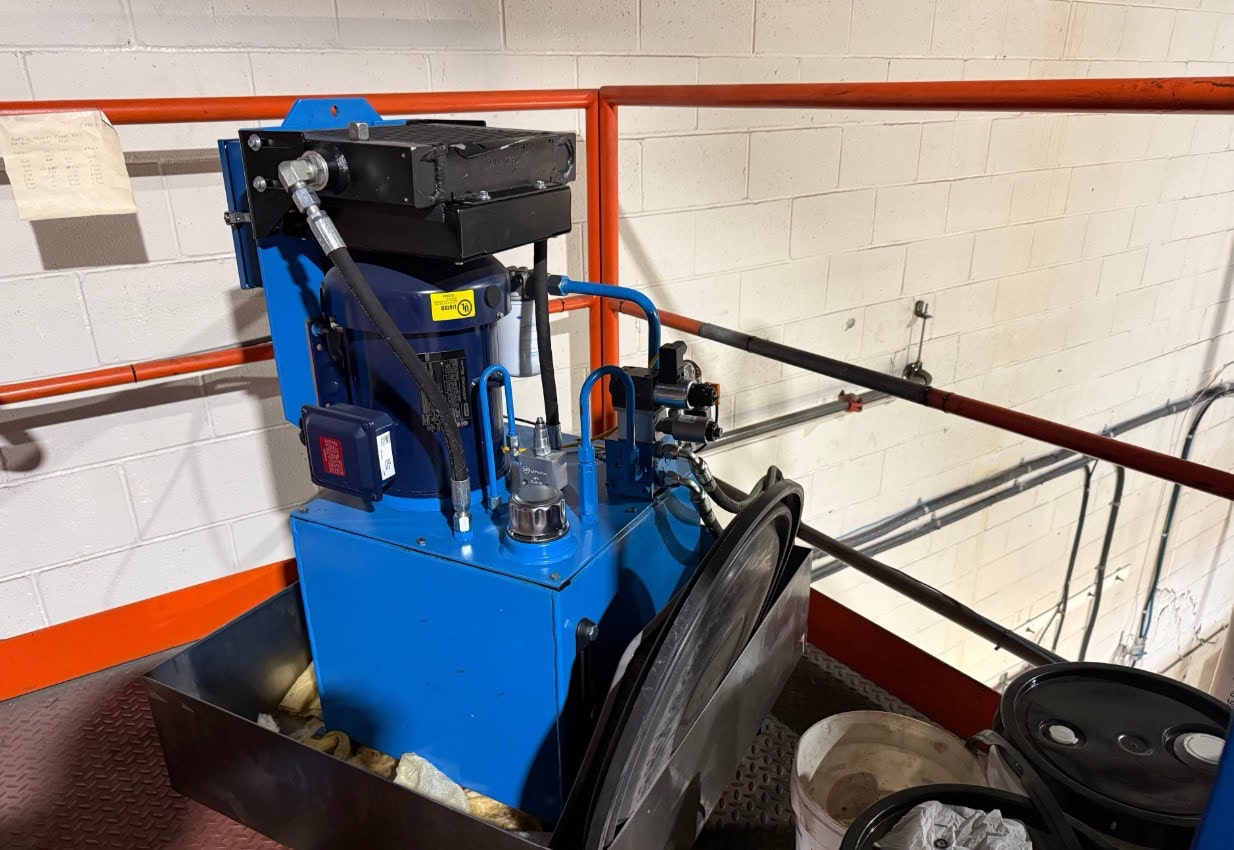

– This calendaring line is equipped with vacuum pump and hydraulic systems.

– Listing also includes crane shown in the pictures.

– Estimated Hours of Operation: 2,700 hours.

Key Features
Dual hydraulic cylinder system delivering up to 3,000 PSI through 5″ diameter actuators for precise pressure control

Temperature-controlled calendering rolls (12″ diameter x 12″ working width) with capability up to 150°C

Integrated web steering mechanism at rewind station for enhanced material tracking

Air-expansion shafts (3″ O.D.) on both unwind and rewind stations for optimal tension control
Process speed control ranging from 0 to 5.0 meters per minute for varied material
requirements

Material handling capacity up to 50 kg roll weight for extended production runs
