J&K Tool Company JK1660 HDPE & PVC Pipe Perforating Machine, 2021 – 4″-16″ Capacity

Pipe Diameter Capacity: 4″–16″
Max Pipe Length: 53′
Pipe Support Track: 60′ With Nylon Rollers Every 24″
Air Requirement: 15 CFM @ 100 PSI
Power: 480 V / 3 Phase
Indexing Shaft: 1-1/4″ Hollow Shaft
Perforating Assembly (L × H × W): 10′ × 7′ × 4′
Drill Motors: (8) × 1.5 HP
Motor Spacing: 10″ & 12″ Centers
Hole Spacing (10″): 1″, 2″, 2.5″, 5″, 10″
Hole Spacing (12″): 1″, 1.5″, 2″, 3″, 4″, 6″, 12″

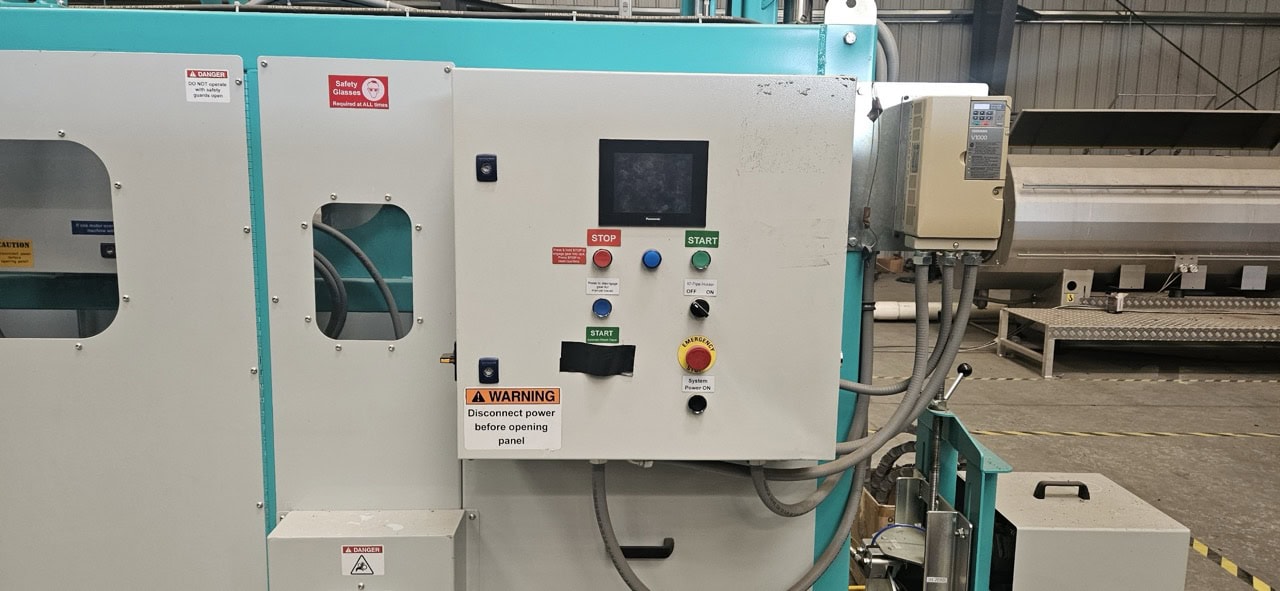

Control: Panasonic PLC With Touchscreen

Equipped With:

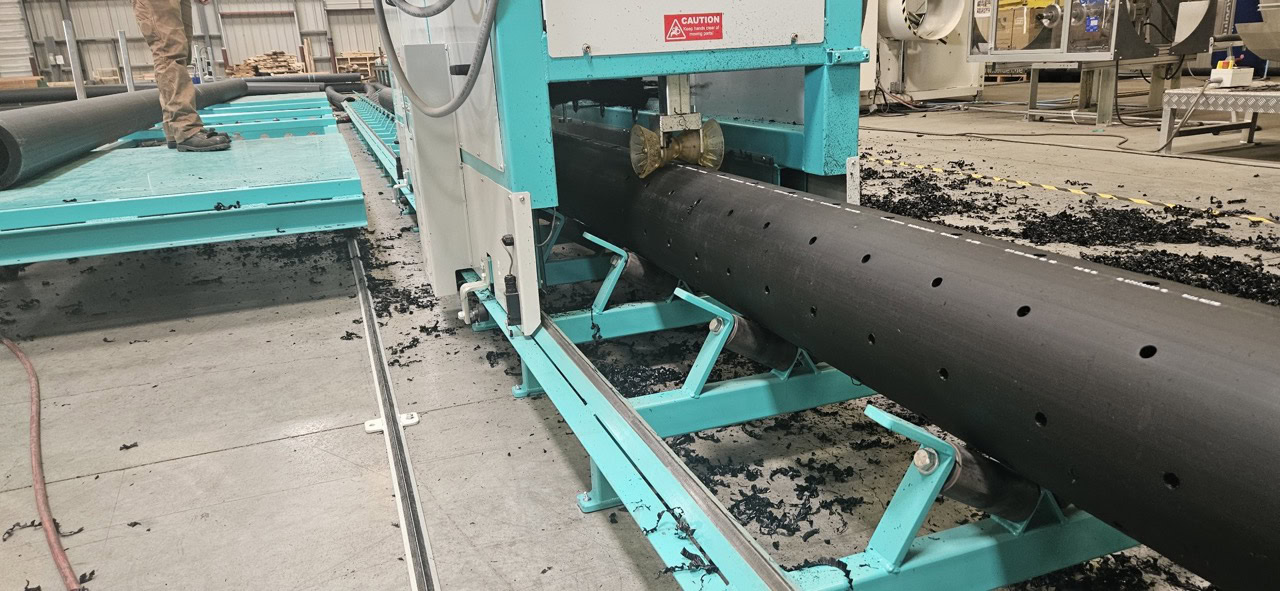

Air Operated Pipe Indexing System

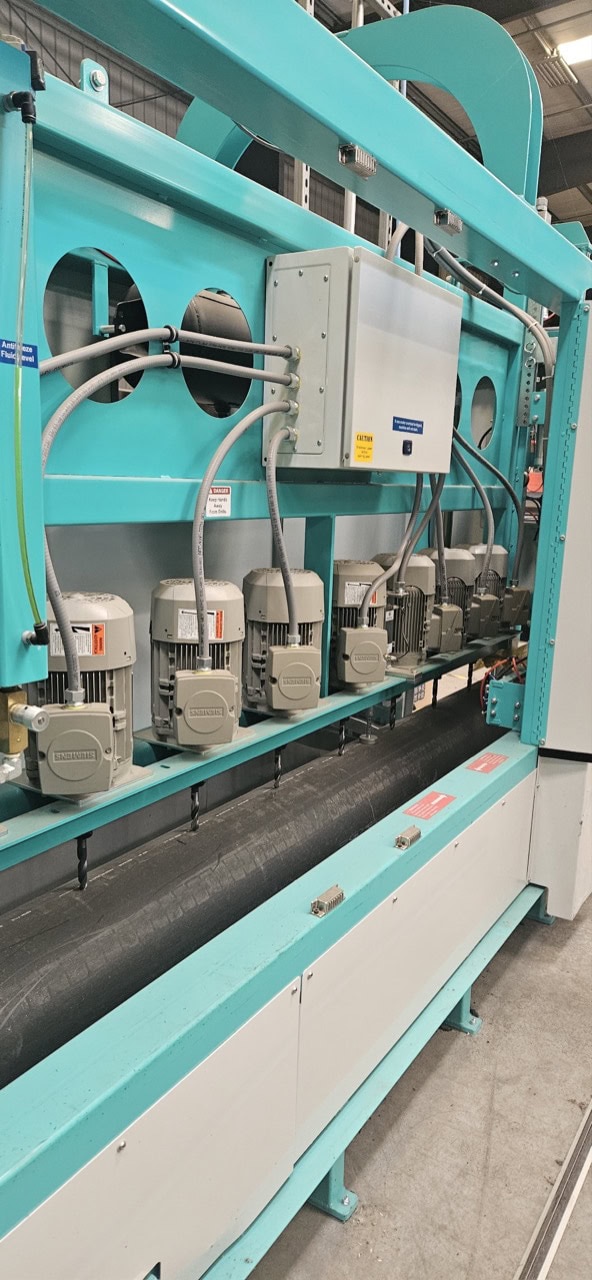

Eight Drill Motor Assembly

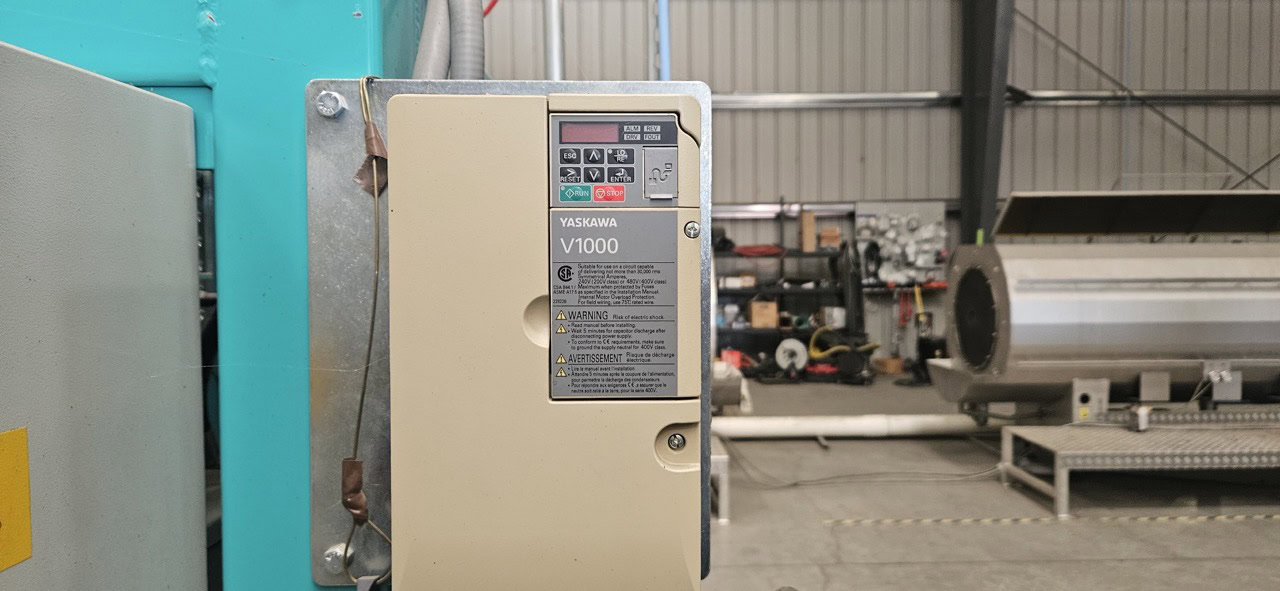

Variable Frequency Drive For Drill Motors
PLC Control With Touchscreen Interface
Automatic Pipe Clamping And Indexing
Safety Enclosures With Polycarbonate Viewing Windows
Cable Track System Between Indexer And Drill Head

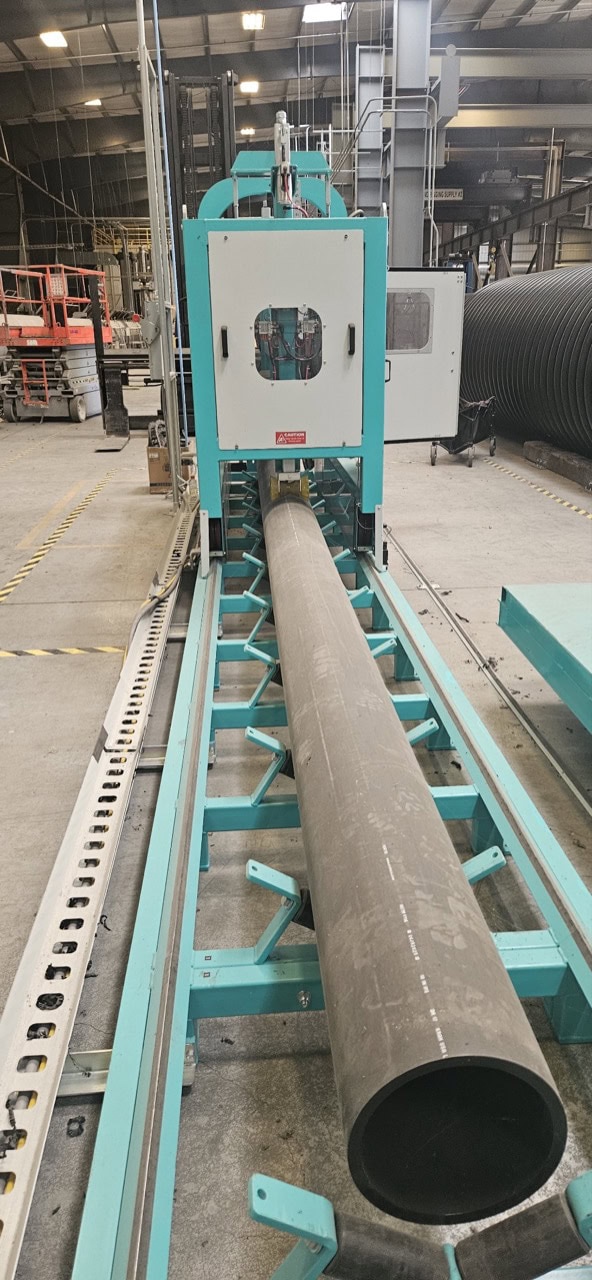

Pipe Support Track With Nylon Rollers

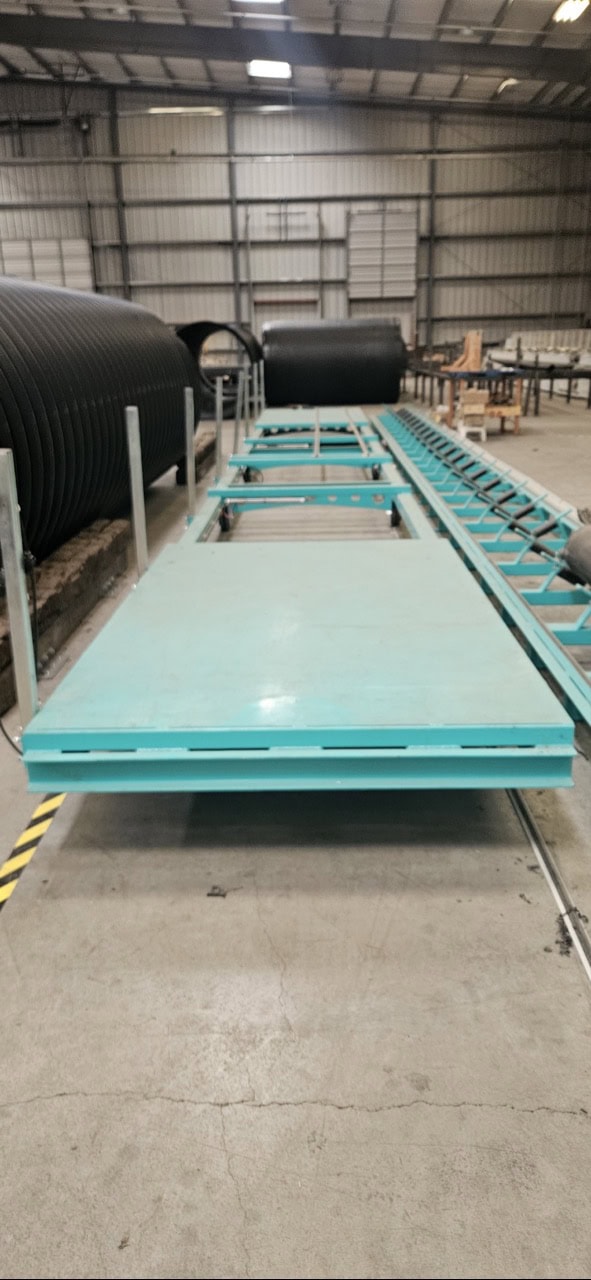

Pipe Cart With Guide Track
Assorted Air Cylinders, Valves, Regulators, And Arbors
Spare Parts Package
