Karlville Swiss KS-HSUP-600 Pouch Making Machine, 2022

Maximum Mechanical Speed: Up to 200 CPM (cycles per minute)
Estimated Production Speed: Average 150 CPM
Maximum Material Width: 57.1″
Maximum Material Roll Diameter: 31.5″
Material Core I.D.: 3″
Material Types: PET, ALU, Paper Laminated with PP or PE, MONO Material, Recyclable and Compostable Films
Material Thickness Range: 55μ – 200μ
Hours: Approx. 3172

Unwind Section (Inline Unwinder)
– Feeding and Film Tension Control
– Tack Hole Punching for Folded Gusset
– Bottom Gusseting Device
– Longitudinal Station, Independently Servo Driven

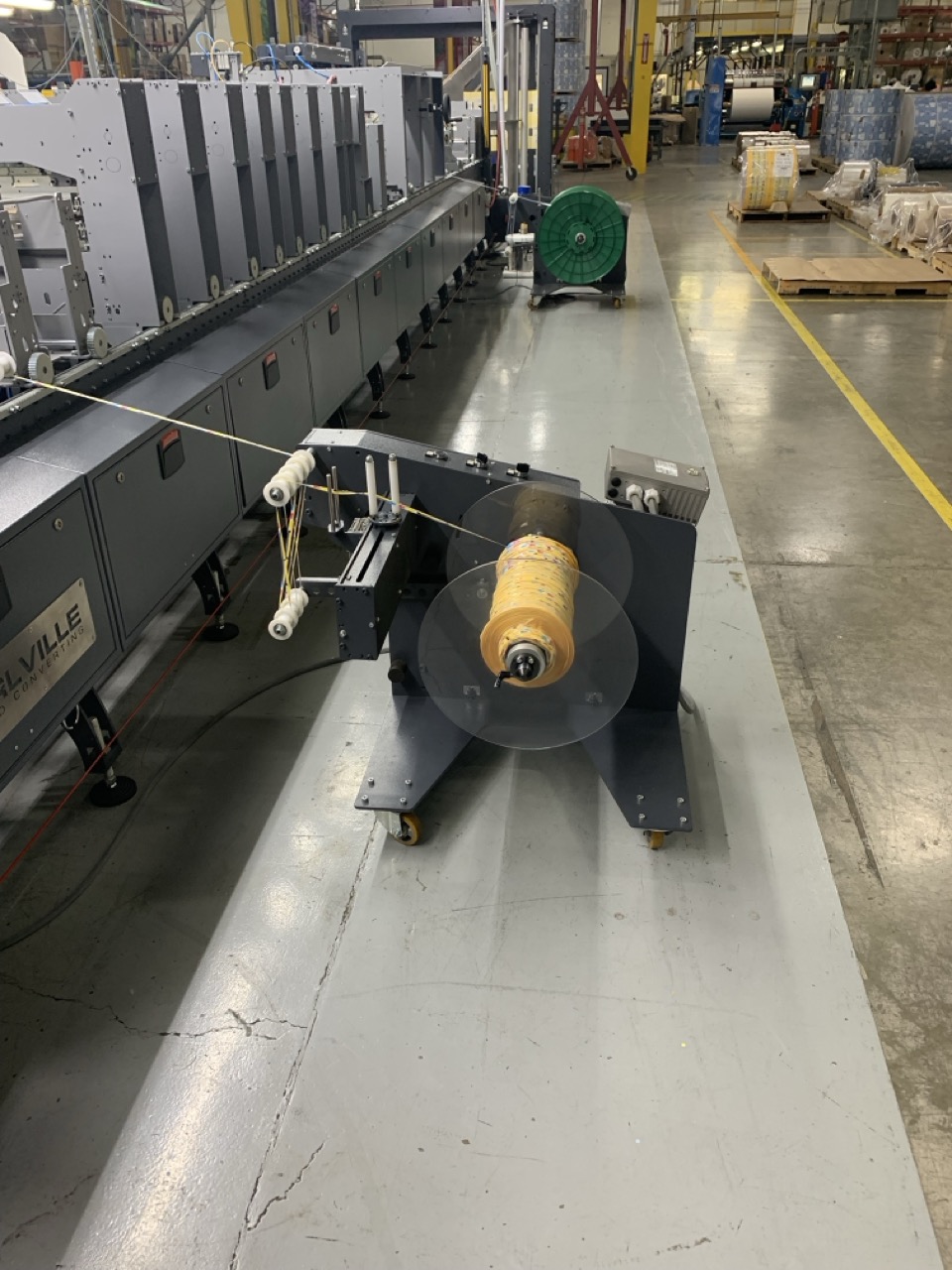

– Stand-alone Motorized Zipper Unwinder Complete with Dancer
– Central Feeding System
– Servo Motorization for Cross Section, Integrated in Machine Frames
– Gusset Tack Sealing and Ultrasonic 20Khz Zipper Crush Station

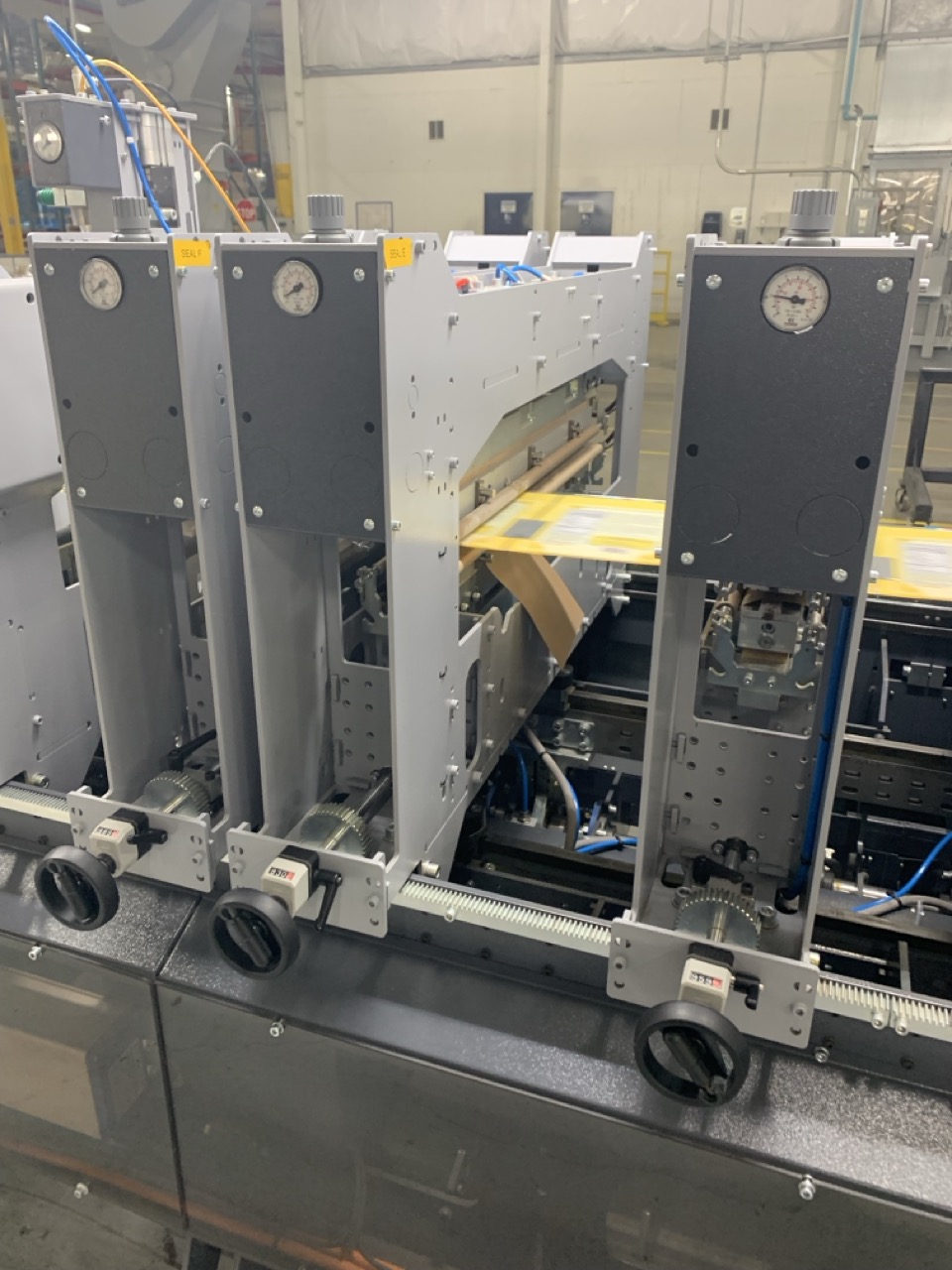

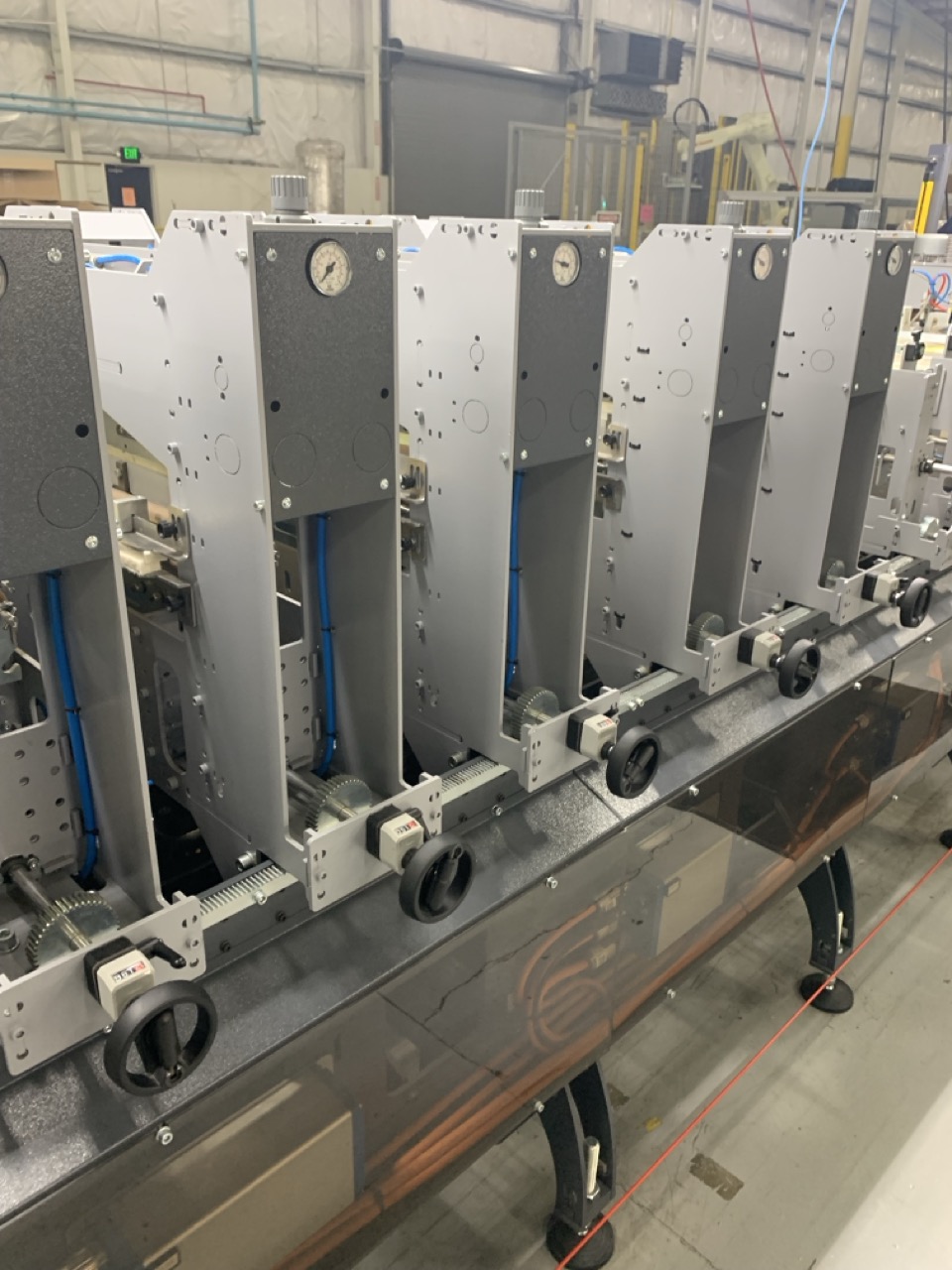

– Cross/Side Sealing Stations
– Cross/Side Cooling Stations
– Eye Mark Reading Station
– Longitudinal Cutting Station
– Stand-alone Motorized Trim Rewinder Complete with Dancer
– Complete Standard Punching Station
– Front Feeding System
– Flying Knife Station with Single Cut & Double Cut

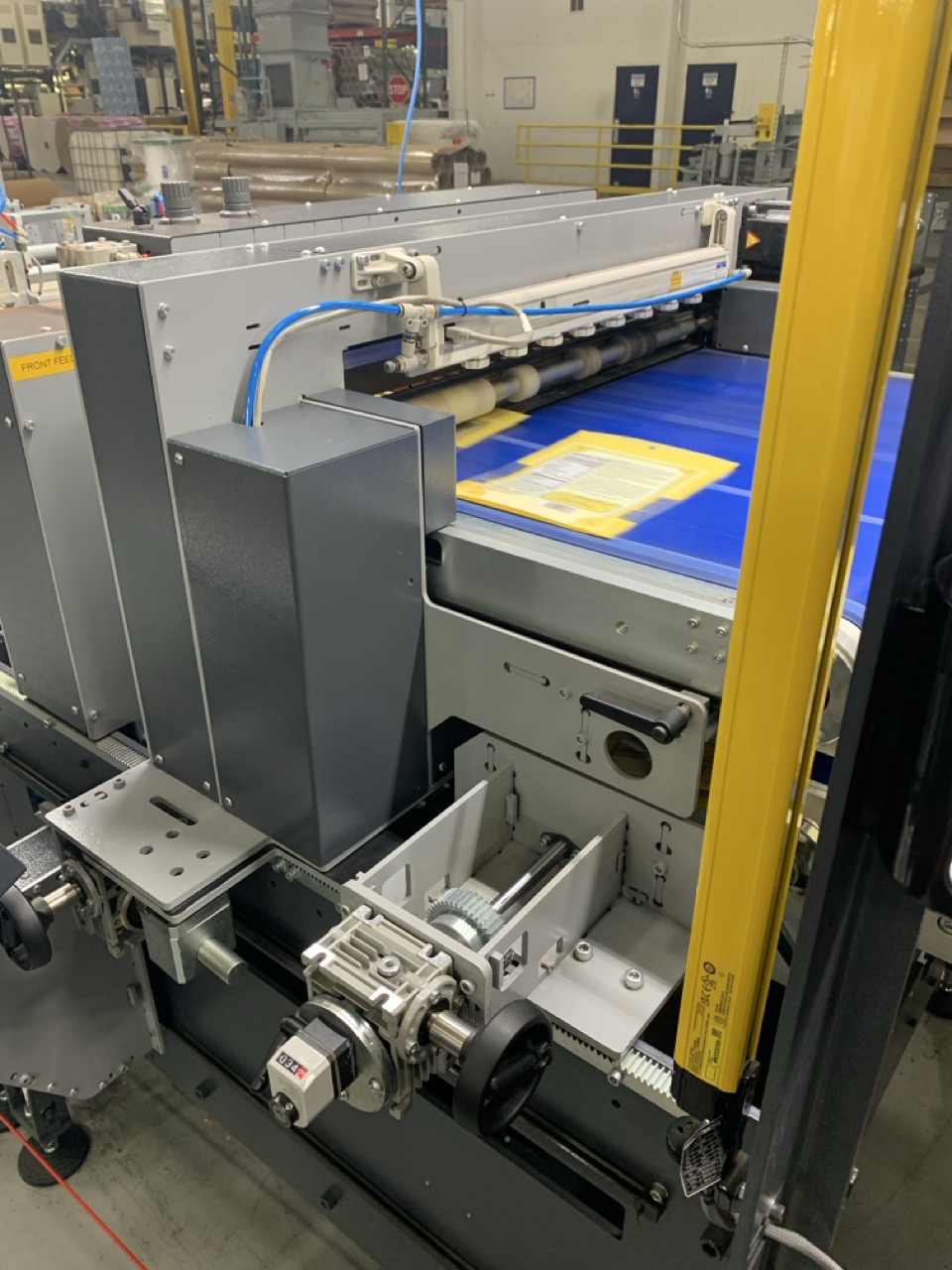

– Double Exit Conveyor

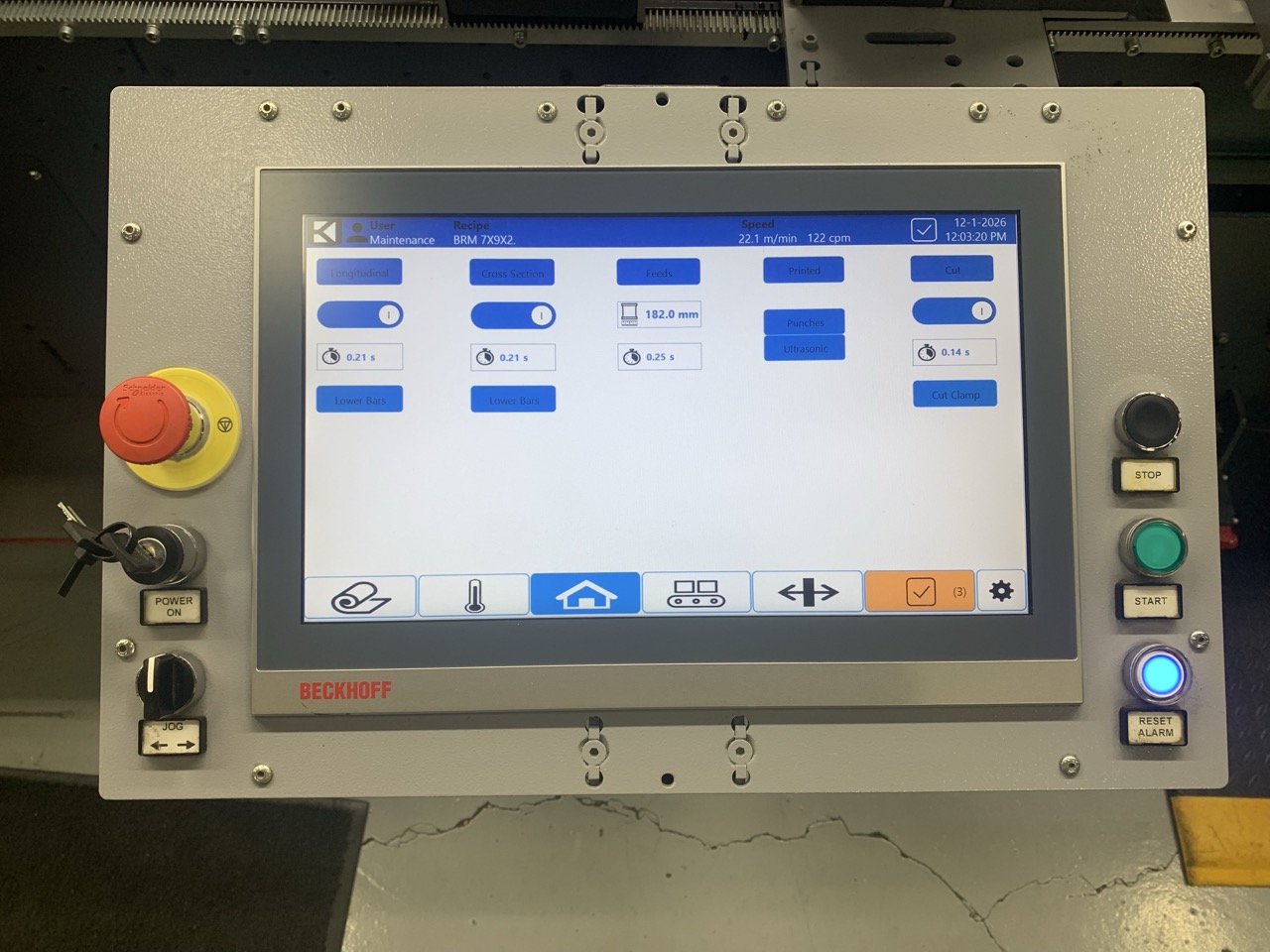

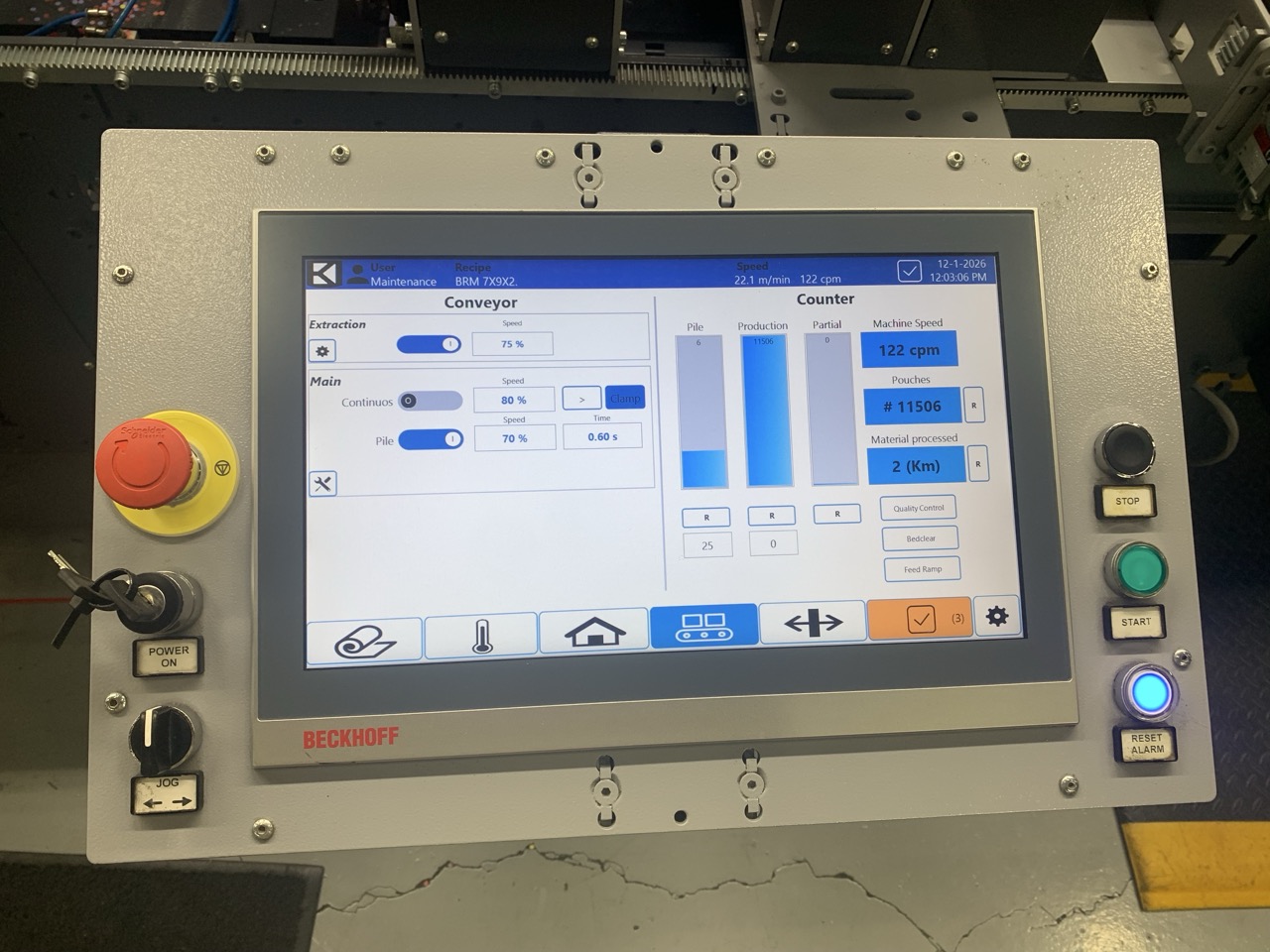

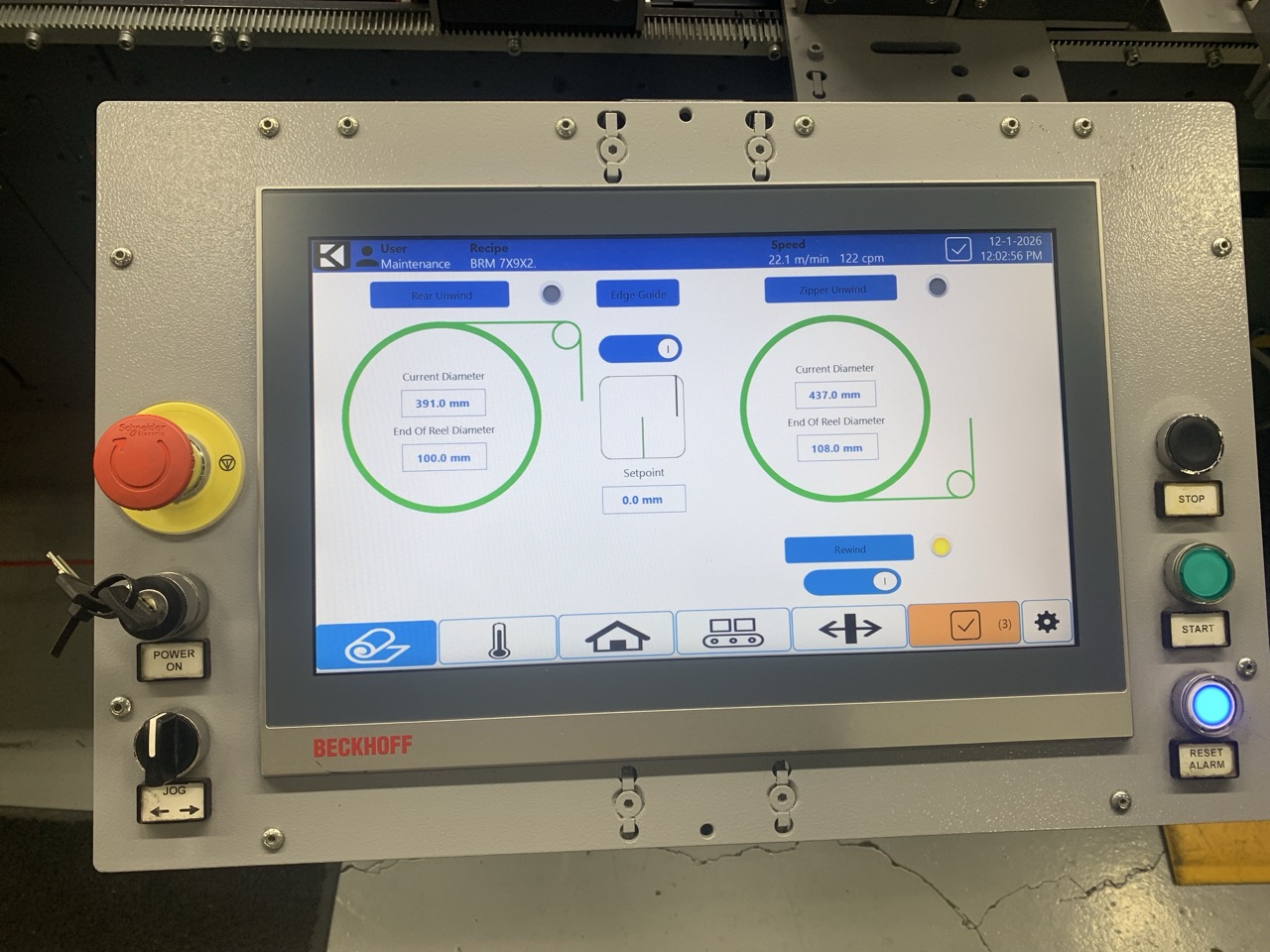

– BECKHOFF Touch Panel 15” and PLC Control System
