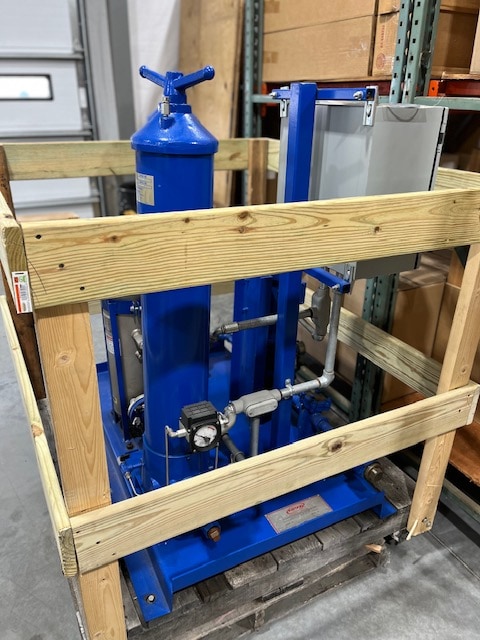

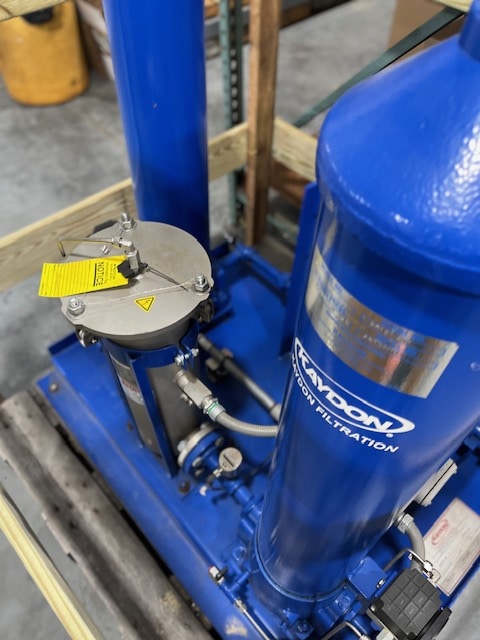

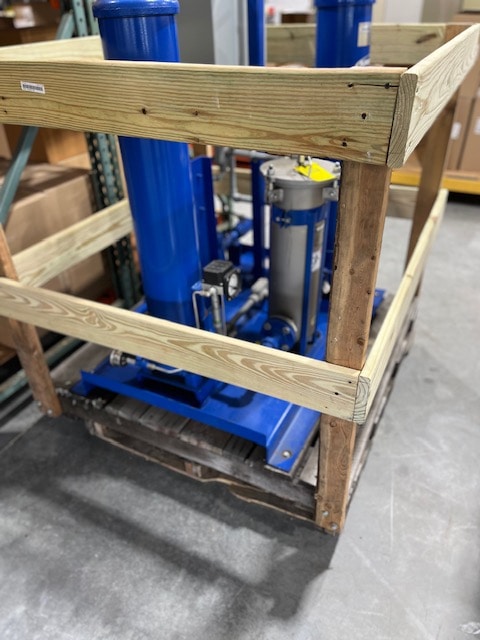

Kaydon VRS Model KPV-10 Varnish Removal System

$24,900.00

Request a Quote to Instantly See Pricing

Machine Type: Other Process
Make: Kaydon VRS
Model: KPV-10
Year: 2021
Machine Location: New Jersey
Stock #: 323337

System Flow: 10 GPM Max
System Pressure: 100 PSIG Max
Environmental Parameters: NEMA 4 Rated Control Panel
Minimum Ambient Temperature: 32° F / 0° C
Maximum Ambient Temperature: 200° F / 93° C
Designed For Indoor or Outdoor Use

Construction Materials: Carbon Steel, Bronze

Inlet & Outlet Connections: Type: NPT
Inlet: 2 inch / 50.8 mm
Outlet: 1 inch / 25.4 mm

Pump/Motor Assembly Flow Rate: 10 GPM / 38 LPM
Pump Type: Gear – Positive Displacement
Motor: 1.5 HP / 1.1 KW

460 VAC / 3 PH / 60 HZ / 10 AMPS

Weight (approximate): 715 lbs / 324 kg
Dimensions: 48” L x 35” W x 64” H / 1220 mm L x 890 mm W x 1625 mm H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
