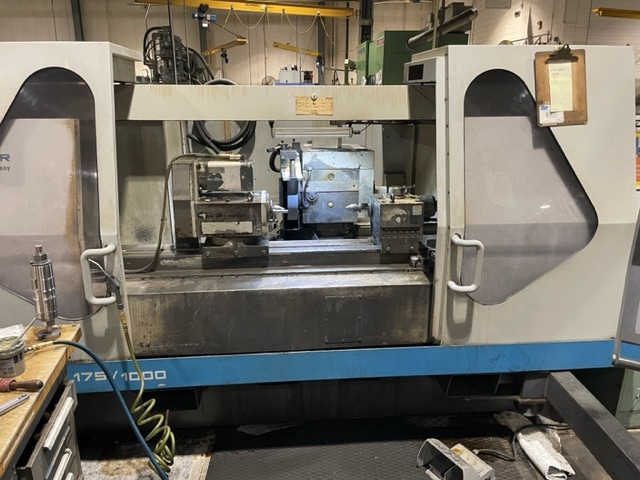

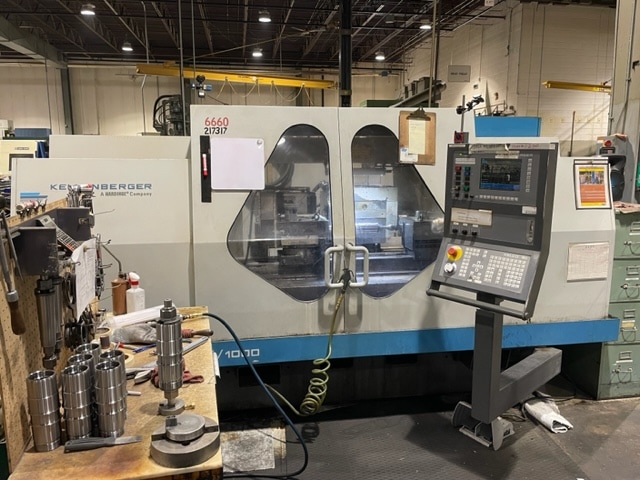

Kellenberger KEL-VARIA UR-175/1000 CNC Universal Grinder, 1995- Full Enclosure
$26,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Distance Between Centers: 1000 mm / 39 3/8″
Max Travel: 45″
Max Speed: 15 m min-1 / 49 ft min-1
Max Resolution: 0,1 um / 0.0039 Min
Swivel Range: 0 … + 9ยฐ
Max Travel (X axis): 320 mm / 12 19/32″
Max Speed: 7,5 m min 1/ 25 ft min-1
Max Resolution: 0,1 um / 0.0039 win

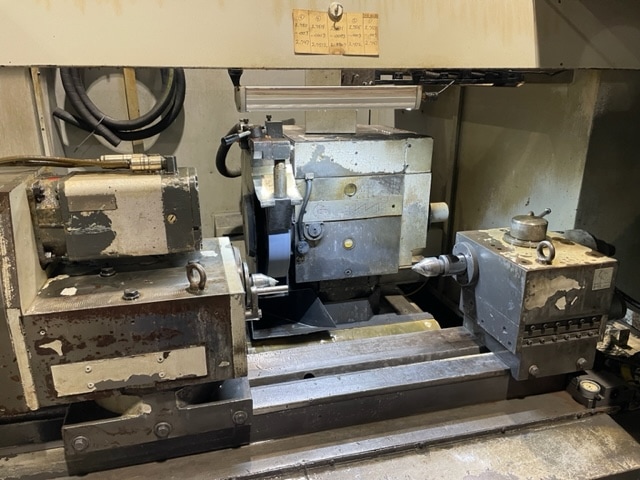

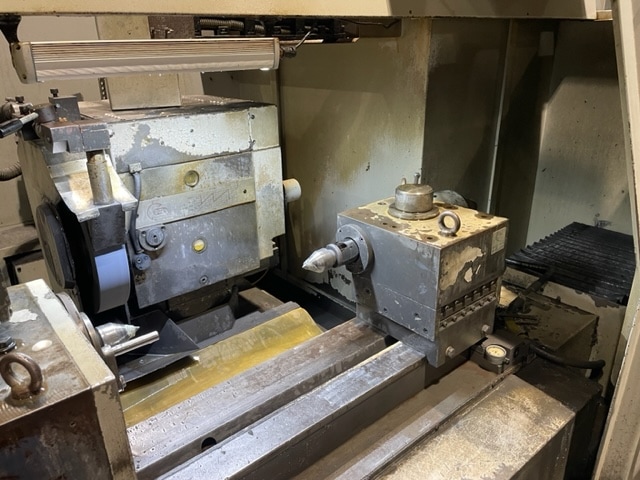

Tailstock:
Holding Cone: MT 4
Lift of tailstock sleeve: 50 mm / 2″
Micro corrector: โก 150 um/o
correction range: โก 0.006 in/o
Wheelhead:
Grinding wheel LH max: 16″ ร 2 1/2″
Grinding wheel RH max. (option): 16″ ร 2″
Peripheral speed max.: 32 ms-1 / 6300 ft min-1
ID-spindles HJN: o 80 mm / 3 5/32″
High-frequency ID-spindles MFV: o 120 mm / 4 23/32″
Pneumatic system
Min. inlet pressure: 4 Bar
Air Consumption: approx. 0,6 mยฐ/h
Floor Dimensions: 12′ x 7′
Weight: 13,000LBS
Equipped with:

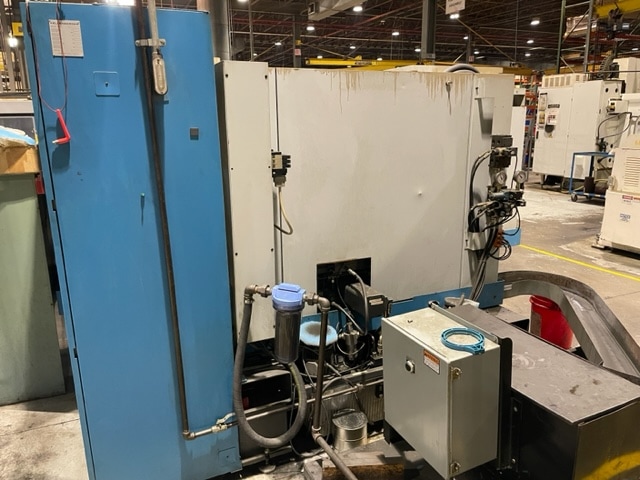

Paper Filtration

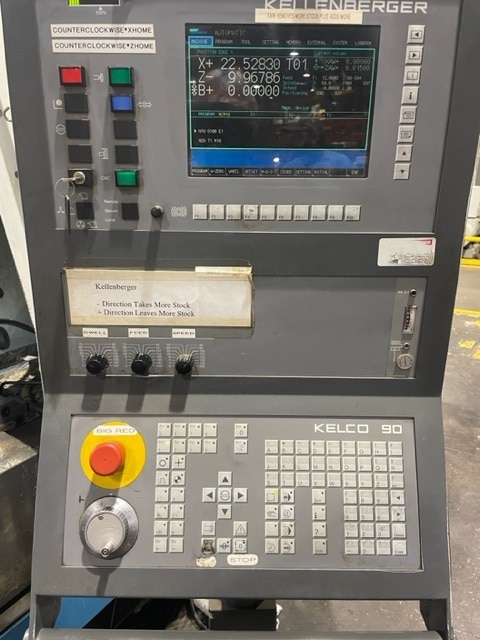

Kelco 90 Control
