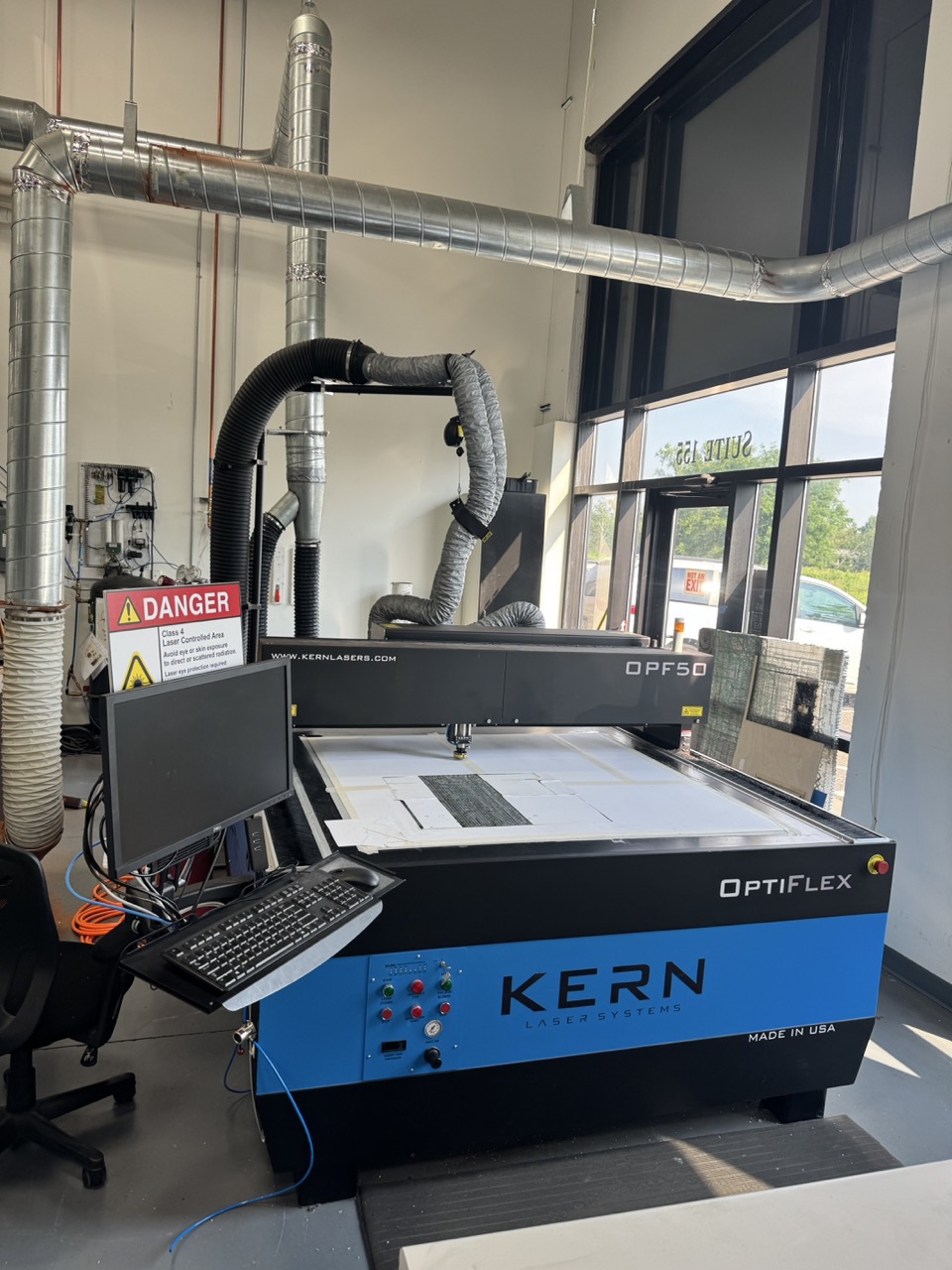

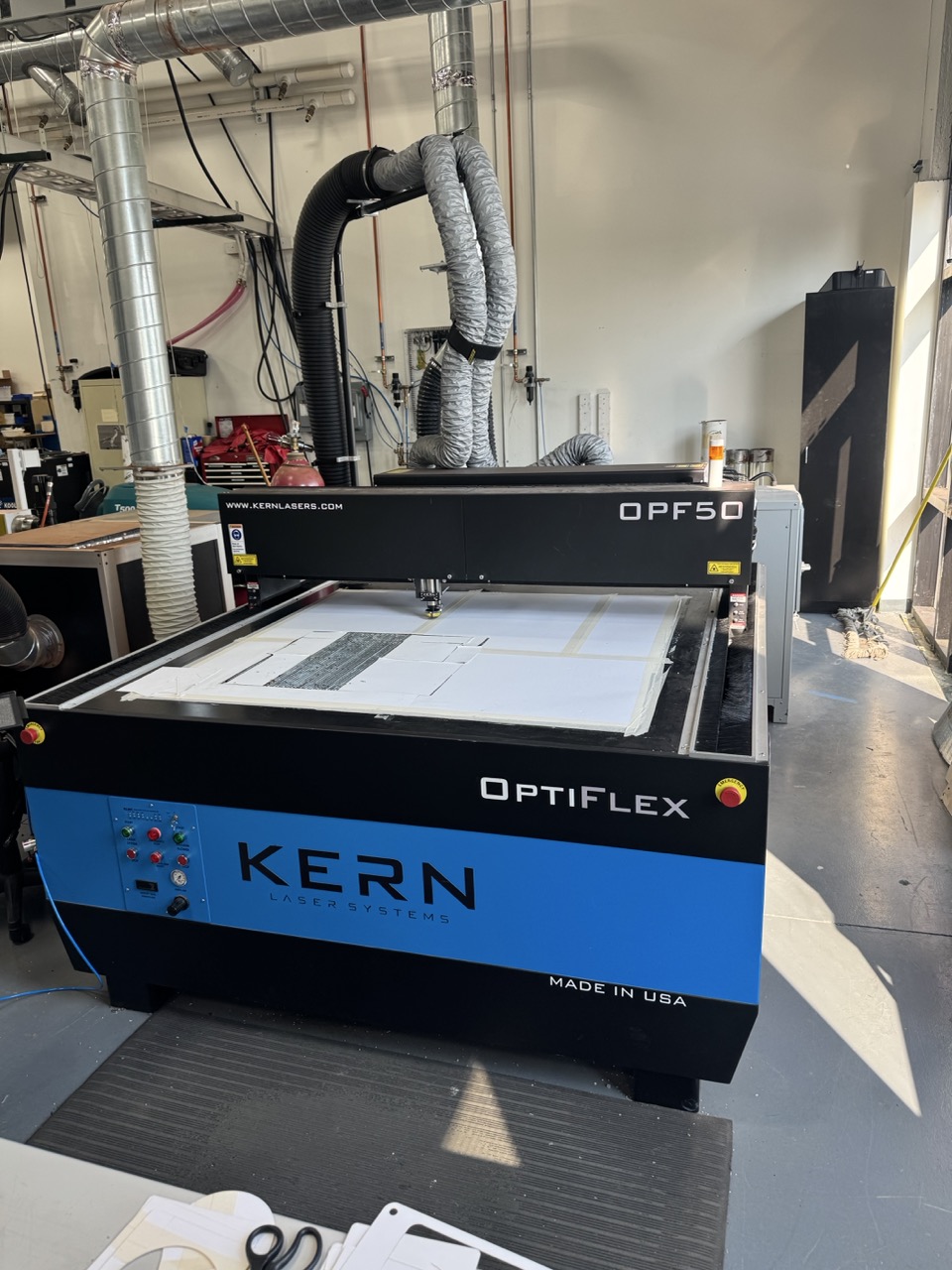

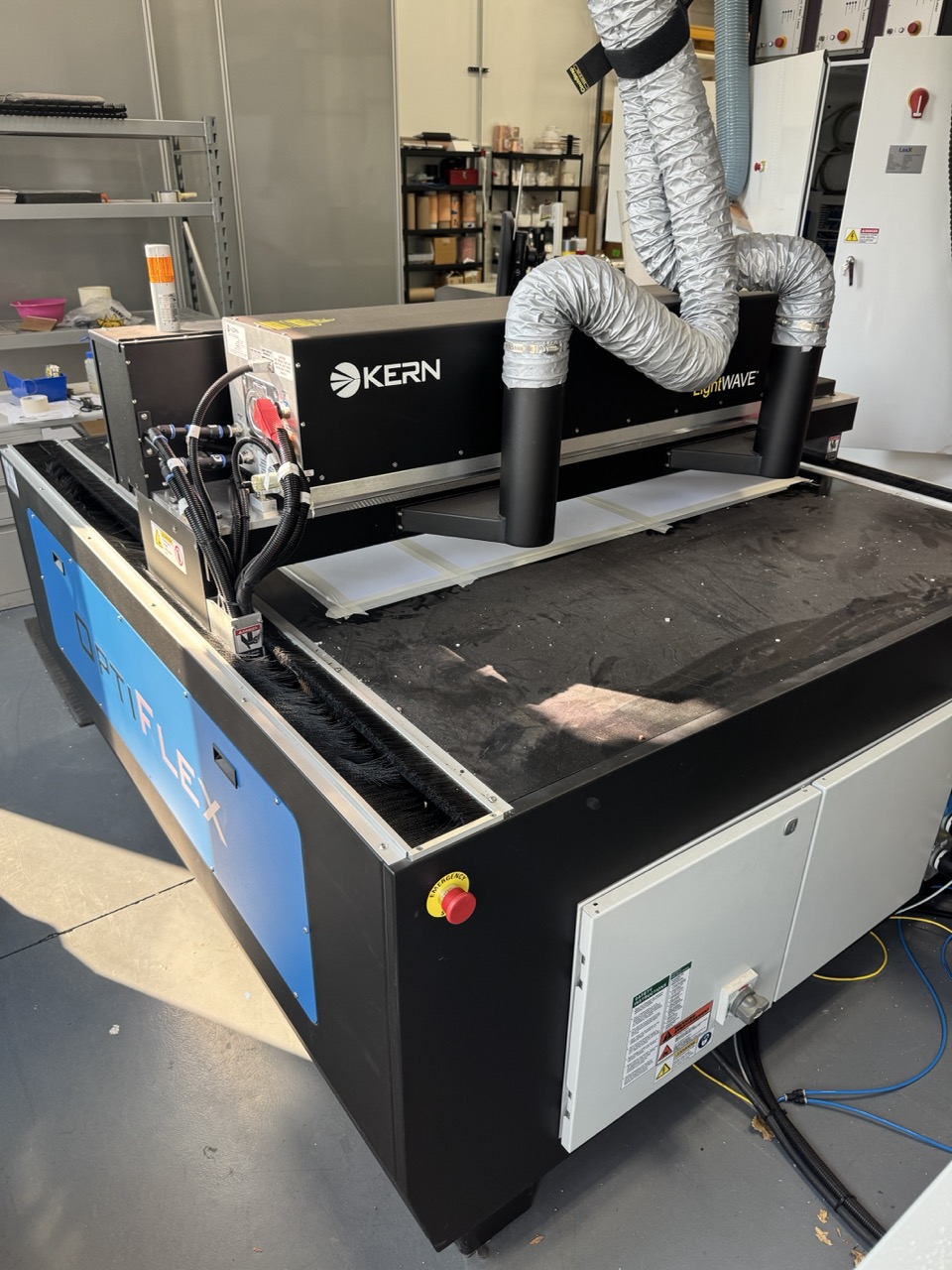

Kern OptiFlex 50 CO2 Laser System, 2023

Work Area: 52″ x 50″
Z-Axis Clearance: 3″
Table Type: Combination Vacuum Hold-Down Table
Material Loading Access: 4-Side Open-Bed Pass-Through Access Design
Laser Wattage: 500 Watt
Laser Type: CO2 RG-Excited Metal Tube
Optical System: Fixed Laser Head
Metal-Cutting Package: Capacitive Height-Sensing Auto-Focus Nozzle

Positional Accuracy: ±0.002″
Repeatability: ±0.0005″
Max Vector Cutting Speed: Up to 20″/sec
Max Raster Engraving Speed: Up to 150″/sec
Vision Registration System: Kern K-Vision Camera Registration System

Electrical: 208-240V, 3-Phase
Approximate Dimensions: 88″ x 74″ x 58″
Approximate Machine Weight: 3,200lbs

Equipped With
Kern KCAM Laser Motion Software
