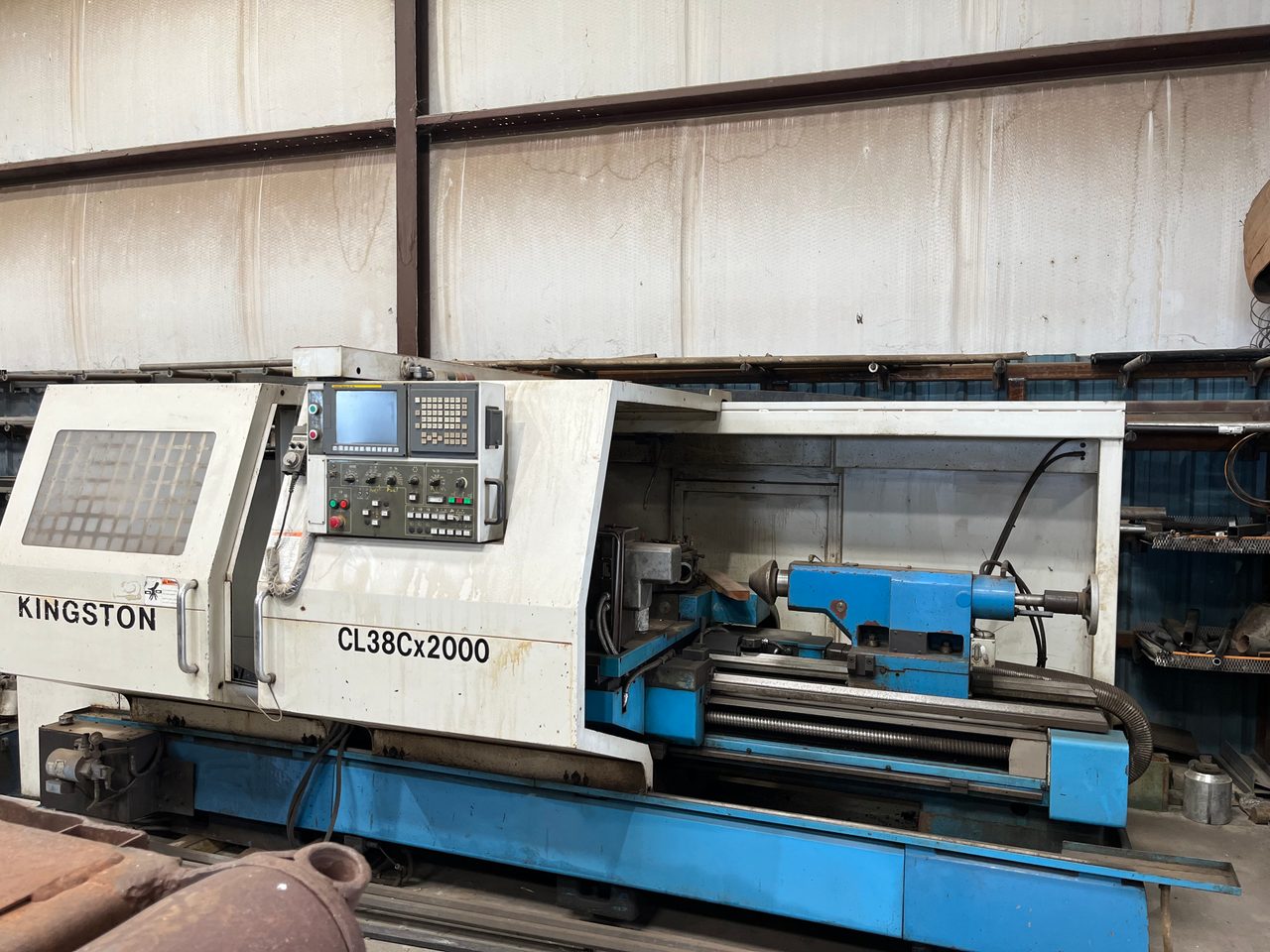

Kingston, CL38-2000, Hollow Spindle Lathe, 2006 – w/ 24″ Air Chuck

$29,900.00

Kingston, CL38-2000, Hollow Spindle Lathe, 2006 - w/ 24" Air Chuck
Kingston, CL38-2000, Hollow Spindle Lathe, 2006 - w/ 24" Air Chuck - Image 2
Kingston, CL38-2000, Hollow Spindle Lathe, 2006 - w/ 24" Air Chuck - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: CNC Lathes
Make: Kingston
Model: CL-38
Year: 2006
Machine Location: Oklahoma
Stock #: 242893

FANUC oi-TC Control

24″ 4-Jaw Chuck Air Chuck
2000 rpm 2 Speed A2-11 Spindle
7.3″ Spindle Bore
26″ Swing Over Bed
14.6″ Swing Over Cross Slide
78″ Distance Between Centers
18.1″ Bed Width
21.26″ X-Axis Travels
76.8″ Z-Axis Travels
4 Station Turret
Steady Rest
Remote Jog Handle
One Touch IGF Programming
Hydraulic Tailstock MT#5
7.9″ Tailstock Travel
3.97″ Diameter of Tailstock Quill
30 HP Motor
Coolant Tank and Pump
Chip Conveyor
Dimension 282″L x 91″W x 78″H
Weight 17,857 pounds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
