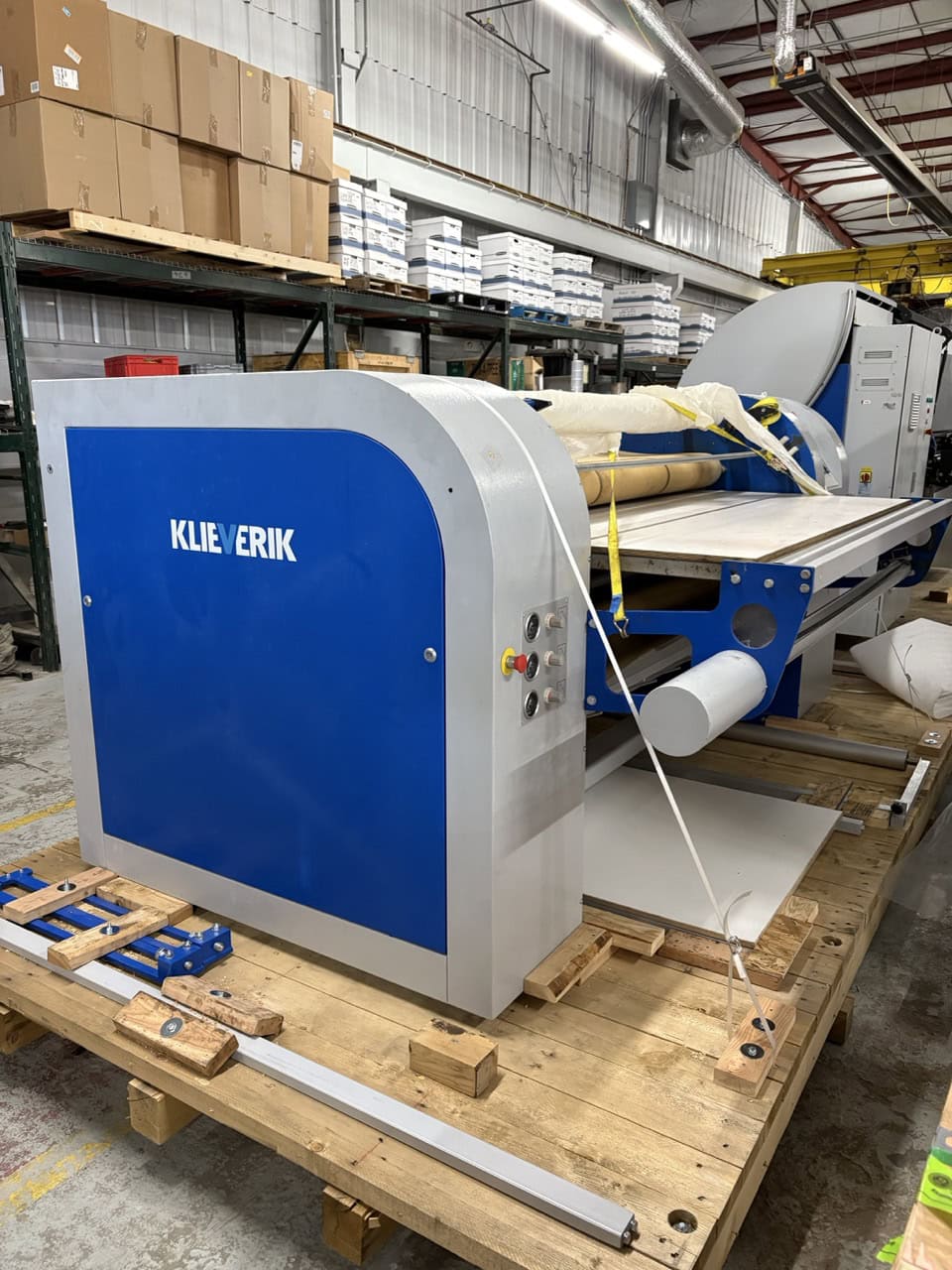

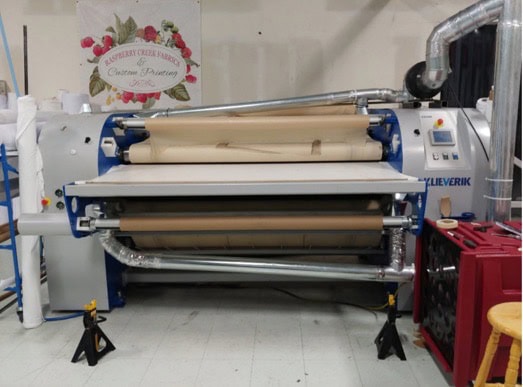

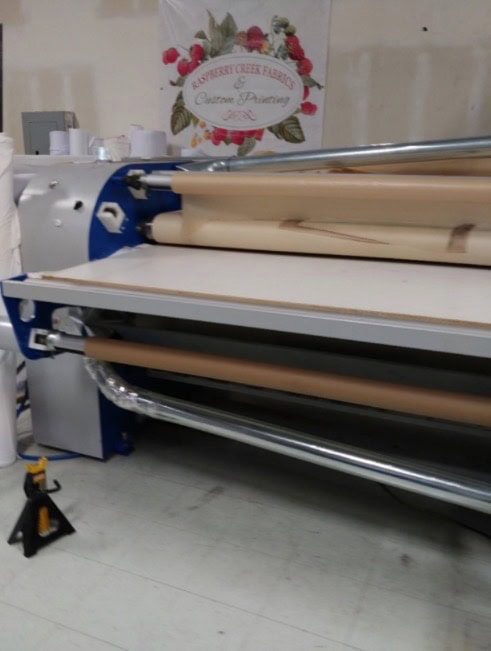

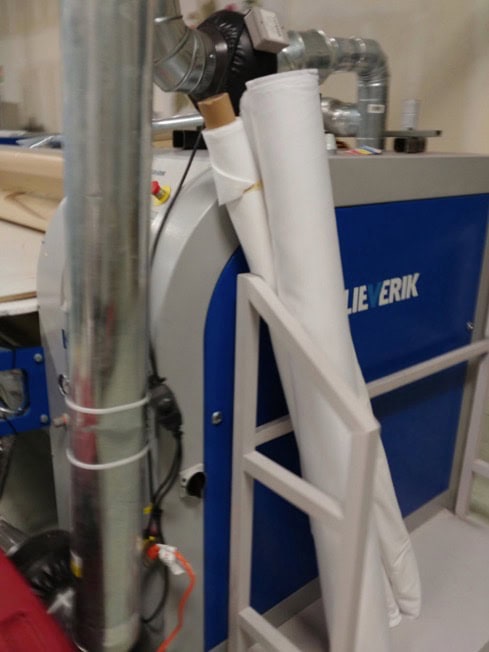

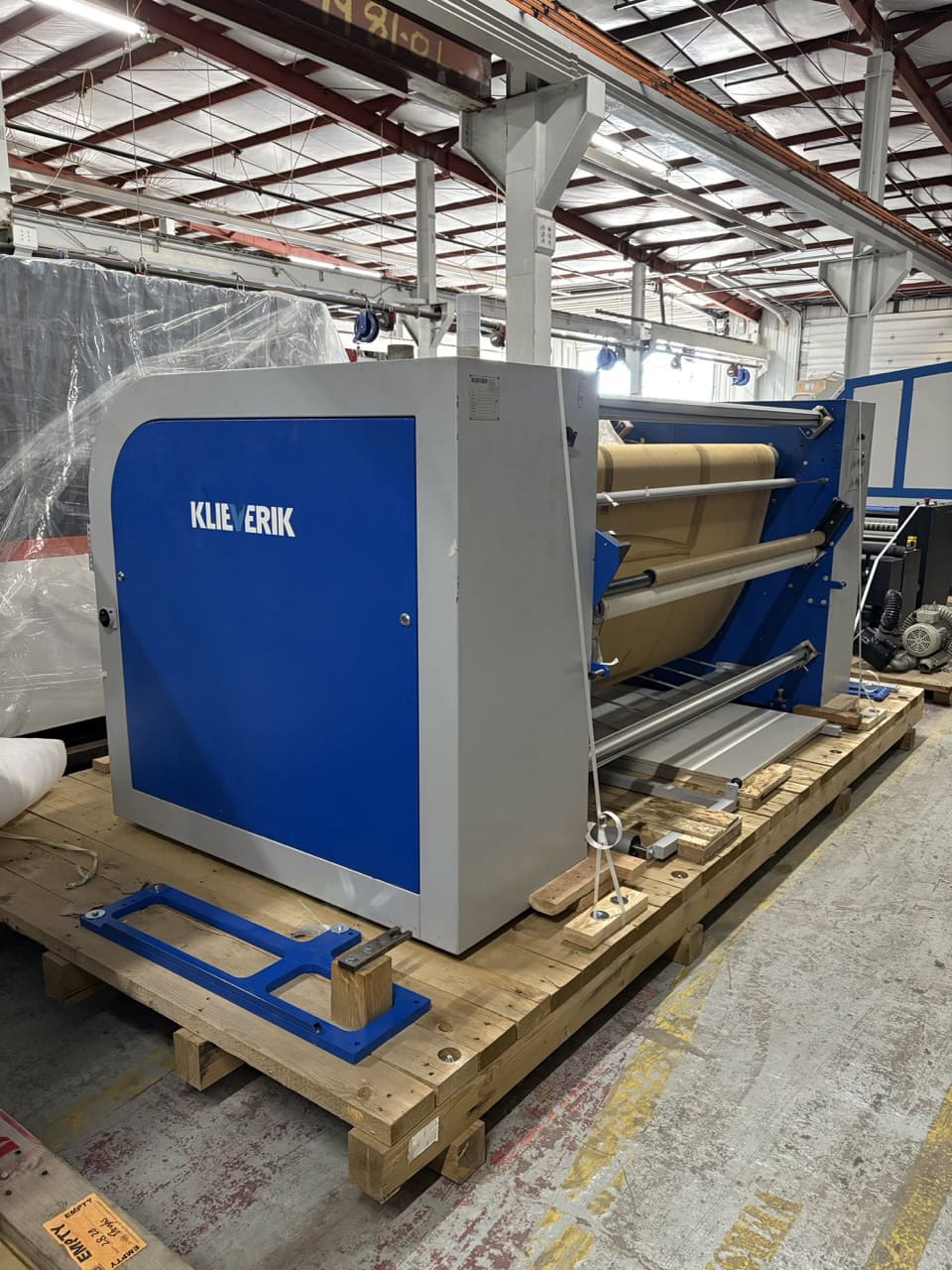

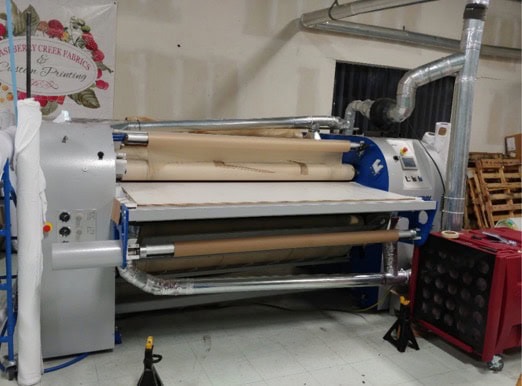

Klieverik GTC111-2000SP Flowline Transfer Printing Heat Calendar, 2018
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Machine width 3156 mm/124,3โณ
Machine length 3677 mm/144,8โณ
1457 mm/57,4โณ
Machine weight ยฑ 2350 kg
DIAMETER / WIDHT
Heating cylinder diameter 500 mm/19,7โณ
Maximum working width 1800 mm/70,9โณ
Substrate unwind diameter 250 mm/9,8โณ
Substrate rewind diameter 250 mm/9,8โณ
Maximum transfer paper width 1800 mm/70,9โณ
Transfer paper unwind diameter 250 mm/9,8โณ
Transfer paper rewind diameter 250 mm/9,8โณ
Maximum protective paper width 1830 mm/72โณ
Protective paper unwind diameter 400 mm/15,8โณ
Protective paper rewind diameter 250 mm/9,8โณ
Internal core diameter 76 mm/3โณ
TABLE / FUME EXTRACTOR
Lenght infeed table SP FL 160 cm/63โณ
Lenght extended table SP FL 100 cm/39,4โณ
Outer diameter connection fume extractor
70 mm/2,76โณ
BLANKET
Printing blanket width 2000 mm/78,7โณ
Printing blanket length 4550 mm/179,1โณ
Printing blanket thickness 7 mm/0,28โณ
Arc of contact blanket-cylinder 2100
TEMPERATURE/SPEED/AIR/PRESSURE/OIL
Maximum temperature
2400C
Mechinal speed 0,4-5 m/min
Air consumption 0,1 Nm3/hr
Air 6 bar max./G 1/4โณ
Maximum linear pressure
–
Oil capacity heating cylinder 215 l.
ELECTRICAL INFORMATION
Total installed power kVA 37 kVA
Amps required at 208/400/480 V 104/55/34 Amp.
Power heating 36 kW
E-consumption (estimate) –
Power main drive 0,55 kW
Voltage 400 V
Number of phases 3ph
Frequency 50 Hz
