Koehring Prodex 1500-Gallon Jacketed Mixer with Westinghouse 100HP Multispeed Motor

Equipment Overview

High-capacity horizontal jacketed mixer designed for thermal and mechanical batch processing. Ideal for use in chemical, adhesive, and food-grade industrial systems. Jacket supports heating/cooling applications, and the robust Westinghouse drive motor supports dual-speed mixing for different viscosities or phase agitation cycles.

Key Features and Specifications

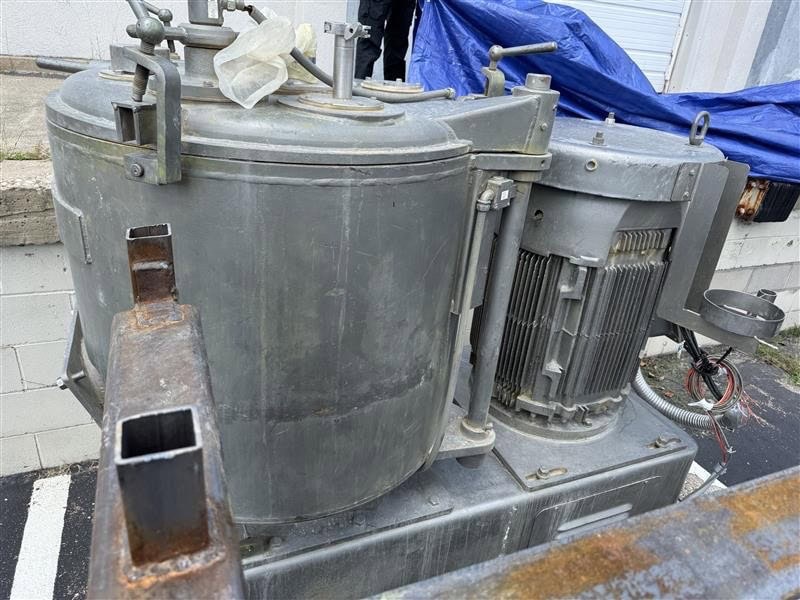

Mixer Assembly
– Type: Horizontal jacketed paddle mixer
– Tank Material: Stainless steel interior (based on visual inspection)
– Jacket Rating: Not labeled; standard for steam or glycol circulation (est. 90 psi)
– Volume: Approx. 1,500–2,000 gallons

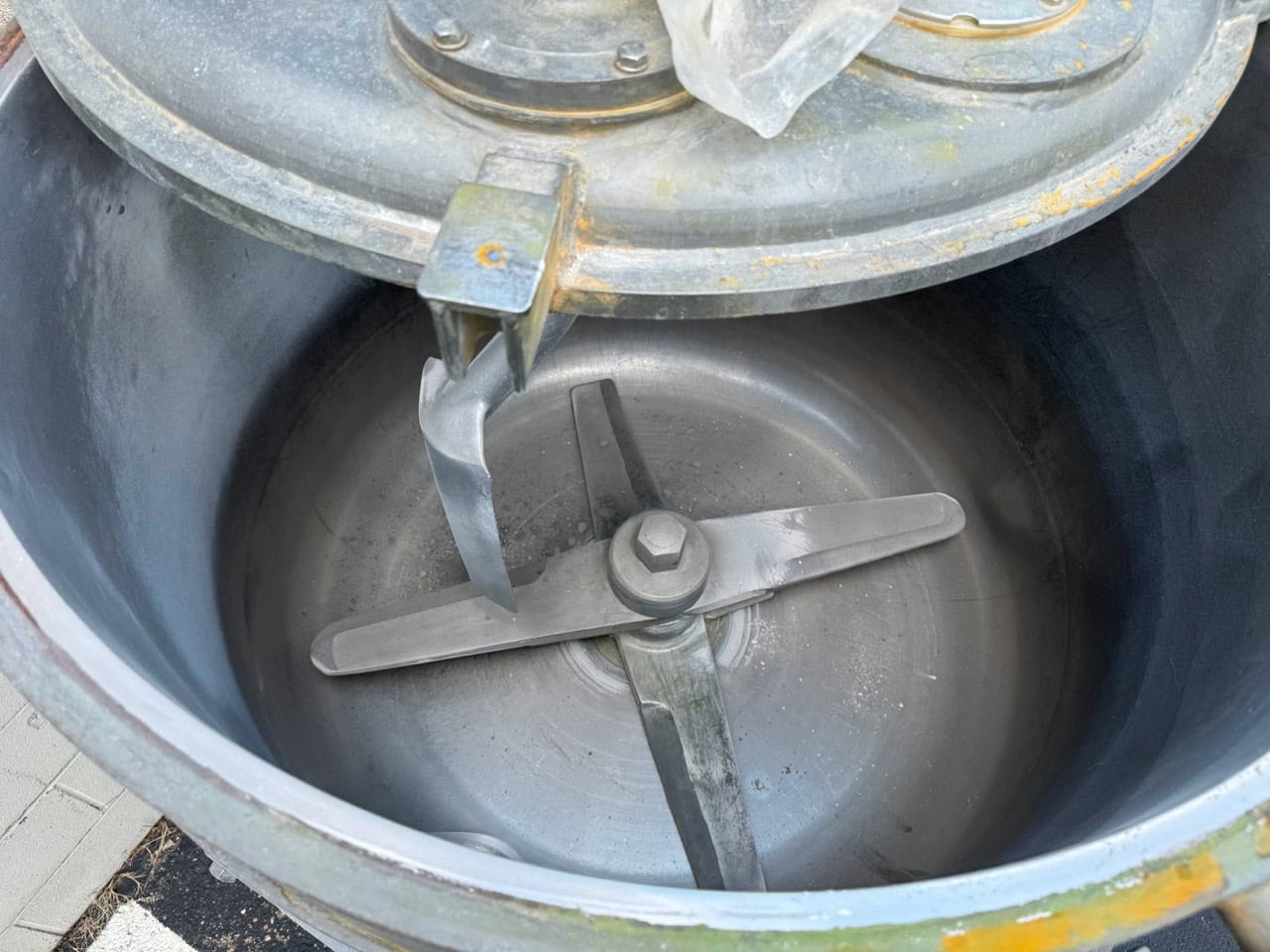

– Impeller Type: Paddle-blade + anchor style agitator
– Agitation: Two-speed via motor tap
– Lid: Hinged with clamp-locking
– Cleanout: Manual side access and bottom drain assumed

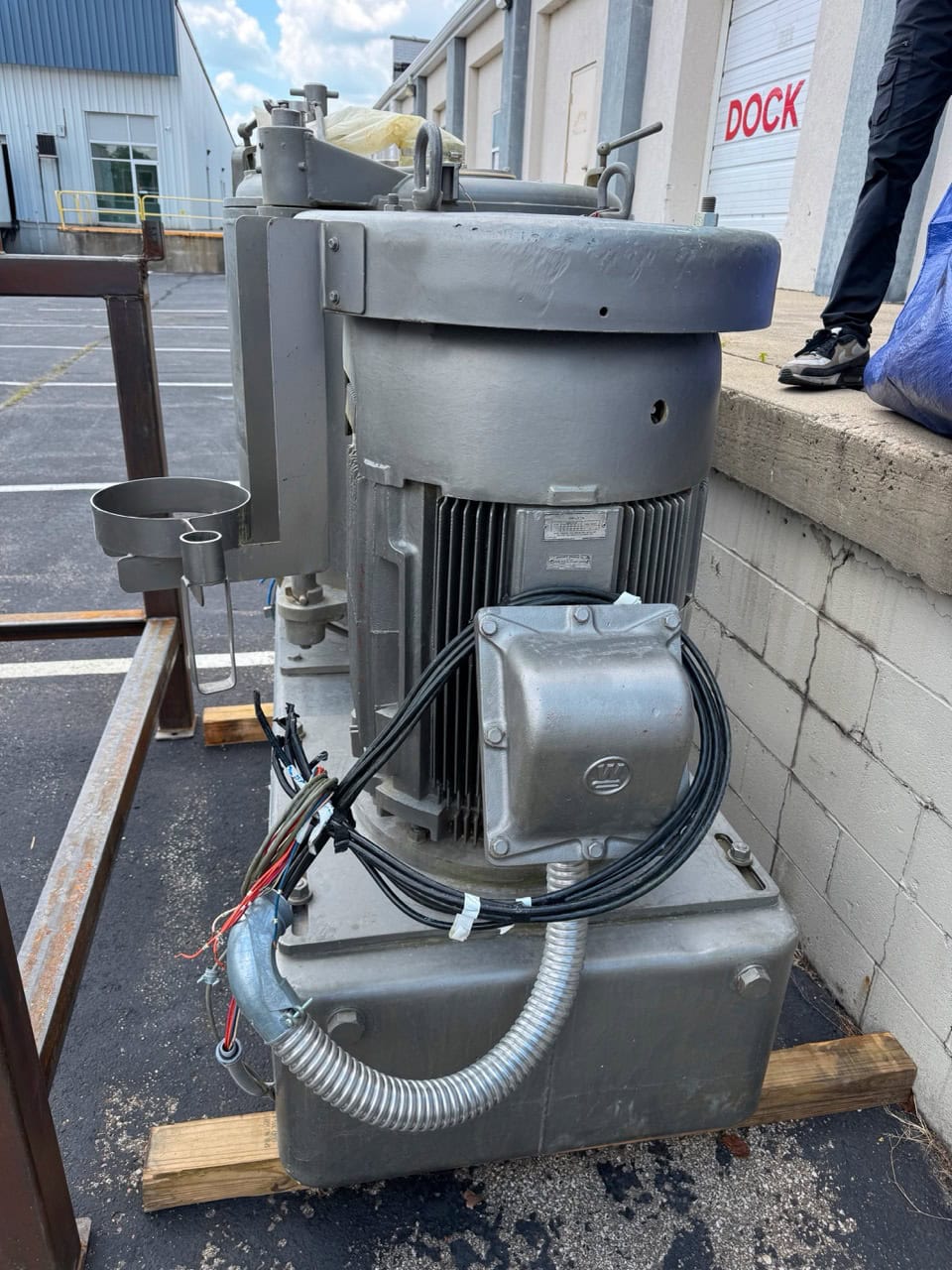

Motor Drive System
– Make: Westinghouse
– HP: 100 HP
– Voltage: 460V
– Phase: 3
– RPM: 1750 / 880
– Amps: 113 / 75
– Frame Size: 445T
– Configuration: Multispeed motor with wiring plate
– Hazardous Location Rating: Yes – UL listed Class I, Group G, Division 1
– Mount Type: Baseplate mount

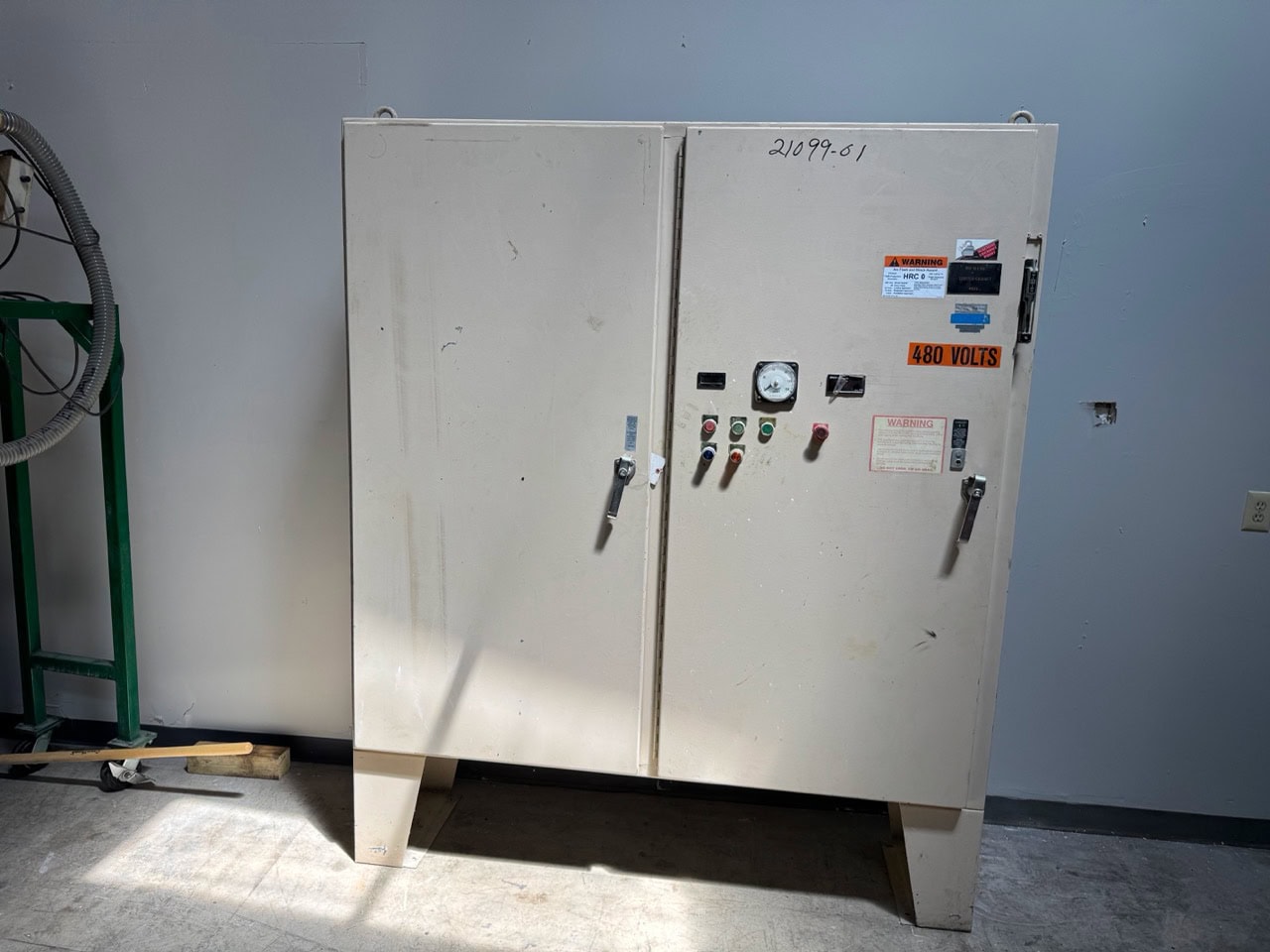

Control Panel
– Voltage: 480V
– Cabinet: Dual-door steel, floor-standing
– Indicators: Pressure gauge, lockouts, rotary disconnects
– Safety: High-voltage warning, operator labels intact
– Condition: Cosmetic wear; all handles and gauges appear intact
