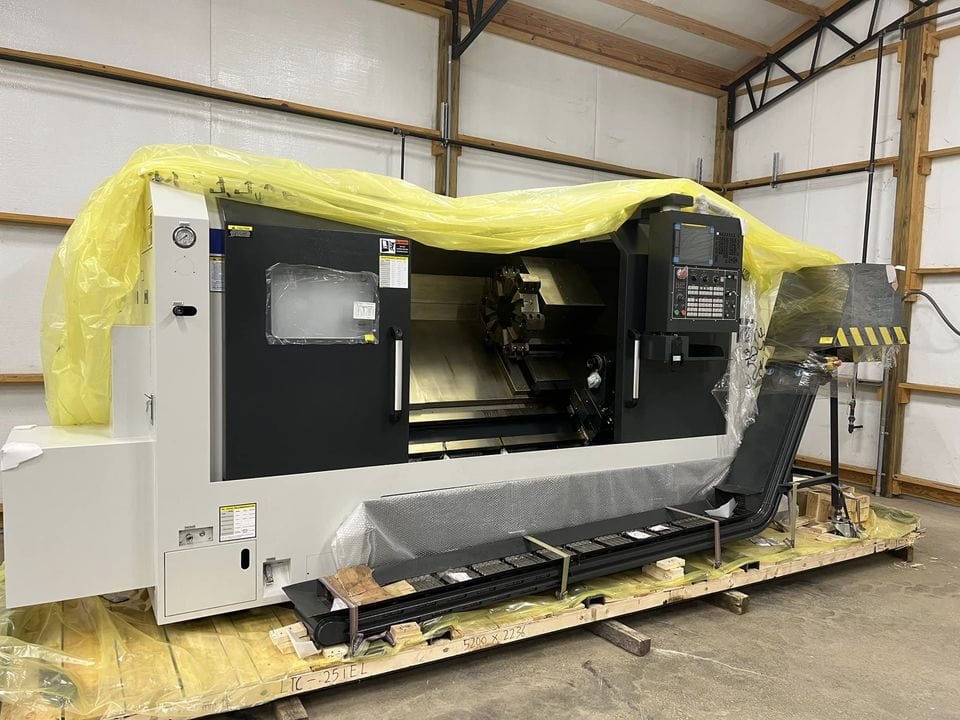

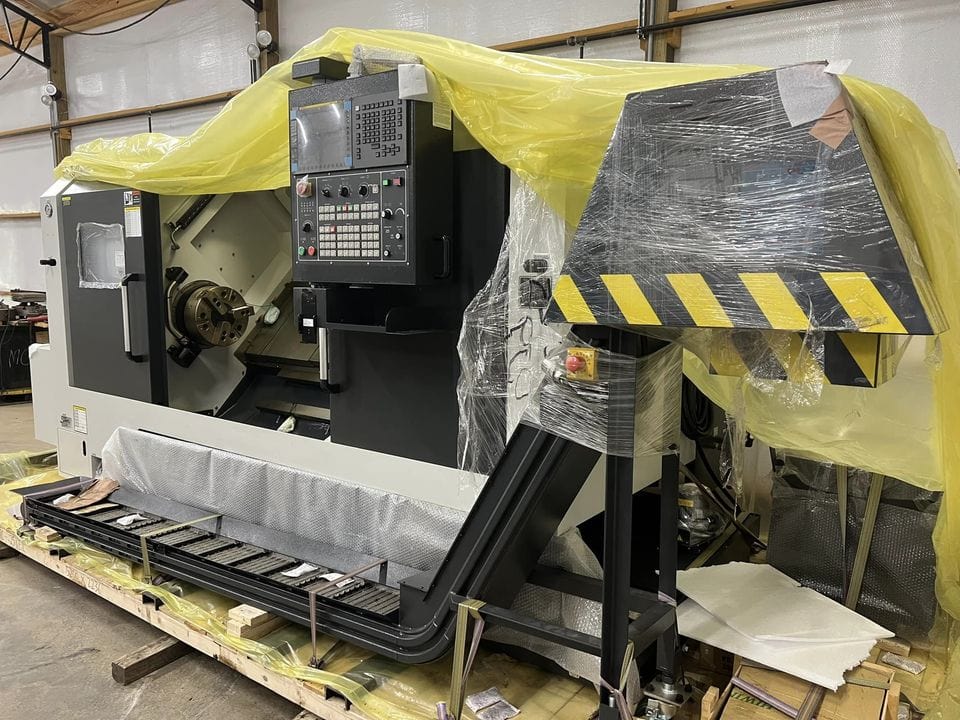

Leadwell CNC Slant Bed Lathe, LTC-25IL, 2023 – NEW Machine, Available Immediately

$129,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

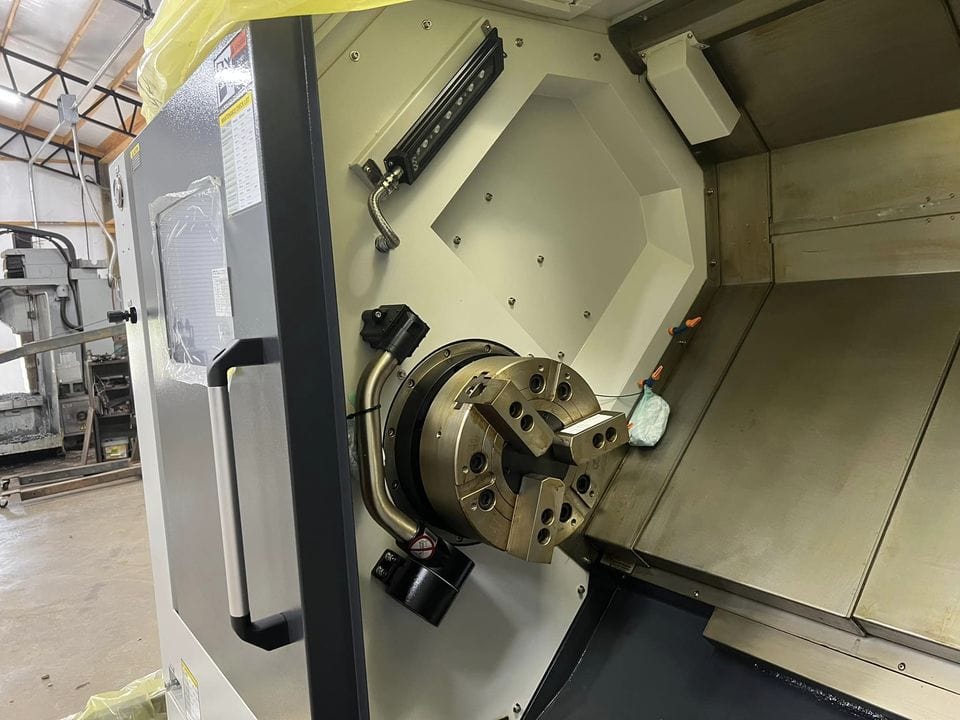

12” CHUCK W/ 4.19” BAR CAPACITY (A2-11)
26.4″ Max Work Diameter
17.7” Max Turning Diameter
40” Max Turning Length
X Axis Travel 9.4″
Z Axis Travel 41.3″
Spindle Bore 5″
Max Work Piece Weight 1,100 lbs
40HP Fanuc High Torque Spindle Motor
2,600 RPM Spindle

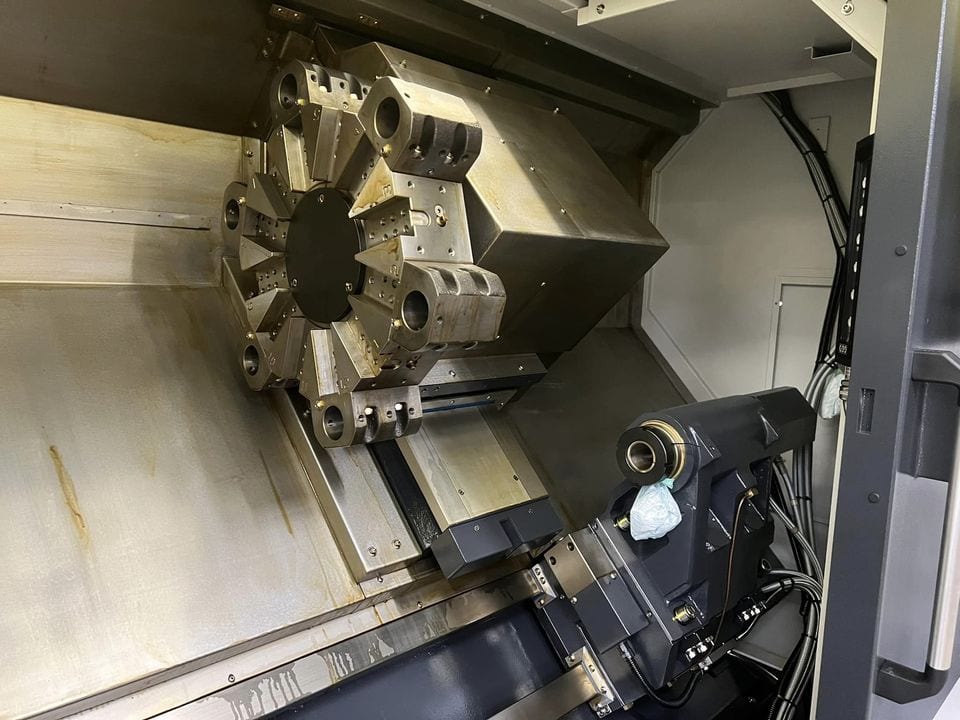

BMT 65 12 Tool Station Bi-Directional Turret
Manual Guide I
Equipped With:

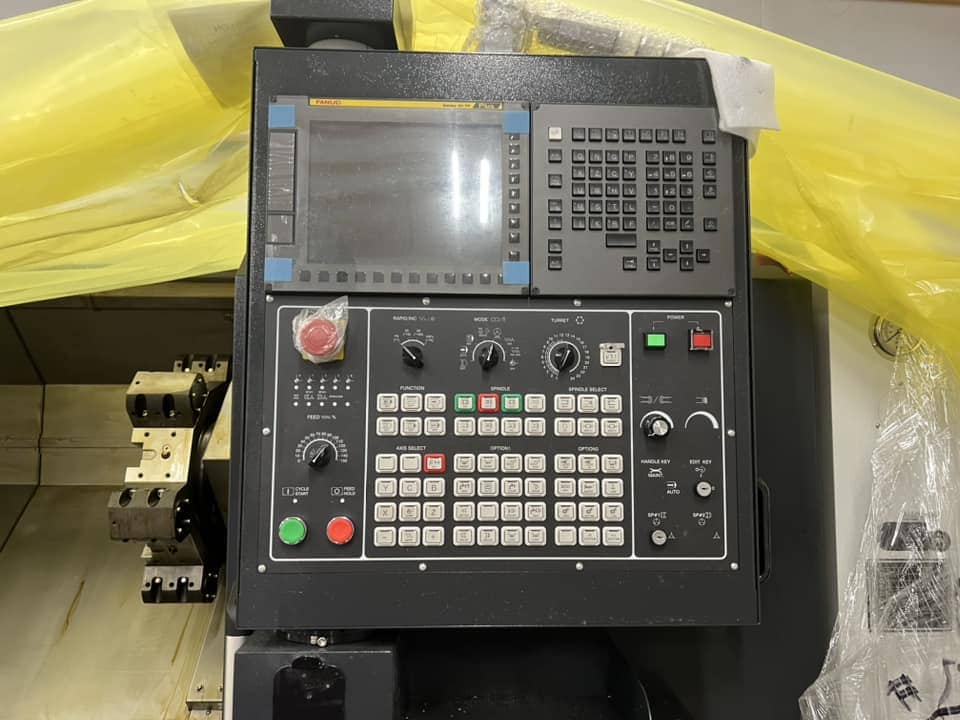

Fanuc OITF Control w/ 10.4” LCD COLOR Monitor W/ USB
64 Bit Micro Processor
512K Meters Memory w/ PCMCIA Card Slot
RS 232C & Embedded Ethernet Connections
Handheld Remote MPG Handwheel
Tool Presetter
Chip Conveyor w/ Bucket
Heat Exchanger For Electrical Cabinet
Tailstock With Programmable Quill
Automatic Central Lubrication System
Custom Macro B & Skip Function
High Rigid 45 Deg Slant Bed Construction
