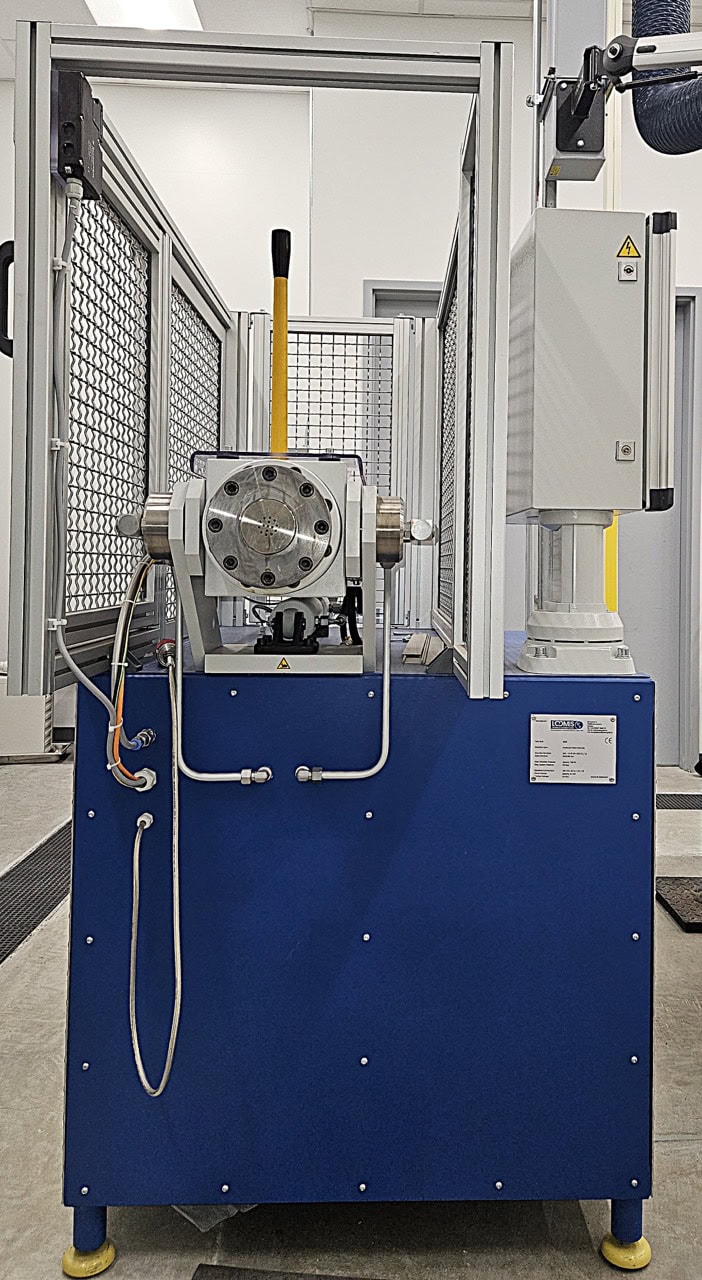

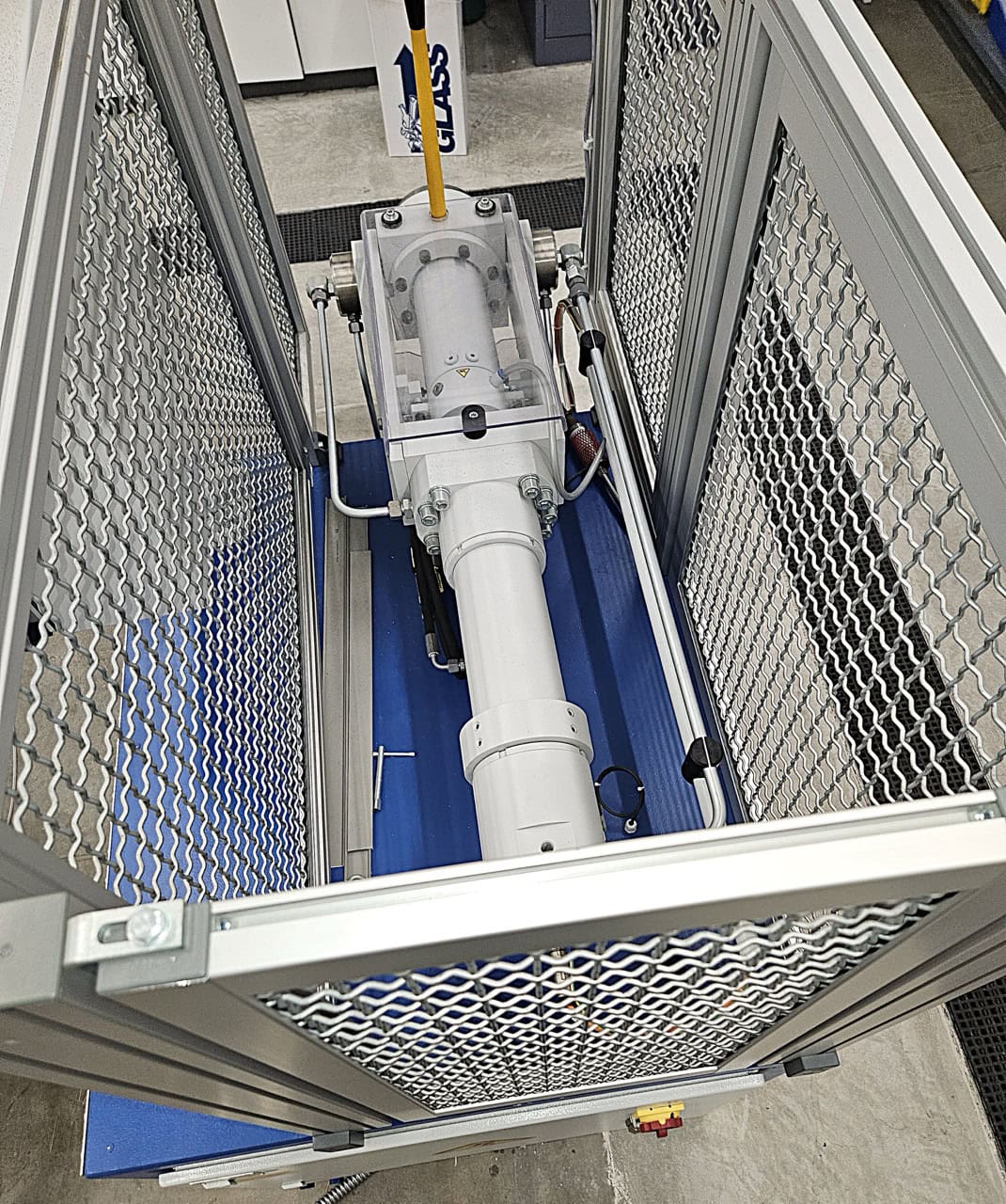

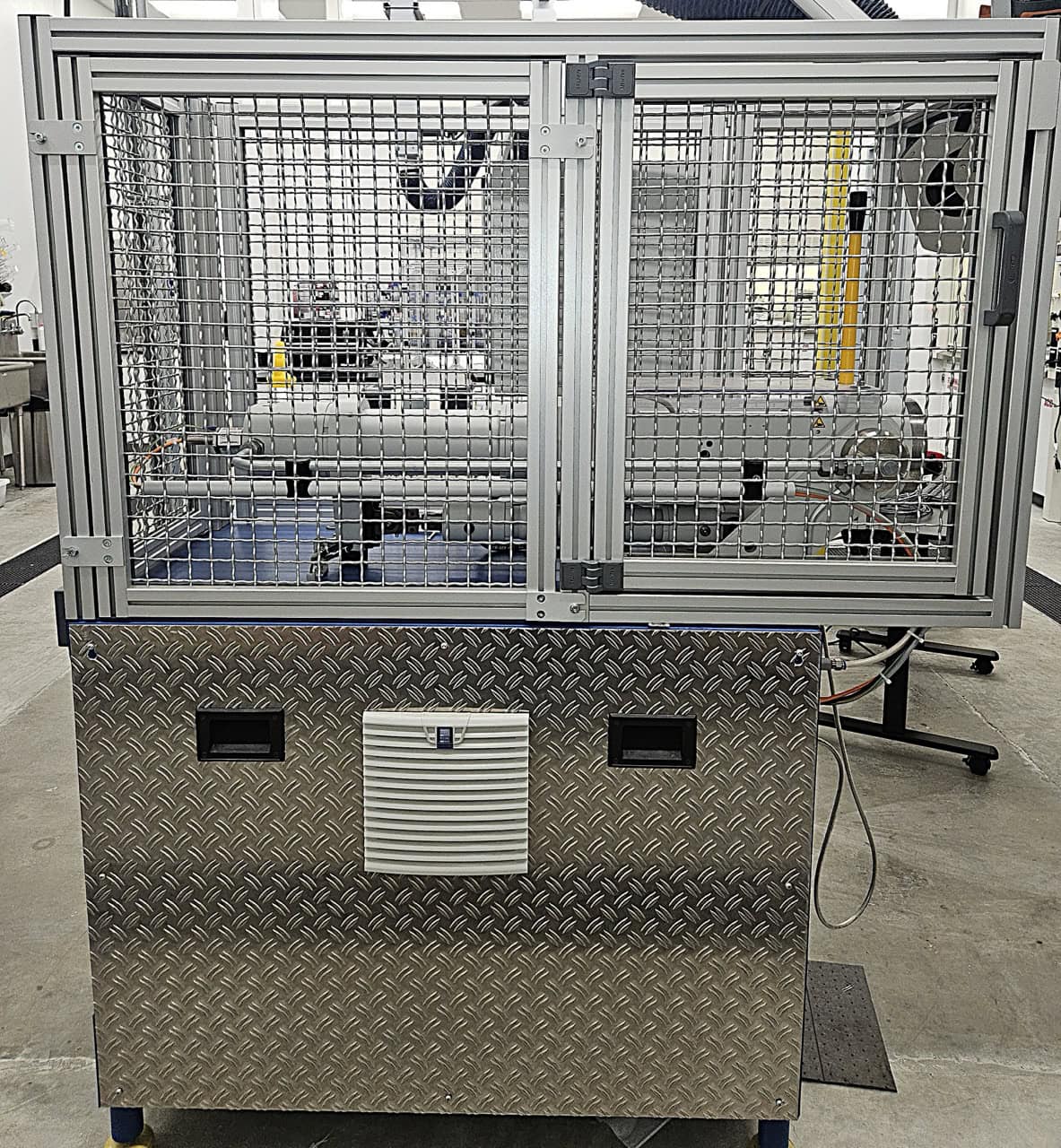

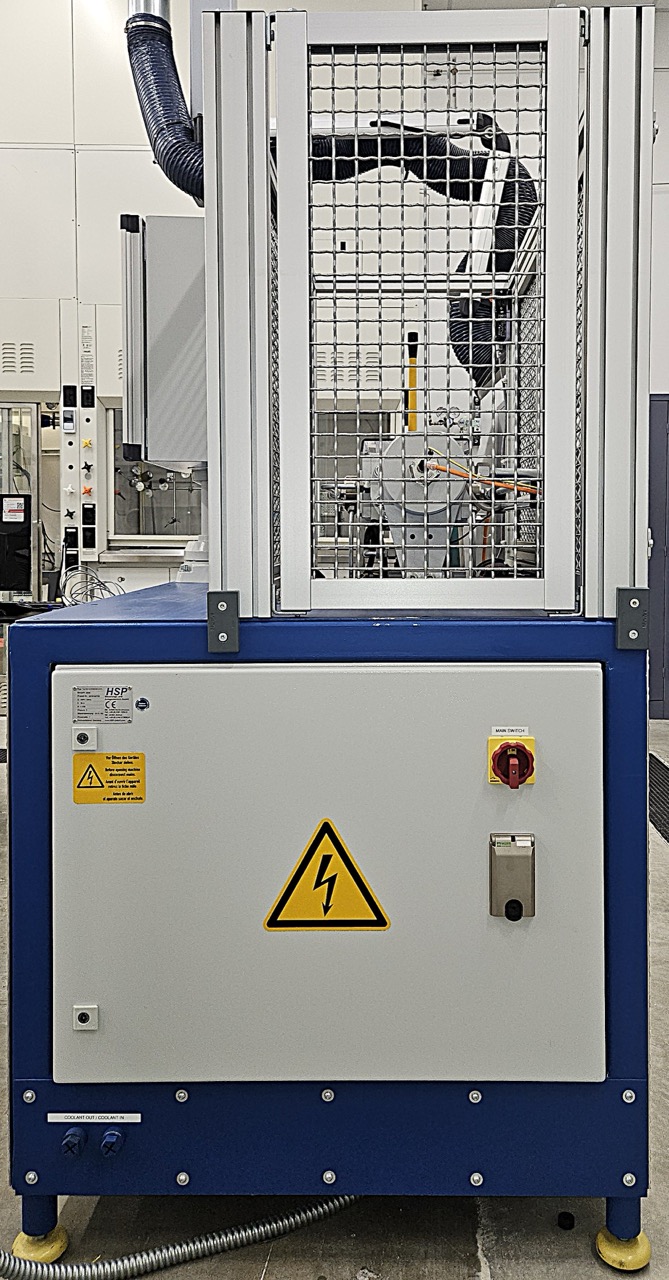

Loomis Laboratory 60mm ID Hydraulic Piston Extruder – 2020, Unused (FAT Tested Only)
$59,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Press Tonnage: 0 – 165 kN
Ram Speed Forward: 10 mm/sec
Ram Speed Retract: 13.8 mm/sec
Extrusion Speed: 0 – 5.2 mm/sec
Material Cylinder Inner Diameter: 60 mm
Material Cylinder Length: 350 mm
Operating Pressure Max: 210 Bar
Power Consumption: 2.50 kW
Supply Voltage: 380 – 420 VAC 50 Hz 3 Phase
Control Voltage: 24 VDC
Machine Dimensions: 63″ x 35.4″ x 60.6″
Vertical Frame Height: 81.5″
Extrusion Exit Height CL: 45.3″
Weight: 1,213 Lbs
Equipped With:

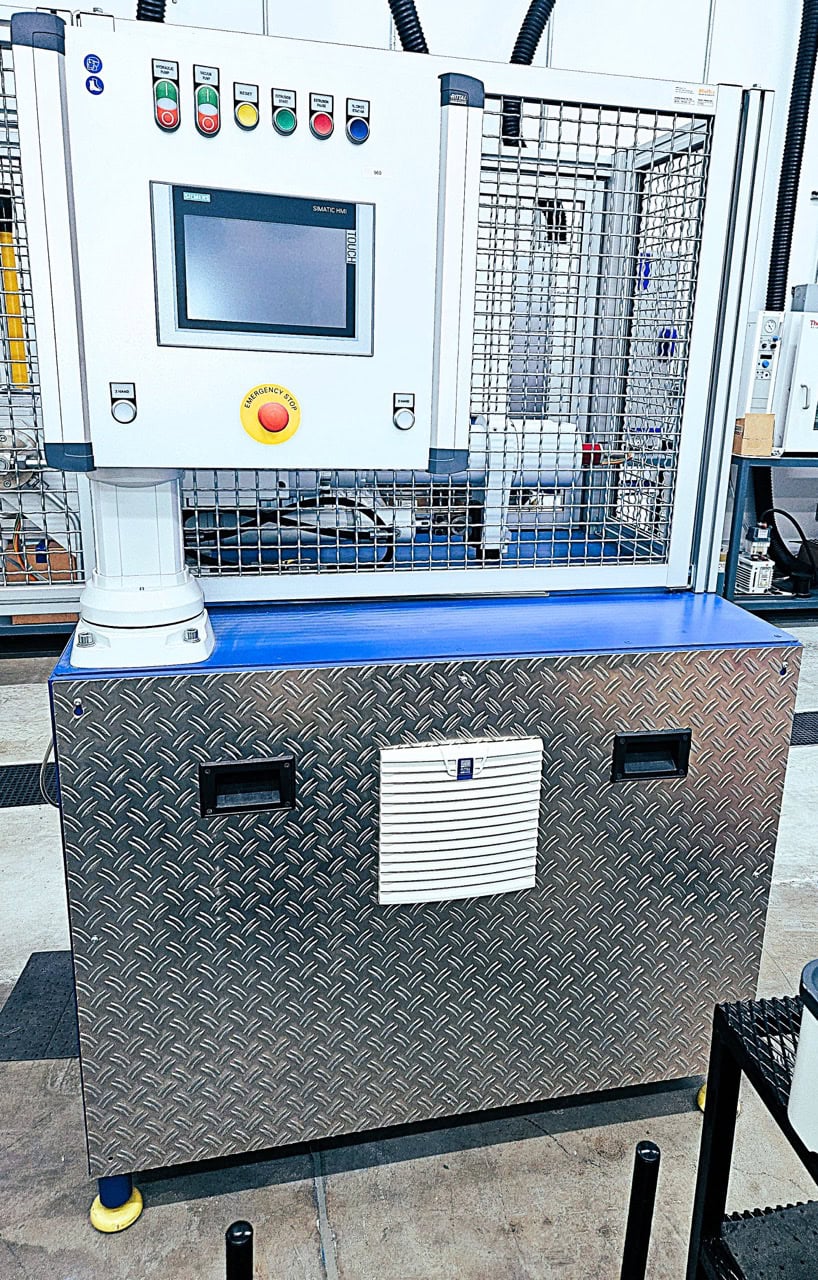

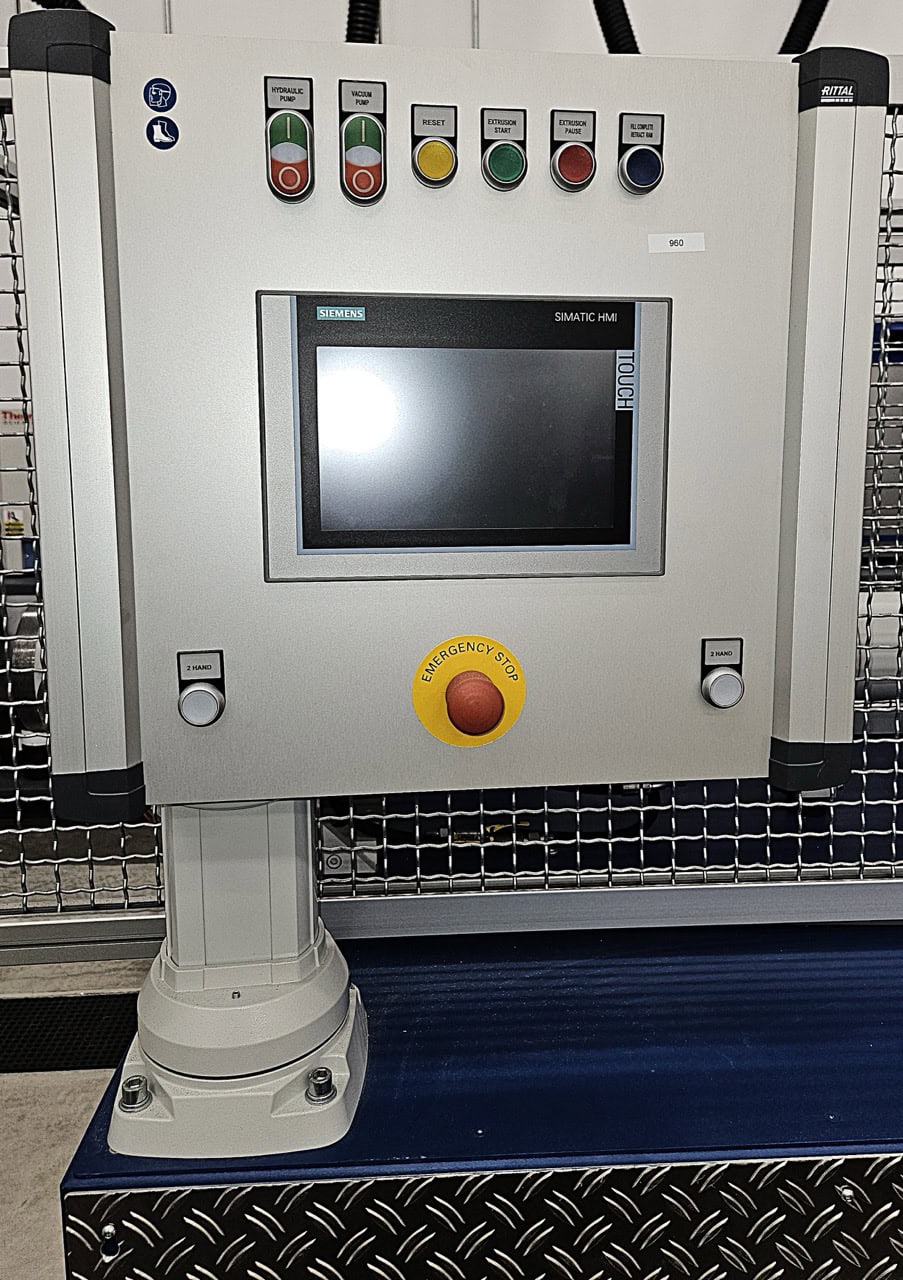

Siemens S7-1200 CPU and Siemens 7” Touch Panel
Prepped for Liquid Heat/Cool
Nozzle Heating and Temp Control
Industrial Paste Pressure Senser
Vacuum System 1.75 M3 Per Hour
Interchangeable Cylinders 50 – 100 mm Range
Hard Chromed Inner Cylinder
All Available Manuals
