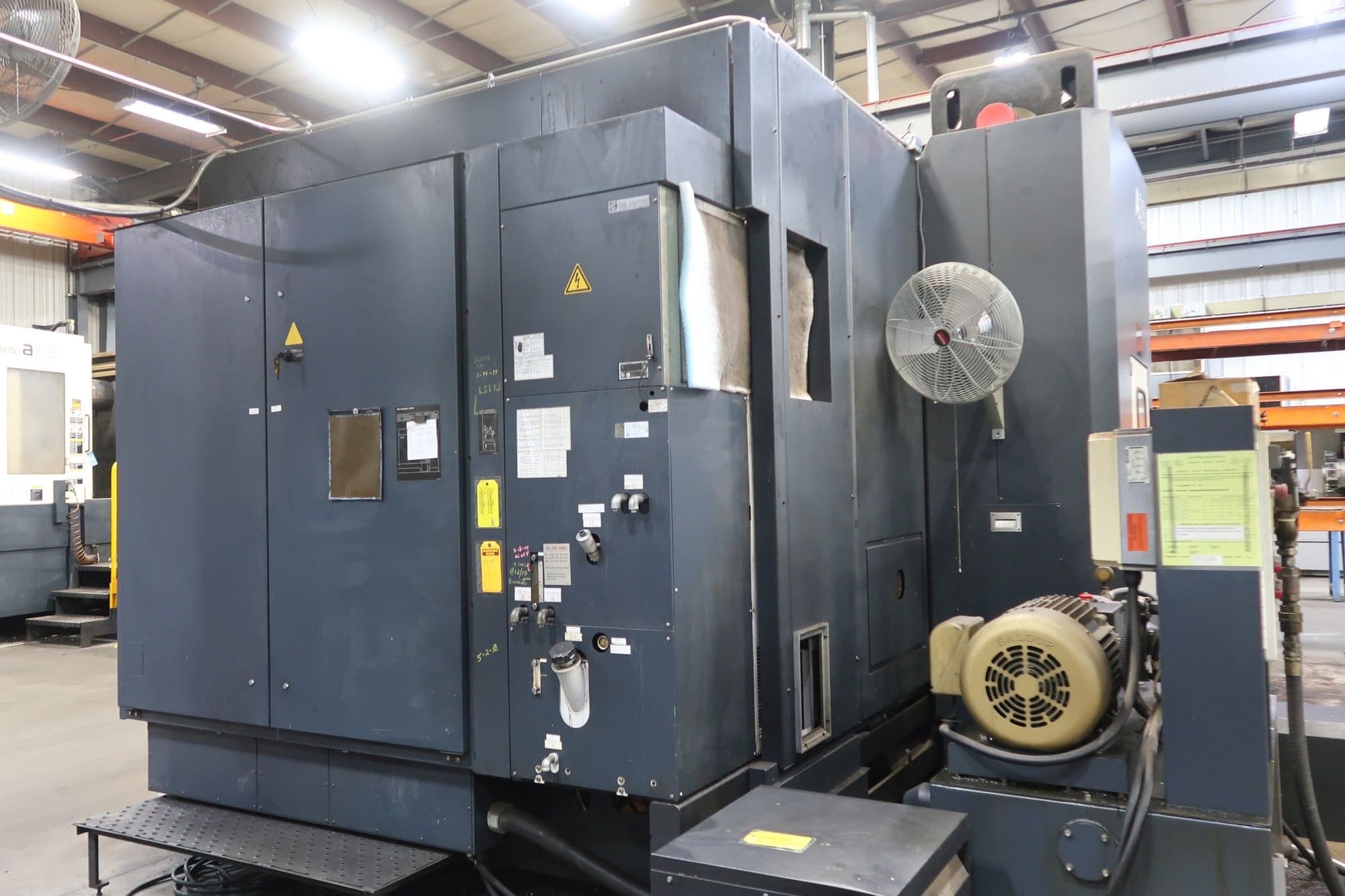

Makino A99 HMC, 1999- 12K RPM, Thru Spindle Coolant, Rigid Tap, Chip Conveyor

$64,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Horizontal Machining Centers
Model:
A99
Make:
Makino
Year:
1999

Pallet Size: 31.49" X 31.49" (800MM)
X-Axis Travel: 39.37" (1000MM)
Y-Axis Travel: 39.37" (1000MM)
Z-Axis Travel: 37.40" (950MM)
Number of Pallets: 2
Pallet Indexing: 001 Degree
Spindle Taper: CAT 50
Spindle Speed: 0 – 12,000 RPM
Tool changer Capacity: 40 Stations
Spindle Drive: 40 HP

EQUIPPED WITH:

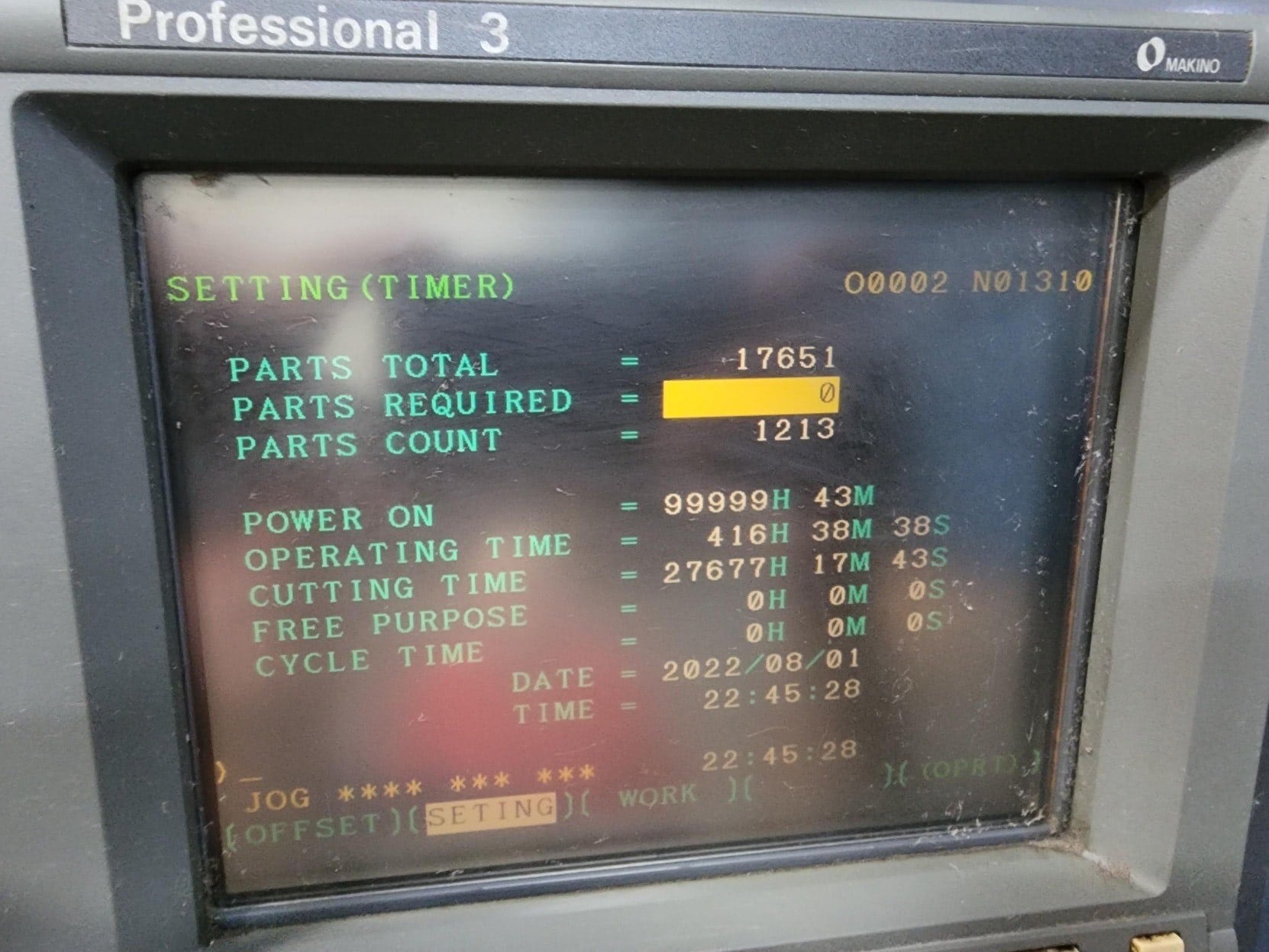

– Pro3 CNC Control

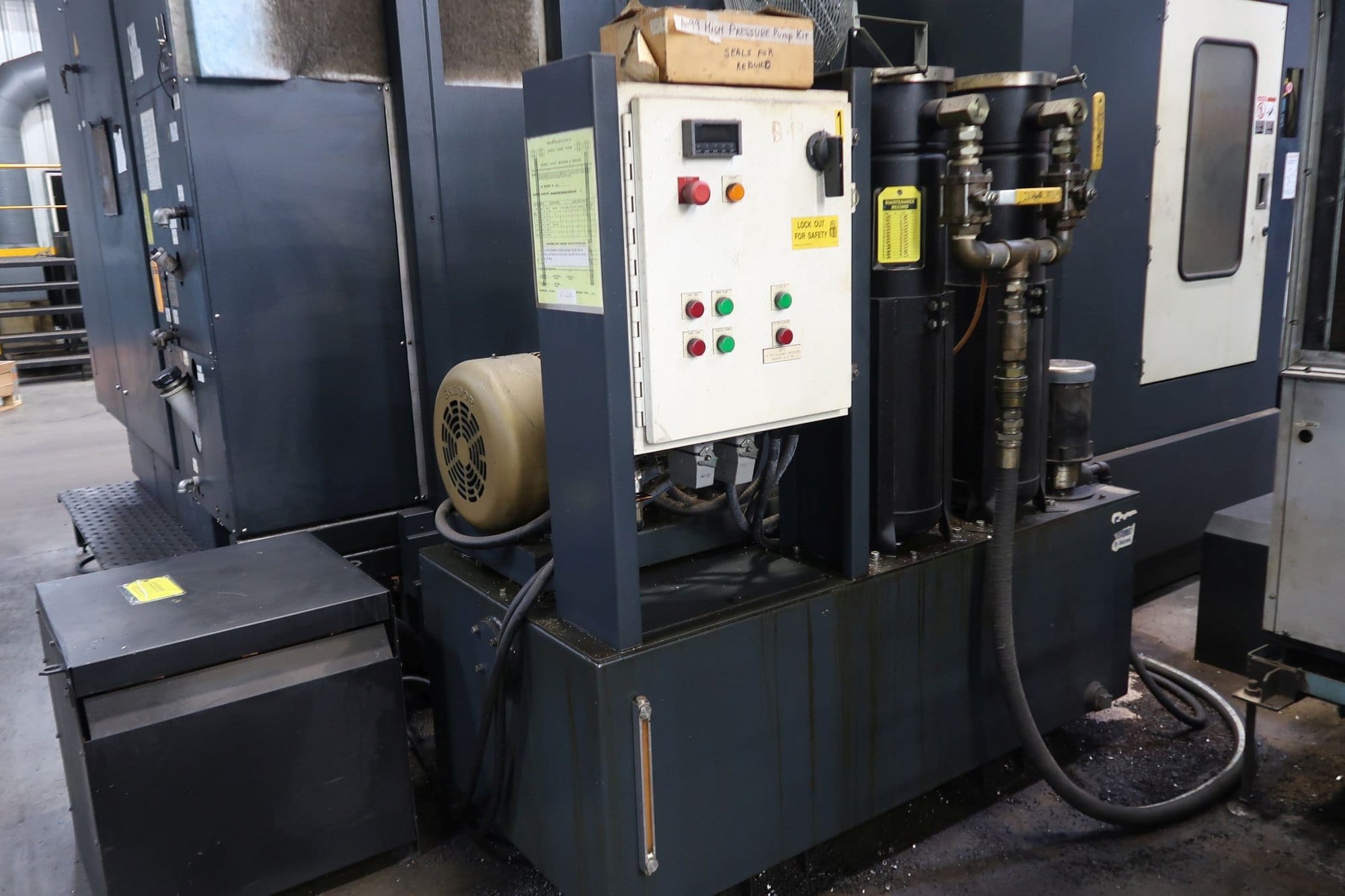

– Thru-Spindle Coolant
– 2 Pallets

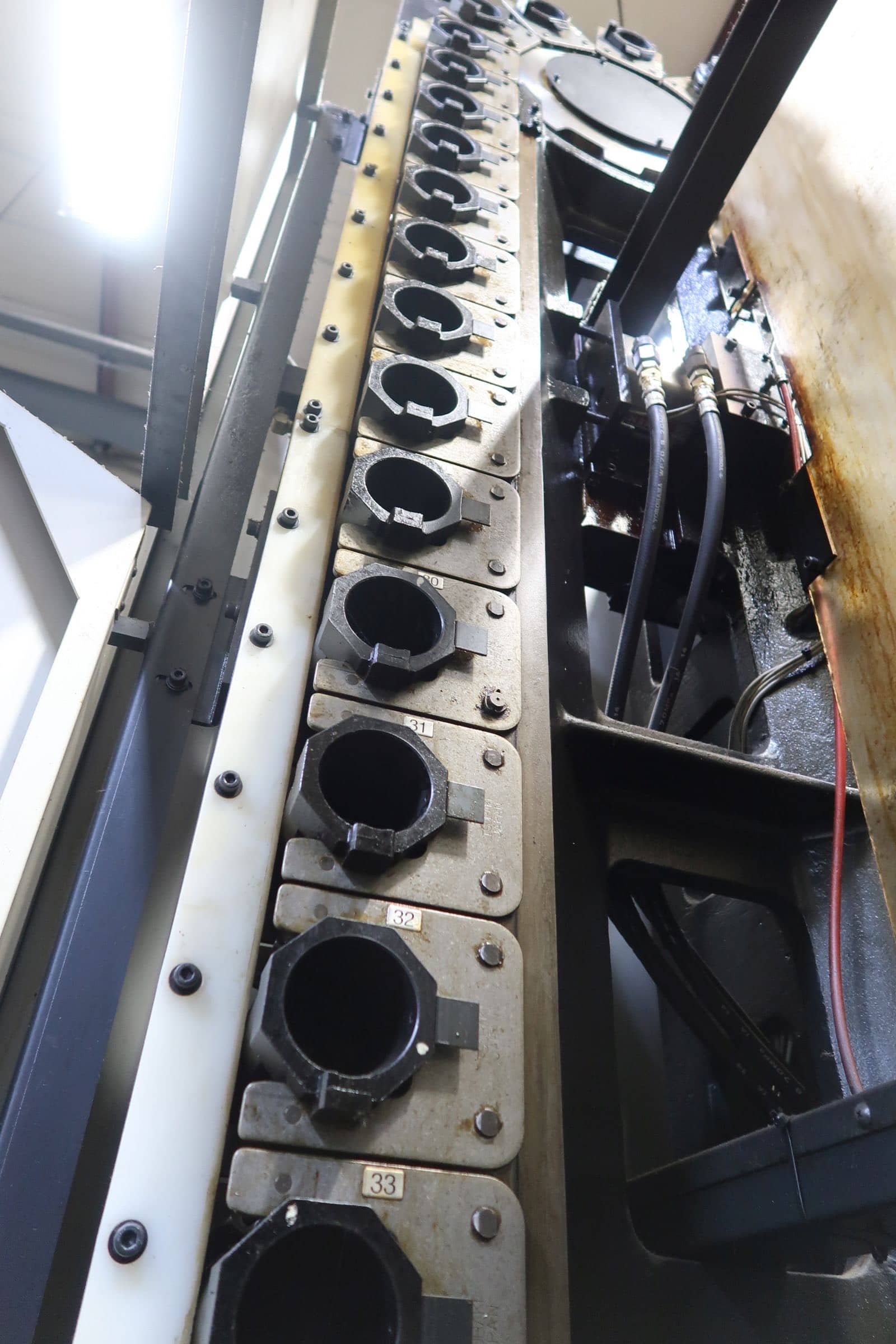

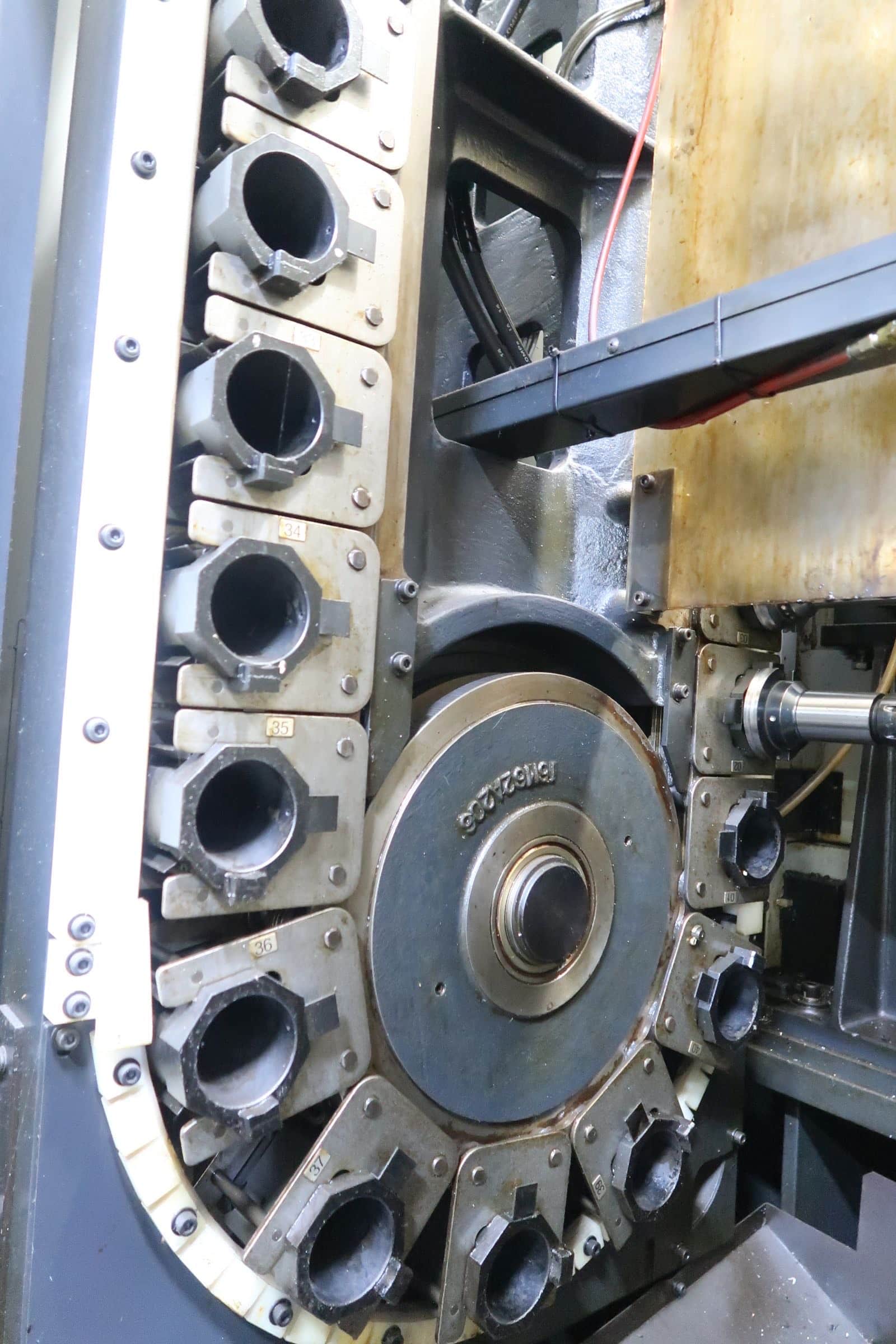

– 40 Station ATC
– Rigid Tapping
– Chip Conveyor
– Tombstone With Techomagnete C1707HD50 Magnetic Chuck with Controller
– 23.6″ x 31.9″ x 2.4″ High Earth Chain EEPM C4 Controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
