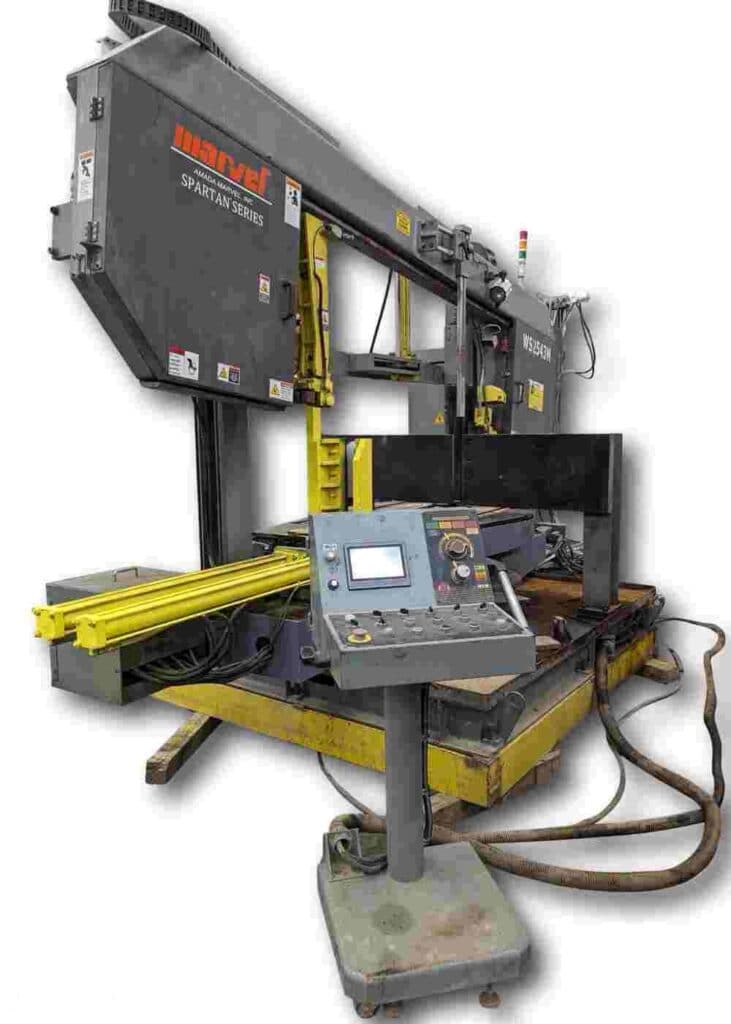

Marvel WS2543M CNC Band Saw, 2020

$89,500.00

Request a Quote to Instantly See Pricing

Machine Type: Horizontal Saws
Make: Marvel
Model: WS2543M
Year: 2020
Capacity: 0” x 0“
Machine Location: Upon Request
Stock #: 685519

90 Degree Capacity:
25.6″ Diameter Round at 90 Degrees
25.6″ x 43.0″ Rectangle at 90 Degrees

45 Degree Capacity:
25.6 Diameter Round at 45 Degrees
25.6″ x 25.6″ Rectangle at 45 Degrees

60 Degree Capacity:
25.6″ Diameter Round at 60 Degrees
25.6″ x 15.7″ Rectangle at 60 Degrees

Blade Size: 28′-6.5″ x 2.13″ x .063″
Blade Speed: 98 to 361 SFPM
Hydraulically Control Blade Tension
Fluid Capacities:
Coolant: 31.7 Gallon
Hydraulic Fluid: 21.1 Gallon
Transmission Fluid: 1.3 Gallon
Load Capacity: 4400 lbs
Pressure Settings:
Hydraulic Pressure: 1067 PSI
Blade Tension: 39825 PSI

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
