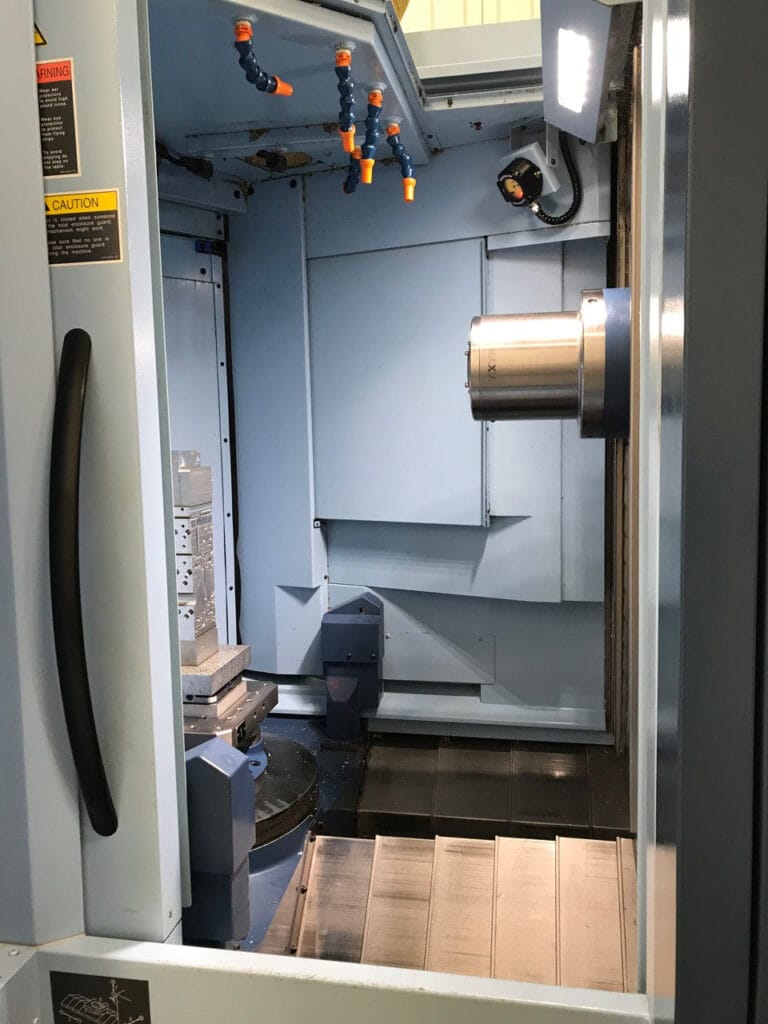

Matsuura H.Plus-300 PC5 300mm HMC, 2018 – 15k RPM, Full 4th, New Spindle, Under Power


Request a Quote to Instantly See Pricing

Machine Type:
Horizontal Machining Centers

Pallet Size 11.81″ X 11.81″
Number of Pallets 5
Table Load Capacity 550 Lbs.
X- Axis Travel 19.68″
Y- Axis Travel 19.68″
Z- Axis Travel 19.68″
Pallet Center to Spindle Face 3.15″ – 22.83″
Pallet Surface to Spindle Center 4.72″ – 24.41″
B- Axis Indexing .0001 Contouring
Spindle Speeds 15,000 Rpm
Spindle Taper Ct 40
Rapid Traverse Rates X,y,z Ipm 1969
Cutting Feed Rate Ipm 1969
Automatic Tool Changer Capacity 120
Machine Weight 22,000 Lbs.

Equipped With (subject to buyer verification):
15,000 RPM Cat 40 Spindle
Full Fourth Axis Rotary Table with Scale (0.001 degree indexing)
5 Position Automatic Pallet Changer
120 Position Automatic Tool Changer
Rotary Wiper/Air Supply System
Turbo Micro-Fine II Chip Conveyor W/ 640 Liter Coolant Tank, Lift up and Scrapper type conveyor
Drum/Disk Filtering Unit W/ Back wash System
In-Process Measurement, Renishaw OMP-60
Renishaw NC-4 Laser for Tool Measurement
Coolant Through Spindle, 300 PSI ($10,000 Option)
Overhead Flushing System
Upgraded Chip Evacuation System
Aeroex ROX-400 Oil/Mist Collector ($6750 Option)
Fanuc Options:
G54.2-Dynamic Fixture Offset, iZ-2/150NF with 1,000 block look ahead, Nano Smoothing function with jerk control, and Optimal torque accel/decel function ($10,000)
Orbital Turning Function ($6,500)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
