Machine Type: Horizontal Machining Centers
Make: Matsuura
Model: H. Plus-300
Year: 2003
Machine Location: Alabama
Stock #: 410155

This 2003 Matsuura H.Plus-300 Horizontal Machining Center features a full 360° B-axis, 22.8″ X-axis travel, 12,000 RPM BT40 spindle, 40-tool ATC, dual pallet changer, and Fanuc 16i-M CNC control, making it ideal for high-precision 4-axis production machining applications.

Pallet Size: 11.8″ x 11.8″
Number of Pallets: 2
X-Axis Travel: 22.8″
Y-Axis Travel: 19.7″
Z-Axis Travel: 17.7″
B-Axis: Full 360° (0.001° Increment)
Spindle Speed: 12,000 RPM
Spindle Taper: BT40
Spindle Motor: 20 HP
Tool Capacity: 40 ATC (Dual Arm)
Rapid Traverse Rate: 1,575 IPM
Cutting Feed Rate: 787 IPM
Maximum Workpiece Diameter: 20.5″
Maximum Workpiece Height: 25.6″
Maximum Workpiece Weight: 440 lbs
Machine Weight: Approx. 15,400 lbs

Equipped With:

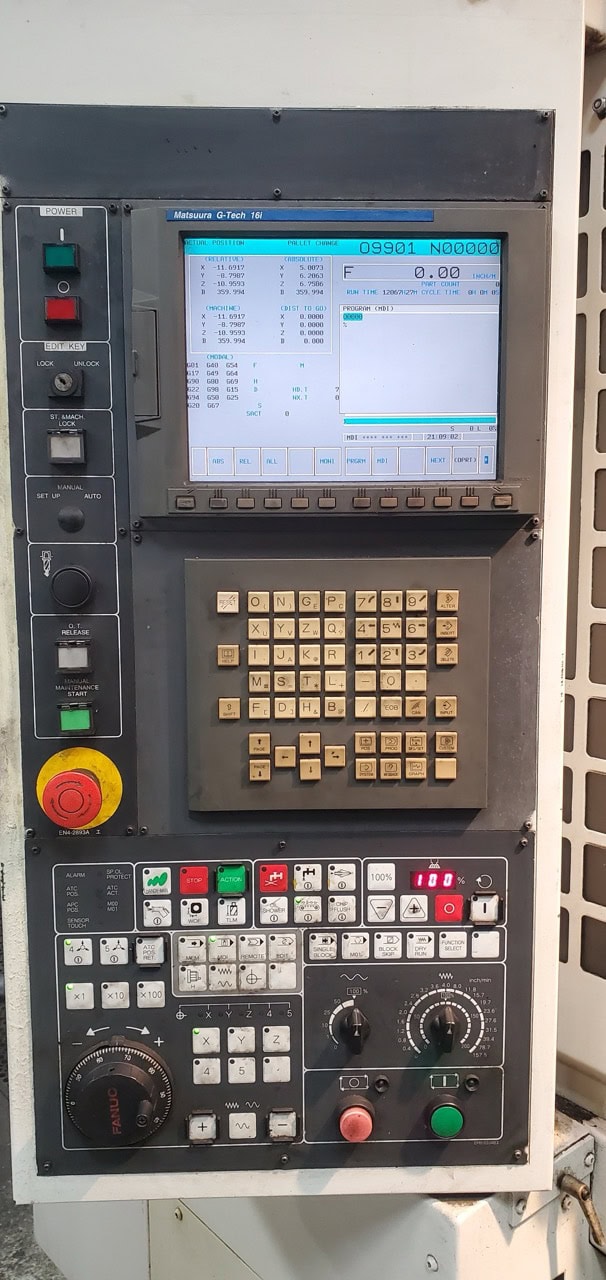

Fanuc 16i-M CNC Control

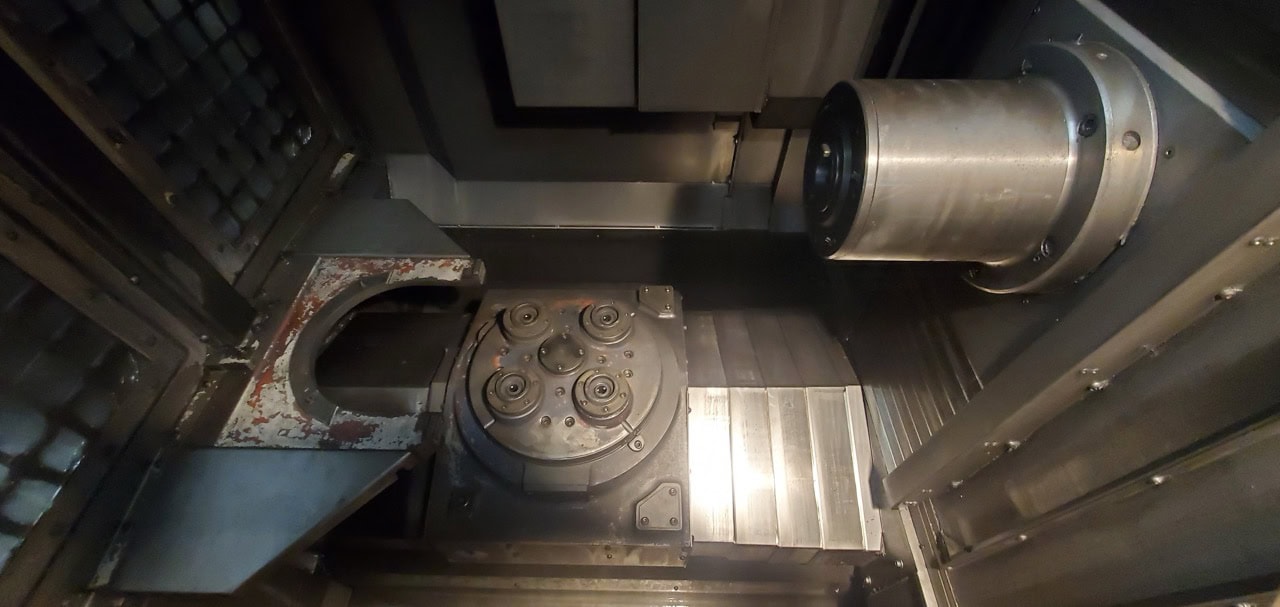

Full 360° B-Axis Rotary Table

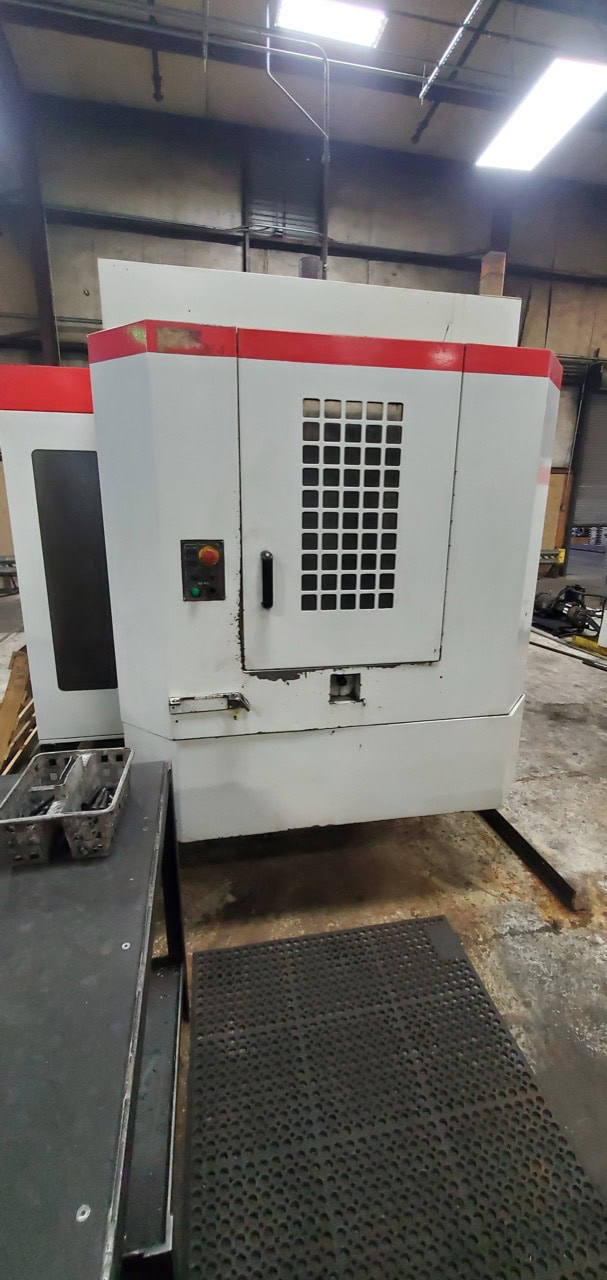

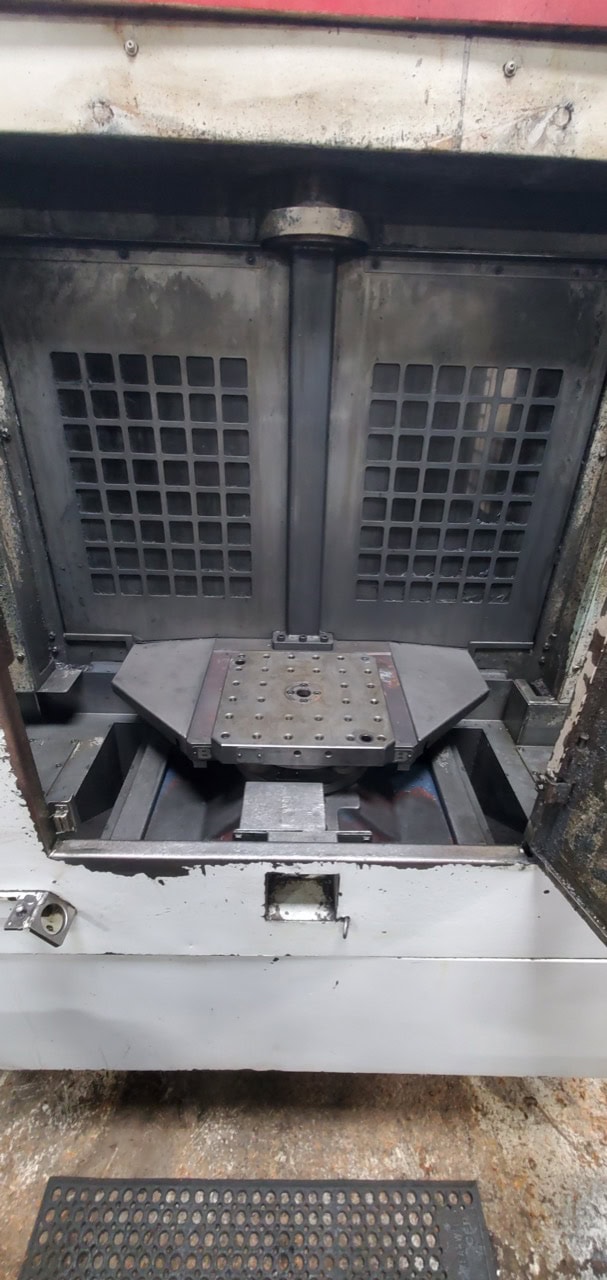

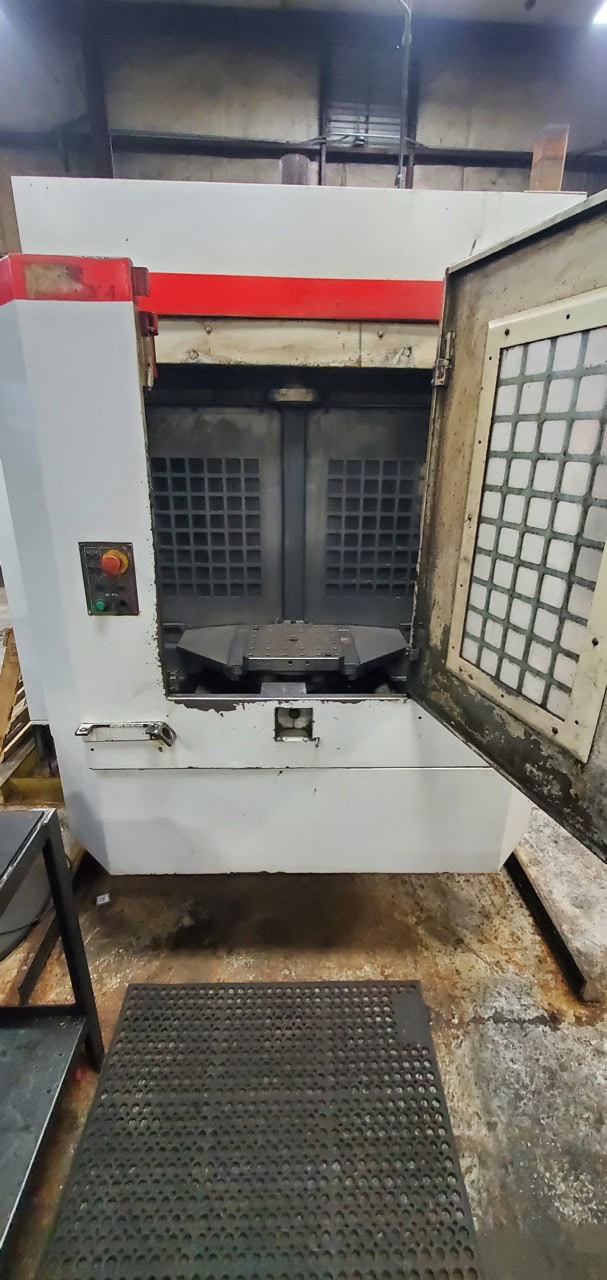

Dual Pallet Changer

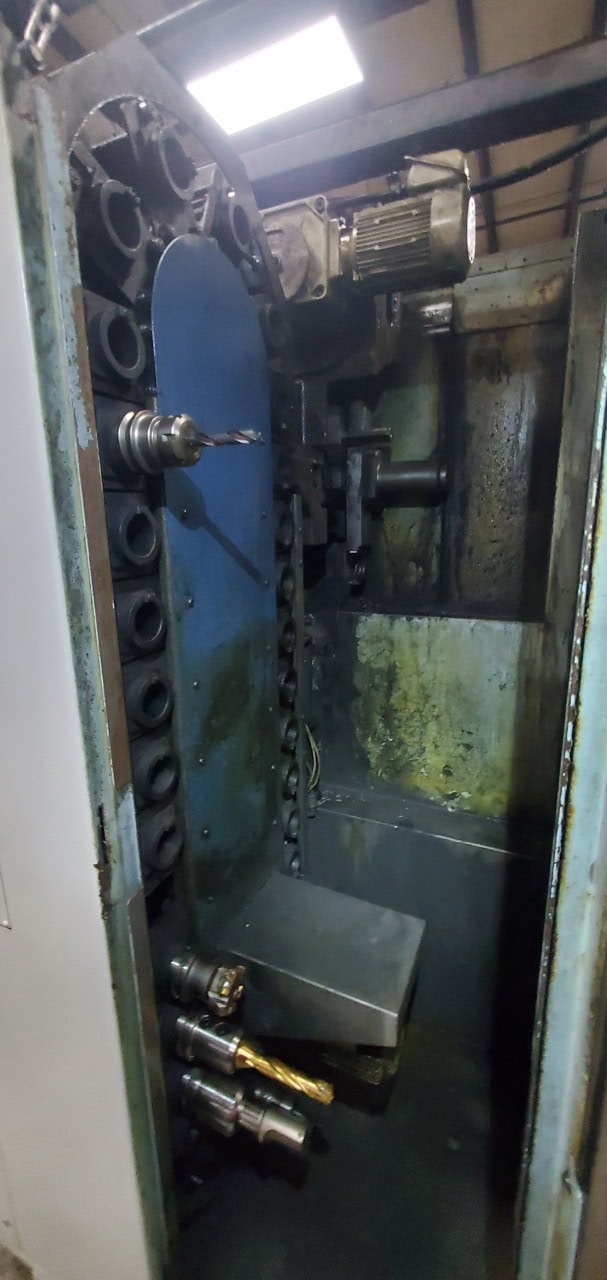

40-Position Automatic Tool Changer (Dual Arm)
Chip Conveyor
Coolant System
All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
