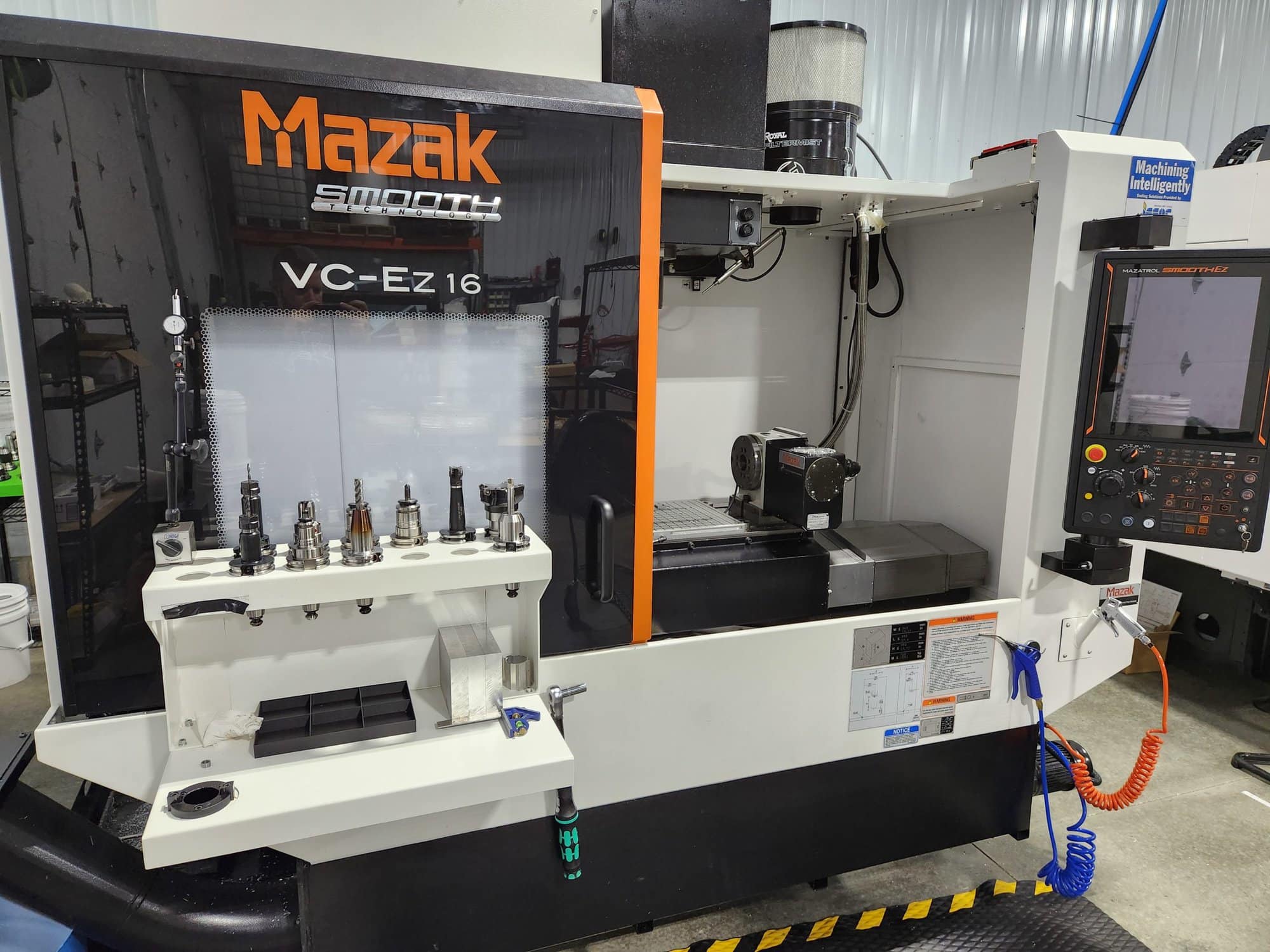

Mazak VC-EZ16 CNC VMC, 2021 – 4th Axis, Low Hours, Extremely Clean, Thru Spindle Coolant, Thru Spindle Air
$89,900.00
This product is no longer available. For additional information, please fill out the form below.
Year: Oct 2021
Table Width: 37.40″
Table Depth: 14.17″
Table Weight Capacity: 1,543 Lbs.
Spindle Face to Table Surface Min/Max: 3.93″/ 24.01″
Rapid Rates: 1417 IPM
Spindle Taper: CAT40
Spindle Maximum Speed: 12,000 RPM
Motor Output (5-minute rating): 25.0 HP / 18.5 KW
Torque: 70.4″-Lbs.
Number of Tools: 30
Travel (X Axis): 30.00″
Travel (Y Axis): 16.14″
Travel (Z Axis): 20.08″
Maximum Tool Diameter without Adjacent Pockets Empty: 2.95″
Maximum Tool Diameter with Adjacent Pockets Empty: 5.94″
Maximum Tool Length: 13.78″
Maximum Tool Weight: 5.94″
Tool Change Time: 2.2 Sec
Dimensions: W 95.08″ D 101.7″ H 111.26″
Weight: 10,582 Lbs.
TSC (230psi)
Through Spindle Air
High Pressure Flood Coolant
Wash-Down Coolant

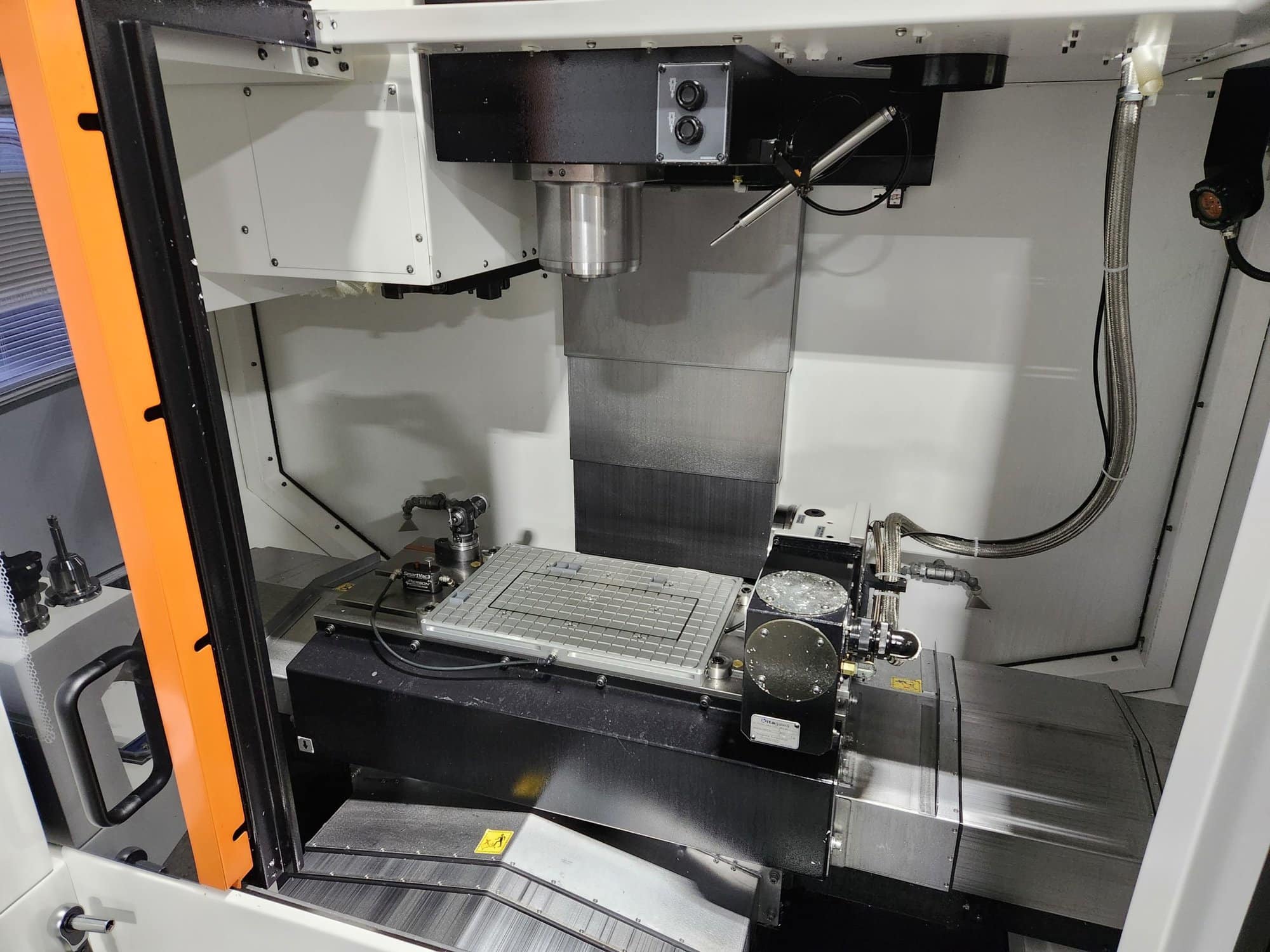

4th Axis Installed (MR160)
Dynamic Work Offset in Control
Part Probe is Renishaw OMP60
Tool Setter is Renishaw OTS Wireless
Hours as of Mid January – 165 Total Hours
****Brand New Price, 6 Month Lead Time – $115,000***
